- Page 1 SP-5T Common Line Intercom System TECHNICAL & USER MANUAL A100K10870...
- Page 2 About this Document Document Scope This document describes the system features, available equipment, typical configurations, simplified wiring and technical specifications for the SP-5T Common Line Intercom System. Publication Log Rev. Date Author Comments First release Zenitel Marine. main units with 2002.05.07 SEN...
-
Page 3: Table Of Contents
Cable Requirements ..............5 Level Adjustment ...............5 3 User Instructions ................6 4 Connection Diagrams & Dimension Drawings ......7 SP-5T Ver. 02 Cable Connection Diagram .......7 SP-5T Cable Connection Diagram ..........8 SP-5MT Microphone Station .............9 SP-5HT Microphone Station .............9 SP5-36-PELP Headset ............10 H66-SP5 Handheld Microphone ..........10... -
Page 4: General Description
General Description The SP-5T Common Line Intercom System provides All-to-All communication between a specified numbers of microphone or headset stations. The number of stations that can be connected depends on output power and loudspeaker tapping. Note that product versions 01 & 02 have the same functions, except they have different PCBs. -
Page 5: Installation Instructions
Installation Instructions General For proper installation and operation of the SP-5T system, we recommend reading this section thoroughly together with the installation drawings. Make sure that all mounting and cabling are correct before switching the system on. The amplifier rack and power supply is for installation indoors while the weatherproof and rugged microphone stations and loudspeakers are for outdoor use. -
Page 6: User Instructions
When you press the TALK button and speak into the microphone or headset microphone from any station, you can be heard in all other loudspeakers or headsets. The station’s own loudspeaker will be muted. A100K10870 SP-5T Technical & User Manual... -
Page 7: Connection Diagrams & Dimension Drawings
Connection Diagrams & Dimension Drawings SP-5T Ver. 02 Cable Connection Diagram A100K10870 SP-5T Technical & User Manual... -
Page 8: Sp-5T Cable Connection Diagram
SP-5T Cable Connection Diagram A100K10870 SP-5T Technical & User Manual... -
Page 9: Sp-5Mt Microphone Station

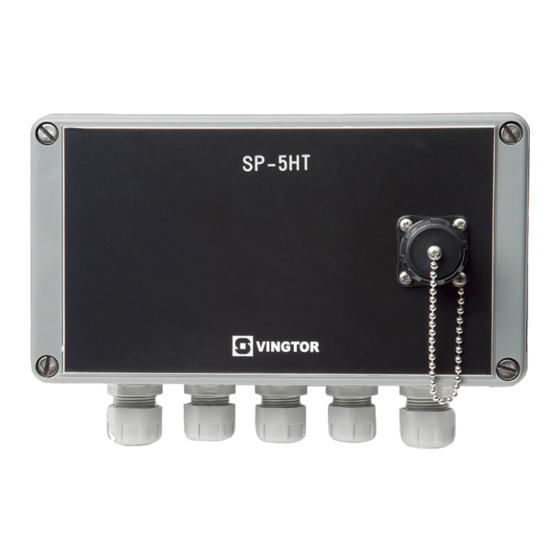

Connections: Screw terminals for cable max. 2,5 mm PG-13 PG-11 PG-11 PG-11 PG-13 Accessories: Mounting holes diam. 6.0 mm Headset H66-SP5, see seperate datasheet Article No: SP-5MT_ds rev.00 2002.05.02 A100K10870 SP-5T Technical & User Manual SP-5HT SERVOTEKNIKK VINGTOR STEENHANS... -
Page 10: Sp5-36-Pelp Headset
Black Standard with 10 meter cable and plug IP rating: IP-54 To be used in noisy areas Dimensions: See dwg. above Weight: Approx. 1,2 kg SP5-36-PELP_ds rev.01 2002.03.13 Article No: A100K10870 SP-5T Technical & User Manual SERVOTEKNIKK VINGTOR STEENHANS H66-SP5... -
Page 11: Specifications
0.2 W (0.5 W peak) LS sensitivity 57 dB/mW at 1 kHz and 50 cm distance, i.e. 80 dB at 0.2W audio-frequency power Working temperature -30 to +60 °C IP rating IP-66 Color Black Weight 0.3 kg A100K10870 SP-5T Technical & User Manual... - Page 12 A100K10870 VINGTOR products are developed and marketed by Zenitel Norway AS. The company’s Quality Assurance System is certified to meet the requirements in NS-EN ISO 9001:2008. Zenitel Norway AS reserves the right to modify designs and alter specifications without prior notice, in pursuance of a policy of continuous improvement. © 2011 Zenitel Norway AS.
