Intra Automation Itabar IBF Operating Manual

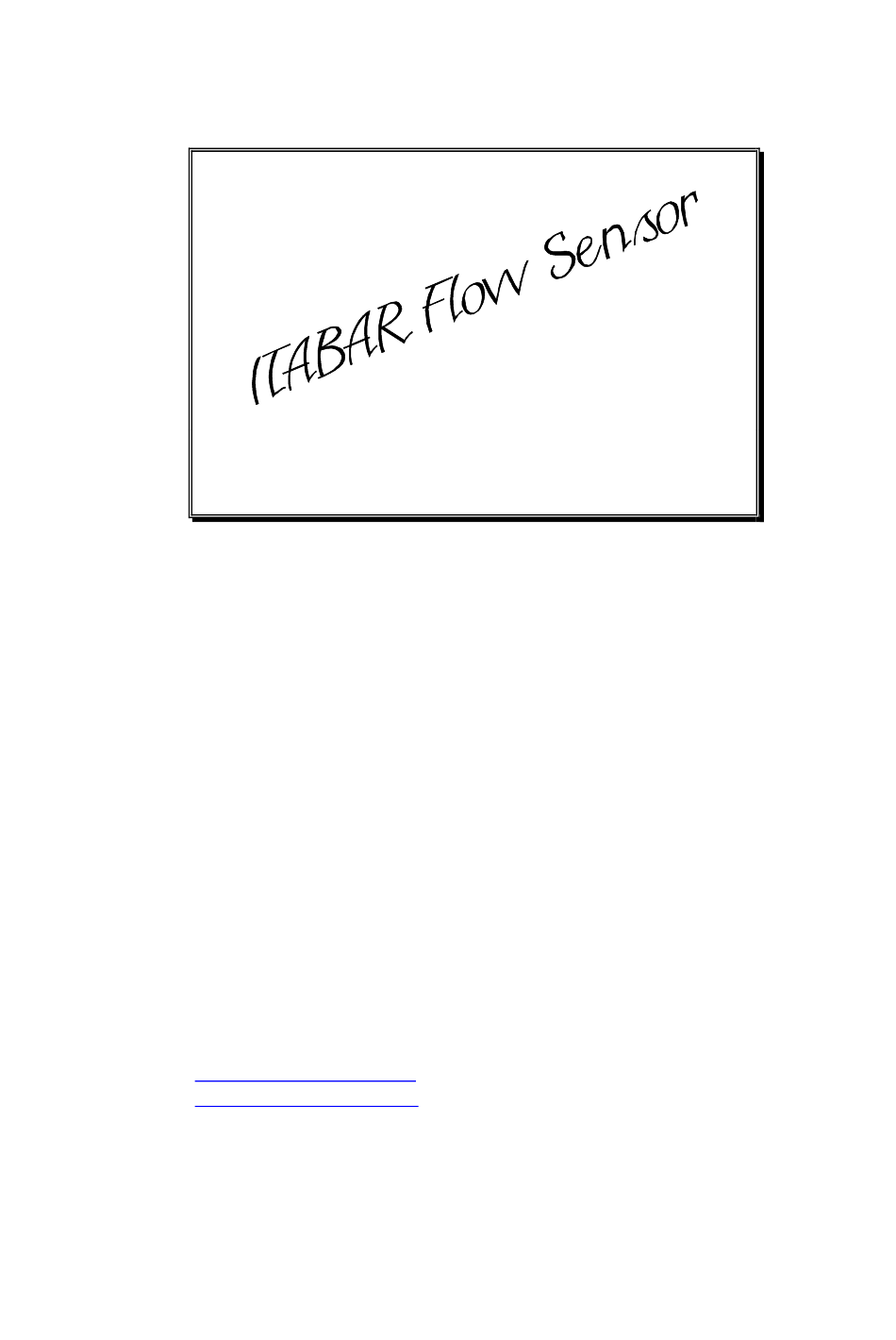

Flow sensor
Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Contents:
1.Principle of flow measuring with ITABAR-Flow-Sensor..............................................................................2
2.Product Description........................................................................................................................................2
3.Operating Conditions .....................................................................................................................................2
4.Pre-Installation Checks...................................................................................................................................2
5.General installation notes ...............................................................................................................................2
6.Installation of the ITABAR Sensor ................................................................................................................6
7.Installation of the Attachments and the Dp-transmitter..................................................................................8
8.Measurement Start-Up ...................................................................................................................................9
9.Preventive Maintenance .................................................................................................................................9
10.Trouble Shooting..........................................................................................................................................9
INTRA-AUTOMATION GmbH
Meß- und Regelinstrumente
Otto-Hahn-Straße 20
41515 Grevenbroich
Tel.:
0 21 81/7 56 65 - 0
Fax:
0 21 81/6 44 92
Internet:
www.intra-automation.de
E-Mail:
info@intra-automation.de
Type IBF
BA_IBF_en_041201.DOC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Itabar IBF and is the answer not in the manual?

Questions and answers

Related Manuals for Intra Automation Itabar IBF

Summary of Contents for Intra Automation Itabar IBF

  • Page 1: Table Of Contents

    5.General installation notes ..........................2 6.Installation of the ITABAR Sensor ........................6 7.Installation of the Attachments and the Dp-transmitter..................8 8.Measurement Start-Up ...........................9 9.Preventive Maintenance ..........................9 10.Trouble Shooting............................9 INTRA-AUTOMATION GmbH Meß- und Regelinstrumente Otto-Hahn-Straße 20 41515 Grevenbroich Tel.: 0 21 81/7 56 65 - 0...

  • Page 2: Principle Of Flow Measuring With Itabar-Flow-Sensor

    This correction factor k is a value only depending on 5.1 Determination of Pipe Arrangement the ITABAR-Flow-Sensor-Profil. This value had been find out by INTRA-AUTOMATION empiri- For design reasons, the pipe arrangement at the cally. installation location has to be known before the sen- sor is manufactured.
  • Page 3 ITABAR Flow Sensor Type IBF Operating Manual Fig. 2: Vertical pipe run Fig. 4: Installation in horizontal pipe runs for liquids The flow direction is indicated in each case by the arrow on the sensor head. Gases: For flow measurements of gases, the ITABAR sensor must be installed in the upper portion of the 5.2 Vertical Pipe Arrangement pipe diameter.
  • Page 4 ITABAR Flow Sensor Type IBF Operating Manual The ITABAR sensor operates on the basis of simple physical principles. The sensor is not affected by being slightly out of Its design incorporates no moving parts which are alignment. subject to wear. The influence on the accuracy of the measurements is negligible as long as the limits indicated in Figures 6, 7 and 8 are not exceeded.
  • Page 5 ITABAR Flow Sensor Type IBF Operating Manual Required Undisturbed Pipe Run Lengths (in multiples of D) NOTE: The accuracy of the measurements of the ITABAR If the recommended straight pipe run lengths are not sensor depends on the development of a stream available, the measuring accuracy can be adjusted to profile which should be as undisturbed as possible.

  • Page 6: Installation Of The Itabar Sensor

    ITABAR Flow Sensor Type IBF Operating Manual Installation of the ITABAR-Sensor point in the flow direction. Tighten the bolts and nuts. Observe the general installation notes! It is particularly important to make sure that the Note: distance from the gasket surface to the pipe agrees On flanges with eight bolt holes, the welding stud with H- dimension you gave in your order (see Fig.

  • Page 7: Installation Of The Attachments And The Dp-Transmitter

    ITABAR Flow Sensor Type IBF Operating Manual 6.5 Installation of Type IBF-35 1. Drill a hole of 40mm diameter into the pipe. The subsequent Stepps correspond to the installation of the ITABAR sensor type IBF-20 ! Oberserve the H- dimension during the welding! (see also Fig.
  • Page 8 ITABAR Flow Sensor Type IBF Operating Manual When installing multi- directional valve block, make sure that all bolts are tightened uniformly and opposite bolts are tightened in sequence. ∆ p-Transmitter: For liquid measurements, the differential pressure transmitter should always be installed below the ITABAR sensor in order to avoid the occurrence of air bubbles in the instrument connections (see Fig.

  • Page 9: Measurement Start-Up

    ITABAR Flow Sensor Type IBF Operating Manual Measurement Start-Up Make sure that: all installation openings are closed (sensor end support IBF-21 / 26 / 36 / 66). all installed parts are securely bolted together. all instrument valves are closed. Now the pipe can be cleared for the appropriate medium Check all connections, especially the flanges ∆...
