Summary of Contents for Viatron KNX IR Linker

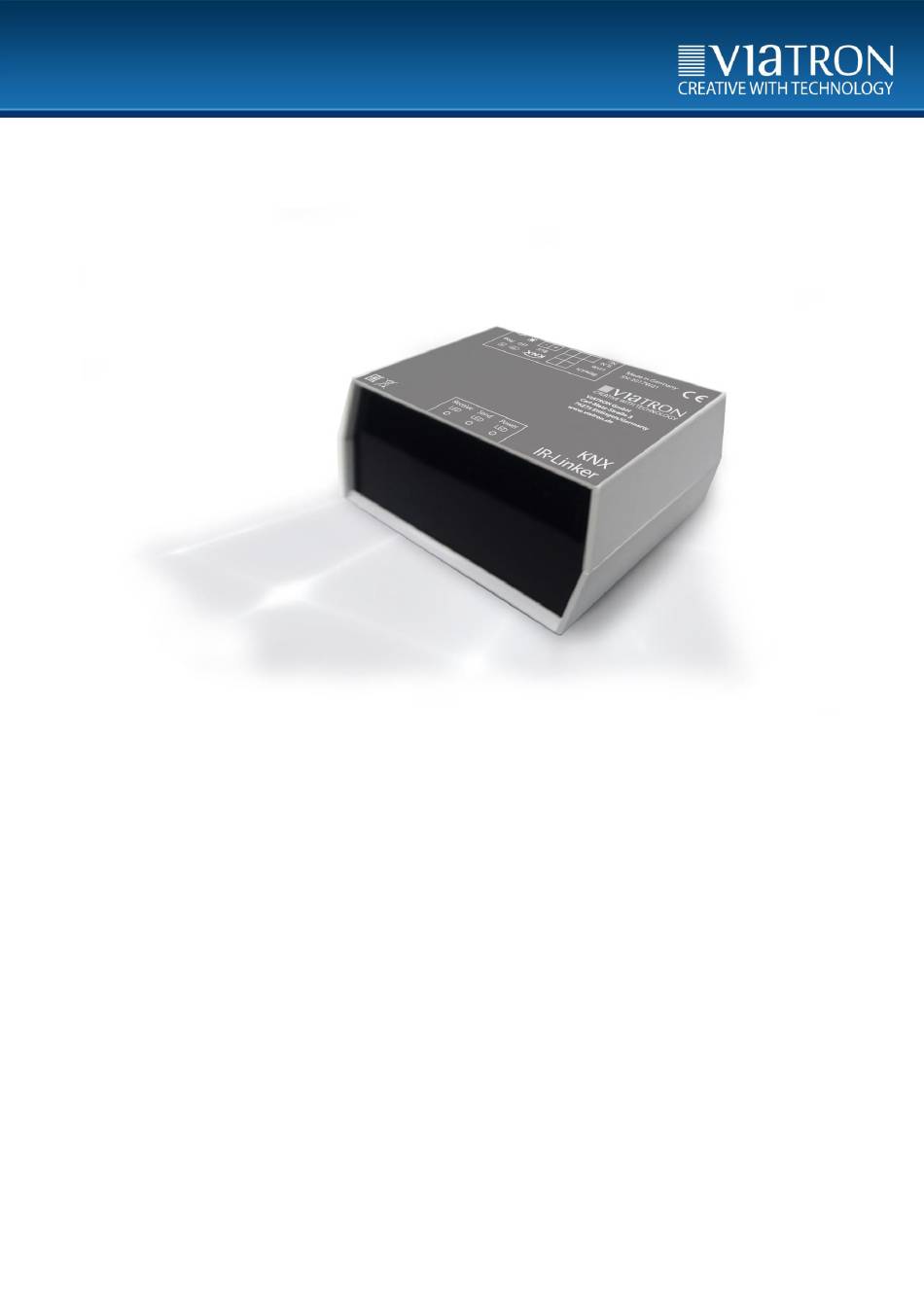

- Page 1 Viatron GmbH – Manual KNX IR Linker...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ................................... 2 General Description ..............................5 Block diagram ................................6 Schema KNX IR Linker ..........................6 Connections on the unit (rear panel) ......................... 7 KNX Port ................................7 Display of the front panel ............................7 KNX Object description ............................ - Page 3 All information in this document has been checked with the utmost care. Viatron GmbH can not be made liable for damages arising out of the use of this documentation and assumes no liability or guarantee with regard to accuracy, completeness and currency of the given information.
- Page 4 List of abbreviations Abbreviation Explanations Infrared Seite 4 von 22...
-
Page 5: General Description
IR signals from various manufacturers to be read, stored and sent. The fields of application are the private residential building up to the office building. The KNX IR linker is connected directly to the building bus system KNX so that the control can be carried out via installed switch programs / visualization. -
Page 6: Block Diagram
2 Block diagram 2.1 Schema KNX IR Linker Various KNX devices KNX- telegrams IR-Signal IR-Signal KNX IR Linker KNX-telegrams Various KNX devices Figure 1: Schematic KNX IR linker Seite 6 von 22... -
Page 7: Connections On The Unit (Rear Panel)
Electrical voltage! When working on electrical systems and equipment, there is a danger to life and fire! Work on the KNX IR linker may only be carried out by an electrician. Figure 2: Back of the unit 3.1 KNX Port The connection to the KNX bus system is carried out via screw terminals of type Weidmüller BL 5.08 / 02/180 SN OR BX. -
Page 8: Knx Object Description
The communication object 1 offers a total of 64 memory locations. The KNX IR linker links these storage locations with predefined datapoint types. The KNX IR linker can read and store IR signals. If the KNX IR linker receives a stored IR signal, it sends a KNX command, as shown in the following table. - Page 9 3.007 Dim2 Decrease Decrease/Increase Increase 3.007 Dim3 Decrease Decrease/Increase Increase 3.007 Dim4 Decrease Decrease/Increase Increase 3.007 Dim5 Toggle Decrease/Increase 3.007 Dim6 Toggle Decrease/Increase 3.007 Dim7 Toggle Decrease/Increase 1.008 Jal 1 Move Up/Down Down 1.008 Jal 2 Move Up/Down Down 1.008 Jal 3 Move Up/Down Down...
-
Page 10: Scene Building Implementation Knx To Ir
String 16.000 String This communication object is used for the output of strings on the building bus. Messages about the status of the KNX IR linker are emited. The following scale shows which strings are emited and their meaning. String... -
Page 11: Switch On/Off
5.4 Switch ON/OFF The following scale lists the linkage of the switches. The scale shows which communication object is linked to which scene number. Object Scene Number Title Function Schalt1 Toggle Status1 Status Schalt2 Toggle Status2 Status Schalt3 Toggle Status3 Status Schalt4 Toggle... -
Page 12: Dimmer Module 2 -Button Operation
Switch_Dim4 Toggel If a stored IR signal is received at the KNX IR linker and if it is assigned to a dimmer function, the corresponding communication object is executed. One IR signal is required for each increase and decrease. The dimmer modules are always controlled with a stepcode of 100%. -
Page 13: Blind Module 2-Button Operation
Move Down Lamellen7 Down If a stored IR signal is received at the KNX IR linker and a blind function is assigned to it, the corresponding communication object is executed. The following options are available for operating the blinds: If an IR signal is received for more than 2 seconds, the blind is lowered or raised until an IR signal has been received again or the limit switch has been reached. -
Page 14: Teaching And Sending Ir Signals
6 Teaching and sending IR signals The KNX IR linker can only be operated via the KNX bus or by an IR signal, as shown in the area ERROR! Reference source not found. This section describes the following examples: 1. how an IR signal is taught into the KNX IR linker, 2. -
Page 15: Ir Signal Triggers Knx Command
6.2 IR signal triggers KNX command: This is only possible with the scene module IR to KNX. If a stored IR signal is detected, the Receive LED flashes and the KNX IR linker sends out the stored KNX command for the corresponding scene. -
Page 16: Installation Of The Device
7 Installation of the device Please note that the KNX IR linker is placed within range, of the IR devices to be controlled. In this case, disturbing influences, such as, for example, sun radiation, have to be noticed and minimized. -
Page 17: Technical Specifications
8 Technical Specifications 8.1 Data sheet Technical specifications KNX IR Linker power supply KNX- bus voltage ambient temperature 0 C° bis 45 C° current consumption KNX Bus max. 10mA IR transmission range up to 7m (Free view frontal/ standard receiver) -
Page 18: System And Error Messages (Front Leds)
Operating voltage is applied, KNX IR Linker ready for operation. Receive LED is lit: The KNX IR linker is in the learn state and waits for an IR signal to save it. Receive LED changes from continuous to flashing: During the learn process, a valid IR signal was received and stored. -
Page 19: Maintenance And Care
9 Maintenance and Care Never use caustic agents or solvents for cleaning. The device can be cleaned with a dry cloth from the outside. Otherwise, the device is maintenance-free. No repairs may be carried out in case of damage (for example, by transport or storage). Seite 19 von 22... -
Page 20: Important Information
This manual is part of the product and must remain with the end customer. 10.2 Intended use The KNX IR Linker is designed for indoor installation 10.3 Warranty We provide warranty within the scope of the legal provisions. -
Page 21: Supported Ir Protocols
Supported IR protocols 10.4 Protocol Manufacturer A1TVBOX ADB (Advanced Digital Broadcast), z.B. A1 TV Box APPLE Apple ACP24 Stiebel Eltron B&O Bang & Olufsen BOSE Bose DENON Denon, Sharp FAN, Fernsteuerung für Ventilatoren FDC Keyboard GRUNDIG Grundig NOKIA Nokia, z.B. D-Box IR60 Diverse europäische Hersteller (SDA2008) -
Page 22: Contact
11 Contact Viatron GmbH Carl-Metz-Str. 3 76275 Ettlingen Tel.: +49 7243 5148 370 Fax: +49 7243 5148 351 Email: info@viatron.de For more information: www.viatron.de Seite 22 von 22...
