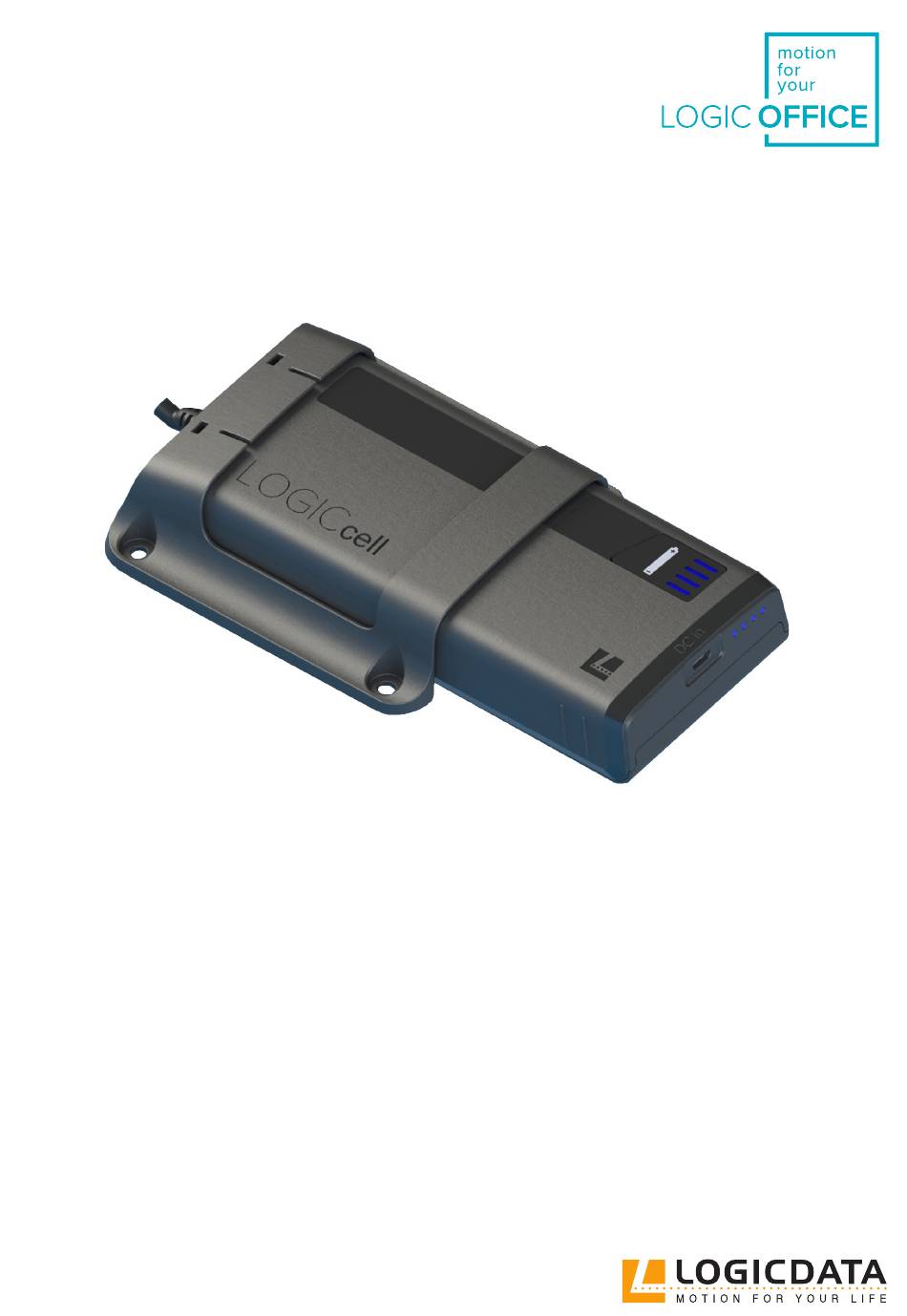

- Page 1 User Manual Document Version 2.0/January 2019 LOGICcell...
- Page 2 USER MANUAL LOGICcell // PAGE 2 Manual LOGICcell Document Version 2.0 / January 2019 This document was originally published in English. LOGICDATA Electronic & Software Entwicklungs GmbH Technical Documentation Wirtschaftspark 18 8530 Deutschlandsberg Austria Phone: +43 (0) 3462 51 98 0 Fax: +43 (0) 3462 51 98 1030 Internet: http://www.logicdata.net...
-
Page 3: Table Of Contents
USER MANUAL LOGICcell // PAGE 3 CONTENTS General Information Copyright Royalty-free use of images and text Trademarks Safety Target Audience General Safety Regulations Intended Use Reasonably Foreseeable Misuse Explanation of Symbols and Signal Words Residual Hazards Liability Skilled Persons Notes for Resellers... - Page 4 USER MANUAL LOGICcell // PAGE 4 Troubleshooting Fault/Status Indication 10 Additional information 10.1 General Battery Advisory 10.2 Technical Specifications 10.3 Disassembly and Replacement 10.4 Disposal 10.5 Packaging and Transport 10.6 Storage 10.7 First Aid Instructions...
-
Page 5: General Information
Height-Adjustable Table Systems. The license does not include logos, designs, and page layout elements belonging to LOGICDATA. The Reseller may make any necessary changes to the text and images to adapt them for the purpose of end user documentation. Texts and images may not be sold in their current state, and may not be published or sublicensed digitally. -
Page 6: Safety
2.3 INTENDED USE The LOGICcell is a Battery Pack for electrically Height-Adjustable Tables. It may be used only in dry interior spaces and according to the product description. It may only be installed with compatible Control Units and with LOGICDATA-approved accessories. -
Page 7: Explanation Of Symbols And Signal Words
Residual risks associated with assembly and operation of the LOGICcell are listed here and throughout this Operating Manual. The symbols and signal words used in this Operating Manual are listed in Chapter 2.5 Explanation of Symbols and Signal Words on page 7. - Page 8 • Only replace the LOGICcell with identical LOGICcell products from LOGICDATA Use of different Battery Packs in place of the LOGICcell causes a risk of fire or explosion. CAUTION This appliance can be used by children from 8 years and above and people with reduced...
-
Page 9: Liability
Ensure that persons with limited ability to react to danger do not take part in the assembly process The LOGICcell may only be assembled by Skilled Persons. A Skilled Person is defined as someone who: • Is authorized for installation planning, installation, commissioning, or servicing of the product •... -
Page 10: Notes For Resellers
USER MANUAL LOGICcell // PAGE 10 2.9 NOTES FOR RESELLERS Resellers are companies that purchase LOGICDATA products for installation in their own products. INFO For reasons of EU conformity and product safety, Resellers should provide end users with an Operating Manual in their native EU official language. -
Page 11: Product
Fig. 1: Components LOGICcell 3.2 OTHER COMPONENTS To connect the LOGICcell to the Control Unit, a suitable cable is required. To mount the LOGICcell to the underside of the Table Top, a Docking Bay is required. Order code for LOGICcell:... -
Page 12: Scope Of Delivery
USER MANUAL LOGICcell // PAGE 12 4 SCOPE OF DELIVERY The standard scope of delivery for the LOGICcell consists of the following components: LOGICcell Battery Pack All other components required for assembly, e.g. the Mounting Screws and Cables, are not included in the scope of delivery. -
Page 13: Assembly
Overheating may lead to minor or moderate injuries. • Ensure that the Table Top cannot become hot • Ensure that the Table Top can support the weight of the LOGICcell and other loads • Keep the LOGICcell out of direct sunlight CAUTION... -
Page 14: Mounting Position
While using the Battery Pack, liquid intrusion may lead to serious injury through electric shocks. • Ensure the LOGICcell is at least 5cm away from the edge of the Table Top • Ensure components are placed away from areas where spillages may occur •... -
Page 15: Process: Mounting The Docking Bay
The orientation of the Strain Relief can be changed to route the cables more effectively. 6.3.5 PROCESS: INSERTING THE LOGICCELL Once it is connected to the Table System, the LOGICcell will remain OFF until the INFO Battery Status Button is pressed. This measure is designed to conserve energy. To avoid wasting energy, do not press the Button until you are ready to use the Table System. -
Page 16: Drilling Template
USER MANUAL LOGICcell // PAGE 16 6.3.6 DRILLING TEMPLATE Fig. 3: Drilling template... -
Page 17: Operation
Depending on the SOC, 1 to 4 LEDs are illuminated. If the battery status drops below 26%, a buzzer beeps twice for 0.5 seconds. If no battery status is indicated, the LOGICcell must be charged fully (8 hours) to recover. -
Page 18: Charging
Overvoltage may lead to death or serious injury through electric shocks. • Unplug the LOGICcell charger if you will be absent for a long period of time WARNING Moderate risk of death or serious injury through fire Charging the LOGICcell with unapproved chargers may lead to death or serious injury through fires. -
Page 19: Maintenance
Regularly inspect the housing for cracks or other damage. • Regularly check connections and cables. • Discharge and recharge the LOGICcell every 4 months (independent of its use - see page 20 for further details). INFO Instructions and safety advice for charging can be found in Chapter 7.2. -
Page 20: Fault/Status Indication
USER MANUAL LOGICcell // PAGE 20 9.1 FAULT/STATUS INDICATION A buzzer is used to convey system status information. The signals used by the buzzer are listed below: Signal Description Required Action Battery Status Button Pressed. • LOGICcell is • No action required. -
Page 21: Additional Information
When ingested by humans and animals, lithium can cause respiratory and circulatory health problems. The LOGICcell does not contain the metals mercury (Hg), cadmium (Cd), or lead (Pb) in quantities large enough to present a danger to humans or the environment. However, you should be aware of the meanings of these symbols when handling and disposing of other battery products. -
Page 22: Disposal
USER MANUAL LOGICcell // PAGE 22 10.4 DISPOSAL The LOGICcell is an electrical and electronic device that must be disposed of separately from household trash in accordance with the WEEE directive 2012/19/EU. Products of this type are labelled with the symbol shown on the left. -
Page 23: First Aid Instructions
USER MANUAL LOGICcell // PAGE 23 10.7 FIRST AID INSTRUCTIONS If your LOGICcell breaks or bursts, certain measures must be taken to ensure the safety of persons in the vicinity. In all cases, observe the following steps: 1. Remove all persons from contaminated areas. - Page 24 LOGICDATA LOGICDATA North America, Inc. Electronic & Software Entwicklungs GmbH 1525 Gezon Parkway SW, Suite C Wirtschaftspark 18 Grand Rapids, MI 49509 8530 Deutschlandsberg Austria Phone: +43 (0)3462 5198 0 Phone: +1 (616) 328 8841 Fax: +43 (0)3462 5198 1030 E-mail: office.na@logicdata.net...
