700VA/1.2KVA
Inverter/Charger
Maruson Technology Corporation
18557 East Gale Avenue
City of Industry, California 91748, U.S.A.
Tel: +1-626-912-8388
Fax: +1-626-912-8680
E-Mail:
Website:
Toll Free: 1-888-MARUSON
Info@MarusonUSA.com
www.MarusonUSA.com

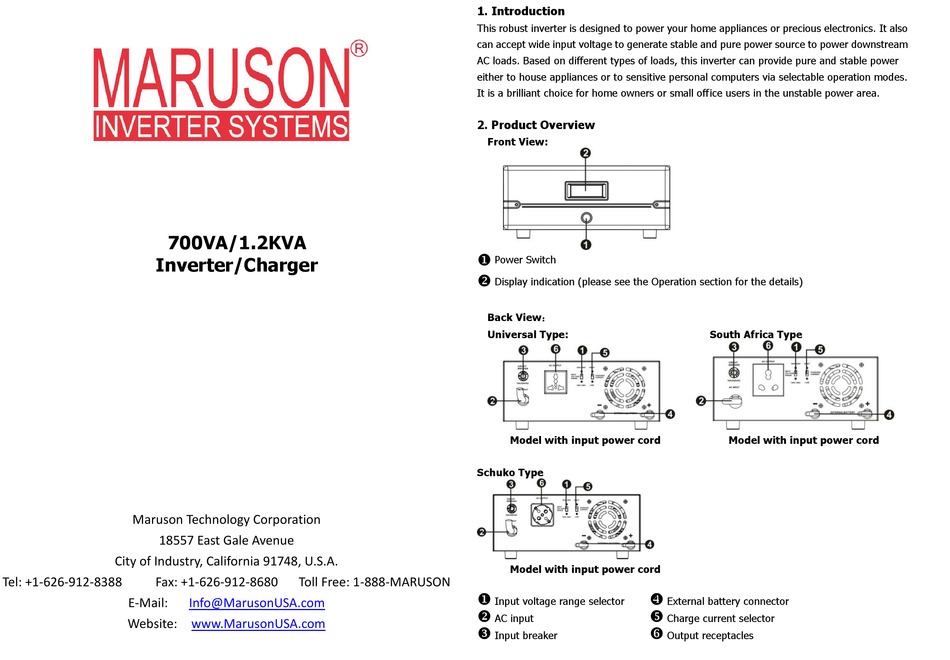

1. Introduction
This robust inverter is designed to power your home appliances or precious electronics. It also
can accept wide input voltage to generate stable and pure power source to power downstream
AC loads. Based on different types of loads, this inverter can provide pure and stable power
either to house appliances or to sensitive personal computers via selectable operation modes.
It is a brilliant choice for home owners or small office users in the unstable power area.
2. Product Overview
Front View:
Power Switch
Display indication (please see the Operation section for the details)
Back View：
Universal Type:
Model with input power cord
Schuko Type
Model with input power cord
AC input
Input breaker
South Africa Type
Model with input power cord
External battery connector
Charge current selector
Output receptacles
Advertisement
Table of Contents
Summary of Contents for Maruson 700VA 12V
- Page 1 Back View： Universal Type: South Africa Type Model with input power cord Model with input power cord Schuko Type Maruson Technology Corporation 18557 East Gale Avenue City of Industry, California 91748, U.S.A. Model with input power cord Tel: +1-626-912-8388 Fax: +1-626-912-8680 Toll Free: 1-888-MARUSON ...
- Page 2 4. Specifications MODEL 700VA 12V 1.2KVA 12V 3. Important Safety Warning (SAVE THESE INSTRUCTIONS) CAPACITY 700VA/500W 1200VA/840W Before using the inverter, please read all instructions and cautionary markings INPUT on the unit, this manual and the batteries. Voltage 230VAC General Precaution- 170-280 VAC (For personal computer);...
- Page 3 2) Multiple batteries in series connection (Refer to Fig. 2): All batteries must be equal b). “90V-280V”: setting for home appliances in voltage and amp hour capacity. The sum of their voltages must be equal to the nominal DC If you select this mode, the unit's input utility range will be extended to 90~280VAC. If the Voltage of the unit.
-
Page 4: Trouble Shooting
Load level indicator: Battery capacity indicator: 1. Check if AC wires are too Display Load Level Display Battery Capacity thin and/or too long. The mark 75%~100% 75%~100% Insufficient quality of AC 2. Check if generator (if power (Shore or applied) is working well, or on or 50%~75% 50%~75%...
