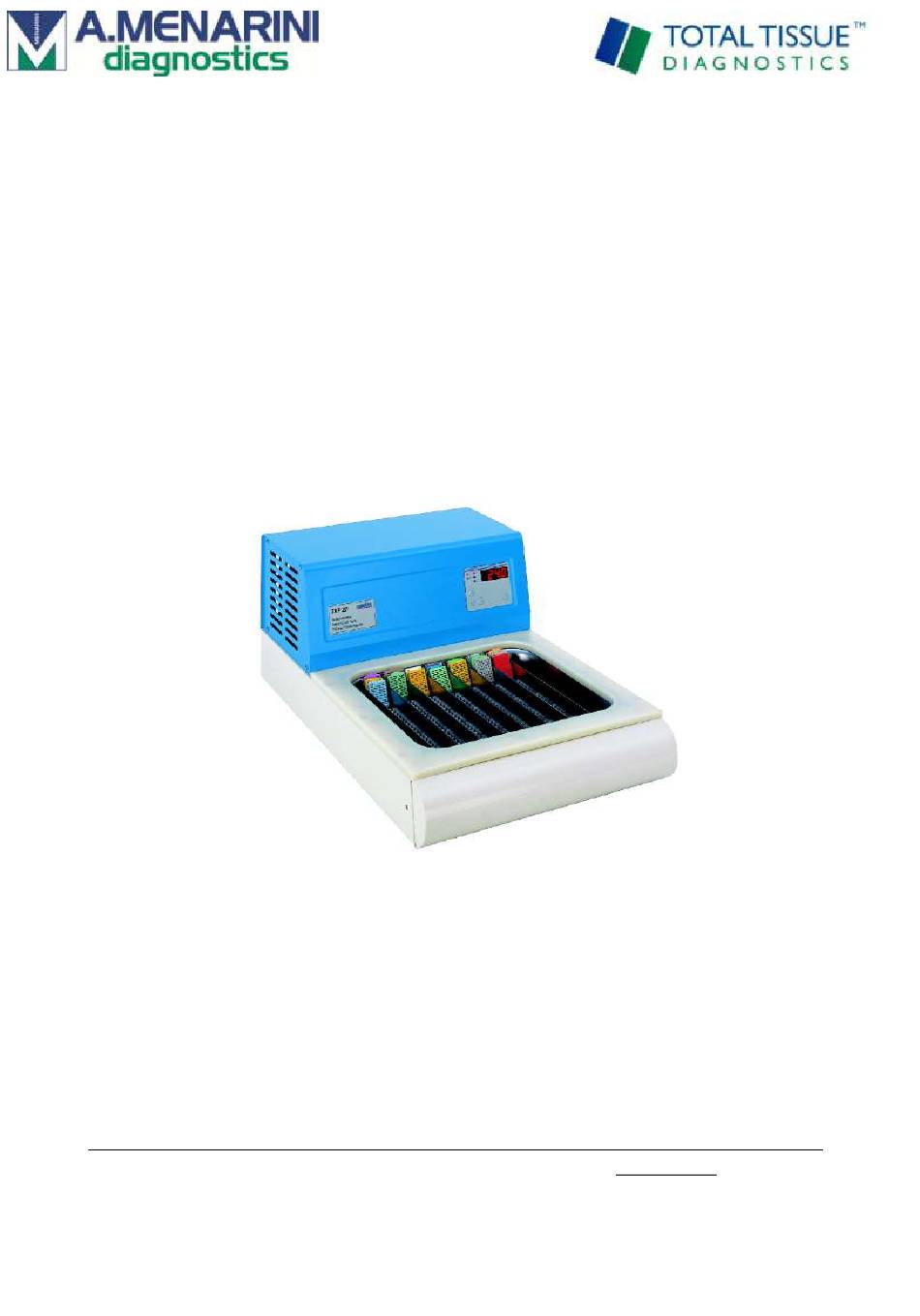

Quick Cool Unit
TKF 22
Instruction Manual
Please read before starting the cooling machine!
Rev. 04 (05/2007)
© Copyright: Duplication of this manual by any means for any purpose without written
consent of medite GmbH is prohibited
Wollenweberstr. 12 - D-31303 Burgdorf - Tel: +49 5136 888 4 0 Fax: + 49 5136 888 4 55 sales@medite.de
www.medite.de
Rev 04 (12/2004) – DS – TKF22e_Druck04.DOC
Advertisement
Table of Contents
Summary of Contents for Medite Total Tissue TKF 22
- Page 1 © Copyright: Duplication of this manual by any means for any purpose without written consent of medite GmbH is prohibited Wollenweberstr. 12 - D-31303 Burgdorf - Tel: +49 5136 888 4 0 Fax: + 49 5136 888 4 55 sales@medite.de www.medite.de...
- Page 2 DIN EN ISO 9001 : 2000 VDE 701 M. Ott – Managing Director Burgdorf, 20.05.2007 Wollenweberstr. 12 - D-31303 Burgdorf - Tel: +49 5136 888 4 0 Fax: + 49 5136 888 4 55 sales@medite.de www.medite.de Rev 04 (12/2004) – DS – TKF22e_Druck04.DOC...
-
Page 3: Table Of Contents
Contents Safety 1.1 Introduction 1.2 Intended Use 1.3 Authorized Operator 1.4 Safety measures on site Transport/Installation 2.1 Technical Data 2.2 Transport/Storage 2.3 Unpacking 2.4 Set Up and Connection Operation 3.1 Switching on 3.2 Set Temperature Controller Failures 4.1 Change Fuses 4.2 Error Messages of the Controller Cleaning/Maintenance Putting out of operation... -
Page 4: Safety
1.1 Introduction With the purchase of the Quick Cool Unit TKF 22 you decided for a high quality product of medite Medizintechnik GmbH. These instructions shall help you to use the instrument. Please read it thoroughly and follow the advices. -
Page 5: Transport/Installation
2 Transport/Installation 2.1 Technical Data Model Dimensions/Weight/Power supply Art. No. Quick Cool Unit. Dimensions (overall, W/D/H): 400 x 645 x 250 mm Cooling Tray (W/D/H): 300 x 40 x 327 mm Weight: 23,5 kg Power Supply: 230 V / 50 Hz / 450 VA 02-3000-00 115 V / 60 Hz / 450 VA 02-3100-00... -
Page 6: Set Up And Connection
Connection CAUTION! In order to avoid damages of the compressor unit by uneven distribution of the cooling agent/lubricant directly after the transport, the instrument must have been in working position for about one hour before starting it. Before starting the instrument, please make sure that your mains voltage corresponds to the value indicated on the instrument (example: for an instrument requiring 240 Volts, 200 - 240 Volts should be available;... -
Page 7: Operation
3 Operation Line cord connection, Mains switch, 2 instrument fuses (Geräterückwand) Control panel with temperature indication and indication lamp Cooling tray 3.1 Switching on Rev 04 (12/2004) – DS – TKF22e_Druck_04.DOC... - Page 8 Control panel Temperature indication Decimal point in stand-by mode Not in use Arrow key UP/DOWN SET-key Start from stand-by mode Indication lamps: Shows that the compressor is working. The cooling circuit is only active as long as the actual temperature has not reached the set temperature and the cooling tray still has to be cooled down.
-
Page 9: Set Temperature Controller
Reservation of the keys: Features Key 1: UP Press this key in combination with the key „SET“ to increase the temperature value. Key 2: DOWN Press this key in combination with the key „SET“ to decrease the temperature value. Key 3: SET Press this key in combination with the key „UP“... -
Page 10: Failures
4 Failures 4.1 Change of fuses In case of failure of the instrument check the fuses in the fuse holder integrated in the instrument socket at the rear. Proceed as follows: pull out the mains plug, using a screw driver the fuse holder can be opened easily and the fuses can be changed. Caution: first pull out the mains plug ! Fuse holder In case of any other defect please contact the service department. -
Page 11: Error Messages Of The Controller
6 Putting out of operation After end of the total period of use please deliver the equipment to a regular disposal facility. The company medite as manufacturer is also prepared to take back the equipment for disposal against payment for the disposal fee. - Page 12 VT - violett - violet GY - grau - gray WH - weiß - white PK - rosa - pink TQ - türkis - turquoise medite Medizintechnik GmbH Wollenweberstraße 12 ; 31303 Burgdorf - Germany Titel: TKF 22.000 230V Datum:...
