-1-

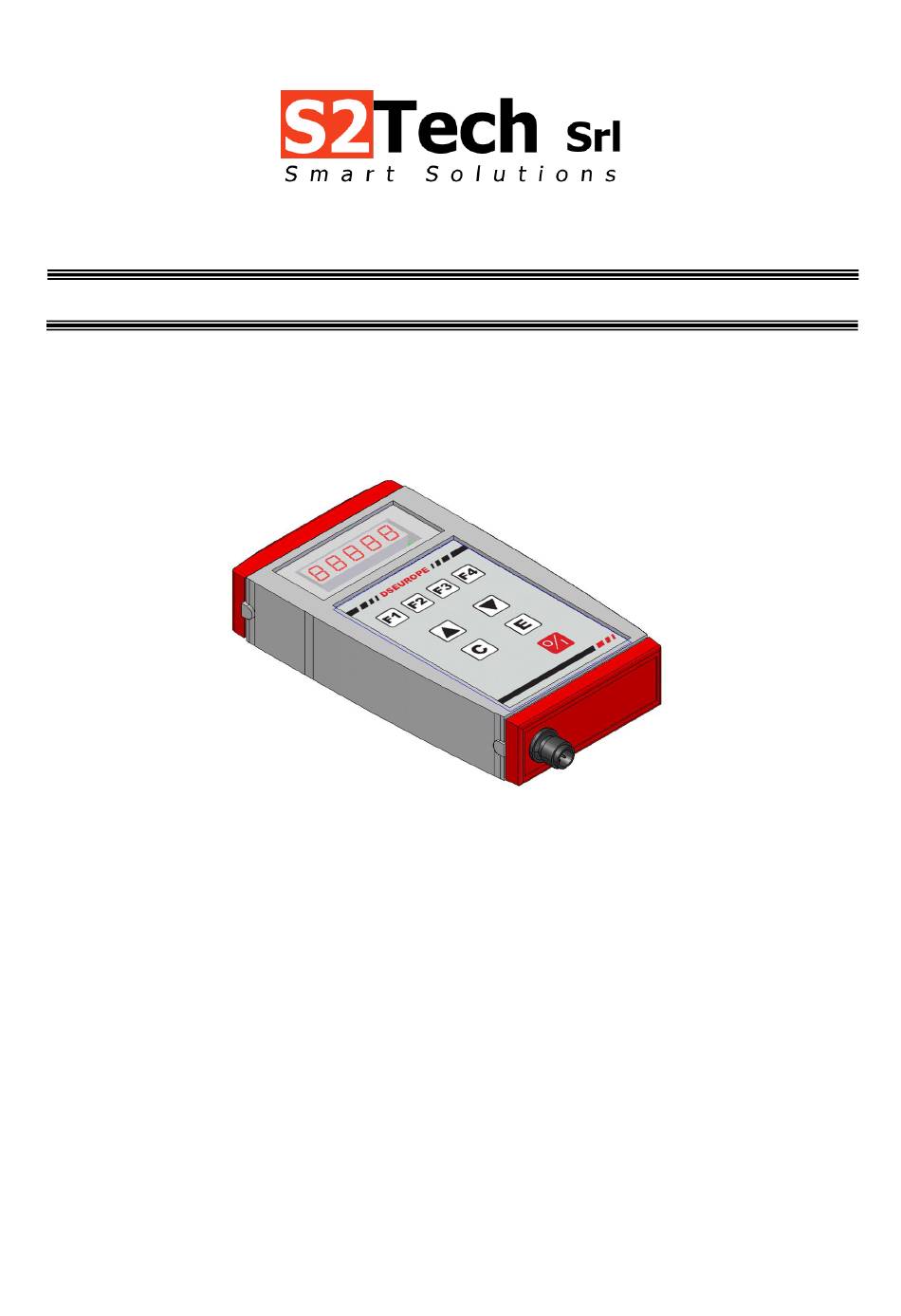

T r a n s d u c e r s a n d i n d u s t r i a l m e a s u r i n g s y s t e m s
Portable instrument
AN-601
SERIES
Version 1 Rev. 0
dated 09/10/07
INSTRUCTION MANUAL
MANUALE PRELIMINARE AN 601 V1 REV. 0 dated 09/10/07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AN-601 Series and is the answer not in the manual?

Questions and answers

Related Manuals for DS Europe AN-601 Series

Summary of Contents for DS Europe AN-601 Series

  • Page 1 T r a n s d u c e r s a n d i n d u s t r i a l m e a s u r i n g s y s t e m s Portable instrument AN-601 SERIES...
  • Page 2 V 1.0 \\Dse_srv5\Manuali\Pitagora (AN401)\PRELIMINARE SCHEDE NUOVE Pitagora V0_ IT_M4 (V2.10).doc The information in this manual can be changed without notice. DS Europe will not be liable for technical or editorial errors or omissions herein contained, nor for incidental or consequential...
  • Page 3 This manual contains information protected by copy rigth. No part of this document can be copied or reproduced in any form or translated without prior written consent from DS Europe. MANUALE PRELIMINARE AN 601 V1 REV. 0 dated 09/10/07...
  • Page 4 Supplier. For these reasons, DS Europe is obliged to disclaim all responsibility concerning the use of the instrument; however, a list of the most elementary and basic precautions for the correct use of the instrument is given in this manual.

  • Page 5: Table Of Contents

    SUMMARY 1 AN601 batteries ..................7 1.1 Instrument autonomy of operation ................... 7 1.2 Battery housing ........................7 1.3 Battery status led ........................7 2 Transducer connections ............... 8 3 AN 601 display ..................8 4 Switch on and off .................. 8 Setting of working parameters ..............
  • Page 6 2003 The equipment has been tested in the typical installation configuration, as described by the instruction manual of the Product. DS Europe srl certify that the above defined equipment meets the requirements of above mentioned EMC directives. Milan, 12/06/98 DS Europe srl Technical dept.

  • Page 7: An601 Batteries

    1 AN601 batteries The AN601 instrument is to be powered with 4pcs AA 1,5V batteries. The operational autonomy of the instrument will depend on the battery type. It is advisable to use rechargeable batteries for digital cameras with high charge capability like 2600mA/hour or higher. 1.1 Instrument autonomy of operation The AN601, when connected to a 350 Ohm strain gauge instrument, is consuming approximately 60mA.

  • Page 8: Transducer Connections

    2 Transducer connections Transducers are connected to AN601 instrument by means of M12 connector with 5 pins. DESCRIPTION + Power supply - Power supply + Signal - Signal Not Connected 3 AN 601 display AN601 instrument has a 5 digits high brightness 7 segments red LEDs display, a red LED for signaling low battery charge and 5 green LEDs.

  • Page 9: Setting Of Working Parameters

    5 Setting of working parameters MANUALE PRELIMINARE AN 601 V1 REV. 0 dated 09/10/07...

  • Page 10: Instrument Working

    -10- 6 Instrument working • NET Measure • GROSS • TARE • NET (GROSS – TARE) and PEAK if activated Display • C push button • Keyboard Sets Dynamic ZERO = Measured value • E push button • When pressed display shows TARE value •...

  • Page 11: Sales Conditions

    DS Europe liability is limited to the above; DS Europe is not liable for any personal injuries, damages to property or damages due to stoppage of machinery or plants caused by installation and use of supplied Product (including, without any limits, any lost profits, lost savings, stoppage of activities, lost information or any other economic losses).
