Chetco Digital Instruments SeaGauge Remote G2 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

SeaGauge Remote G2
User's Manual
Chetco Digital Instruments

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SeaGauge Remote G2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Chetco Digital Instruments SeaGauge Remote G2

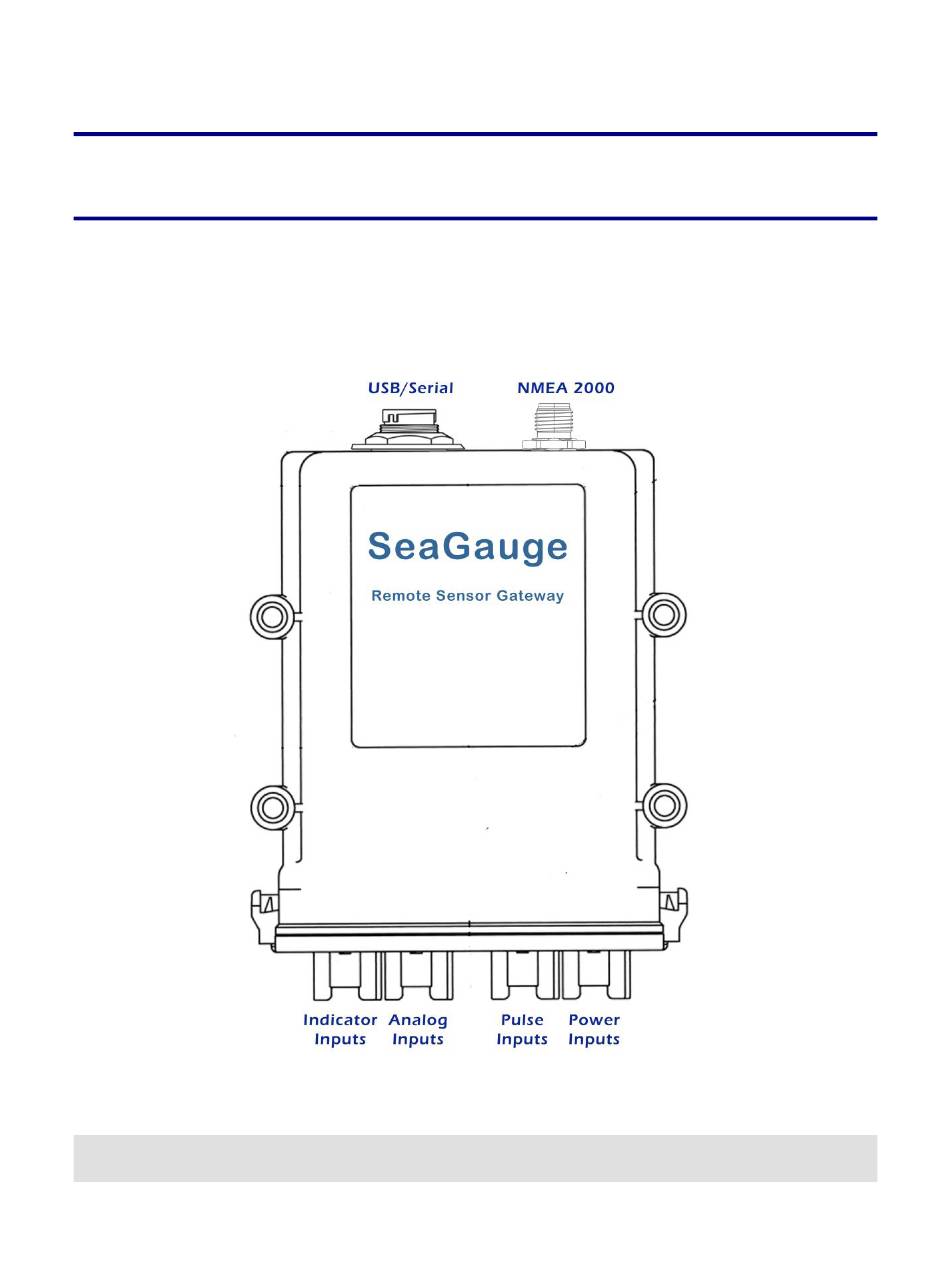

  • Page 1 SeaGauge Remote G2 User’s Manual Chetco Digital Instruments...
  • Page 2 All features and specifications subject to change without notice. Chetco Digital Instruments may find it necessary to change or end our policies, regulations, and special offers at any time. We reserve the right to do so without notice.
  • Page 3 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 4 SPECIFICATIONS Dimensions: ..........6.85” W x 6.3” D x 2.3” H Input Voltage: .......... 10 - 15 vDC, 12-volt Nominal (24V option) Processor Frequency: ......18.432 MHz Maximum Current: ........800 mA Operating and Storage Temperature . .. -4 to +167 degrees Fahrenheit 20 to +75 degrees Celsius Analog Conversion Accuracy : ....

  • Page 5: Table Of Contents

    Table of Contents Table of Contents ..........................5 Introduction ............................8 Welcome ............................8 ............................... 9 Analog Inputs – ........................... 9 Optional EGT inputs – ......................9 Pulse Inputs - ..........................10 Alarm Output ..........................10 Indicator Port – ......................... 10 Serial Interface –...
  • Page 6 SET Function ..........................52 Real-time data ..........................52 Program Mode ..........................52 Color Display Protocol ......................... 54 NMEA 2000 PGNs ........................55 PGN 127488 Engine Parameters Rapid ................56 PGN 127489 Engine Parameters Dynamic ................56 PGN 127508 Battery Status..................... 56 PGN 127505 Fluid Level ......................

  • Page 8: Introduction

    SeaGauge-Remote G2 User’s Manual Introduction Welcome Thank you for purchasing a Chetco Digital Instruments product. SeaGauge-Remote™ provides custom instrumentation in a rugged compact design. Its user defined calibration tables and alarms allow it adapt to and monitor many different sensors from a single location.

  • Page 9: Analog Inputs

    SeaGauge-Remote G2 User’s Manual Analog Inputs – SeaGauge-Remote will support up to 12 analog inputs for interface to most temperature, pressure, and voltage senders. Internal signal conditioning allows resistive senders and direct voltage inputs up to 36 volts on selected inputs. Most temperature and pressure senders use variable resistance to convert physical parameters into an analog voltage.

  • Page 10: Pulse Inputs

    SeaGauge-Remote G2 User’s Manual be amplified and conditioned to obtain reliable results. SeaGauge-Remote EGT option provides the proper conditioning and calibration to attach K-Type EGT probes directly to the unit. When not configured for EGT input, A10 and A11 are set for conventional analog sensors SeaGauge-Remote can accept up to three pulse inputs from a variety of Pulse Inputs -...

  • Page 11: What You Get

    SeaGauge-Remote G2 User’s Manual What You Get Unit SeaGauge-Remote unit with power and sensor input. Unit constantly monitors the sensor inputs and creates NMEA 0183 compatible sentences two times per second. A 10-bit analog converter samples sensor data and then performs a real-time average. The built-in microprocessor takes the averaged value for each sensor and looks up the display value from a 256 point table that is user modifiable.
  • Page 12 SeaGauge-Remote G2 User’s Manual support@seasmart.net version 031119 www.seagauge.com Brookings, OR 97415 www.chetcodigital.com...

  • Page 13: Operation

    SeaGauge-Remote G2 User’s Manual Operation SeaGauge-Remote is sealed and self-contained. All user control is performed via the built-in USB or RS232 ports. The unit can be configured with the included vDash utility described in a separate manual or via text commands sent directly to the serial port. When you receive your unit it has been programmed with default sensor calibration tables and labels.
  • Page 14 SeaGauge-Remote G2 User’s Manual Data Output format After the unit is properly installed and powered up, it will automatically start transmitting data in NMEA 0183 format with an update rate of 1 per second for each of 16 inputs (12 analog and 3 pulse).

  • Page 15: Display Label Table

    SeaGauge-Remote G2 User’s Manual Display Label Table The display labels are obtained from a lookup table. An example table is sown as follows: [TABLE][6800][8][64] db 'P TEMP ' ; 0 db 'S TEMP ' ; 1 db 'P FUEL ' ; 2 db 'S FUEL ' ;...

  • Page 16: Channels Table

    SeaGauge-Remote G2 User’s Manual Channels Table The 12 sensor input are assigned to calibration tables via the Channels Table. This table allows mapping of analog inputs to desired lookup tables. Calibration tables are assigned in the same order as the Display Label Table entries. So for example – the OIL label is assigned to the first calibration table and the ENGINE the second and so on.
  • Page 17 SeaGauge-Remote G2 User’s Manual Alarms Tables The Alarms table is used to set min and max alarm thresholds for each of the 8 sensor inputs. After the analog conversion and digital averaging, the 10 bit vales are scaled to 8-bit values and used to perform a lookup of actual display values from the Calibration tables.
  • Page 18 SeaGauge-Remote G2 User’s Manual Alarm values are entered in pairs with the first value being the min alarm threshold and the second being the max threshold. If the min threshold is set to %00, then the min alarm is disabled since no sensor value can be less then 0. If the max threshold is set to %FF, then the max alarm is disabled since no sensor value can be greater then 255.

  • Page 19: Calibration Tables

    SeaGauge-Remote G2 User’s Manual Calibration Tables The SeaGauge-Remote contains 12 calibration tables used to convert sensor input to display values. Sensor inputs are averaged, scaled, and converted to digital values with a range from 0 to 255 decimal. These values are then used to look up 8 character values from a 256 row calibration table.
  • Page 20 SeaGauge-Remote G2 User’s Manual • Column 14 – is a comment and usually is the table row index number for reference The 4 character display value can be any alpha-numeric value but usually is a numeric sequence representing the desired readout for the given table index. The 2 character HEX NMEA 2000 Display Lookup value is used to calibrate the data used to generate NMEA 2000 PGNs.

  • Page 21: Options Table

    SeaGauge-Remote G2 User’s Manual OPTIONS Table SeaGauge-Remote has many functions which are configured via the OPTIONS table. All operating parameters can be modified using the vDash utility and are provided here only for informational purposes. Please consult the vDash users manual for more detail on user modification.
  • Page 22 SeaGauge-Remote G2 User’s Manual db %00;OPTIONS STAT ENABLE db %01;OPTIONS Not Used db %00;OPTIONS Not Used db %01;OPTIONS TIMER0ENABLE db %01;OPTIONS TIMER1ENABLE db %01;OPTIONS TIMER2ENABLE db %00;OPTIONS TIMER3ENABLE db %00;OPTIONS TIMER0 HB db %01;OPTIONS TIMER0 LB db %00;OPTIONS TIMER1 HB db %01;OPTIONS TIMER1 LB db %00;OPTIONS TIMER2 HB db %01;OPTIONS TIMER2 LB...

  • Page 23: Connectors

    SeaGauge-Remote G2 User’s Manual Connectors The SeaGauge-Remote unit has four Deutsch terminal blocks for attachment of power, pulse, sensor and indicator inputs. Each 12 pin plug is keyed with locking tabs for reliable connection. The individual crimp style pins accept up to 18 gauge wire and can be inserted without tools.
  • Page 24 SeaGauge-Remote G2 User’s Manual support@seasmart.net version 031119 www.seagauge.com Brookings, OR 97415 www.chetcodigital.com...

  • Page 25: System Power

    SeaGauge-Remote G2 User’s Manual System Power System power is supplied via the 12-pin B plug (black). The block also provides the reference voltage used for some sensors and the optional Ethernet cable plug. POWER Plug B (black) FUSE Function Direction Volt Ground Ground...

  • Page 26: Pulse Inputs

    SeaGauge-Remote G2 User’s Manual Pulse Inputs Pulse Plug D (brown) FUSE Function Direction Volt Pulse 0 0-12VDC Pulse 1 0-12VDC Ground Ground Alarm 5VDC Pulse 2 EGT 1 +(yellow) ) (optional) 1VAC EGT 1 – (red) ) (optional) 1VAC EGT 2 – (yellow) ) (optional) 1VAC EGT + (red) (optional) 1VAC...

  • Page 27: Sensors

    SeaGauge-Remote G2 User’s Manual Sensors The 12 pin sensor plug used to interface with various senders to provide information to the unit. The information supplied in the following table is typical but may be different dependent on your application. There are two basic classes of senders – those that provide a resistive load to ground and those that provide a voltage.
  • Page 28 SeaGauge-Remote G2 User’s Manual The SeaGauge-Remote can be ordered with any combination of Rpu, Rpd, and Rs for each of the twelve sensor inputs that match your application. Contact Chetco Digital Instruments for your custom application. support@seasmart.net version 031119 www.seagauge.com Brookings, OR 97415 www.chetcodigital.com...
  • Page 29 SeaGauge-Remote G2 User’s Manual Default SeaGauge configuration is to drive external analog sensors directly with no other devices connected to any sensor – Direct Mode. Do not apply any voltage to sensors configured for Direct Mode. SeaGauge provides a 2.5V reference voltage output to each sensor in Direct Mode which may damage other devices.

  • Page 30: Indicator/Status

    SeaGauge-Remote G2 User’s Manual Indicator/Status Default SeaGauge configuration provides 12 indicator status inputs that detect presence of input voltage > 2VDC. These inputs are mapped to PGN 127501 generated by SeaGauge. If input voltage is > 2VDC the corresponding PGN 127501 bit is set to 1, other wise it is set to 0.
  • Page 31 SeaGauge-Remote G2 User’s Manual * Default Value support@seasmart.net version 031119 www.seagauge.com Brookings, OR 97415 www.chetcodigital.com...

  • Page 32: Sensor Dip Switches

    SeaGauge-Remote G2 User’s Manual Sensor Dip Switches The Sensor inputs can be configured with different combinations of Pull up and Pull down resistance to suit a wide range of possible inputs via a group of Dip Switches. These switches enable/disable a series of pull-up/pull-down resistances to allow for different sensor combinations support@seasmart.net version 031119...
  • Page 33 SeaGauge-Remote G2 User’s Manual Typical direct sensor configuration for dual engines and fluid tanks Dip Switch Function A9 = 50 OHM PUP (P FLUID) A0 = 300 OHM PUP (P ENG TEMP) A1 = 50 OHM PUP (P TRAN PSI) A4 = 50 OHM PUP (P OIL PSI) A10 = 50 OHM PUP (S FLUID) A2 = 300 OHM PUP (S ENG TEMP)
  • Page 34 SeaGauge-Remote G2 User’s Manual For Senders that produce a voltage output, disable all pull-ups and enable the Pull-Down resistance to create a voltage divider that limits the max range to 2.5 Volts. For the default 10K Ohm Pull-Down, the limit is 15V max input. For Senders that output more then 15 Volts, add a series resistance to limit the input to 15V Max.

  • Page 35: Ports

    SeaGauge-Remote G2 User’s Manual Ports The serial port connector provides the interface to a computer RS232 interface or SeaGauge display heads. The unit can be remotely controlled via this interface using ASCII command sequences or the optional software utilities. Status information is transmitted out this interface using NMEA 0185 $IIXDR sentences or NMEA 2000 PGNs.
  • Page 36 SeaGauge-Remote G2 User’s Manual Two port connectors are provided for attachment to remote display heads, Host PC, and NMEA 2000/CAN BUS network. Port functions are configurable via on-board jumpers Port 0 is used for attaching a remote display head or to a PC USB port. This port can be configured for RS232 Serial or USB Slave.
  • Page 37 SeaGauge-Remote G2 User’s Manual Figure 1 Single SeaGauge Display head via Port 0 in RS232 Serial mode Figure 2 Direct connect to Host PC USB Port support@seasmart.net version 031119 www.seagauge.com Brookings, OR 97415 www.chetcodigital.com...
  • Page 38 SeaGauge-Remote G2 User’s Manual Figure 3 Host PC connection and NMEA 2000/CAN BUS J1939 Figure 4 NMEA 2000/CAN BUS J1939 connection to multiple displays support@seasmart.net version 031119 www.seagauge.com Brookings, OR 97415 www.chetcodigital.com...
  • Page 39 SeaGauge-Remote G2 User’s Manual Figure 5 dual SeaGauge as gateway between NMEA 2000 and wireless network (optional WiFi module) Figure 5 dual SeaGauge as gateway between NMEA 2000 and wireless network (optional Ethernet module) support@seasmart.net version 031119 www.seagauge.com Brookings, OR 97415 www.chetcodigital.com...

  • Page 40: Led Indicators

    SeaGauge-Remote G2 User’s Manual LED INDICATORS SeaGauge-Remote has several LED’s to indicate operational status of the unit. The following diagram shows the locations. LED Functions Function COLOR STATE POWER System Regulated 5 Volts GREEN ON NORMAL Pulse 0 Input GREEN FLASH WITH PULSE Pulse 1 Input GREEN...

  • Page 41: Board Jumpers

    SeaGauge-Remote G2 User’s Manual Board Jumpers Several special mode options can be configured via on-board jumpers. Normal operation will not require any modification of the jumpers. support@seasmart.net version 031119 www.seagauge.com Brookings, OR 97415 www.chetcodigital.com...
  • Page 42 SeaGauge-Remote G2 User’s Manual The Alarm jumper block (J1) is used to configure the output drive for alarms. Normal operation (3 & 2) is active high drive of Pizo buzzer or LED. If it is desired to drive a relay or high current lamp, configure jumper for 1 &...
  • Page 43 SeaGauge-Remote G2 User’s Manual The USB jumper block (SW3-SW4) connects the optional USB cable to on-board microprocessor. It is used for factory programming of firmware and should not be altered J2 USB Controller Function Function STATE uP RX USB TX 1&7 Normal uP XX USB RX...

  • Page 44: Port Switches

    SeaGauge-Remote G2 User’s Manual PORT SWITCHES SeaGauge-Remote has three miniature switches for configuring the two ports and performing firmware updates. SeaGauge-Remote USB port can be configured to interface to the main SeaGauge processor or optional Ethernet or WiFi module for performing firmware updates. This allows the same USB cable (white) to be used for both modes.

  • Page 45: Firmware Update Switch

    SeaGauge-Remote G2 User’s Manual vDash via PC USB port module only FIRMWARE UPDATE SWITCH SeaGauge-Remote firmware can be updated by loading new FASH IMAGES using a USB connection to PC via the vDash application. Firmware file uploads can be performed only when SW1 is in FIRMWARE UPDATE mode Switch Mode...

  • Page 46: Installation

    SeaGauge-Remote G2 User’s Manual Installation Mount SeaGauge-Remote can be mounted by securing the four mounting holes with sheet metal screws in a suitable location. When choosing a location, be sure to include room for sensor and power cable entry as well as USB and serial cables. . support@seasmart.net version 031119 www.seagauge.com...

  • Page 47: Power

    SeaGauge-Remote G2 User’s Manual It is recommended to secure all sensor and power cables to chassis to avoid wires from moving around and breaking loose. USB and Serial cable should also be secured.. Power Power is supplied from the accessory bus via a 2 amp fuse. Never attempt to connect power without providing a fused input or serious damage may result.

  • Page 48: Signals

    SeaGauge-Remote G2 User’s Manual Signals The unit supports up to 15 sensor inputs (12 analog and 3 pulse). Refer to the connector diagrams for the proper connection for each type of sender. Any unused sensors should be connected to ground to avoid unwanted noise. Never connect any resistive sensor input (temperature/pressure) directly to a voltage source or damage to the unit may result.

  • Page 49: Calibration Tables

    SeaGauge-Remote G2 User’s Manual Calibration Tables SeaGauge-Remote utilizes twelve modifiable calibration tables to convert sensor data into user readable display information. The internal Analog-to-Digital converter converts sensor voltages to 10-bit values. The converter can resolve voltages to 2.5/1024 = 2.5 mVolts. These values are averaged and then used to lookup 8 character values form a 256 point lookup table.
  • Page 50 SeaGauge-Remote G2 User’s Manual 1.701 0.337169 1.7 vdc 1.767 0.350137 1.7 vdc 1.832 0.363105 1.8 vdc 1.897 0.376073 1.8 vdc 1.963 0.389041 1.9 vdc Each table has 2048 characters to modify and there are 88 choices for each character for a total of over 18,000 character choices for each table.

  • Page 51: Serial Port Protocols

    SeaGauge-Remote G2 User’s Manual Serial Port Protocols The serial port interface of the SeaGauge-Remote unit can be used for real-time status and reprogramming. The status information is sent in either NMEA 0183 format using the $IIXDR sentence format or NMEA 2000 PGNs. Custom NMEA control sentences are used to control the unit via the serial port interface.

  • Page 52: Next Menu

    Use caution when using this command as improper use will erase the unit and it will have to be sent back for reprogramming. Programming files can be obtained from Chetco Digital Instruments for use in this mode. These are in a special propriety format and can not be constructed or edited in the field.
  • Page 53 SeaGauge-Remote G2 User’s Manual • READY-> At this point the unit will wait to receive the starting and ending pages to erase. Page numbers are 512 bytes and can be calculated by dividing the starting page memory location by 512. The following table will help you determine the table page numbers. Table Bytes Address...

  • Page 54: Color Display Protocol

    SeaGauge-Remote G2 User’s Manual update. The display should increment till it reaches the end of file and then reset if no errors occur. Color Display Protocol SeaGauge-Remote Senor unit supports remote color displays directly attached to either or both serial ports. The Remote Color Displays use a propriety serial protocol to convey graphic type, screen position, and display values.

  • Page 55: Nmea 2000 Pgns

    SeaGauge-Remote G2 User’s Manual NMEA 2000 PGNs SeaGauge-Remote supports NMEA 2000 bus interface with an optional adapter attached to Port 1. The adapter converts propriety serial data to standard NMEA 2000 PGNs for transmission over the NMEA 2000 back bone cable. Sensor data from the 12 analogs input and 3 pulse inputs is passed through user defined 256 point calibration tables and converted to proper NMEA 2000 PGNs which describe the sensor readings.

  • Page 56: Pgn 127488 Engine Parameters Rapid

    SeaGauge-Remote G2 User’s Manual For example, Dual Engine support in one unit can be provided by selecting PGNs 127488, 127489, 127508, and 127505 with instance 0 (PORT engine) and 1 (Starboard Engine) Alternately, a 12 function Tank monitoring system can be created by selecting PGN 127505 and assigning a separate instance (0-11) to each of the 12 sensor inputs.

  • Page 57: Pgn 127505 Fluid Level

    SeaGauge-Remote G2 User’s Manual PGN 127505 Fluid Level Fields Supported Range Resolution Units Fluid Level ** 0 – 100% 0.4% Percent Fluid Capacity 0 – 6400 Liters 0.1 Liters Liters ** Default Field – must choose default field when configuring PGN PGN 127493 Transmission Parameters Fields Supported Range...

  • Page 58: Pgn 127497 Trip Parameters

    SeaGauge-Remote G2 User’s Manual PGN 127497 Trip Parameters Fields Supported Range Resolution Units Fuel Rate** 0 - 200 0.25 L/hr Fuel Used 16000 Liters ** Default Field – must choose default field when configuring PGN PGN 127245 Rudder Position Fields Supported Range Resolution Units...

  • Page 59: One Year Warranty

    SeaGauge-Remote G2 User’s Manual One Year Warranty “We”, “our”, or “us” refers to Chetco Digital Instruments, the manufacturer of this product. “You” or “your” refers to the first person who purchases this product as a consumer item for personal, family, or household use.
