INSTRUCTION MANUAL FOR THE STRINGING MACHINE MS140N and MS140L.
CONTENTS:
A. TO PREPARE THE MACHINE FOR USE.
A1. Fastening the cross legs
A2. Clamping the machine to the table.
A. TO PREPARE THE MACHINE FOR USE.
A1. Fastening the cross legs

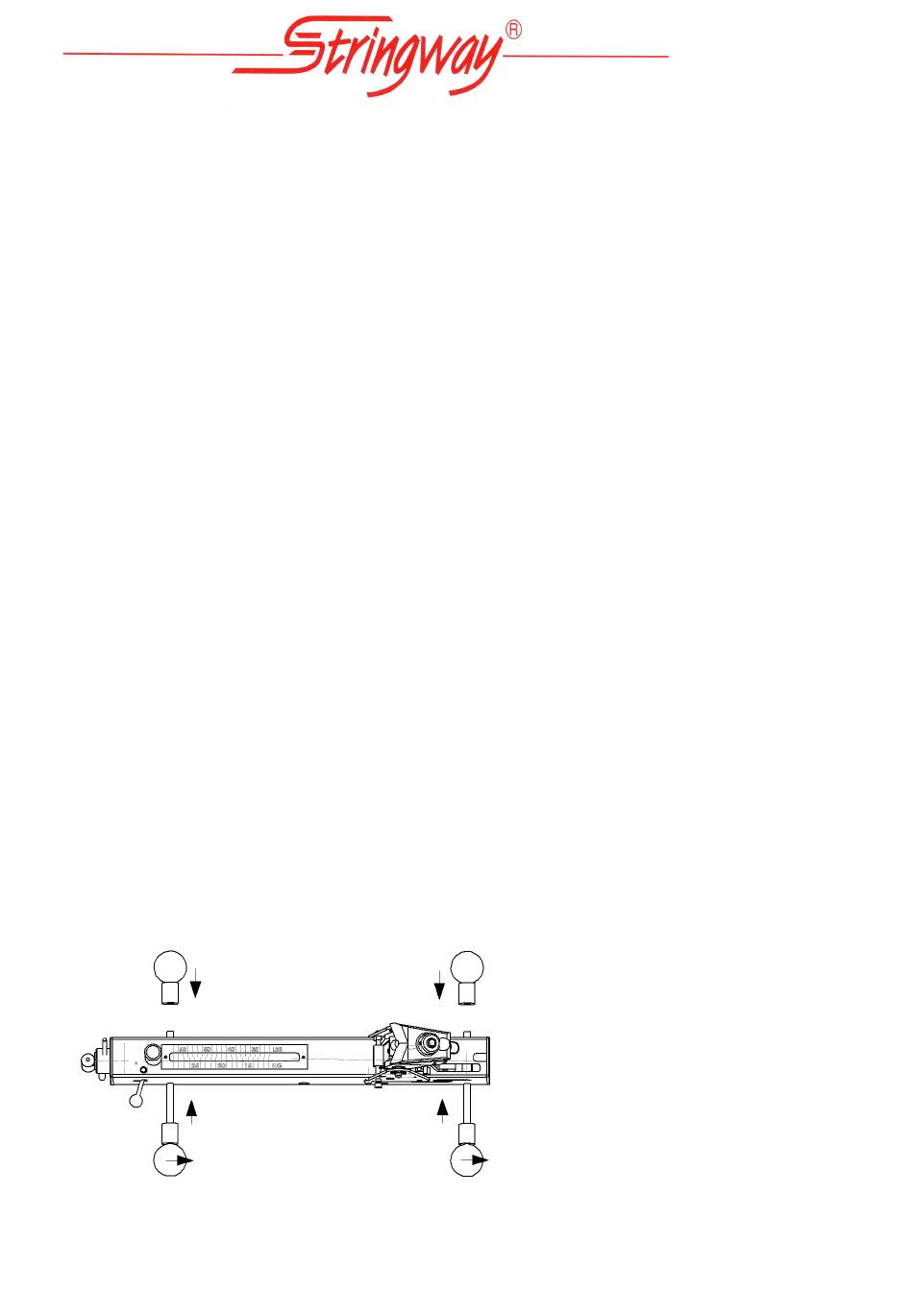

Put the cross leg screws through the frame and the second bush and tighten the ball knob firmly.
A2. Clamping the machine to the table.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS140L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stringway MS140L

Summary of Contents for Stringway MS140L

  • Page 1: Table Of Contents

    INSTRUCTION MANUAL FOR THE STRINGING MACHINE MS140N and MS140L. CONTENTS: A. TO PREPARE THE MACHINE FOR USE. A1. Fastening the cross legs A2. Clamping the machine to the table. A3 Fastening the lever of the drop weight system. A4. Mounting the turntable over the shaft.

  • Page 2: A3 Fastening The Lever Of The Drop Weight System

    The machine can only be used when it is clamped to the table. Slide the table clamp through the frame and position the machine so far from the edge of the table that the clamping screw is under the centre of the frame.

  • Page 3: A5. Calibrating The Tension System

    A5. Calibrating the tension system. The tension system can be calibrated with the calibrator which is supplied with the machine. The tension will not vary more than a few percent over the hole stroke. To get the most accurate results calibrate the system in the middle of the stroke between the forward position and the moment that the “end of stroke signal”...

  • Page 4: A6. End Of Stroke Indication

    32 kg or 72 lbs by adding the extra (badminton) weight. The weight can be adjusted with the handle and the scale. On the MS140L the tension can be raised or lowered in 4 steps of 0,5 kg (1 lbs) with the handle behind the adjusting handle.

  • Page 5: B2. To Pull Tension On A String

    - The tension head is locked in the starting position when no string is clamped in the tension head. - On the MS140N the lock must be released by hand. - On the MS140L the lock is released automatically when a string is clamped. * Inserting the string in the string clamp.
  • Page 6 throat side of the racquet. Clamping a racquet. HEAD SIDE SUPPORT The racquet clamp is adjusted to the height of the racquet with the adjustable counter support. Because the clamp can swivel in the slot it can clamp a considerable range without the need to adjust the counter support.

  • Page 7: B4. Mounting A Racquet

    The racquet can be removed by using the slot hole in the cross bar and lift it off the machine. Or by rotating the clamping bar and move it through the open handle of the racquet. Clamping the racquet goes as follows - Switch the lever to the vertical position.

  • Page 8: B6. Using The Clamp Systems

    The MS140L has a table lock which locks the turntable in 6 positions. When the lever is in the upper position the table will lock as soon as the locking pin meets a hole in the turntable. B6. Using the clamp systems.

  • Page 9: C2. Mounting The Machine In The Travel Case

    C2. Mounting the machine in the travel case. A travel case with wheels is available for transport of the machine. The main frame and turntable are bolted on the plate which is fixed in the case. * Before putting the machine in the travel bag remove the upper jaw and rotate the knob of the tension handle 90 degrees.
  • Page 10 - Place the turntable over the bolts and fix it with the positioners and nuts. - Now “close” the turntable so that head side support plate is supported on the bracket of the tensioner. * Make sure the “knot tension lever” is in the horizontal position. * The cross legs are packed behind the zip.

  • Page 11: The Maintenance Of The Machine

    We advice to put some grease on the shaft every now and then for minimum wear. E. Overhaul of a Stringway clamp. After extensive use the clamps of the Stringway machines can be overhauled quite easily. Figure 1 shows the parts of the clamp.
  • Page 12 DISASSEMBL For the disassembly and assembly it is easy to use a vise or a special piece of wood with a slot in it to hold the clamp as shown in figure 2. To disassemble the clamp unscrew the Alan bolt and take of the closing mechanism. GRINDING THE CLAMP PARTS.
  • Page 13 For easy up and down sliding of the clamp it is advised to insert a thick layer of grease into the hollow that clamps the clamp on the pin of the sliding system. We wish you much pleasure with your MS140 stringing machine --------------------...
