Toptech TT-HUM-365 Product Data

Powered flow-through humidifier

Advertisement

Quick Links

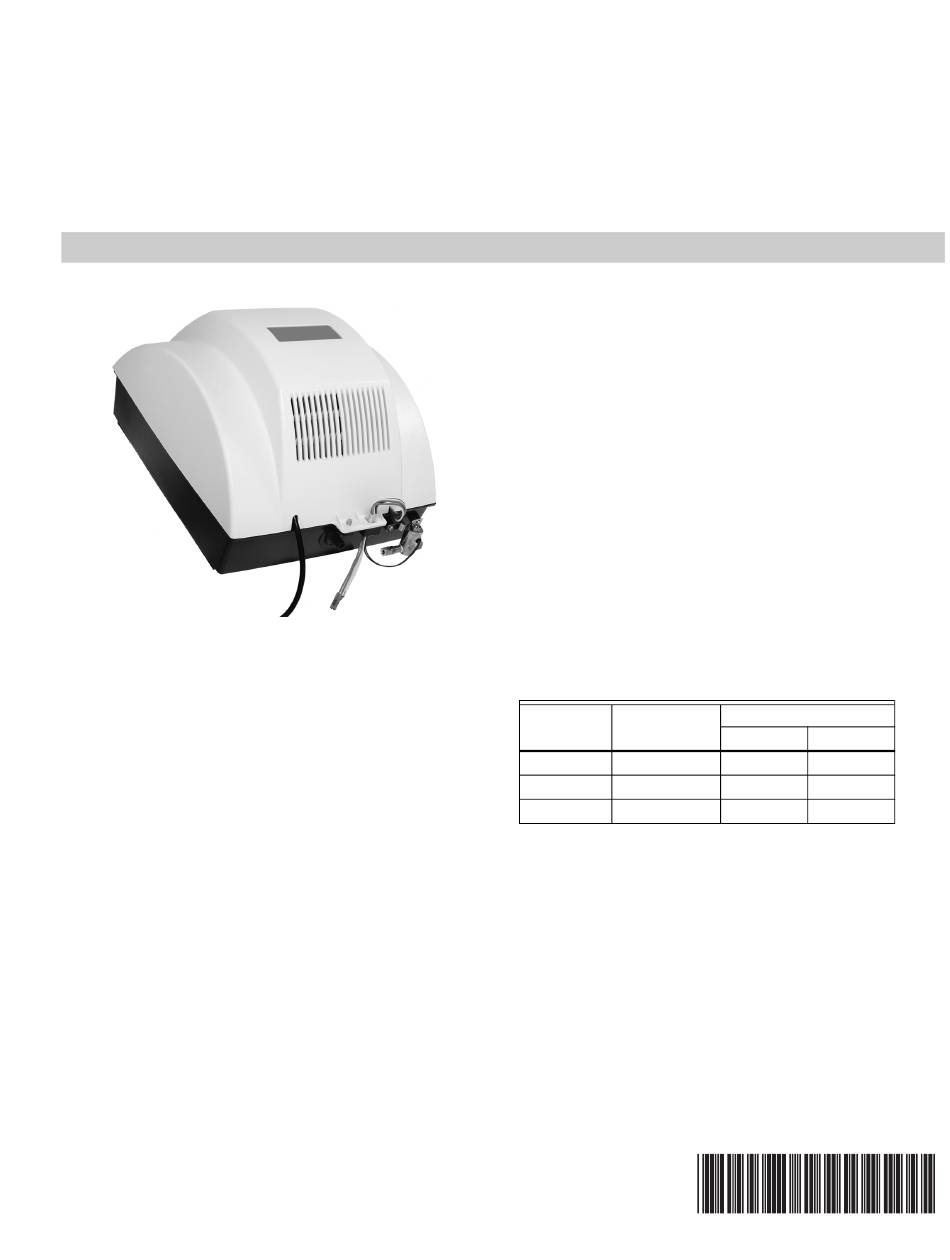

Powered Flow-Through Humidifier
APPLICATION
The Powered Flow-through Humidifiers use the warm air
furnace blower to provide humidification for the whole house.
FEATURES/BENEFITS
• Antimicrobial coating on pad prevents the surface
growth and migration of bacteria, mold, fungus and
algae on the humidifier pad.
• Bold look with blue and white styling.
• Capable of humidifying up to 4200 sq ft (390 sq m).
• Includes water distribution tray for optimal efficiency
and water usage.
• Narrower footprint than popular compatible model
while maintaining a common humidifier pad and
comparable humidification performance.
• Interior components designed for quick maintenance
and service.
• Humidifier includes a convertible humidity control that
mounts on the wall or duct for more flexibility.
• Continuous flushing reduces the frequency of
maintenance in a hard water installation.
SPECIFICATIONS
IMPORTANT
The specifications given in this publication do not
include normal manufacturing tolerances. Therefore,
this unit may not exactly match the listed specifica-
tions. Also, this product is tested and calibrated
under closely controlled conditions and some minor
differences in performance can be expected if those
conditions are changed.
Models Available:
Includes humidifier, antimicrobial humidifier pad, mounting
template, self-piercing saddle valve and Convertible Humidity
Control.
Capacity:
At 120 °F (49 °C) plenum temperature and 0.20 static
pressure drop across supply and return: 18 gallons per day
(gpd), 68 liters per day (lpd).
Humidified Area:
House
Air Changes
Description
Per Hour
Loose
Two
Average
One
Tight
One-half
Electrical Ratings:
120 Vac, 60 Hz, 0.7A.
Humidifier Pad Dimensions (height x width x depth):
13 in. x 10 in. x 1-1/2 in. (330 mm x 254 mm x 38 mm).
Plenum Opening Dimensions (height x width):
14-1/16 in. x 13-1/2 in. (357 mm x 343 mm).
Drain Connection:
1/2 in. (13 mm) I.D. plastic hose connected directly to drain fit-
ting on unit.
Dimensions:
Refer to Fig. 1.
PRODUCT DATA
Area (Up To)
Sq ft.
Sq m.
1,900
175
2,700
248
4,200
386
68-3074-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TT-HUM-365 and is the answer not in the manual?

Questions and answers

Summary of Contents for Toptech TT-HUM-365

  • Page 1 Powered Flow-Through Humidifier PRODUCT DATA SPECIFICATIONS IMPORTANT The specifications given in this publication do not include normal manufacturing tolerances. Therefore, this unit may not exactly match the listed specifica- tions. Also, this product is tested and calibrated under closely controlled conditions and some minor differences in performance can be expected if those conditions are changed.
  • Page 2: Location And Mounting

    POWERED FLOW-THROUGH HUMIDIFIER CAUTION ( 2 6 1 / 4 Property or Equipment Hazard. 1 0 - ( 3 5 Can cause property or equipment damage. • Locate the humidifier where the ambient temperature is between 32°F (0°C) and 160°F (71°C).
  • Page 3: Wiring Humidifier

    POWERED FLOW-THROUGH HUMIDIFIER WIRING HUMIDIFIER WARNING Serious Personal Injury or Equipment Hazard. Moving parts can cause electrical shock and injury. • Disconnect power supply before installation or servicing. • This device contains a moving fan blade; do not operate the humidifier without the cover securely attached.
  • Page 4: Checking Installation

    POWERED FLOW-THROUGH HUMIDIFIER CHECKING INSTALLATION MECHANICAL HUMIDISTAT 1. Open the saddle valve. 120 VAC NOTE: The furnace blower must be operating for the humidi- HUMIDIFIER fier to work. 2. Set the thermostat setpoint 10 °F (12 °C) above the room YELLOW WIRES temperature.
  • Page 5: Maintenance

    POWERED FLOW-THROUGH HUMIDIFIER Table 1. Recommended Humidity Control Settings. Outside Temperature Recommended Setting Outside Temperature Recommended Setting -20°F (-29°C) +10°F (-12°C) -10°F (-23°C) +20°F (-7°C) 0°F (-18°C) +20°F (-7°C) MAINTENANCE 5. Gently pinch the water nozzle catches inward until the water nozzle can be lifted off the tray.
  • Page 6: Checkout Procedure

    POWERED FLOW-THROUGH HUMIDIFIER CHECKOUT PROCEDURE 3. Observe that water is flowing out of the drain hose. NOTE: The furnace blower must be operating for the humidi- After winter startup or servicing, use the following steps to fier to work. check the humidifier operation. 4.
  • Page 7 POWERED FLOW-THROUGH HUMIDIFIER M28931 Fig. 10. Key to Replacement Parts. 68-3074—01...
  • Page 8 POWERED FLOW-THROUGH HUMIDIFIER ® U.S. Registered Trademark © 2010 68-3074—01 M.S. 08-10 Printed in U.S.A.
