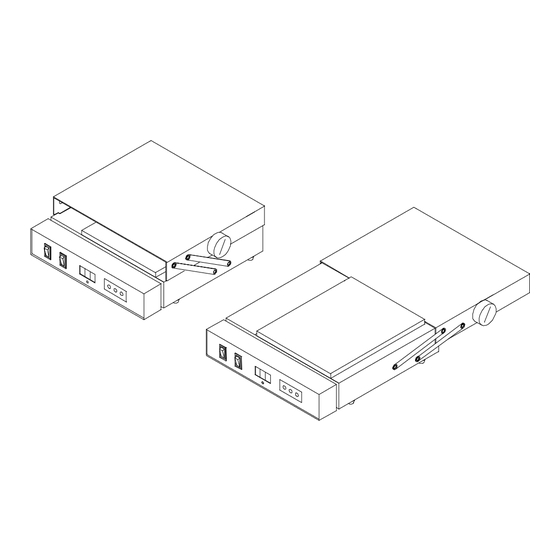

PRE-HEAT/REFLOW HOT PLATE
1. Specification:
Heating Power: 800W
Plate Area: 180mmx200mm
Plate Material: AL
Temperature Sensor: K Type Thermocouple
Temperature: 50℃～300℃
Ambient Temperature: 0～40℃
Temperature Stability: ±2℃
Outer Dimension: 280(W) x290 (L) x100 (H) mm
Weight: 5kg
2. Features:
•
Even temperature distribution.
•
CPU closed loop temperature control, digital display, zero Voltage heater switching.
•
Dedicated power and heating switches.
•
ESD safe.
•
External temperature calibration.
•
Hinged hood creates an oven like environment for reflow.
•
Two heating states optional (Pre-heating ＆ reflow).
MADELL QK870
