Summary of Contents for Gespasa GK-7PLUS
- Page 1 Unit 7 Swan Business Centre Osier Way, Buckingham MK18 1TB Email: sales@bellflowsystems.co.uk https://www.bellflowsystems.co.uk +44 (0) 1280 817304 GK-7PLUS CONSUMPTION CONTROLLER SUPERVISOR AND USER MODE INSTRUCTION MANUAL 03.2014...
- Page 2 GK-7PLUS CONTROLLER INSTRUCTION MANUAL...
-
Page 3: Table Of Contents
3.2.6. GPRS (only in kits with GPRS connection) ............... 18 4. THE PRINTER ...................... 19 Appendix A · Factory controller configuration ............20 Appendix B. Insert or replace the SIM card of the GK-7PLUS controller (only in kits with GPRS connection) ..................21 CONFORMITY DECLARATION .................. 23... - Page 4 The GK-7PLUS controllers belong to the GK-7 family controllers and are designed to automatically communicate M2M with the DieselPlus application. The GK-7PLUS controllers are not able to work in autonomous way; they need the DieselPlus application in order to both manage the stored users and vehicles and control their supplies...
-
Page 5: General Instructions To Use The Keypad

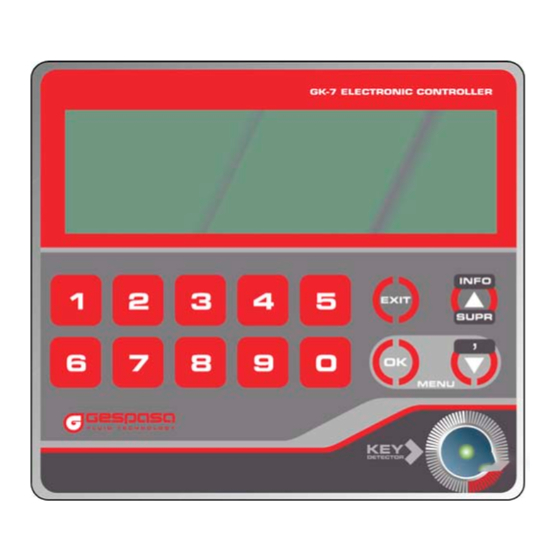

GK-7PLUS CONTROLLER INSTRUCTION MANUAL 1. GENERAL INSTRUCTIONS TO USE THE KEYPAD The kit has a keypad of 14 keys distributed as it is shown below: Identification key Identification key reader In general the numeric keys will be used for the access and data code typing, both in user and supervisor mode. -
Page 6: User Mode
GK-7PLUS CONTROLLER INSTRUCTION MANUAL 2. USER MODE The user mode is the mode that the kit allows making a supply to an authorized user. Depending on the kit configuration, it will be necessary to make some or every one of the following steps so that a supply is completed: Step 1. -
Page 7: Step 2. Vehicle Identification
GK-7PLUS CONTROLLER INSTRUCTION MANUAL Step 2. Vehicle identification According to the kit configuration, this step is made through the following options: Identification by numerical code: Without vehicle identification Identification by key: - If the kit has been configured for - If the kit is configured to work... -
Page 8: Step 4. Predetermination Introduction
GK-7PLUS CONTROLLER INSTRUCTION MANUAL Step 4. Predetermination introduction Depending on the kit configuration, it is possible to be asked to preset the fuel quantity that you want to supply. In this case, the display will show the following message: TYPE AMOUNT... -
Page 9: Step 7. Supply Ticket
GK-7PLUS CONTROLLER INSTRUCTION MANUAL If it is necessary to start a new identification before the described time passes, the user will have to pass the identifier or press a key, depending on the configured identification mode. Step 7. Supply ticket If the kit is connected to a ticket printer, it is possible to print a supply ticket similar to the model shown below. -
Page 10: Supervisor Mode
GK-7PLUS CONTROLLER INSTRUCTION MANUAL 3. SUPERVISOR MODE The Supervisor mode is the mode where the kit allows the authorized person (from now on, SUPERVISOR) to make all the configuration system operations, as well as to get the stored data. According to the kit configuration, this mode can show the different menus and options that will be described in this manual. -
Page 11: Supervisor Mode / Regularization
GK-7PLUS CONTROLLER INSTRUCTION MANUAL 3.2.2. SUPERVISOR mode / REGULARIZATION This option allows adjusting the level shown by the kit to the real level that there is in the tank. Because of some differences in the accuracy of some instruments, which are used to count the entered and supplied liquid, it is possible that there can be some imbalances between the shown value by the kit and the measured value. -
Page 12: Supervisor Mode / Configuration List
GK-7PLUS CONTROLLER INSTRUCTION MANUAL CALIBRATION PROCESS ERROR OK = ACCEPT Pressing <OK> you will come back to the display of the SUPERVISOR MODE and the calibration factor will not be modified. If the new factor has been calculated, once accepted, the display will show the following message:... - Page 13 GK-7PLUS CONTROLLER INSTRUCTION MANUAL SUPERVISOR ID. SUPERVISOR PIN LCM HEADING LANGUAGE PRINTER LINE 1 PRINTER LINE 2 PRINTER LINE 3 PRINTER LINE 4 PRINTER LINE 5 TICKET REQUEST SECONDS ADDRESS HIDING 300 ml TAX DECIMALS PRICE DECIMALS TOTAL DECIMALS HOSE SELECTOR...
-
Page 14: Supervisor Mode / Supervisor Menu / Configuration
GK-7PLUS CONTROLLER INSTRUCTION MANUAL 3.2.5.1. SUPERVISOR Mode / SUPERVISOR Menu / CONFIGURATION Once into configuration, the display will show the following menu: > CONSOLE TANKS HOSES GPRS (only in kits with GPRS connection) ETHERNET (only in kits with ETHERNET connection) 3.2.5.1.1. -
Page 15: Supervisor Mode / Supervisor Menu / Configuration / Tanks
GK-7PLUS CONTROLLER INSTRUCTION MANUAL PRINTER LINE 5: It is text of up to 32 characters, freely editable, that will appear in the last line of the ticket, after all the supply data. This text will be shown in a centred position respect to the paper width. -
Page 16: Supervisor Mode / Supervisor Menu / Configuration / Gprs
PASSWORD: User password of the GPRS connection given by the operator of the mobile network of the installed SIM card. SERVER: Domain or IP address of DieselPlus used for the communications with the GK-7PLUS controller given by DieselPlus. ... -
Page 17: Supervisor Mode Supervisor / Supervisor Menu / Configuration / Ethernet (Only In Kits With Ethernet Connection)
This option allows the parameter configuration that take part in the ETHERNET connection and the later communication of information with the DieselPlus application. IP ADDRESS: IP address assigned to the GK-7PLUS controller in the local network given by the network administrator. ... -
Page 18: Supervisor Mode / Technical Menu / Initialization
GK-7PLUS CONTROLLER INSTRUCTION MANUAL 3.2.5.3. SUPERVISOR mode / TECHNICAL MENU / INITIALIZATION Through this option it is possible to initialize the different data files of the system or what it is the same to eliminate the information that the kit has. Please act with extreme caution in this option as it is not possible to recover this information once some of the files are initialized,. -
Page 19: The Printer
GK-7PLUS CONTROLLER INSTRUCTION MANUAL 4. THE PRINTER The controller is equipped with a thermal printer of 32 columns with an automatic built-in cut, in order to print tickets and lists. The adequate paper for this type of printers is thermal paper with a width between 56 and 57 mm. It is advisable to use paper of quality to obtain a good printing and prevent damages to the printer mechanical system. -
Page 20: Appendix A · Factory Controller Configuration
GK-7PLUS CONTROLLER INSTRUCTION MANUAL Appendix A · Factory controller configuration The configuration by defect is that the kit has (approx.) when it goes out from the factory or after an initialization. This configuration is the following one: CONSOLE CONFIGURATION: User identification:... -
Page 21: Appendix B. Insert Or Replace The Sim Card Of The Gk-7Plus Controller (Only In Kits With Gprs Connection)
Appendix B. Insert or replace the SIM card of the GK-7PLUS controller (only in kits with GPRS connection) The GK-7PLUS kits with GPRS connection requires a SIM card for its operation because these must be communicated with the DieselPlus application. To insert or replace the SIM card access the controller inner. - Page 22 3. Restart the GK-7PLUS controller or the kit. Once the GK-7PLUS controller or the kit is restarted, it is possible to check if there is a correct GPRS connection into 3.2.5.1.4 Supervisor Mode / SUPERVISOR MENU / CONFIGURATION / GPRS as it is described in the above section no.
-
Page 23: Conformity Declaration
GK-7PLUS CONTROLLER INSTRUCTION MANUAL CONFORMITY DECLARATION Manufacturer: TOT COMERCIAL SA Partida Horta d'Amunt, s/n 25600 BALAGUER (Lleida) SPAIN DECLARES: Under its own responsibility that the following machine: Own Consumption Controller GESPASA Mark: GK-7Plus Model: Serial no. It is in accordance with the following Directives of the European Parliament and the Council: "2006/42/EC of 17 May 2006 on machinery", "2006/95/EC of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment...
