SNS-101

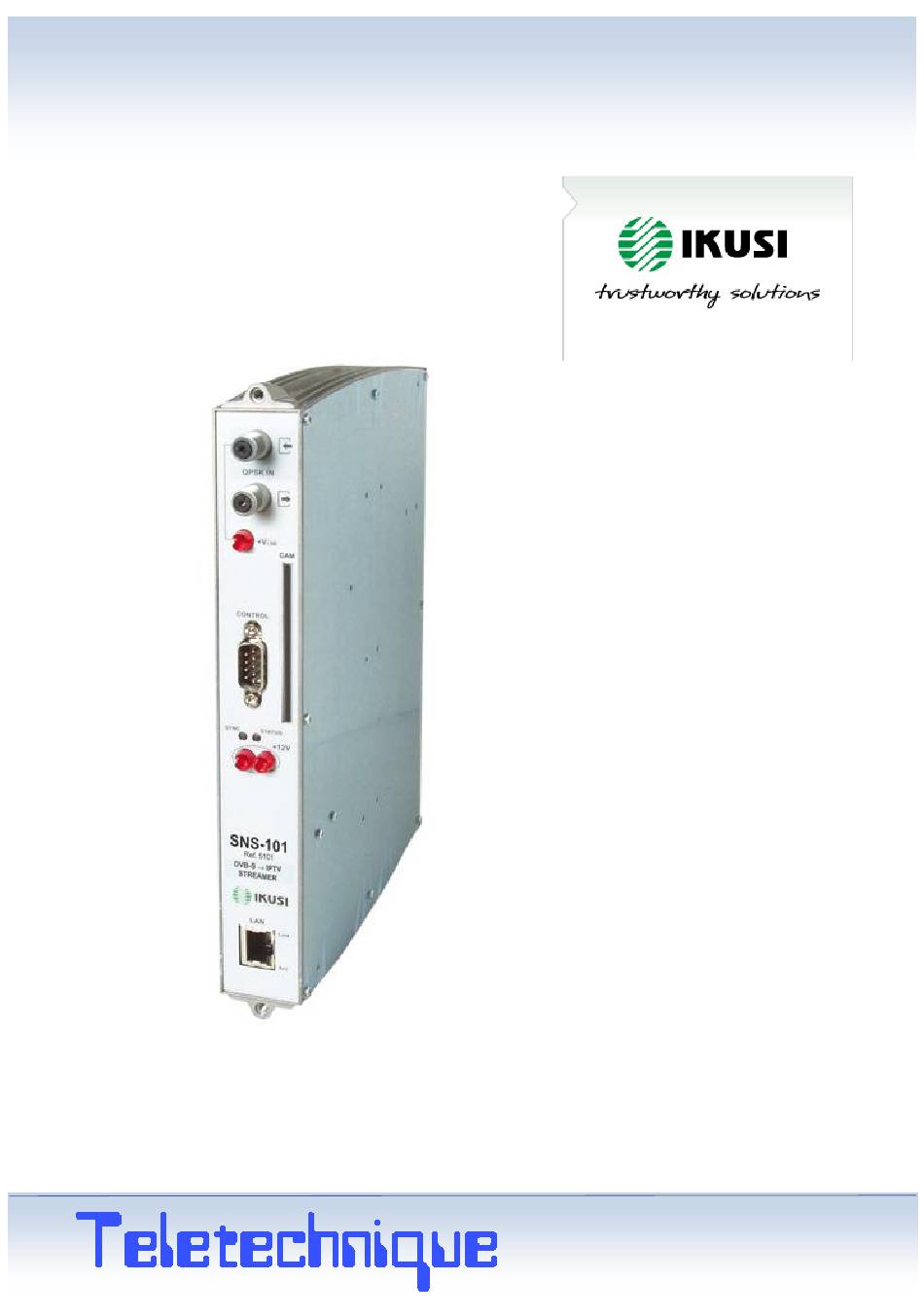

IP Streamer – DVB-S FTA/MultiCrypt to IP
Multicast streamer for IP broadband networks. Up to eight simultaneous DVB-S satellite
television programs for Free-To-Air (FTA) or MultiCrypt encoded for streaming over IP
multicast networks.
Designed and manufactured by Messrs Ikusi of Spain. Sold and supported by
Teletechnique Beechmont in Queensland.
14 Jacaranda Court, BEECHMONT QLD 4211, Australia
Phone: +61-(0)7-3103-0750 - Fax: +61-(0)7-5604-1402
E-mail: sales@teletechnique.com
Web: www.teletechnique.com - ABN 34 383 278 861

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SNS-100 and is the answer not in the manual?

Questions and answers

Summary of Contents for IKUSI SNS-100

  • Page 1 Multicast streamer for IP broadband networks. Up to eight simultaneous DVB-S satellite television programs for Free-To-Air (FTA) or MultiCrypt encoded for streaming over IP multicast networks. Designed and manufactured by Messrs Ikusi of Spain. Sold and supported by Teletechnique Beechmont in Queensland. 14 Jacaranda Court, BEECHMONT QLD 4211, Australia Phone: +61-(0)7-3103-0750 - Fax: +61-(0)7-5604-1402 E-mail: sales@teletechnique.com...
  • Page 2 Link Link Acces Module) containing an Operator's Smart Card must fit the front panel slot. CAM modules are not supplied by IKUSI. - One or more CFP Power Supplies. Power - One or more Rack-frames or Baseplates. The baseplates can be joined...
  • Page 3 Television on IP Networks SNS-101 (Ref. 5101) FTA or MultiCrypt DVB-S ➞ ➞ ➞ ➞ ➞ IP Streamer — Common Interface Configuration and Settings User Manual...
  • Page 4 Configuration and Setting of the SNS-101 Streamer Module User Manual November 2008 Revision C IKUSI - Ángel Iglesias, S.A. Paseo Miramón, 170 20009 San Sebastián SPAIN Tel.: +34 943 44 88 00 Fax: +34 943 44 88 11 www.ikusi.com...
  • Page 5: Table Of Contents

    CONTENTS Introduction ..........................4 This Manual ......................... 4 Product Description ...................... 4 Chapter One - Configuration of the SNS-101 Streamer ............5 Configuration ......................6-10 Save/Restore Configuration ..................11 General Report ......................12 Chapter Two - SNS-101 Streamer Settings ................13 DiSEqC Configuration ....................
  • Page 6: Introduction

    IPTV set-top box or a software video player. SNS-101 modules have an IKUSI ClassA mechanical format. As such, they are fixed to BAS-700 / BAS-900 baseplates or to an SMR-601 rack frame, and are +12 V powered from a CFP module.
  • Page 7: Chapter One - Configuration Of The Sns-101 Streamer

    Chapter One - Configuration of the SNS-101 Streamer In this Chapter Configuration ● Save/Restore ● General Report ●...
  • Page 8 Configuration General Configuration Initial program screen The first screen that appears when the programme is accessed contains the "Output" window, which gives information on the IP streams that have been created on the module and which may or may not be incorporated into the output data stream.
  • Page 9 Configuration "Model": SNS-101. This data cannot be changed. "Serial Number": Informational data which cannot be changed. "Firmware Version": As above. "Identifier": Any name that the installer or operator wishes to assign to the streamer module can be entered here. "Location": Enter the postcode of the installation site if required. "Installer": The installer's identification details can be entered here.
  • Page 10 Configuration Network Click on the Network tab to configure the streamer's ethernet connection parameters. The following card is displayed: Figure 1.3 - Network card of the Configuration window. "Use DHCP to get IP address": If this box is checked, the SNS-101 module will use the DHCP protocol for assigning dynamic IP addresses.
  • Page 11 Configuration Password If you want to change the current access password, click on the Password tab. The following card is displayed: Figure 1.4 - Password card of the Configuration window. "Current password": Enter the current password. "New password": Enter the new password which will be required to access the program the next time.
  • Page 12 Figure 1.6 - Update Firmware card of the Configuration window. WARNING: The firmware update file will have been previously stored on the PC hard drive. (You can download it from http://www.ikusi.com). Click on Browse... and select the firmware update file from the hard drive. When the file name is in the box, click on Start.
  • Page 13: Save/Restore Configuration

    Save/Restore Save/Restore System Settings All of the data established on the streamer module through the various Configuration window tabs can be saved onto a backup file. Inversely, the configuration data saved on an appropriate file can be restored on streamer module. Click on the General menu on the left of the general programme screen and click again on the Save/Restore option.
  • Page 14: General Report

    General Report General Report Click on the General menu on the left of the general programme screen and click again on the General Report option. The General Report window is displayed: Figure 1.9 - General Report window This window provides complete information on the SNS-101 module, not only regarding the configuration described in the previous pages, but also in relation to the current settings parameter values and operational status.
  • Page 15: Chapter Two - Sns-101 Streamer Settings

    Chapter Two - SNS-101 Streamer Settings In this Chapter DiSEqC Configuration ● Input Section Settings ● Output Section Settings ● SAP Channel Settings ● CAM User Menu ● SNMP Configuration ●...
  • Page 16: Diseqc Configuration

    DiSEqC DiSEqC Configuration The SNS-101 module settings are grouped into six sections or categories: DiSEqC, Input, Output, SAP Channel, CAM User Menu and SNMP. Click on the Settings menu on the left side of the general programme screen. A drop down list is displayed offering six options: DiSEqC, Input, Output, SAP Channel, CAM User Menu and SNMP.
  • Page 17: Input Settings

    Input Input Section Settings Click on the Settings menu on the left of the general programme screen and click again on the Input option. The Input window will appear: Figure 2.3 - Input window This window is used to enter the settings values for two parameters (intermediate frequency and input rate) and, if the DiSEqC function is activated, to power an LNB or select an input of multiswitch.
  • Page 18 Input Figure 2.4 - Input Window — IF Mode "Intermediate Frequency (MHz)": Enter the value calculated for the transposed intermediate frequency of the transponder's frequency in the box. The latter can be found in specialist magazines. "Input Rate (MS/s)": This parameter, best known and Symbol Rate, is also provided in specialist magazines.
  • Page 19 Input "LNB Type": The drop down list has 2 options: Standard LNB and Special LNB. If the LNB installed on the parabolic antenna is standard, select the Standard LNB option. The boxes "Low LO Frequency" and "High LO Frequency" will be automatically completed with values 9750 and 10600 respectively (see Figure 2.5 on the previous page).
  • Page 20: Output Settings

    Output Output Section Settings Click on the Settings menu on the left of the general programme screen and click again on the Output option. The Output windown will appear: Figure 2.7 - Output window This window is used to select and configure the required services (TV or Radio programs) from the DVB-S input transport stream as IP streams.
  • Page 21 Output The Output window allows you to perform three actions: - Add Stream: This adds a new IP stream to the display table. - Edit Stream: Allows you to change the parameters of the IP stream on the dis- play table. - Delete Stream: Deletes an IP stream from the display table.
  • Page 22 Output Boxes at the top of the screen: "Multicast Stream Address": Enter the multicast address required for the stream to be added. The available range is from 224.0.0.0 to 239.255.255.255, but it is recommended to reduce it from 224.0.1.0 to 238.255.255.255. See NOTE below. "Port": The default value is 1234.
  • Page 23: Sap Channel Settings

    SAP/SDP Channel SAP Channel Settings Click on the Settings menu on the left of the general programme screen and click again on the SAP Channel option. The SAP Channel window will appear: Figure 2.9 - SAP Channel window This menu option is used to configure the announcement and service description SAP/ SDP channel.
  • Page 24: Cam User Menu

    The procedure is, as aforesaid, similar for all type of CAM modules. When in doubt, contact the vendor of the module. The correct programme de-encrypting is guaranteed only with CAMs validated by IKUSI. Consult on www.ikusi.com the operativity of your CAM.
  • Page 25: Snmp Configuration

    SNMP SNMP Configuration Click on the Settings menu on the left of the general programme screen and click again on the SNMP option. The SNMP Agent window will appear: Figure 2.14 - SNMP Agent window This window is used to configure the notification of determined traps the SNMP mana- ger (management station).
  • Page 26 SNMP Traps Section : You select here the streamer parameters whose alarm status generate traps, either with or without acknowledgement. "Hardware" : Tick the box for sending an alarm trap when there be an anomaly in the streamer's circuitry. If you want to receive an acknowledgement from the SNMP manager, tick also the Enable ACK box at right.
  • Page 27: Chapter Three - Sns-101 Streamer Status Information

    Chapter Three - SNS-101 Streamer Status Information In this Chapter Status Information ●...
  • Page 28: Status Information

    Status Information Status Information Click on the Status menu on the left of the general programme screen and click again on the Status Information option. The Status Information window appears: Figure 3.1 - Status Information window This window gives you information on the existence of alarms for module operations and on the importance reception and transmission parameters: "Hardware Alarm"...
  • Page 29: Chapter Four - Sns-101 Streamer Reports

    Chapter Four - SNS-101 Streamer Reports In this Chapter Input Services ● Output Streams ● System Logs ●...
  • Page 30: Input Services

    Input Services Input Services Click on the Reports menu on the left of the general programme screen and click again on the Input Services option. The Input Services window appears: Figure 4.1 - Input Services Window The Input Services window shows the full information on each of the services contained in the DVB-S input transport stream.
  • Page 31: Output Streams

    Output Streams Output Streams Click on the Reports menu on the left of the general programme screen and click again on the Output Streams option. The Output Streams window will appear: Figure 4.2 - Output Streams window The Output Streams window shows all IP streams that have been created for this mo- dule.
  • Page 32: System Logs

    System Logs System Logs Click on the Reports menu on the left of the general programme screen and click again on the System Logs option. The System Logs window will appear: Figure 4.3 - System Logs window...
  • Page 33 IKUSI - Ángel Iglesias, S.A. Paseo Miramón, 170 20009 San Sebastián SPAIN Tel.: +34 943 44 88 00 Fax: +34 943 44 88 11 www.ikusi.com ER-0149/1996...
  • Page 34 EC-Declaration of Conformity marking We, Manufacturer IKUSI, Angel Iglesias, S.A. Paseo Miramón, 170 E-20009 San Sebastián, Spain declare that the product DVB-S ➞ ➞ ➞ ➞ ➞ IP Streamer with Common Interface SNS-101 E M C is in conformity with...
  • Page 35 CONFIGURATION AND SETTING MANUAL MANUAL DE CONFIGURACION Y AJUSTE MANUEL DE CONFIGURATION ET REGLAGE Disponible en formato PDF en Available on PDF format on Disponible en format PDF sur http://www.ikusi.com http://www.ikusi.com http://www.ikusi.com «SNS» Headends Estaciones «SNS» Stations «SNS» Una estación modular SNS incluye tantos...
  • Page 36 DESCRIPCION DE PANEL / PANEL DESCRIPTION / PRESENTATION DU MODULE Lazo derivación entrada FI-Sat Hembrillas cascada alimentación DC Sat-IF input tap-loop DC power cascade sockets QPSK IN Boucle dérivation entrée BIS Embases cascade alimentation CC Puerto RJ-45 - Salida stream IP Hembrilla telealimentación LNB RJ-45 port - IP stream output LNB power socket...
  • Page 37 Especificaciones técnicas / Technical specifications / Données techniques Frecuencia de entrada Velocidad de bit de salida ≤ ≤ ≤ ≤ ≤ 100 Mbps Input frequency 950-2150 MHz Output bit rate Fréquence d'entrée Débit de sortie Equipado con DiSEqC Número de streams simultáneos de salida ≤...
  • Page 38 INSERCIÓN DE CAM Y TARJETA INSERTING CAM AND SMART CARD borde ancho thick rim INSERTION DU CAM ET DE LA CARTE bord épais QP SK QP SK contactos contacts contacts CONTRO L CONTRO L SYNC SYNC STAT US STAT US +12V +12V SN S- 10...
  • Page 39 CONEXION DE LA SEÑAL FI-SAT / CONNECTION OF THE SAT-IF SIGNAL / RACCORDEMENT DU SIGNAL BIS a) Instalando líneas de derivación / Installing tap-lines / En installant des lignes de dérivation Se creará 1 línea de derivación para 1 tap-line must be created for each group On créera 1 ligne de dérivation pour chaque ●...
  • Page 40 IP de ceux-ci et/ou le mot de passe available on http://www.ikusi.com. d'accès au programme. *El proceso de configuración y ajuste se * Le processus de configuration et réglage explica en el manual correspondiente est expliqué...
  • Page 41 Access reset Reset de acceso Reset d'accès Cuando hay que acceder a un módulo When you have to accede a streaming Quand il faut accéder à un module streamer, y se desconocen su dirección IP module, and its IP address and/or the streamer, et son adresse IP et/ou le mot de y/o la clave de acceso al programa, la única programme access key are unknown, the...
  • Page 42 Pantalla de presentación del programa Programme presentation screen Écran de présentation du programme IKUSI — Ángel Iglesias, S.A. Paseo Miramón, 170 - 20009 San Sebastián - SPAIN Tel.: +34 943 44 88 00 Fax: +34 943 44 88 11 www.ikusi.com...
