Summary of Contents for Fysic FX-9000

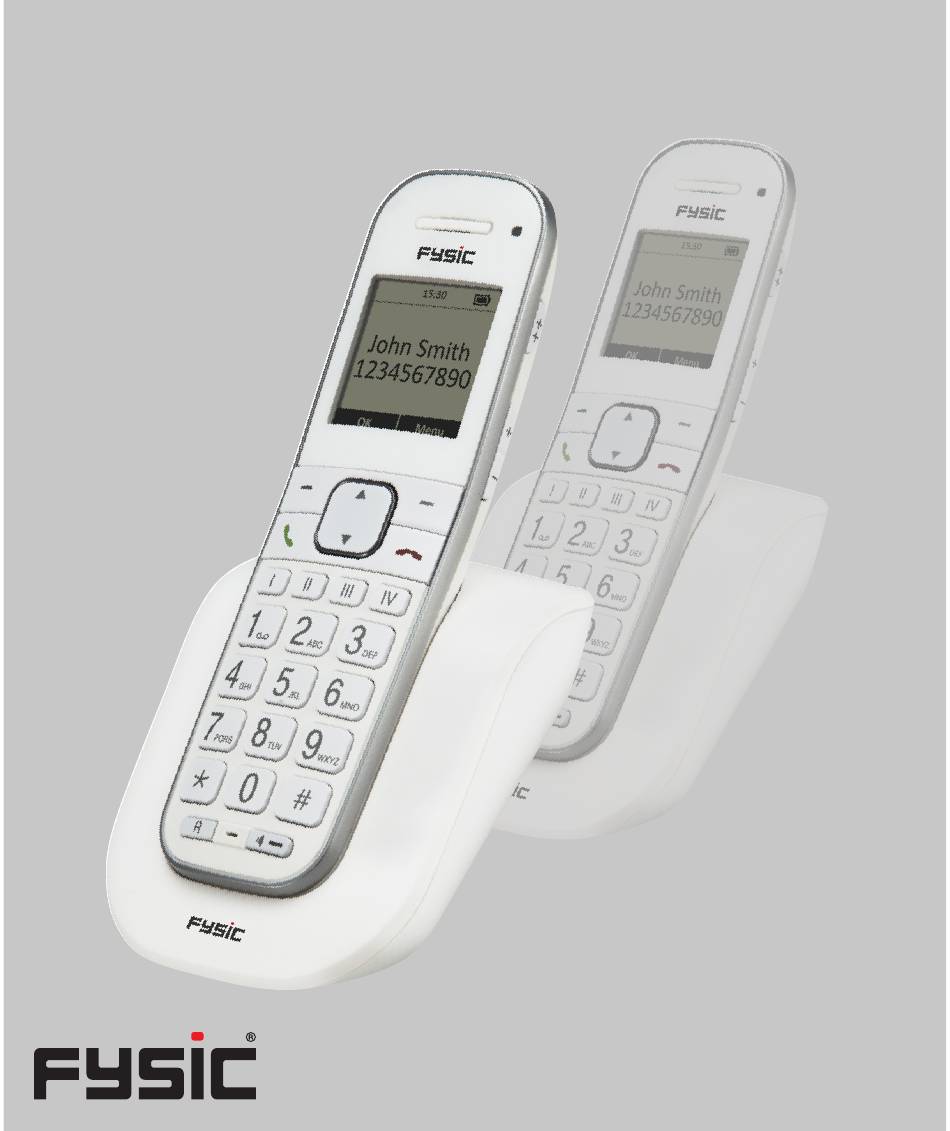

- Page 1 USER’S MANUAL FX-9000 FX-9000 DUO...
-
Page 2: Overview
OVERVIEW Indicator; flashes when 1.1 HANDSET: you’re receiving a call Flashes also to indicate Speaker ‘new call’ (this function may be disabled) In standby mode, above this the handset number ++ button: to enable the (1 - 5), the actual time additional amplifier during and the battery power are a call... -
Page 3: Base
1.2 BASE Pager button: to call all handsets (handset search button) Serves also as the registration button for a new handset. Charging contacts: the rechargeable batteries of the handset are recharged through these contacts... -
Page 4: Installation
INSTALLATION 2.1 BASE: Telephone input: Insert the small plug of the phone cord cable into the connection underneath the base (depress the plug until you hear a click). Insert the phone plug into a telephone wall socket. Power supply: Connect the supplied power adaptor with the input at the rear of the base and insert the adaptor into a 230V wall socket. -
Page 5: Handset
ABLE BATTERIES LEADS TO DANGEROUS SITUATION OR CAUS- ES A RISK OF EXPLOSION. 2.3 EXTRA HANDSET AND CHARGER: (FX-9000 DUO) Each handset is supplied with 2 batteries and a charger with adaptor. Insert the adaptor of each charger into a 230 Volt wall socket, install the batteries in the handset(s) and place the handset(s) for 15 hours onto the charger(s) to charge the batteries. -
Page 6: Calls
CALLS 3.1 RECEIVING CALLS: Upon receiving a call the device starts ringing, the handset’s display lighting switches on and the indicator on top of the handset starts flashing; when the vibration function is enabled you’ll also feel the handset vibrating Press the phone “on”... -
Page 7: Dialling Numbers
3.4 DIALLING NUMBERS: Use the keypad to enter the phone number • Press and hold the 0 button for at least a second to insert a dial- ling pause (the display will show a -P-) • Press the [ CLEAR ] soft button to delete an incorrect input Press the phone “on”... - Page 8 Redialling or dialling from the call list: Calls to scroll to [ Calls ] Phone book Press the OK soft button to scroll to [ Redial List ] and redial a num- ber or to [ Call List ] to call a person back who has called Redial List Call List you before...
-
Page 9: Inquiry
3.5 INQUIRY: During a phone conversation you may disable the microphone allowing you to consult with family members without the person on the line listening in. During a phone conversation, press and hold the 2 sec. button for 2 seconds to disable the microphone; Press and hold the button again for 2 seconds to en- 2 sec. -
Page 10: Call Duration
3.7 CALL DURATION: During a phone conversation, the display of the handset will show the call duration; several seconds after discon- 00:01:25 necting the call, the call duration will disappear from the display. 3.8 R/FLASH FUNCTION: R/FLASH means that you very briefly interrupt the phone connection. On certain home or office switchboards, this allows you to transfer calls or to activate phone services such as ‘Call Waiting’. -
Page 11: To Switch Off The Handset
3.10 TO SWITCH OFF THE HANDSET: To save battery power or to remain undisturbed by any calls, you may fully switch off the handset: Press and hold the phone ‘off’ button for 5 seconds 5 sec. Switch off handset? Press the [ Yes ] soft button to confirm or press [ No ] to keep the handset switched on •... -
Page 12: Redialling
REDIALLING 4.1 INTRODUCTION: The handset memorises the 20 last dialled numbers. You may redial these numbers, save them in the phonebook memory or delete them. 4.2 OPNIEUW KIEZEN: Calls to scroll to [ Calls ] Phone book Press the OK soft button to scroll to [ Redial List ] Redial List Call list... -
Page 13: To Save Or Delete
4.3 TO SAVE OR DELETE: Find the number according to the instructions on the 0201234567 previous page Neighbors left Option Press the [ Option ] soft button Use the buttons to select one of the following options: Details: to check the number in case the display shows Details the contact’s name Delete Entry: to delete the selected call only... -
Page 14: Caller-Id
Caller-ID 5.1 INTRODUCTION: If your subscription includes the Caller-ID service, the number of the caller will appear in the display of your handset. If you’ve programmed this num- ber, including a name, in the phonebook memory, this display will show both the number and name, you may set a separate ringer in each memory. - Page 15 to scroll the list with calls 0201234567 = indicates a new call Jack = indicates an old call Neighbor A Only after checking the details (see below), the Option closed dot becomes an open dot Press the [ Option ] soft button and use the buttons to choose from the following options: Details: for the day and time of the call Details...
-
Page 16: Additional Information
5.4 ADDITIONAL INFORMATION: • The FX-9000 / FX-9000 DUO is suitable for both the DTMF system, offered by the Dutch PTT, as well as for the FSK system, offered by the Belgian PTT and the Dutch and Belgian cable companies for as far as they offer telephony services. -
Page 17: Voicemail Indication
VOICEMAIL INDICATION 6.1 INTRODUCTION: VoiceMail is a service provided to you by your telephone company. Callers may leave a message for you in this case. You may listen to this message at a later time. (*) 6.2 NEW VOICEMAIL INDICATION: If your telephone company supports VoiceMail, based on the FSK system, it’s possible for you to receive a notification when somebody has left you a new... -
Page 18: Phonebook Memory
PHONEBOOK MEMORY 7.1 INTRODUCTION: Each FX-9000 / FX-9000 DUO handset has a phonebook memory with a capacity of 150 phone numbers of 24 digits max. For each number you may program a name of 12 characters max. The phonebook memory is linked to the Caller-ID function;... -
Page 19: To Add Contacts
7.3 TO ADD CONTACTS: Calls to scroll to [ Phonebook ] Phonebook Press the OK soft button New Entry Barber to scroll to [ New Entry ] Niels Press the OK soft button Use the keypad to input the name Name: •... -
Page 20: To Set The Ringer And To Edit Or Remove Contacts
to select the call group to which you’d like to add this contact, you may choose from: Group: No Group / Family / Office / Friends / Apply / VIP / Other / General (See also the next page on how to set the ringer for this group and how to change the name of each group) Press the OK soft button 7.4 TO SET THE RINGER AND TO EDIT OR REMOVE CONTACTS:... - Page 21 Speed Dial: here you may assign the memory to one of Speed Dial the numeric buttons 2-9; by depressing the concerned numeric button, the number is dialled Press the [ OK ] soft button to confirm your choice *: these options only with the FX-9000 DUO (multiple handsets)
-
Page 22: Internal Calls, Call Transfer And Conference Calls
ENCE CALLS 8.1 INTRODUCTION: You may register up to 5 handsets on the FX-9000 / FX-9000 DUO base station. When multiple handsets are registered, internal calls en internal transfer calls are free of charge. If your telephone comes with multiple handsets, you can immediately use these functions. -
Page 23: Call Transfer
8.3 CALL TRANSFER: 00:01:25 During your conversation with an external caller, press the [ Internal ] soft button and wait for the other handset Internal to answer Press the phone ‘off’ button to transfer the call 8.4 CONFERENCE CALLS: 00:01:25 During your conversation with an external caller, press the [ Internal ] soft button and wait for the other handset Internal... -
Page 24: Settings And Additional Functions
SETTINGS AND ADDITIONAL FUNCTIONS 9.1 INTRODUCTION: In addition to the various additional functions offered by this phone, you may customize many settings to your preferences. You can find all these settings and functions under the option [ Settings ] 9.2 SETTINGS: First press button MENU and than press button OK to open the settings menu. -
Page 25: Handset Settings
- [ Advisory Tones ]: allows you to enable or disable vari- ous tones: Key Tone: tone emitted when pressing each button Confirm Tone: tone emitted upon successfully adjusting a setting Warning: tone indicating a nearly exhausted battery No Coverage: tone indicating that the handset is getting out of range from the base Speed Dial Speed Dial: here you may program the numbers for the... - Page 26 Direct Call: when you enable this function and program Direct Call a phone number, this and only this number will be dialled directly upon pressing a button, regardless of which button. You may disable this function via the [ Option ] soft button. Select Base: if the handset is registered on multiple Select Base base stations, here you may select the base that must...
- Page 27 Register HS: to (re-)register the handset on the base Register HS (see also chapter 10.2) De-register: to de-register the handset on the base De-register? (see also chapter 10.3) Reset Handset: to reset all settings of the handset to the Reset Handset standard factory values.
-
Page 28: Base Settings
9.4 BASE SETTINGS: Attention: Some settings require the input of a PIN code. The code set upon leaving the factory is 0000. to scroll to the [ Handset ] option. Handset Press the OK soft button Use the buttons to choose from the following settings: Ring Priority: when multiple handsets are connected with Ring Priority... - Page 29 Full ECO plus: when this function is enabled, the hand- Full ECO plus set decreases its transmitting power back to 75% when getting closer to the base The power of the base is in any case reduced by 99% as soon as you place the handset onto the base Change Sys.
-
Page 30: Extra Handsets
10 EXTRA HANDSETS 10.1 INTRODUCTION: You may connect 5 handsets to each base station of the FX-9000 / FX-9000 DUO series. You can then call and transfer calls internally free of charge. 10.2 REGISTERING HANDSETS: Attention, the handset(s) supplied with base is (are) already registered on the base. -
Page 31: De-Registering Handsets
Now choose on which base you’d like to register the handset (when using just 1 base, this is always [ Base 1 ] Base 1 Press the OK soft button Now enter the PIN code (the factory PIN code 0000 or System PIN: your own PIN code) Press the OK soft button and the handset will start... - Page 32 Settings Press the OK soft button Handset to scroll to the [ Handset ] option Press the OK soft button to scroll to the [ De-register ] option De-register Press the OK soft button Enter the PIN code (the factory PIN code 0000 or your System PIN: own PIN code) ****...
-
Page 33: Tips When Using Multiple Handsets
De-register ? or press No to cancel 10.4 TIPS WHEN USING MULTIPLE HANDSETS: • Making and receiving calls are done in the same way on all FX-9000 / FX-9000 DUO type handsets. • Internal calls are free of charge. • When you receive an external call during an internal phone conversation, the handsets will sound a call waiting tone. -
Page 34: Tips And Warnings
11 TIPS AND WARNINGS 11.1 GENERAL: • Carefully read the user’s manual and follow all directions. • Never install or use the telephone in wet or moist rooms or environments. • Ensure adequate heat dissipation; never cover the telephone nor place it directly next to a heat source. -
Page 35: Range
11.4 RANGE: • The range of the phone is up to 300 meters in the open field and up to 50 meters inside; the range depends on local circumstances. When you get out of reach of the base station, the display goes off. In this state, you cannot receive or make any calls. -
Page 36: Medical Equipment
11.7 MEDICAL EQUIPMENT: • It’s possible for switched on DECT phones to cause interference in sensitive medical equipment. Interference could occur when the phone is held in close proximity of the medical device. Never put DECT phones onto or against a medical device, nor when the phone is set to standby mode. -
Page 37: Possible Problems And Solutions
12 POSSIBLE PROBLEMS AND SOLUTIONS 12.1 PROBLEMS WITH OUTGOING CALLS: • You hear no dialing tone: The outside line is being used by another handset. Wait until this − call is ended and try again. Check the connection between the base and your telephone socket −... -
Page 38: Problems During Calling
12.3 PROBLEMS DURING CALLING: • Beep tones during an intercom call: You are called from outside during an intercom call; end this call, − wait until the phone rings normally and answer the call. • Beep tones during a telephone conversation: The battery pack is nearly empty;... -
Page 39: Other
• You can also contact the Fysic service center or the supplier of this telephone. 13 DECLARATION OF CONFORMITY Hereby, Hesdo declares that the radio equipment type Fysic FX-9000 is in compliance with directive 2014/53/EU. -
Page 40: Specifications
14 SPECIFICATIONS Protocol: DECT / GAP, 5 handsets Phonebook: 150 names with number Caller-ID: DTMF & FSK, 30 memories Redial Memory: 20 numbers Dialling: TONE (DTMF) FLASH : 80, 100, 120, 180, 200, 250, 300 & 600mS adjustable Boost Amplification: +8dB Handset Power Supply: 2x 1.2V NiMH battery, 750mAh size AAA... -
Page 41: Table Of Contents
HANDSET ..................2 BASE ....................3 INSTALLATION BASR ....................4 HANDSET ..................5 EXTRA HANDSET AND CHARGER: (FX-9000 DUO) ....5 CALLS RECEIVING CALLS ................. 6 PHONE CONVERSATIONS USING THE RECEIVER OR SPEAKER FUNCTION .............. 6 TO END A CALL ................6 DIALLING NUMBERS .............. - Page 42 VOICEMAIL INDICATION INTRODUCTION ................17 NEW VOICEMAIL INDICATION ............. 17 PHONEBOOK MEMORY INTRODUCTION ................18 TO SEARCH AND CALL CONTACTS .......... 18 TO ADD CONTACTS ..............19 TO SET THE RINGER AND TO EDIT OR REMOVE CONTACTS 20 INTERNAL CALLS, CALL TRANSFER AND CONFERENCE CALLS INTRODUCTION ................
- Page 43 11.6 HEARING AIDS ................36 11.7 MEDICAL EQUIPMENT ..............36 11.8 POWER FAILURE ................36 11.9 EAVESDROPPING ................ 36 11.10 MAINTENANCE ................36 11.11 ENVIRONMENT ................36 POSSIBLE PROBLEMS AND SOLUTIONS 12.1 PROBLEMS WITH OUTGOING CALLS ........37 12.2 PROBLEMS WITH INCOMING CALLS ......... 37 12.3 PROBLEMS DURING CALLING ..........
-
Page 44: Proof Of Warranty
16 PROOF OF WARRANTY For the Fysic FX-9000 / FX-9000 DUO DECT telephone you have a warranty of 24 months from the date of purchase. During this period, we guarantee the free repair of defects caused by material and workmanship errors.
