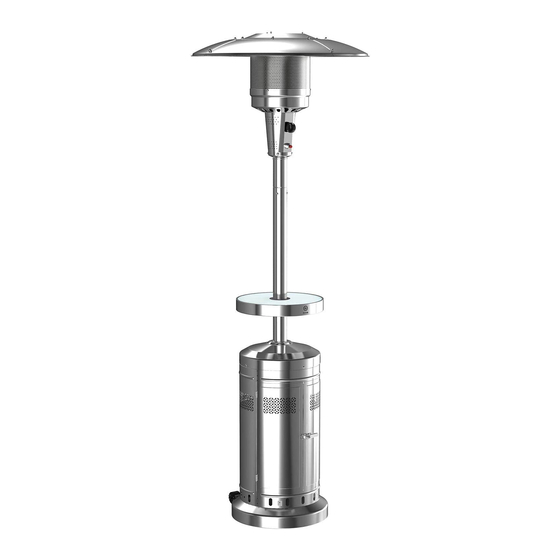

Bronze hsc patio heater

Advertisement

DANGER:
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the
appliance and immediately call your
gas supplier or fire department.
WARNING:
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
WARNING:
Improper installation, adjustment,
alteration, service or maintenance can
cause property damage, injury or death.
Read the installation, operating and
maintenance instructions thoroughly
before installing or servicing this
equipment.
WARNING:
For outdoor use only.
IMPORTANT DO NOT RETURN
Question, problems, missing parts? Don't return the product to stores, please call our customer
service department at 1-855-CHANT-US (1-855-242-6887) from 8:00am to 5:00pm Eastern time,
Monday through Friday for assistance.
BRONZE HSC PATIO HEATER
Call center for missing parts
1-855-242-6887
MODEL NO.: PG195H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PG195H and is the answer not in the manual?

Questions and answers

Vanessa Wolf
February 22, 2025

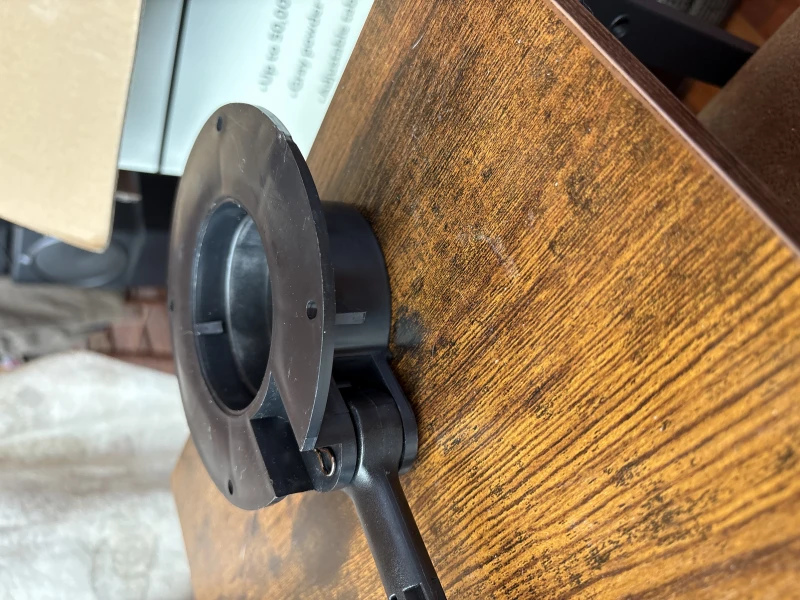

Forgot the pictures don’t know what the black thing is or what part it is, the blue pieces I don’t know how they go together or what they are called and I have no reflection screws. And it will not let me load than I photo. I could not get the reflection screws

User image 67ba071684d95
Vanessa Wolf
February 22, 2025

Why did we not get any instructions and there’s no picture for some of the parts, we had to order some of the hardware from Amazon so we had the hardware that was needed. None of this makes any sense. I **** trying to use the instructions that I found on line

Subscribe to Our Youtube Channel

Summary of Contents for Member's Mark PG195H

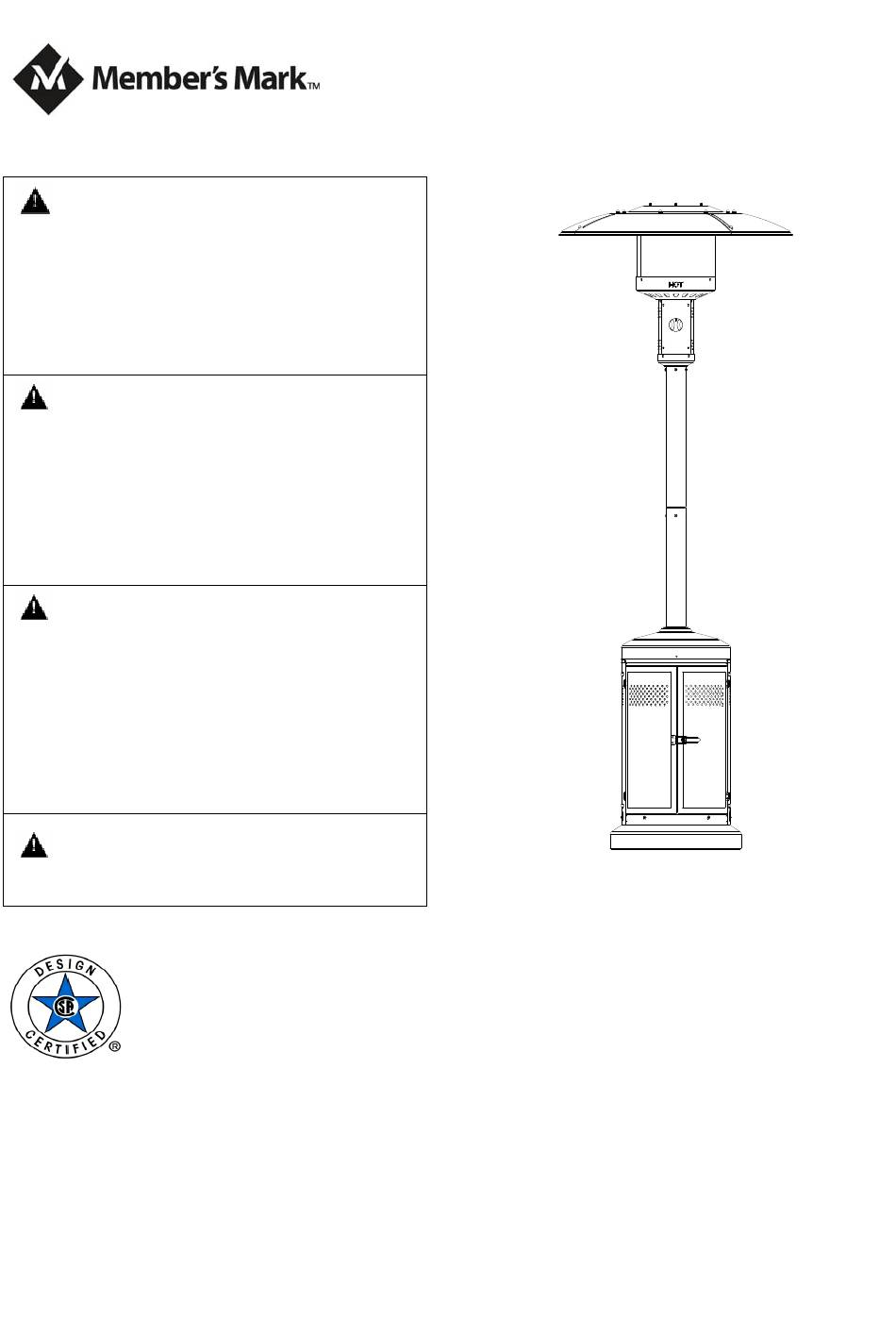

  • Page 1 BRONZE HSC PATIO HEATER MODEL NO.: PG195H DANGER: If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. If odor continues, keep away from the appliance and immediately call your gas supplier or fire department.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Product Specifications....................... Safety Information.......................3 Package Contents.......................6 Hardware Contents......................Assembly Preparation......................7 Assembly Instructions......................8 Safety Check........................12 Operation Instructions.......................13 Care and Maintenance......................14 Troubleshooting........................ Warranty..........................16 Replacement Parts List.....................17 PRODUCT SPECIFICATIONS Product Specifications Certification Height Overall 86.60 inches Reflector Diameter 31.50 inches Rated Heat Input 45,000 BTU/HR Fuel...
  • Page 3: Safety Information

    SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. If you have any questions regarding the product, please call customer service at: 1-855-CHANT-US (1-855-242-6887) from 8:00 am to 5:00 pm Eastern time, Monday to Friday. 1.
  • Page 4 SAFETY INFORMATION 15. Keep the ventilation opening(s) of the cylinder enclosure free and clear from debris. Use this appliance in a well-ventilated space only. Do not use it in a building, garage, or any other enclosed area. Use this appliance in outdoor areas described below: (a) With walls on all sides, but at least one permanent opening at ground level and no overhead cover.
  • Page 5 SAFETY INFORMATION 27. CALIFORNIA PROPOSITION 65 WARNING: (a) Combustion by-products produced when using this product contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. (b) Handling the brass material on this product exposes you to lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
  • Page 6: Package Contents

    PACKAGE CONTENTS PARTS LIST PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Top Dome Lower Pole Cylinder Housing KD Dome Assembly Burner Assembly Base Upper Pole Wheel Assembly Regulator & Hose Beauty Ring Assembly...
  • Page 7: Hardware Contents

    HARDWARE CONTENTS ASSEMBLY PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and diagram above. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts. Estimated Assembly Time: 30 minutes Tools required: Wrench, Magnetic Head Phillips Screwdriver (Not included)
  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS 1. With the Base (I) upside down, attach Wheel Assembly (J) using M8 x 15 mm Bolts (AA) and M8 Nuts (CC). M 8 x 15 m m B olt M 8 N ut 2. Reverse the Base (I), attach Shroud Fix Brackets (H) using M5 x 8 mm Black Bolts (DD).
  • Page 9 ASSEMBLY INSTRUCTIONS 4. Attach Lower Pole (F) to Cylinder Housing Assembly (G) using M6 x 10 mm bolts (EE), and then put the Beauty Ring (E) through the Lower Pole on top of Cylinder Housing Assembly (G). M6 x 10 mm Bolt 5.
  • Page 10 ASSEMBLY INSTRUCTIONS 7. Feed the Regulator & Hose Assembly (K) and connect Upper Pole (D) to the Lower Pole (F). 7.1. Feed Regulator & Hose Assembly (K) into and go through the Lower Pole Assembly 7.2. Screw Upper Pole (D) onto Lower Pole (F) until the holes on Upper Pole (D) is aligned to the holes on top of Lower Pole (F).
  • Page 11 ASSEMBLY INSTRUCTIONS 9. Attach dome assembly to Burner Assembly (C) by securing Wing Nuts (II) to Reflector Spacers (BB). Wing Nut 10. Connect Hose & Regulator Assembly (K) to 20lb. LP-gas cylinder (sold separately). Line up threads on fitting with those on regulator and rotate clockwise until tighten.
  • Page 12: Safety Check

    ASSEMBLY INSTRUCTIONS 11. Attach strap inside of Cylinder Housing Assembly (G) to secure cylinder. Then, close doors on Cylinder Housing Assembly (G) to complete installation. SAFETY CHECK Checking for Leaks Your patio heater has been checked at all factory connections for leakage. To check the connection at the gas hose/regulator/cylinder: a.
  • Page 13: Operation Instructions

    OPERATION INSTRUCTIONS Lighting Instructions 1. Ensure that the LP gas tank valve is OFF. 2. Push the control knob in, turn to OFF, and wait 5 minutes for any gas to clear. 3. Turn the LP tank valve ON. 4. Push control knob in and slowly rotate to HIGH. This will activate the built-in igniter and light the burner.
  • Page 14: Care And Maintenance

    OPERATION INSTRUCTIONS In any case of failure of normal ignition, please use the Lighter gun (Sold Separately) to reach the burner for ignition through the hole on the bottom of burner diffuser. WARNING FOR YOUR SATETY: If at any time you are unable to light burner and smell gas, wait 5 minutes to allow gas to dissipate before attempting to light heater.
  • Page 15 CARE AND MAINTENANCE Cleaning Wipe surfaces clean with mild dish detergent or baking soda.  For stubborn surfaces use a citrus-based degreaser and a nylon scrubbing brush.  Rinse clean with water.  Note: While cleaning the unit, be sure to keep the area around the burner and pilot assembly dry at all times.
  • Page 16: Troubleshooting

    TROUBLESHOOTING Problem Possible Cause Corrective Action Burner won’t light Gas pressure is low. Turn tank valve “OFF” and replace the tank The orifice is blocked. Clear blockage. Control knob is not in “High” Turn control knob to “High” position. Burner flame is Gas pressure is low.
  • Page 17: Replacement Parts List

    REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-855-CHANT-US (1-855-242-6887), 8 a.m. - 8 p.m., EST, Monday - Friday. PART DESCRIPTION PART # Top Dome 5007755 KD Dome 5007756 Burner Assembly 195H001 Burner Chamber 5206424 Assembly insulation plate 195H002 Thermocouple...
