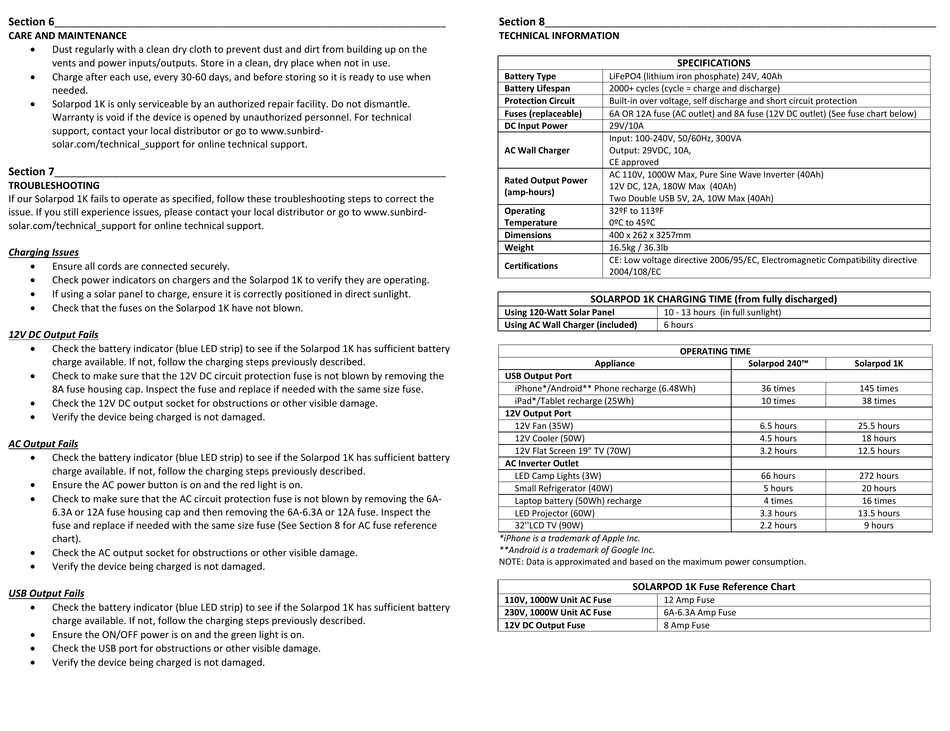

Sunbird Solar Solarpod 1K User Manual page 4

Section 6
________________________________________________________________________
CARE AND MAINTENANCE

Dust regularly with a clean dry cloth to prevent dust and dirt from building up on the
vents and power inputs/outputs. Store in a clean, dry place when not in use.

Charge after each use, every 30-60 days, and before storing so it is ready to use when
needed.

Solarpod 1K is only serviceable by an authorized repair facility. Do not dismantle.
Warranty is void if the device is opened by unauthorized personnel. For technical
support, contact your local distributor or go to www.sunbird-
solar.com/technical_support for online technical support.
Section 7
________________________________________________________________________
TROUBLESHOOTING
If our Solarpod 1K fails to operate as specified, follow these troubleshooting steps to correct the
issue. If you still experience issues, please contact your local distributor or go to www.sunbird-
solar.com/technical_support for online technical support.
Charging Issues

Ensure all cords are connected securely.

Check power indicators on chargers and the Solarpod 1K to verify they are operating.

If using a solar panel to charge, ensure it is correctly positioned in direct sunlight.

Check that the fuses on the Solarpod 1K have not blown.
12V DC Output Fails

Check the battery indicator (blue LED strip) to see if the Solarpod 1K has sufficient battery
charge available. If not, follow the charging steps previously described.

Check to make sure that the 12V DC circuit protection fuse is not blown by removing the
8A fuse housing cap. Inspect the fuse and replace if needed with the same size fuse.

Check the 12V DC output socket for obstructions or other visible damage.

Verify the device being charged is not damaged.
AC Output Fails

Check the battery indicator (blue LED strip) to see if the Solarpod 1K has sufficient battery
charge available. If not, follow the charging steps previously described.

Ensure the AC power button is on and the red light is on.

Check to make sure that the AC circuit protection fuse is not blown by removing the 6A-
6.3A or 12A fuse housing cap and then removing the 6A-6.3A or 12A fuse. Inspect the
fuse and replace if needed with the same size fuse (See Section 8 for AC fuse reference
chart).

Check the AC output socket for obstructions or other visible damage.

Verify the device being charged is not damaged.
USB Output Fails

Check the battery indicator (blue LED strip) to see if the Solarpod 1K has sufficient battery
charge available. If not, follow the charging steps previously described.

Ensure the ON/OFF power is on and the green light is on.

Check the USB port for obstructions or other visible damage.

Verify the device being charged is not damaged.
Section 8
________________________________________________________________________
TECHNICAL INFORMATION
Battery Type LiFePO4 (lithium iron phosphate) 24V, 40Ah
Battery Lifespan 2000+ cycles (cycle = charge and discharge)
Protection Circuit Built-in over voltage, self discharge and short circuit protection
Fuses (replaceable) 6A OR 12A fuse (AC outlet) and 8A fuse (12V DC outlet) (See fuse chart below)
DC Input Power 29V/10A
Input: 100-240V, 50/60Hz, 300VA
AC Wall Charger Output: 29VDC, 10A,
CE approved
AC 110V, 1000W Max, Pure Sine Wave Inverter (40Ah)
Rated Output Power
12V DC, 12A, 180W Max (40Ah)
(amp-hours)
Two Double USB 5V, 2A, 10W Max (40Ah)
Operating 32ºF to 113ºF
Temperature 0ºC to 45ºC
Dimensions 400 x 262 x 3257mm
Weight 16.5kg / 36.3lb
CE: Low voltage directive 2006/95/EC, Electromagnetic Compatibility directive
Certifications
2004/108/EC
SOLARPOD 1K CHARGING TIME (from fully discharged)
Using 120-Watt Solar Panel 10 - 13 hours (in full sunlight)
Using AC Wall Charger (included) 6 hours
Appliance
USB Output Port
iPhone*/Android** Phone recharge (6.48Wh)
iPad*/Tablet recharge (25Wh)
12V Output Port
12V Fan (35W)
12V Cooler (50W)
12V Flat Screen 19" TV (70W)
AC Inverter Outlet
LED Camp Lights (3W)
Small Refrigerator (40W)
Laptop battery (50Wh) recharge
LED Projector (60W)
32''LCD TV (90W)
*iPhone is a trademark of Apple Inc.
**Android is a trademark of Google Inc.
NOTE: Data is approximated and based on the maximum power consumption.
SOLARPOD 1K Fuse Reference Chart
110V, 1000W Unit AC Fuse 12 Amp Fuse
230V, 1000W Unit AC Fuse 6A-6.3A Amp Fuse
12V DC Output Fuse 8 Amp Fuse
SPECIFICATIONS
OPERATING TIME
Solarpod 240™ Solarpod 1K
36 times
10 times
6.5 hours
4.5 hours
3.2 hours
66 hours
5 hours
4 times
3.3 hours
2.2 hours
145 times
38 times
25.5 hours
18 hours
12.5 hours
272 hours
20 hours
16 times
13.5 hours
9 hours
