50027910-001
Differential Pressure Switch
APPLICATION
The differential pressure switch senses changes in
duct air pressure to confirm air movement, providing
a safeguard that airflow is present during the
operation of installed IAQ equipment.

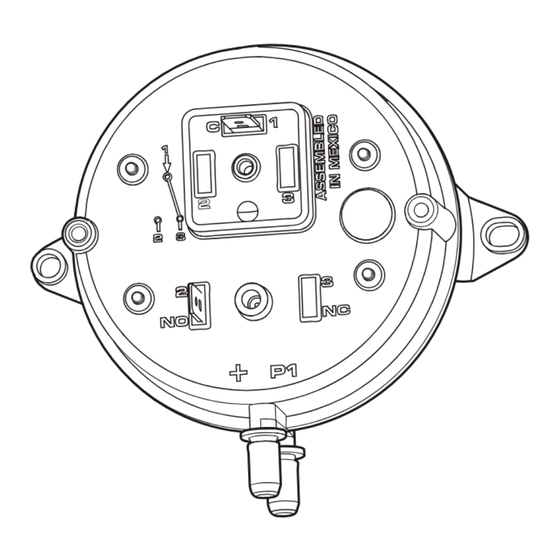

Fig. 1. Pressure switch.
INSTALLATION INSTRUCTIONS
Rubber Grommet
Tubing Fitting Elbow
Tubing, 1/4 in. ID
Differential Pressure Switch (Fig. 1)
Screws, #8 x 3/4 in. sheet metal
Terminal Adaptor
SPECIFICATIONS
SPST: normally open, snap-acting contacts
Pressure setpoint contacts: change at 0.04 in. W.C.
Electrical
M27300
5 amp resistive @ 24VAC
One common (C), One Normally Open (NO) quick-
connect terminals
Operating Temperature: -40F to 190F (-40C to 88C)
Pressure Sample Taps
Black positive pressure tap. 1/4 in. outside diameter
Grey negative pressure tap. 1/4 in. outside diameter
Use with 1/4 in. inside diameter tubing (10 ft pro-
vided)
Table 1. Parts Included.
Item
M27302
M27323
Quantity
2
2
10 ft
1
2
2
69-2205-03
