Summary of Contents for Divine Lighting Hyper 363Z

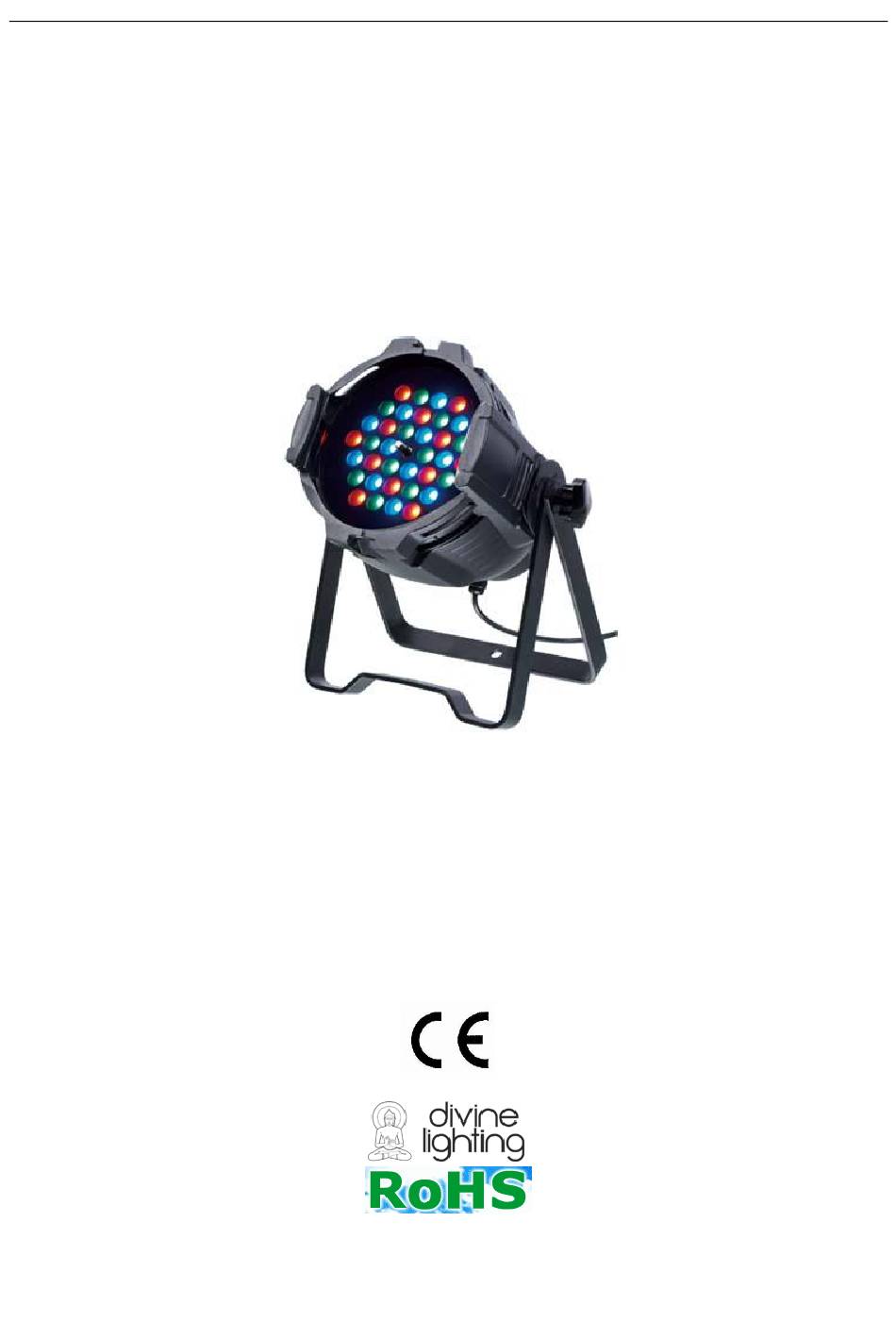

- Page 1 Hyper 363Z USER MANUAL...
-
Page 2: Table Of Contents
Index Summary ........................1 Safety Instructions ......................1 Product Dimensions ...................... 2 Product Features ......................3 DMX Operation ......................3 Display Operation Instruction ..................4 Manual Instructions ...................... 4 Master/Slave Operation ....................5 XLR Connection ......................5 Wiring Diagram ......................7 Troubleshooting ...................... -
Page 3: Safety Instructions
1. Summary Thank you for purchasing our Hyper 363Z lighting fixture. Please read these instructions carefully prior to operation. Use the fixture according to these instructions to reduce the chance of damage and accident. Product Introduction This product uses high power R, G, B LED diodes. Each color can be manipulated independently. - Page 4 ●Please make sure that this fixture is properly grounded. 3. Dimensions Hyper 363Z v1.0...
- Page 5 Cast aluminum casing: Black, White (optional) 5. DMX Control Function Channel DMX Value Control Function Remarks 0-255 General dimming 0-255 Red Dimming 0—100% 0-255 Green Diming 0—100% Blue Dimming 0—100% 0-255 Dimming Strobe 6-125 126-255 randomly Strobe 0-255 10°- 60°Zoom Hyper 363Z v1.0...
-
Page 6: Display Operation Instruction
3. Press UP / DOWN to change the address code A001-A512. You can quickly modify the DMX address code, holding down the buttons. 4. Press ENTER to select and store the current menu options. DMX mode will be Hyper 363Z v1.0... -
Page 7: Master/Slave Operation
Master：Units are always set in Master mode (i.e. outputting DMX signal that mirrors their own operation) unless they are set in DMX or Slave mode. Signal lines longer than 60 meters or 20 fixtures should utilize a signal amplifier. Hyper 363Z v1.0... - Page 8 Between pins 2 and 3, connect a resistance120Ω（1/4W） at the end of the DMX connecting as below: Conversion between 3-pin and 5-pin XLR If the output cable of DMX 512 controller is the 5-PIN, please use a 5-PIN to 3-PIN adapter. Hyper 363Z v1.0...
- Page 9 10. Connection Diagram Hyper 363Z v1.0...
-
Page 10: Troubleshooting
Use the multimeter to check if the led is powered or not. If not, Some of the LED's please change the led. not coming on. Check whether current limiting resistor is normal or not Check constant current IC is normal or not (compared with the Hyper 363Z v1.0... - Page 11 IC) Check the switch of this color is normal or not Single color LED's Always bright/not Change the IC control board bright Hyper 363Z v1.0...
-
Page 12: Technical Specifications
● Control mode：stand alone, master, slave, DMX, sound active ● Channel： 6CH ● Focus: 10°-60° Zoom ● Display mode：4 seven-segment LED screen display, four-key input ● Cooling mode: Natural Convection ● Anti-electricity intension：1.5KV ● Insulation Resistance：＞２MΩ ● Size:：330*295*220mm ● Net Weight：5.2 KG Hyper 363Z v1.0...
