Summary of Contents for shark zone MK80
-
Page 2: Table Of Contents
3.1 General 3.2 Key Properties 3.3 Cable and Connectors 3.4 Software Properties 4. Package Contents 5. The SHARK ZONE MK80 Overview 5.1 SHARK ZONE Function Key 5.2 Profile Keys 5.3 PC Mode Key 5.4 Function Keys With Preset Multimedia Actions 5.5 Other Shortcuts... -
Page 3: Keyboard Properties
Max. Polling Rate 1,000 Hz Gaming Mode Block 3-Block Layout Detachable Palm Rest Integrated USB Hub Weight incl. Cable 1.45 kg Dimensions (L x W x H) 470 x 180 x 24 mm Supported Operating Systems Windows 7/8/10 SHARK ZONE MK80... -
Page 4: Key Properties
Distance to Actuation Point 2 mm 2 mm 1.9 mm Operating Life Cycle of Keys Min. 60 Million Keystrokes *In combination with SHARK ZONE Function Key 3.3 Cable and Connectors Connector Textile Braided Cable Cable Length 200 cm Gold-Plated USB Plug 3.4 Software Properties... -
Page 5: Package Contents

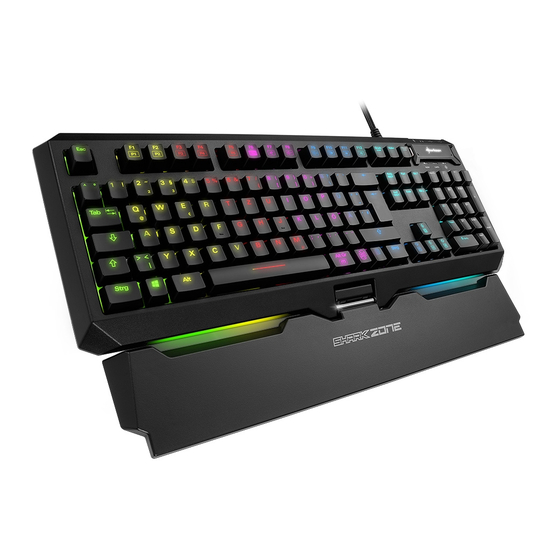

Note: Should any of the above items be missing, please contact our customer service by E-mail: support@sharkoon.com (Germany and Europe) support@sharkoon.com.tw (International) 5. The SHARK ZONE MK80 Overview SHARK ZONE Function key Profile keys PC mode key Function keys with preset multimedia actions... -
Page 6: Shark Zone Function Key
This also applies for PC mode. 5.3 PC Mode Key The SHARK ZONE MK80 disables the Windows key in gaming mode. Once the gaming mode is acti- vated, the gaming mode LED illuminates. -
Page 7: Function Keys With Preset Multimedia Actions
Note: To use the media hub on the keyboard, all SHARK ZONE MK80 connector cables (2x USB and 2x 3.5 mm stereo jacks) must be plugged into the PC. Please note, that the USB port is not suitable for all USB devices. -
Page 8: Key Rollover Settings
The gaming mode LED is illuminated once one of the game profiles is activated. 5.9 On-The-Fly Macro Recording Only macros in an active gaming mode can be directly recorded to the SHARK ZONE MK80 in this function. Gaming software does not have to be installed to do this. -
Page 9: Lighting Effects And Brightness Adjustments
”Reset Profile” function. 6. Connecting to the PC 1. Connect both USB plugs and the 3.5 mm stereo jacks of the SHARK ZONE MK80 to your PC. 2. The operating system will automatically recognize the SHARK ZONE MK80 keyboard and install all necessary drivers. - Page 10 5. Click ”Finish” to complete the installation. Once the installation is completed, the gaming software will open and the SHARK ZONE MK80 icon will appear in your taskbar. The software has now been successfully installed. SHARK ZONE MK80...
-
Page 11: Gaming Software
Starts a program when key is pressed. Deactivate Deactivates the key. Assign Keys Changes the key assignment. Reset Resets the key back to default setting. Current key selected for editing: The selected key for editing is displayed in this field. SHARK ZONE MK80... -
Page 12: Macro Settings
By pressing the left mouse button on ”Macro Settings” you will reach the Macro Managers configu- ration menu. 8.2.1 Record Macro First, name your macro in the ”Macro Name“ field. SHARK ZONE MK80... - Page 13 When selecting an already configured key, the respective configuration will be shown in the key status display above the ”Macro Set- tings” (picture right). SHARK ZONE MK80...
-
Page 14: Edit Macro
When selecting an already configured key, the program to which this key is currently assigned will be shown in the key status display above in the ”Macro Settings”. The gaming software always displays the direct path, for example, C:\Programs\Mediaplayer.exe. SHARK ZONE MK80... -
Page 15: Deactivate Key
8.7 Reset Keys Key settings are reset through the ”Reset” function. Confirm the reset in the subsequent security query with ”OK”. To update the profile changes and transfer to the onboard memory, click ”Apply”. SHARK ZONE MK80... -
Page 16: Led Settings
PC. If the effects are too low, the system volume can be adjusted. The audio effect is significantly influenced by the sound card and thus the results can vary. SHARK ZONE MK80... -
Page 17: Individual Key Illumination
To update the profile changes and transfer to the onboard memory, click ”Apply”. Note: Your color settings are transmitted to the onboard memory of the keyboard, thus they are even available if the SHARK ZONE MK80 is connected to a PC without the installed gaming software. SHARK ZONE MK80... -
Page 18: Save Game Profile
11. Load Game Profile To load or activate a previously saved game profile, click on ”Load” and select the appropriate game profile file. To activate the game profile and transfer it to the onboard memory, click ”Apply“. SHARK ZONE MK80... - Page 19 The correct disposal of your old product will help prevent potential negative consequences to the environment and human health. SHARKOON Technologies GmbH Siemensstraße 38 35440 Linden © SHARKOON Technologies 2015 info@sharkoon.com www.sharkoon.com SHARK ZONE MK80...
