MC810B MKII, DIGITAL TEMPERATURE CONTROLLER.
INSTRUCTION BOOK.
Page 1 of 24
M6493 Issue 10.3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC810B MKII and is the answer not in the manual?

Questions and answers

Summary of Contents for Electrothermal MC810B MKII

  • Page 1 MC810B MKII, DIGITAL TEMPERATURE CONTROLLER. INSTRUCTION BOOK. Page 1 of 24 M6493 Issue 10.3...
  • Page 2 In the interest of continued development Bibby Scientific Limited reserve the right to alter or modify the design and /or assembly process of their products without prior notification. This product is manufactured in Great Britian by Electrothermal, part of the Bibby Scientific Group of companies.

  • Page 3: Section 1. Introduction

    1. INTRODUCTION. 1.1. The Bibby Scientific MC810B Digital Controller provides a convenient means of temperature control, using microprocessor techniques to give ease of operation and good accuracy. It can be used either in ON/OFF mode with the hysteresis loop controlling power switching or it can be used as a PID (Proportional, Integrated, Derivative) controller.

  • Page 4: Section 2. Symbols And Using This Instruction Book

    2. SYMBOLS AND USING THIS INSTRUCTION BOOK. 2.1. Throughout this Instruction book the following symbols are shown to identify conditions which pose a hazard to the user, or to identify actions that should be observed. These symbols are also shown on the product, or its packaging. When a symbol is shown next to a paragraph or statement it is recommended the user takes particular note of that instruction in order to prevent damage to the equipment or to prevent injury to one’s self or other people.

  • Page 5: Section 3. Safety Information

    3. SAFETY INFORMATION. This product has been designed for safe operation when used as detailed in accordance with the manufacturer’s instructions. NOTE: Failure to use this equipment in accordance with this instruction book may compromise your basic safety protection afforded by the equipment and may invalidate the warranty / guarantee.
  • Page 6 The equipment is not spark, flame or explosion proof and has not been designed for use in hazardous areas in terms of BSEN 60079- 14:1997. Keep flammable, low flash point substances away from heating apparatus. Do not operate or handle any part of this product with wet hands. Keep the Mains Plug and Lead set cable away from the heating apparatus being controlled.

  • Page 7: Section 4. Unpacking And Contents

    4. UNPACKING AND CONTENTS. Item Description Mains cord and moulded IEC plug and lead set. (May be different from illustration). MC810B MKII Digital Controller. Instruction Book Wall fixing Bkt x 1 and screws x 2 – per bag. Temperature Probe Serial Number...

  • Page 8: Section 5. Installation

    5. INSTALLATION. 5.1. Electrical safety and Installation. 5.2. This equipment is designed for safe operation under the following conditions:- Indoor use. • Altitude up to 2000 meters. • Temperatures between -10°C and +50°C. • Maximum relative humidity 80% for temperatures up to 31°C decreasing •...

  • Page 9: Section 6. Environmental Protection

    ‘Appendix A’ of this instruction book. Bibby Scientific’s Electrothermal branded product range is registered with the Environment Agency under the name of as Electrothermal Engineering Limited as being a producer of WEEE (Waste Electronic and Electrical Equipment) through b2b Compliance, an authorised waste collection compliance scheme.

  • Page 10: Section 7. Product Operation

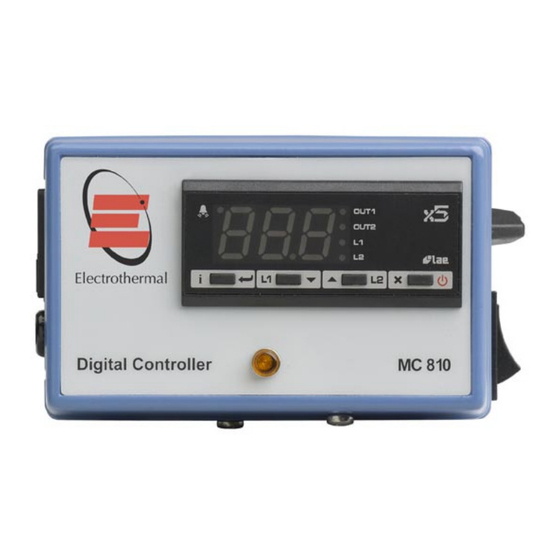

    7. PRODUCT OPERATION. 7.1. The MC810B controller has been designed for easy operation. The illustrations below show detailed layouts of this control unit. Instruction book label (refer to this book). Mains input IEC socket with fuses. 3 digit LED display Orange Neon power on indication lamp.
  • Page 11 7.2. Connection. 7.2.1. Plug in the temperature probe to the 5 pin DIN socket. Place the temperature probe into the sample ensuring that at least 40mm of the probe tip is in contact with the sample. Ensure the temperature probe is correctly plugged into the 5- pin DIN socket at the rear of the MC810B Controller.
  • Page 12 7.3.3. Proportional, Integral and Derivative Control. A proportional controller continuously adjusts the power, so the heat input to the process is approximately in balance with the process heat requirements in order to maintain a stable temperature. The range of temperature over which power is adjusted is from 0% to 100%.
  • Page 13 MC810B controller will activate with the last preset parameters. Furthermore by pressing the key from any condition the unit will revert back to Function mode. 7.6. Configuration. 7.6.1. Enter Programming mode as described in paragraph 7.11 The available parameters in the configuration menu are as shown in the table on pages 15 to 7.6.2.
  • Page 14 Start Auto-tuning. 7.10.2. During normal operation, keep buttons pressed for 3 seconds.1CT blinks on the display. With pressed set the cycle time in order to define the dynamic process to be controlled. To abort the auto-tuning function, press ; to start auto- tuning press or wait or 30 seconds.
  • Page 15 7.11. Configuring Parameters. 7.11.1. To select the parameter, enter Programming mode press button for 5 seconds. Use the buttons to select the parameter for modification. Press the button to display the value. By keeping the button pressed, use the buttons to set the desired value.
  • Page 16 Integral action time. 0..999s The steady-state error is cancelled by inserting an integral action. The integral action time, determines the speed with which the steady-state temperature is achieved, but a high speed (1IT low) may be the cause of the overshoot and instability in the response.
  • Page 17 *ATM Alarm threshold management. NON; NON: all temperature alarms are inhibited (the following parameter will be SB). ABS; ABS: the value programmed in ALM and AHA represent the real alarm thresholds. REL: the value programmed in ALR and AHR are alarm differentials reerreed to 1SP and 1SP+1HY Low temperature alarm threshold.
  • Page 18 8. TECHNICAL SPECIFICATIONS. Mains supply voltage 110-120V~AC 50/60 Hz – (MC810Bx1, MKII). 220-240V~AC 50/60 Hz – (MC810B, MKII). Maximum load 115V = 1000 Watts 230V = 2000 Watts Controller power consumption 115V = 2W 230V = 2W Fuse rating at 115V = F10A 20mm x 5mm Glass Quickblow.

  • Page 19: Section 9. Maintenance

    9. MAINTENANCE 9.1. General Information. Unplug the unit from the mains voltage supply before undertaking any maintenance tasks. Maintenance should only be carried out under the direction of the Responsible Body, by a competent electrician. Failure to do so may result in damage to the product and in extreme cases be a danger to the end user.

  • Page 20: Section 10. Customer Support

    9.3. Servicing. This product should be serviced by a Bibby Scientific Service Engineer or by an agent on behalf of Bibby Scientific l. If in doubt contact Bibby Scientific. See Section 10. 9.4. Calibration 9.4.1. Recalibration • Have a precision reference thermometer of calibrator to hand. Ensure that OS1=0 and SIM=0 •...

  • Page 21: Section 11. Parts And Accessories

    Order enquiries : • sales@bibby-scientific.com Technical support : • electrothermalhelp@bibby- scientific.com www.electrothermal.com • 11. PARTS AND ACCESSORIES. AZ9035 Fuse F8A. Qty 10. (230V~ AC Product). AZ6747 Mains cord and moulded IEC plug and lead set (Schuko). AZ6705 Temperature Probe 250°C Max.

  • Page 22: Bibby Scientific Limited

    APPENDIX ‘A’. DECONTAMINATION CERTIFICATE. Bibby Scientific Limited Beacon Road, Stone, Staffordshire ST15 0SA. Great Britain E-mail: Tel: +44(0)1785 812121. Fax: +44(0)1785 810405 electrothermalhelp@bibby-scientific.com DECONTAMINATION CLEARANCE CERTIFICATE For the Inspection, Repair or Return of Medical, Laboratory or Industrial Equipment. Prior to a Service Engineer working on equipment that has been in an environment where substances hazardous to health may have been used, you are requested to provide the following information: CUSTOMER DETAILS Company:-...

  • Page 23: Section 12. Notes

    12. NOTES Page 23 of 24 M6493 Issue 10.3...

  • Page 24: Section 13. Ec Declaration Of Conformity

    General enquiries : • info@bibby-scientific.com Order enquiries : • sales@bibby-scientific.com Technical support : • electrothermalhelp@bibby-scientific.com www.electrothermal.com • Part of the Bibby Scientific Group © © © © 2013 Bibby Scientific Limited. All rights reserved. Page 24 of 24 M6493 Issue 10.3...
