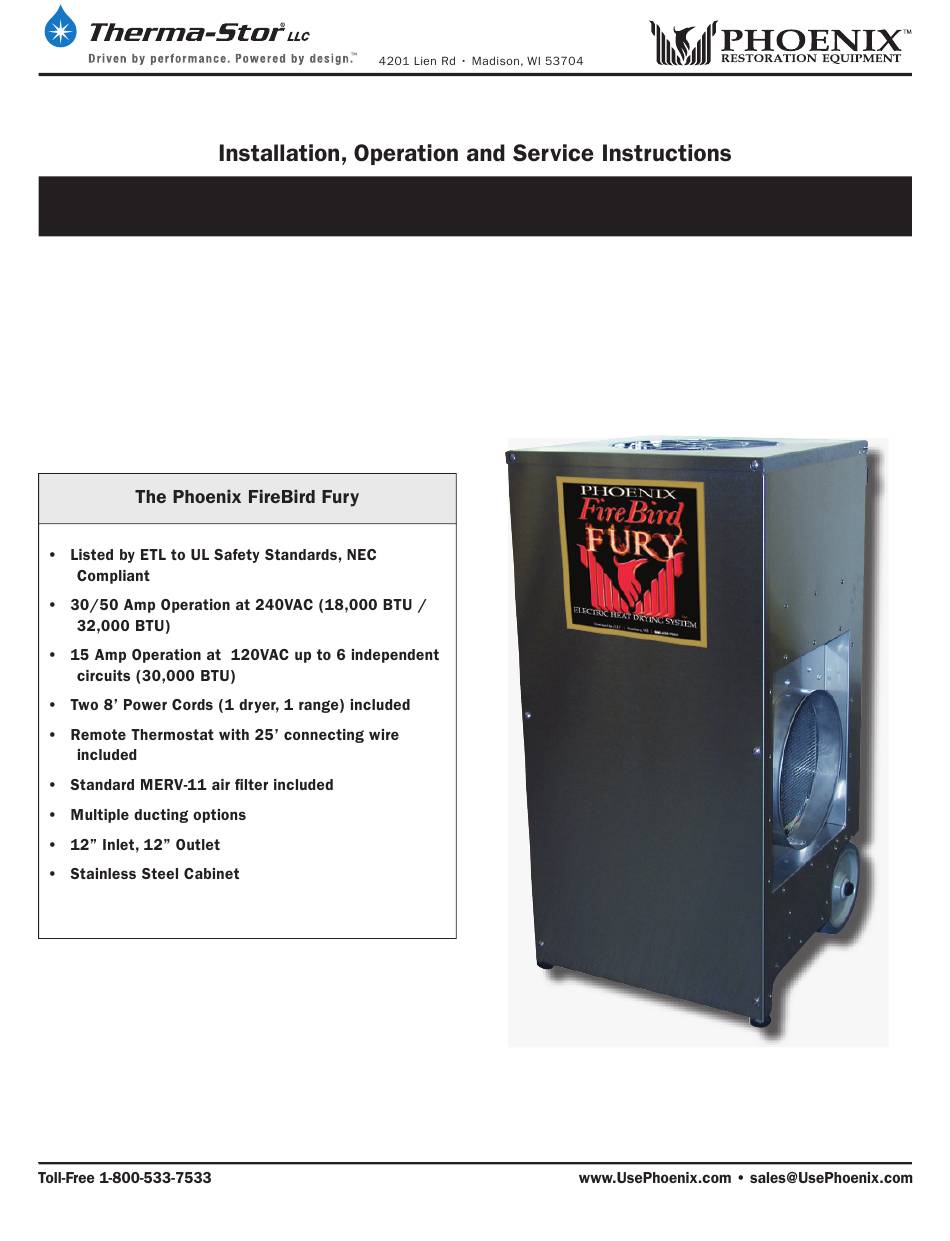

Owner's Manual — Phoenix FireBird Fury
Important Instructions – Read and Save These Instructions
The FireBird Fury portable electric heater features multiple power receptacles for connection to common 120VAC outlets,
240VAC range/dryer type outlets, or both. The Fury can output up to 62,000 BTU's of clean, safe heat at 750 CFM. The
Fury's remote thermostat provides a means to control the temperature in the drying chamber, while its internal temperature
cutout ensures safe operation.
Specifications subject to change without notice.
Phoenix FireBird Fury
PN 4030480
1
TS-670
08/11
Advertisement
Related Manuals for Therma-Stor Phoenix FireBird Fury
Summary of Contents for Therma-Stor Phoenix FireBird Fury
- Page 1 Owner’s Manual — Phoenix FireBird Fury Important Instructions – Read and Save These Instructions The FireBird Fury portable electric heater features multiple power receptacles for connection to common 120VAC outlets, 240VAC range/dryer type outlets, or both. The Fury can output up to 62,000 BTU’s of clean, safe heat at 750 CFM. The Fury’s remote thermostat provides a means to control the temperature in the drying chamber, while its internal temperature...
- Page 2 Read the operation and maintenance instructions carefully before using this unit. Proper adherence to these instructions is essential to obtain maximum benefit from your Phoenix FireBird Fury. liquids are used or stored. use not recommended by the manufacturer may cause...
- Page 3 residential range and dryer receptacles. These cords have plugs as shown. Note that no adapters are available for these blade configurations, and none should be used. Blower Circuit: 2 Amp at 120VAC 60Hz, 1 Phase 220/240VAC 60Hz, 1 Phase Heater Circuit: 120VAC 60Hz, 1 Phase Heater Circuits (up to NEMA 14-50 120VAC heating elements each require cord connection...
- Page 4 These switches are lighted to indicate when power is connected and the corresponding heating element is on. WARNING: Servicing the Phoenix FireBird Fury with its high voltage circuitry presents a health hazard which could result in death, serious bodily injury, and/or property The digital hour meter measures the cumulative time that damage.
- Page 5 NOTE: High Power setting requires an external 50A circuit. Connecting to a 30A circuit with unit set to High Power will result in an external circuit breaker trip. Low voltage heating circuits require dedicated 15A minimum service for each circuit (up to 6 total).
- Page 6 120 VAC 60HZ, 1 PH TRANSFORMER 240 VAC 60HZ, 1 PH CONTACTOR COIL # 4 2880 W ELEMENT (19.4 OHMS) CONTACTOR COIL # 3 2880 W ELEMENT CONTACTOR #2 (19.4 OHMS) CONTACTOR COIL # 2 OPTIONAL THERMOSTAT CONTACTOR #1 3840 W ELEMENT CONTACTOR COIL # 1 (14.5 OHMS) HI /LOW...
- Page 7 Item Description Part No. Pressure Switch 4029187 Heating Elements Blower 4029455...
- Page 8 The enduser is responsible for normal care. This warranty corrosion, tampering, modification, unauthorized or improper repair or installation, accident, acts of nature or any other cause beyond Therma-Stor LLC’s reasonable control. Limitation and Exclusions: shall be warranted for only the remainder of the original warranty period applicable thereto (but all of service while awaiting covered warranty service).
