Solarbayer PROMATIC D10 User Manual

Heating controller
Hide thumbs Also See for PROMATIC D10:
Table of Contents

Advertisement

Quick Links

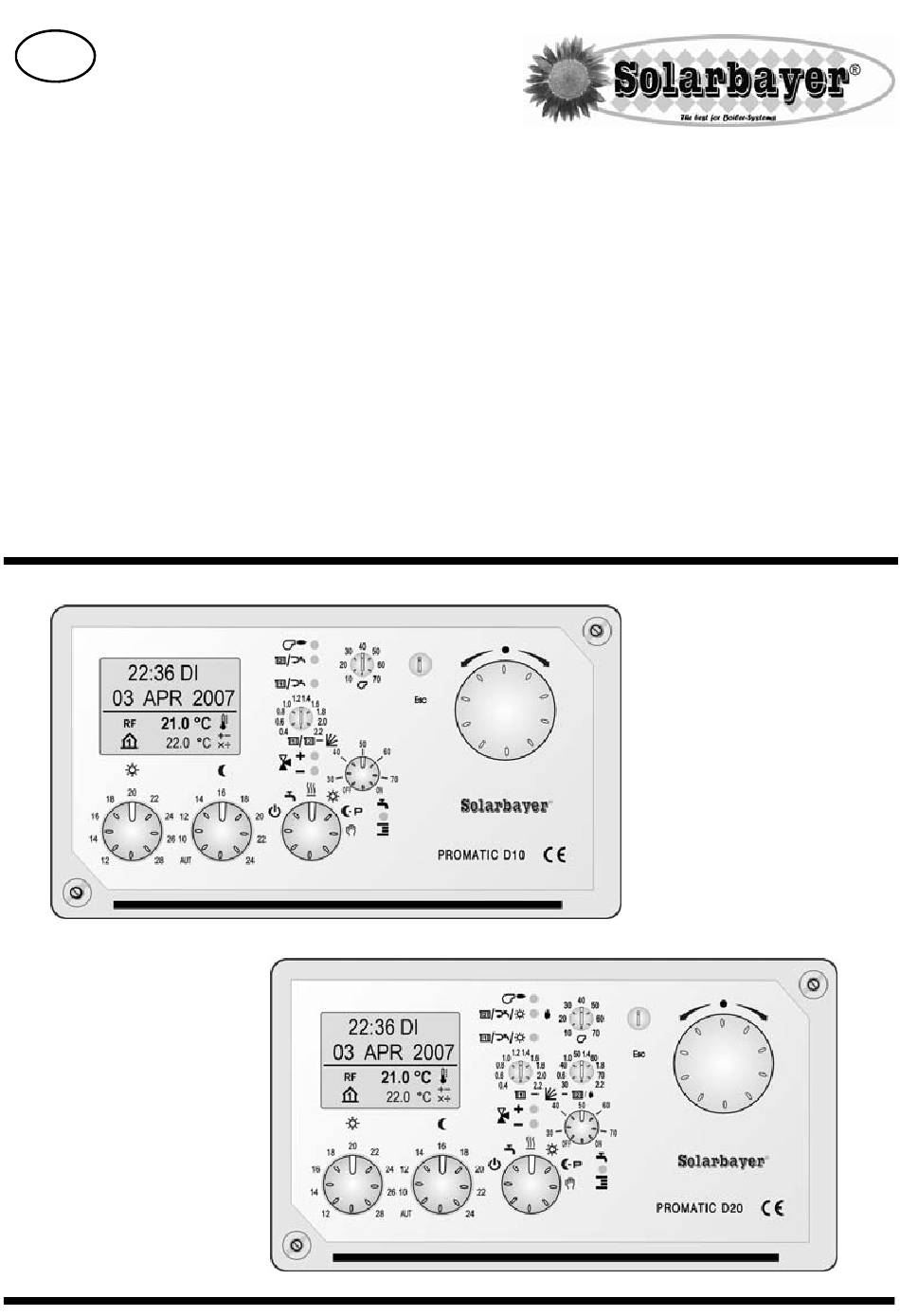

GB
User manual
Settings manual
PROMATIC D10
- mixing heating circuit controller
- direct heating circuit controller
- boiler controller
- d. h. w. heating controller
Heating controller
PROMATIC D10 and D20
PROMATIC D20
- mixing and direct heating circuit controller
- d. h. w and sun collector heating controller
- heat pump system controller
- controller for two-boiler system, warmth
pump or a bivalent system

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROMATIC D10 and is the answer not in the manual?

Questions and answers

Related Manuals for Solarbayer PROMATIC D10

Summary of Contents for Solarbayer PROMATIC D10

  • Page 1 - d. h. w and sun collector heating controller - boiler controller - heat pump system controller - d. h. w. heating controller - controller for two-boiler system, warmth pump or a bivalent system Heating controller PROMATIC D10 and D20...

  • Page 2: Table Of Contents

    CONTENTS Introduction ........................4 USER MANUAL DESCRIPTION ......................... 5 D10 front panel ......................... 5 D10 indicators of operation ....................5 D20 front panel ......................... 6 D20 indicators of operation ....................6 GRAPHIC LCD DISPLAY ....................7 Description of symbols on display ..................7 DATA OVERWIEV ......................
  • Page 3 CONTROLLER PARAMETERS SETTINGS ..............26 Rules for parameter settings and overview ..............26 BASIC PARAMETERS ....................27 Setting the required day temperature ................27 Setting the required night temperature................27 Frost protection setting ....................27 Summer/winter switchover temperature................27 MIXING HEATING CIRCUIT ..................28 Heating curve steepness ....................

  • Page 4: Introduction

    INTRODUCTION PROMATIC heating controllers are state of the art microprocessor controlled devices, manu- factured in digital and SMT technology. PROMATIC D10 and D20 is intended for regulating single boiler heating systems, remote heating, warmth pump and bivalent heating systems. It is used for radiator, floor or convector heating as well as for d .h.

  • Page 5: User Manual

    USER MANUAL DESCRIPTION D10 FRONT PANEL 1 - tightening screws 2 - LCD display 3 - setting the steepness of the heating curve (DC* or MC** 4 - setting the minimum temperature of liquid fuel boiler 5 - info / Esc key 6 - navigation button for operating the display 7 - setting the required day temperature...

  • Page 6: D20 Front Panel

    D20 FRONT PANEL 1 - tightening screws 2 - LCD display 3 - setting the steepness of the heating curve (MC* or DC** 4 - setting the minimum temperature of solid fuel boiler - setting the start-up temperature difference for sun collectors - setting steepness of the heating curve (DC** 5 - setting the minimum temperature of...

  • Page 7: Graphic Lcd Display

    GRAPHIC LCD DISPLAY DESCRIPTION OF SYMBOLS ON DISPLAY Symbols for temperature display: Display of inside (room) temperature for MC – mixing heating circuit (RF). Display of inside (room) temperature for DC – direct heating circuit (RF). Outdoor temperature display (AF). Mixing circuit stand-pipe temperature display (VF).
  • Page 8 Symbols for heating circuitcs Mixing heating circuit - MC. Direct heating circuit - DC. D. h. w. heating. D. h. w. circulation. Time programs Time programs for room heating P1 and P2. Time program for d. h. w. heating. Time program for d. h. w. circulation. Time program for anti legionella function.
  • Page 9 Request for heating on required day temperature “Party” (activated on room unit). Request for heating on required night (saving) temperature “ECO” (activated on room unit). Remote control of the heating. Operation is active by time program (d. h. w., d. h. w. circulation). Operation is not active by time program (d.

  • Page 10: Data Overwiev

    DATA OVERWIEV On the LCD display we can look up all the important data for the controller operation. The data are displayed on base and operation indication views. Switching between views: To switch between displays press the key B A S E V I E W O P E R A T I O N I N D I C A T I O N V I E W S .
  • Page 11 ROOM TEMP. MC* ROOM TEMP. DC** O U T D O O R T E M P E R A T U R E S T A N D - P I P E T E M P . M C * TEMP.
  • Page 12 Description and presentation of the operation indication view: heating circuit heating circuit is controller by room unit chosen operation mode chosen time program P1 or P2 for room heating current operational status name of the regulated circuit time program, displayed on a 24h timeline You can change the indication views listed bellow by pressing the button - MIXING HEATING CIRCUIT - DIRECT HEATING CIRCUIT...

  • Page 13: Error Messages

    Selecting the P1 or P2 time program: For the mixing and direct heating circuits there are two time programs (P1 and P2) available. You can select the desired time program by pressing the navigation button. Mark P1 or P2 begins to flash. Now you can select the desired time program by turning the navigation but- ton and confirm the selection with pressing the button again.

  • Page 14: Operation Mode And Temperature Setting

    OPERATION MODE AND TEMPERATURE SETTINGS SWITCH FOR SELECTING THE OPERATION MODE With the switch for selecting the mode of operation you can select between 6 different modes of operation. The selection is valid for those heating circuits, which are not controlled with a room unit.

  • Page 15: Setting The Required Day Temperature

    When the switch is in a “manual operation” position, you can set the position of the mixing valve by turning the button for setting nighttime temperature. button position: mixing valve: closing stand-still opening SETTING THE REQUIRED DAY TEMPERATURE You can set the required day temperature with this button. The tempera- ture setting is reflected as a parallel shift of the heating curve.

  • Page 16: Automatic Setting Of The Required Night Temperature

    AUTOMATIC SETTING OF THE REQUIRED NIGHT TEMPERATURE You can set the automatic setting of the required night tempetaure by turning the nighttime temperature setting button to the position “AUT”. Due to the heat accumulation, the nighttime room temperature is usually higher than the required temperature setting.

  • Page 17: Manual One Time Turning On Of D. H. W. Warming

    MANUAL ONE TIME TURNING ON OF D. H. W. WARMING The function “one time turning on the d. h. w. warming” is used when you need the d. h. w. warming outside the time program. Activate it by turning the button to the position ON and back to the requied temperature setting after the beep.

  • Page 18: Settings Manual

    SETTINGS MANUAL THREE STEP SETUP Heating controllers PROMATIC D10 and D20 are equipped with an innovative procedure to set up the controller in three easy steps. STEP 1 When the controller is turned on for the first time the display shows the logo and the program version.

  • Page 19: Heating Curve

    The hydraulic scheme can be changed every time. This can be done as follows: In the base view rotate the navigation button so long that you get to the scheme preview. Than push and hold the button and the info button. When the scheme number begins to flash, stop holding the buttons.
  • Page 20 HEAT CURVE DIAGRAM Tv (°C) Ta (°C) Outdoor temperature Settings manual...

  • Page 21: Menu

    MENU You can change the time programs and set the controller with commands and functions, that you can find in the menu. ENTERING AND NAVIGATING TROUGH THE MENU To enter the menu press and hold the navigation button for 2 seconds. You can browse through the menu by turning the navigation button to the left or to the right and you can select items by pressing the button.

  • Page 22: Structure Of The Menu

    MENU STRUCTURE The menu is built in five groups, in which the settings, data and other functions are divided as follows: T I M E P R O G R A M S D O M E S T I C H O T W A T E R R O O M H E A T I N G P 1 R E Q U I R E D D .

  • Page 23: Program Timer

    PROGRAM TIMER A weekly program timer with interactive innovative programming modes is built in the control- ler. You can choose between five independent time programs. SELECTING THE PROGRAM Selecting the program that you want to view or change: TIME PROGRAMS > ROOM HEATING P1 ROOM HEATING P2 available programs...

  • Page 24: Changing The Heating Intervals

    The last and most important item on the display is the timeline with a graphical display of a time program for a selected day. Dark fields represent heating intervals of the day tempera- ture, the rest is heating to the night temperature.

  • Page 25: Factory Set Time Programs

    FACTORY SET TIME PROGRAMS Program for Heating active room heating MON – FRI 05:00 - 07:30 13:30 - 22:00 SAT - SUN 07:00 - 22:00 Program for Heating active room heating MON – FRI 06:00 - 22:00 SAT - SUN 07:00 –...

  • Page 26: Controller Parameters Settings

    CONTROLLER PARAMETER SETTINGS CONTROLLER PARAMETERS In the group »CONTROLLER PARAMETERS« , the parameters are divided into five groups: C O N T R O L L E R P A R A M E T E R S > B A S I C P A R A M E T E R S >...

  • Page 27: Basic Parameters

    BASIC PARAMETERS SETTING THE REQUIRED DAY TEMPERATURE The required day temperature can be viewed, by choosing: C O N T R O L L E R P A R A M E T E R S > B A S I C P A R A M E T E R S > R E Q U I R E D D A Y T E M P E R A T U R E SETTING THE REQUIRED NIGHT TEMPERATURE The required night temperature can be viewed, by choosing:...

  • Page 28: Mixing Heating Circuit

    Summer/winter switchover temperature can be set by choosing: C O N T R O L L E R P A R A M E T E R S > B A S I C P A R A M E T E R S > S U M M E R / W I N T E R S W I T C H O V E R When an automatic switch to summer heating mode is made, then the symbol is shown...

  • Page 29: Domestic Hot Water

    DOMESTIC HOT WATER D. H. W . REQUIRED TEMPERATURE SETTING Required d. h. w. temperature can be set, by choosing: C O N T R O L L E R P A R A M E T E R S > D O M E S T I C H O T W A T E R >...

  • Page 30: Heat Sources

    HEAT SOURCES MINIMUM LIQUID FUEL TEMPERATURE SETTING The minimum liquid boiler temperature setting is between 35 °C and 55 °C. For other boilers between 50 °C and 70 °C. If the boiler temperature is below the minimum setting, the con- troller will gradually close the mixing valve..

  • Page 31: Basic Controller Settings

    BASIC CONTROLLER SETTINGS SET LANGUAGE User interface language is set in the menu by choosing: B A S I C S E T T I N G S > S E T L A N G U A G E Select the desired language and confirm it by pressing the button.

  • Page 32: Default Settings

    DEFAULT SETTINGS This part of the menu allows you to reset the controler setings to the default values or save/ load the user settings. You have the following options: D E F A U L T S E T T I N G S > T I M E P R O G R A M S I t d e l e t e s t h e s e t t e d u s e r p r o g r a m s a n d r e t u r n s t h e d e f a u l t t i m e p r o g r a m s .

  • Page 33: Declarations And Statements

    (EEC’s Low Voltage Directive 73/23/EEC, 93/68 EEC) and the requirements of the Directive on electromagnetic compatibility (EEC’s Directive on electromagnetic compatibility 89/336 EEC, 92/31 EEC, 93/68 EEC). Product description: Weather compensated heating controllers Name of the product: PROMATIC D10 and PROMATIC D20 Applied standards: EN 60730-1:1995, EN60730-2-9:1997, EN 50081-1:1995, EN 50082-1:1995, EN 55014-1:2001, EN 55014-2:1997, EN 12098-1:2002.
  • Page 34 WARRANTY STATEMENT This product complies with all the regulations and declared characteristics. We grant 2 years guarantee on the product, commencing on the date of purchase. We will eliminate any defects in the product resulting from faults in materials, workmanship, malfunctions or imper- fection.

  • Page 35: Notes

    NOTES Notes...
  • Page 36 Solarbayer GmbH Solarbayer GmbH Programm v2.0 Am Dörrenhof 22 Am Dörrenhof 22 85131Pollenfeld-Preith 85131Pollenfeld-Preith O3060007 v2.0 Deutschland Deutschland tel: +49 (0) 84 21 / 9 35 98 - 0 tel: +49 (0) 84 21 / 9 35 98 - 0...
