Summary of Contents for Agogs Tracer

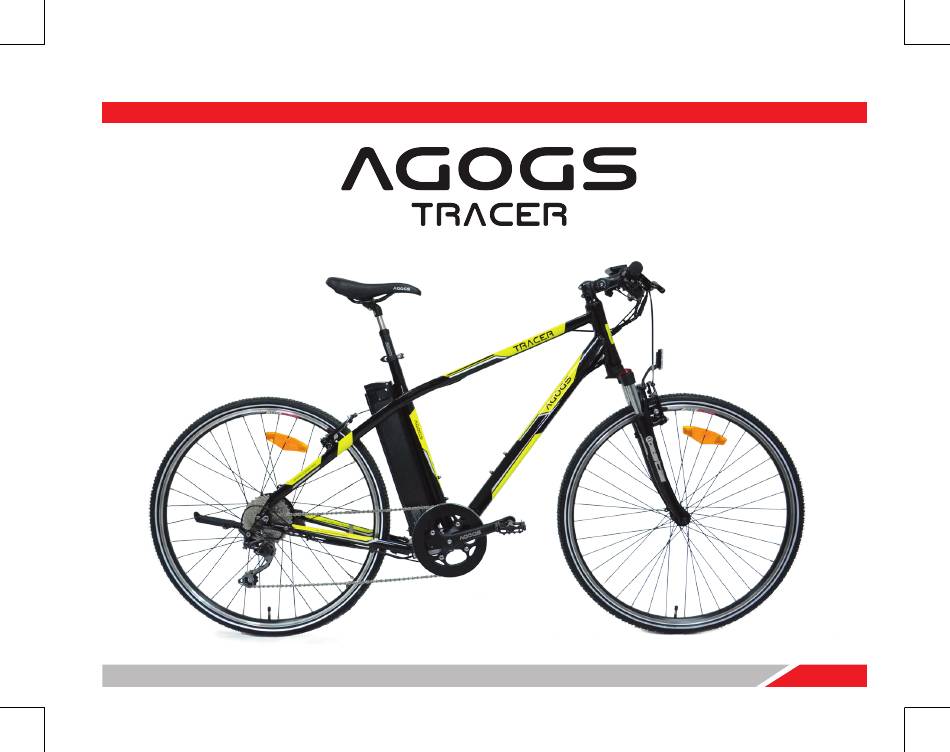

Page 1 ELECTRIC BIKE USER GUIDE ekolo.cz...
Page 2 AGOGS electric bikes Producer: ekolo.cz s.r.o. Bubenská 1 , 1 70 00 Praha 7 Czech Republic Service: +420 226 21 0 226 Email: servis@agogs.com WWW: www.agogs.cz...
Page 3 Congratulations on your electric bike purchase AGOGS electric bikes come with high quality components all of which are carefully adjusted and tested before distribution. To keep your bike in perfect condition please read this brief guide. Happy e-biking All rights reserved.
Page 4: Table Of Contents
General disclaimers ....................1 0 Electric bike components ................... 1 2 Specifications ......................1 4 Assembling AGOGS SilverGo after delivery ..............1 6 Before your first ride ....................1 8 Folding your AGOGS SilverGo ..................20 How to operate your bike .................... 22 Riding your AGOGS SilverGo ..................
Page 5 Rear derailleur ......................37 Saddle ......................... 38 Front suspension fork ....................39 Adjustable stem ......................39 Maintenance of the bike ..................... 40 Cleaning and lubrication .................... 40 Long-term storage ..................... 40 Operating range ......................41 Lighting and safety ..................... 41 Riding in wet conditions .....................
Page 6: Important Information
Important information Read this guide carefully. If there is anything you do not understand completely please contact your dealer. Do not lend your bicycle to anyone who is unfamiliar with it. Defects caused by inappropriate use are not be covered by warranty. The bicycle can only legally be used on the road by a person aged 1 5 years or older.
Page 7 It could be dangerous and all warranties will become void. If you experience a problem contact our service department or your retailer. ONLY use the charger supplied with your battery or a correct model replacement from AGOGS. AGOGS is not responsible for damage caused by using a non-compatible charger.
Page 8: Declaration Of Conformity
Declaration of conformity This product is compliant with the legislation and standards applicable to electric bicycles within the EU. Under European legislation EN 1 51 94: electrical asitance is available only when pedalling assistance of the electric motor is permitted up to 25 km / h the rated motor power is 250 W...
Page 10: General Disclaimers
General disclaimers ekolo.cz s.r.o. shall not be responsible for any damage of any kind, including time lost, money lost, difficulties and complications that can arise from: electric bike misuse infringement of the instructions listed in user guide infringement of the traffic regulations and laws valid in country of use rider's failure using the bike in way other than it has been produced for cause of external origin...
Page 11 ekolo.cz states to the owner of this electric bike that its use involves risks and hazards and the owner agrees to assume these risks in full, regardless of their nature. The owner agrees to take full responsibility for any damage of any kind related to the electric bike use.
Page 12: Electric Bike Components
Electric bike components...
Page 13 display kick stand BOOST button front light battery rear light rear hub motor front fender controller rear fender PAS sensor battery charge connector tire motor connector spokes capacity indicator (voltmeter) adjustable stem suspension fork suspension seatpost saddle seatpost clamp pedal brake lever front brake rear brake...
Page 14: Specifications
Specifications Frame: Aluminium 6061 .T6, size 1 9" or 21 " Rims: Alexrims DH1 9, double-wall, 700C Derailleur: Shimano Deore M61 0, 1 0 speed Brakes: V-Brakes Tektro 837AL Front fork: RST Sofi TNL, suspension, preload adjust Handlebar: Zoom, ø31 .8*ø22.2 mm, width 61 0 mm Stem: Promax, 1 08 mm, high adjust Seatpost:...
Page 15 Weight: 1 8.0 to 1 9.2 kg + 3.8 kg battery Maximum load: 1 25 kg including carrier load Max. carrier load: 25 kg Do not overload bicycle or carrier Carrier can not be used to transport persons Bicycle dimensions: length x height x width 1 84 cm x 1 06 cm x 62 cm...
Page 16 Assembling after delivery If you bought your ebike by e-shop, it has been very probably delivered partly disassembled in a box. You need to make the bike complete first. If you need any help contact your dealer immediately. Tools: Allen keys 4 a 5 mm, open-end wrenches 1 0 a 1 5 mm. Unpack the carton and remove everything that is not fixed to the bike frame.
Page 17 tighten the anchor bolt again. Test brake operation. Mount front fender holder and front light to fork arch. Use Allen key 5 mm and open-end wrench 1 0 mm. Then mount fender wire holder to outer legs of fork. Put seat post with saddle into the seat tube, adjust height and fix with clamp. Never raise the seat post above the mark of MINIMUM INSERTION Install pedals on cranks using 1 5 mm wrench.
Page 18: Before Your First Ride
Before your first ride There are 4 keys attached which are related only to your battery. Choose one of them which you will use and store the others in case of damage or loss. Learn how to release/insert the battery. Release the seat post and saddle. Unlock the battery bottom lock anticlockwise and release the key.
Page 19 IMPORTANT Everytime you insert battery into the frame, lock it Check the state of battery charge. The battery has been formated before sale and it is probably not completely charged so you will need to recharge it. Connect the charger to your battery first then plug the charger into the mains. Red lamp on the charger indicates the battery is charging, when the red light turns green the battery is fully charged.
Page 20: How To Operate Your Bike
How to operate your bike AGOGS Tracer uses the large display which provides the rider with all the relevant information during each ride. Pedal assistance system is controlled by display too. Turn the battery on by ON/OFF switch on its top, then activate the electrical system by a long press on "M".
Page 21 Bicycle computer functions Press "M" to change the indicated information in sequence as below: Running Speed - Average Speed - Maximum Speed - Total distance - Trip Distance - Trip Time - Running Speed. See picture below. Speed is given in KPH.
Page 22 (ECO - CITY - TOUR - POWER - BOOST) assists the rider with a different motor power. Level ECO is the lowest assistance and level BOOST is the highest assistance. If you are not happy with assitance levels setting, ask AGOGS servise center to adjust it to your needs. It is for free.
Page 23 Display backlight Display of AGOGS SilverGo is equipped with backlight function. You can activate and deactivate it by long press "+" button. USB output Display of AGOGS Tracer is equipped with USB output which you can use to charge electronic...
Page 24 Riding your AGOGS Tracer Learn how to ride your bike before your first trip. It is better find a place with low traffic for these purposes. Set assistance level to ECO. Start to pedal. You will feel motor assistance in a moment. Test brake function and effectivity - as you press any of brake levers motor turns off automatically.
Page 25 Do not overload your bike when you first ride it (for example by going up long steep hills). Try to cover the first tens of kilometres in normal landscapes and recharge your battery when it is fully discharged. Never use only BOOST button without pedalling when going up the hill. You could damage the drive train of the bike Do not start riding using only the throttle.
Page 26: Display User Settings
Display user settings You can clear trip distance and trip time and set the backlight brightness of your display. Press "M" button to start the display, then hold both "+" and "-" for 2 seconds to enter user settings menu. tC means trip clearance.
Page 27: Power-On Pin
After 4-digits of password entered, long press "M" to save changes and exit. Remember or write down the new PIN. In case of password loss you will have to take the bike to an AGOGS service center to recover your PIN.
Page 28 Error code information If there is something wrong with the electronic control system, an error code will appear automatically. Here is detailed information as to the error codes. Error code Problem details Failed controller indication. Solution: Turn the system off. Check the display connector, unplug it and plug in again and turn the system on.
Page 29 Error code Problem details Motor failure. There is a short connection in the winding of the motor or the winding is interrupted. Solution: Contact authorized service centre. Motor Hall signal abnormality. Solution: Turn the system off. Check the motor connector, unplug it and plug in again and then turn the system on.
Page 30: Battery Care
Battery care The battery is the most expensive and important part of your bike. This bike uses a lithium-polymer battery (Li-Pol) with nominal voltage of 36V and 1 0Ah capacity. It is a commonly used type of battery with a great balance of weight, capacity and life. The battery has been delivered as a part of your electric bicycle.
Page 31: Recharging The Battery
Recharging the battery Lithium-ion bateries are very vulnerable to incorrect charging. Use regular Li-Ion or Li-Pol battery chargers only. It is essential to use charger with 42V output. Some models can be labeled as 36V. 36V is nominal voltage of battery and you can use this kind of charger with no problems.
Page 32 5 - 40°C. Do not leave the charger connected to the mains when not in use. Use only original battery delivered with your bike or replacement battery approved by AGOGS. Damages caused by using uncertified battery won't be covered by warranty...
Page 33: Safety Recommendations
Safety recommendations Battery - do not short circuit positive and negative ports of the battery - do not dismantle the battery - do not store the battery in high temperature (heat, sunshine or close to a fire) - do not power supply another device with the battery - always charge the battery with licensed charger for lithium-ion batteries - do not place the battery in fluids such as water, acid, alkaline or salt water.
Page 34: Brakes
Basic components Brakes Your bike is equipped with both front and rear V-type brakes. Both brakes must begin braking in the first half of the lever range. When you need more than the first half of the levers range to start braking you must adjust brake position. You can use the barrels for small adjustments or you will need to adjust lenght of cable by the anchor bolt.
Page 35 Noodle Boot Brake cable anchor bolt Pad positioning bolt Spring tension centering screw Mounting bolt Pad (shoe) Brake adjusting barrel...
Page 36: Tires
Tires Electric bicycle AGOGS Tracer uses 700x35C tires. These tires offer good comfort and low rolling resistance. The tires have reflective strips on both sides for your safety. To inflate the tires use only a normal hand pump. Do not use air compressors which are available at gas stations.
Page 37: Rear Derailleur
Rear derailleur You can use 1 0 different gears when riding this bike. Change the gear only when pedalling forward but never under a big load. When there is free movement of derailleur cable or the cable is too short (it is not possible to shift gear 1 0) adjust it by the barrel.
Page 38: Saddle
Saddle This bike was delivered with a suspension saddle. You can adjust the height of the saddle and also suspension preload for increased comfort. Release the seat post clamp first. Remove the whole post with saddle from the bike. On the bottom of the post you will find an Allen key adjuster.
Page 39: Front Suspension Fork
Front suspension fork You can adjust the preload of the suspension. The adjuster is located on the left hand side of the fork crown. Turn the adjuster clockwise to increase the suspension preload and anticlockwise to reduce it. There is a red lock-out lever the right hand side of the fork crown. Turn the lever forwards (anticlockwise) to lock the suspension.
Page 40: Adjustable Stem
Adjustable stem Adjust the handlebar height according to your needs. Rider position should be leaned forward on this bike. To adjust height of handlebar loosen Allen bolt highlighted in red on picture with Allen key 5 mm. Then use Allen key 4 mm to loosen green highlighted bolts.
Page 41 Front and rear light AGOGS Tracer is equipped with front and rear light by Spanninga. Both lights have been approved for road use. Each light is power supplied by 2 pcs. of AA battery. Turn the front light on by rubber switch on its upside. Push the same switch again to turn it off.
Page 42: Maintenance Of The Bike
Maintenance of the bike Cleaning and lubrication It is essential to keep the bike clean. For cleaning use a wet house-flannel with detergent or special bike cleaner. Then dry it. Do not use a high-pressure water cleaner. Regulary lubricate chain, derailleur, brake cable and derailleur cable with light oil.
Page 43: Operating Range
Important information Operating range The operating range of your electric bike depends on rider weight and carrier load, road profile, weather conditions, condition of the bike, riding style and the rider's physical condition. Regular braking and accelarating, climbing steep hills, low pressure tires, dragging brakes or a heavy carrier load, all limits the operating range of the bike.
Page 44: Riding In Wet Conditions
Riding in wet conditions Your electric bike is rain and splash proof and can be used in all weathers. Do not ride the bike through floods, deep pools and mud. Do not park your bike where it is not protected against heavy rain, snow and direct sunlight (UV radiation can harm paint and colors).
Page 45: Returning The Battery / Recycling
Returning the battery / Recycling Please do not put the battery pack into household waste. Containers for collecting batteries can be found wherever batteries are sold or at local collection points. This ensures batteries are disposed of correctly. You can also return the battery to your retailer.
Page 46: Rear Wheel Tube Replacement
Rear wheel tube replacement Tools: Wrench key size 1 8 mm, Allen key size 5 mm, Tire levers Rear wheel demount 1 . Turn the battery off. 2. Shift gear 1 0. 3. Release plastic clamps which fix the motor wire with chain stay. Be careful not to damage wire Unplug the motor connector.
Page 47 enought for now. 8. Turn the bike upside down. If any accesory on handlebar could be damaged, demount it first. 9. Release both nuts from the axle. Check the washers and remember their positions. Release them too. You have to restore their positions later 1 0.
Page 48: Tube Replacement
Tube replacement 1 . Release the valve cap and deflate the tube completely by pressing down on the inner part of the valve. 2. Take a couple of tire levers (you can purchase these at your local bike store). Ease one lever in under the wheel rim and lever out the edge of the tire (taking great care not to puncture the inner tube) and pry it up over the wheel rim.
Page 49 7. Starting at the tire edge closest to the valve, use your thumbs to work the other side of tire over the rim and into the well. You may need to use the same tool you took it off with to do the very last bit and pop it back onto the wheel. 8.
Page 50: Rear Wheel Mount
Rear wheel mount 1 . Put the wheel back into the rear stay. Turn the wheel to find the position where the axle fits into the dropout. Be careful to reposition the washers as before demount. 2. Center the wheel and tighten nuts with wrench key size 1 8 mm. 3.
Page 51 Help needed? In case of any problems which regards to bike operation or maintainance contact your retailer or producer of the bike. Producer: AGOGS electric bikes Email: servis@agogs.com Tel: +420 226 21 0 226 Address: ekolo.cz s.r.o. Bubenská 1 , 1 70 00 Prague Czech Republic Any suggestions and comments regarding this user manual are gratefully accepted.
Page 52: Warranty
4. Spare parts and components worn in normal use (tires, brake pads, chain, etc.). 5. Failure to produce invoice or proof of purchase. Warranty problem must be claimed at the your retailer or AGOGS service centers immediately. If failure is covered by our guarantee the part will be repaired or...
Page 53 replace the whole bike. It is essential to have your bike serviced after 1 50 - 200 kilometres. This is a free service provided by your retailer. If this service has not been undertaken at the correct time this may cause damage to some components that will not be covered under our guarantee.
Page 54: Certificate Of Warranty
CERTIFICATE OF WARRANTY Date sold: ......................... E-bike type/color: ......................Frame number: ......... Battery number: ........... Purchaser Full name/company: ....................... Address: ..................ZIP: ......Phone number: ......................... Comments: ..............................................Retailer stamp and signature 200km service confirmation...
Page 55: Service Records
Service records Service check after 6 months Service stamp and signature Date ....................Service check after 1 2 months Date ....................Service check after 24 months Date ....................
Page 56 Service records ..........................................................................................................................................
Page 57 Service records ..........................................................................................................................................
Page 58 Service records ..........................................................................................................................................
Page 59 Service records ..........................................................................................................................................
