Function

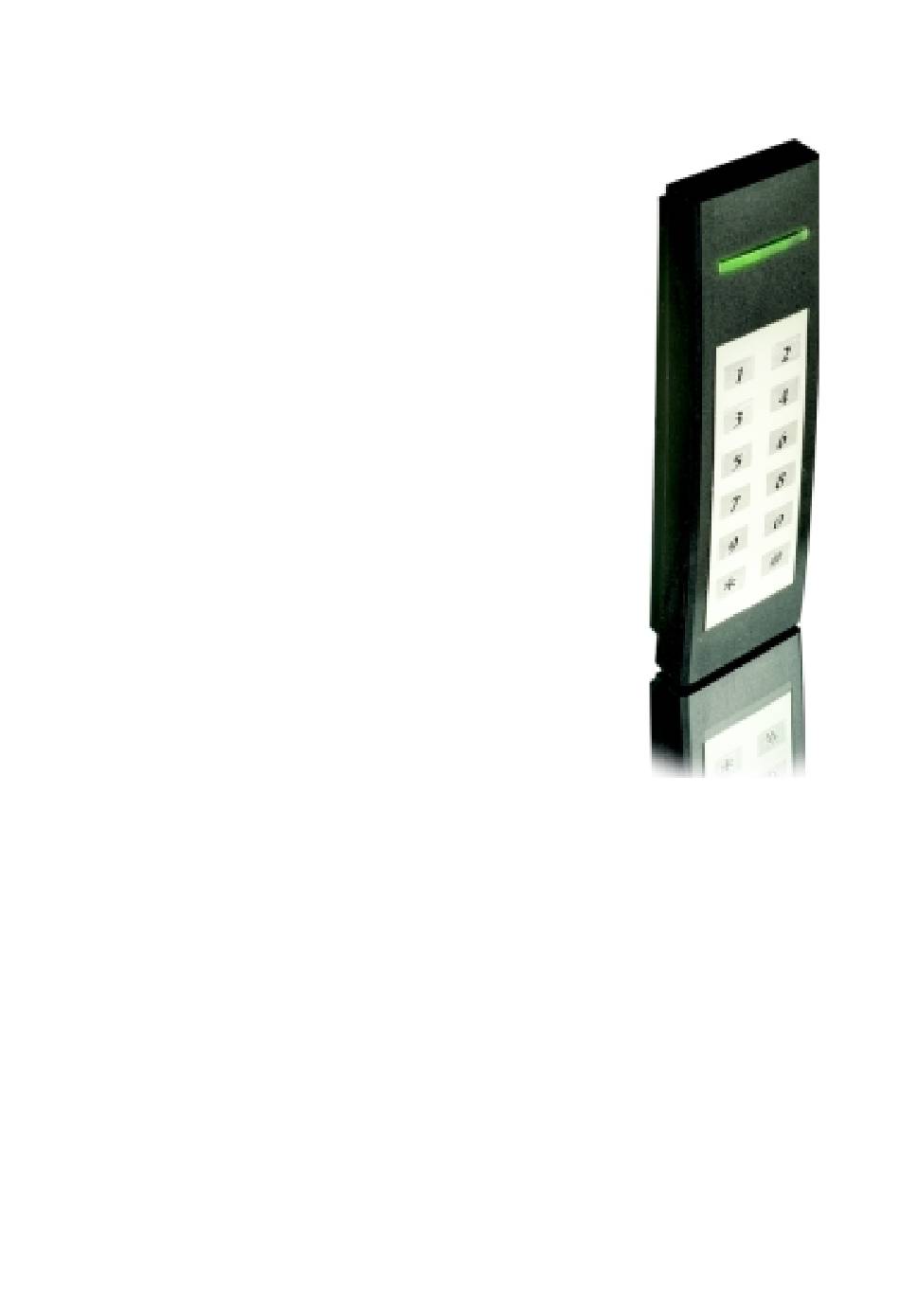

iPR-8 proximity reader with built-in keypad is intended to
be applied in different access control systems, using RS232,
Wiegand 26, Wiegand 37 or Wiegand 42 interface.
Types of identificators
Integrated Technical Vision Ltd. manufactures readers
operating with amplitude modulation (ASK) proximity cards
and tags.
Design
The reader is placed in miniature hermetic plastic case.
Thanks to the small overall dimensions the reader is
distinguished for its advanced reliability.
Specifications
Warm-up time
Case
Material
Dimensions
Weight
Ambient Conditions
Temperature
Humidity
Power supply
Voltage
Current
Maximal current up to 80 mA
Voltage ripple
Distance of reading
Typical reading distance is 105-200 mm and depends on tag type used with it. This
parameter is valid for power supply voltage range from +9 to +16 VDC and ripple up to
150 mV
p-p
http://www.itvsystems.com.ua
iPR-9 proximity reader
User manual
10 seconds after power start
ABS plastic
154 х 45 х 22 mm
94 gramm
-35 . . . +60
100% (without condensate)
+9. . . +16 V of direct current
up to 50 mA
up to 500 mV.
.
С
0
Integrated Technical Vision Ltd
1
Advertisement
Table of Contents
Summary of Contents for ITV iPR-9
-
Page 1: Specifications
User manual Function iPR-8 proximity reader with built-in keypad is intended to be applied in different access control systems, using RS232, Wiegand 26, Wiegand 37 or Wiegand 42 interface. Types of identificators Integrated Technical Vision Ltd. manufactures readers operating with amplitude modulation (ASK) proximity cards and tags. - Page 2 Wiring Reader has 8-wire colored cable intended for connection to access control panel. Table 1. The wires assignment: " " " " " " " " – – – o l l Multiwire signal cable with 0.22 mm wires' cross-sectional is recommended to use for connection of the reader and control panel.
- Page 3 The Reader Operation Reading of identificator code The code reading is annunciated by built-in buzzer and two-color LED according to interface type and annunciation mode (refer to «Data transfer and Annunciation»). Repeated reading will be available after 0.8 sec if the identificator is moved away from the reader sensing area.
-
Page 4: Limited Warranty
Reader transmits data as follows: data: i t s o i t Checksum: exclusive OR of low nibbles of bytes from 1 to 10, high nibble of always must be 3h. Example: Card code 7E000460AA will be sent as: 23h, 37h, 3Eh, 30h, 30h, 30h, 34h, 36h, 30h, 3Ah, 3Ah, 3Bh, 0Dh. Limited Warranty Integrated Technical Vision Ltd.
