Summary of Contents for A&T Qulon-12m

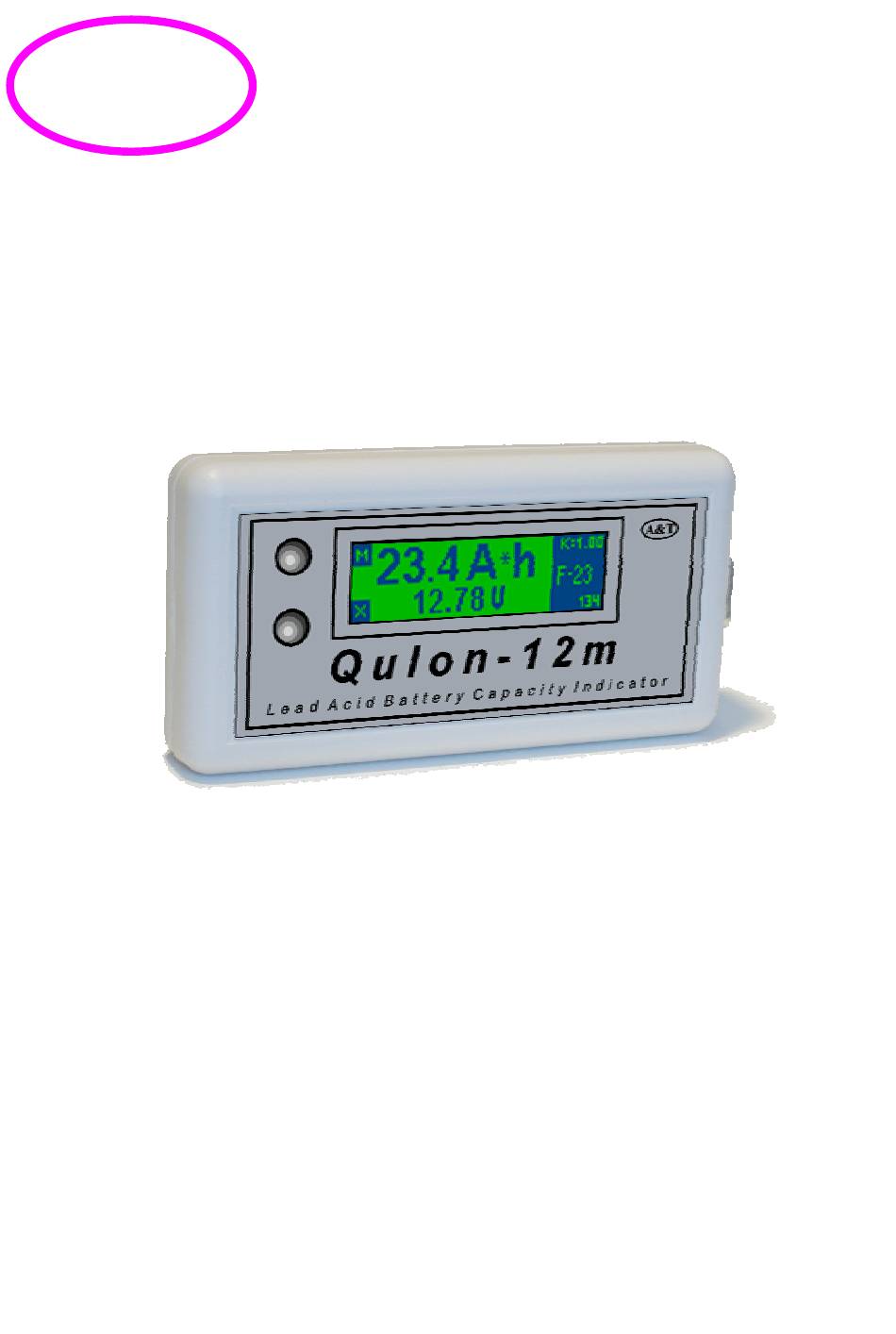

- Page 1 А&T Lead acid battery capacity indicator Qulon-12m User's manual 2005...
- Page 2 12-volt lead acid batteries. This will help you to con- demn defective batteries or batteries that have lost capacity. With Qulon-12m, you will always keep your battery systems in perfect working order. Qulon-12m is designed for years of reliable work and does not need any service.
-
Page 3: Table Of Contents
3.1.1. Dependence between battery capacity and discharge current 3.1.2. Battery capacity and battery state of charge 3.1.3. Temperature dependencies 3.1.4. New batteries 3.2. Battery capacity estimation with Qulon-12m 3.2.1. Device placement 3.2.2. Battery preparation 3.2.3. Connection to a battery 3.2.4. Battery state of charge 3.2.5. - Page 4 6.2.1. Save by default 6.2.2. Save by command 6.3. Calibrate (coefficient adjustment) 6.4. Filtration 6.5. Language 7. Calibrating Qulon (coefficient determination) 7.1. Coefficient from the producer’s site 7.2. Measured discharge method 7.3. Method of average 7.4. Method of maximum 7.5. Method of battery history 8 Appendix: test cable checking 9.
-
Page 5: Introduction
Therefore, the dependence between test pulse form and value and battery answer form and value could be slightly different. That is why Qulon-12m is not a high precision device for capacity measurement. It estimates battery capacity basing on electrical measurement and... -
Page 6: Safety Precautions
If summary voltage exceeds 400 volts device could be damaged. Qulon-12m is a complicated device. Do not try to dis- assemble it. There are parts that need service inside. The device should be repaired only by certified personal. -
Page 7: General Description
Attention! Do not use device with back lid opened. 2. General description There is a LCD display in the center of Qulon’s front panel. It is used to show ampere-hour capacity, battery volt- age and additional information: adjustment coefficient, num- ber of recorded measurements and current croup of records. -
Page 8: Battery Capacity Estimation
3. Battery capacity estimation 3.1. What is battery capacity Battery capacity is an electrical charge (quantity of electricity) that battery can deliver under specified conditions. Usually battery capacity is expressed in ampere-hours (A*h or Ah). Capacity equals to discharge current (in amperes) multi- plied by discharge time (in hours). -
Page 9: Battery Capacity And Battery State Of Charge
Qulon-12m always shows the capacity that a battery could deliver during next discharge under the same condition. That is why if you get estimated... -
Page 10: New Batteries
(or several months under float charge). 3.2. Battery capacity estimation with Qu- lon-12m 3.2.1. Device placement Qulon-12m can work in any position horizontal or ver- tical. To avoid device errors do not use it near the sources large electromagnetic... -
Page 11: Battery Preparation
If battery terminals are dirty or oxidized – clean them. 3.2.3. Connection to a battery Battery capacity indicator Qulon-12m is supplied with special test cables that use four-wire (Kelvin) connection to a battery. Two halves of one (red or black) clamps are insulated from each other. -
Page 12: Battery State Of Charge
3.2.4. Battery state of charge Qulon-12m estimates capacity for fully charged bat- teries only. The battery under test should have voltage not less then 12.6 V. If a battery is deeply discharged (voltage less the 9 V) -
Page 13: Battery Capacity Estimation
-12- If a battery is not fully charged (voltage is more then 9 V and less then 12.6 V), device shows a message “Voltage low” and battery voltage at the screen. In this case, discon- nect clamps from the battery and charge the battery in full according to the battery manual. -
Page 14: Qulon's Screen During Battery Capacity Estimation13
If battery capacity estimation was successful, the ca- pacity value is shown on the screen. This result can be saved in memory. Qulon-12m has two saving regimes (save modes): saving by default (result is saved immediately after it appears) and saving by command (one needs to push button for saving). - Page 15 -14- Battery capacity – measured in ampere-hours. Battery voltage – measured in volts. Right part of the screen (the zone of inversion) con- tains additional information. Battery capac- Coefficient Menu Current enter group Delete result Number Battery volt- Memory inside group cells free Fig.2 Screen under “save by default”...
-
Page 16: Screen Under "Save By Command" Mode
Fig. 3 Screen under “save by command” mode 4. Alarm messages Sometimes (mainly if the battery is not properly pre- pared for testing), Qulon-12m fails to estimate capacity. If this happens, alarm message appears on the screen describing reason fail. - Page 17 -16- All alarm messages with their possible causes and recommended user actions are listed in the following table. Message Possible cause Recommended actions Contact Bad contact be- Disconnect clamps, tween any of test clean terminals clamps and bat- connect clamps once tery terminal more Capacity...
-
Page 18: Memory
-17- 5. Memory 5.1. Memory organisation Battery capacity indicator Qulon-12m has memory for 200 test results. For user’s convenience, test results can be split to groups. Maximum number of groups is 26, each group is identified with a letter of Latin alphabet – from A to Z. A user arbitrarily manages the quantity of results inside group. -
Page 19: Two Save Modes
All memory operations are made with the help of main menu. 5.2. Two save modes Qulon-12m has two save modes: “save by default” and “save by command”. Under “save by default” mode just received test result is saved automatically. It can be erased by pressing lower button. -
Page 20: Main Menu
-19- In “A” case (see above), the following information is saved: estimated capacity, calibration coefficient (for current test), battery voltage, group name and number inside group. In “B” case, the appropriate message is saved instead of estimated capacity. If there are 200 test results saved in memory, a mes- sage “memory full”... -
Page 21: Close Group
-20- Enter menu Cursor item Cursor movement Fig. 4. Main menu To exit menu – disconnect test clumps from the bat- tery terminals - all adjustments are saved automatically. 5.3.1. Close group This menu item is used for closing current group of test results. -
Page 22: Records
-21- after it will be in Z group. If you try to close the empty group, you will see the appropriate message. The empty group cannot be closed. 5.3.2. Records This menu item is used for viewing saved test results. After entering this menu item the screen view is as in figure 5. -
Page 23: Clear Memory
-22- causes fast group scrolling. After last nonempty group is reached result A-1 is shown once more. By pressing lower button, one can view the next result in the same group. Long pressing causes fast result scrolling. After last result of the group is reached, the result number 1 of the same group is shown. -
Page 24: Options
Qulon-12m adjustment is described in the following chapter of the manual. 6. Adjusting Qulon Qulon-12m is issued completely adjusted and can be used for lead acid batteries diagnostics right after purchases. By manufacture, Qulon-12m is adjusted as follows. Save mode - by default. -
Page 25: Options Menu
-24- 6.1. Options menu To change adjustments it is necessary to connect Qulon to a battery and after the device will estimate its ca- pacity or will give out the message, - press the top button (icon "M" - menu entrance) to enter the main menu. In the main menu –... -
Page 26: Save Mode
-25- To exit menu – disconnect test clumps from the bat- tery terminals. 6.2. Save mode When you enter this menu item you are offered to choose one of two save modes: save by default or save by command. Move cursor to the desired line. Your adjustment is saved automatically. -
Page 27: Calibrate (Coefficient Adjustment)
Qulon-12m is calibrated at the factory with the use of average characteristics of 12-volt lead acid batteries. Some specific battery may need some other calibration. To diminish... -
Page 28: Filtration
Any time you test a battery, you see the coefficient value in the right top corner of the screen. 6.4. Filtration Qulon-12m is equipped with a very effective filter for noise suppression. Nevertheless, under some circumstances (very signal... -
Page 29: Language
-28- large noise level…) additional filtration may be needed. Message “noise” (see section 4) may be the notifica- tion of such situation. In case you see this message, you can switch additional filtering on. To switch on additional filtering enter main menu, se- lect item “options”, enter options menu and select item “Filtering”. -
Page 30: Calibrating Qulon (Coefficient Determination)
To exit menu disconnect Qulon from the battery. 7. Calibrating Qulon (how to determine right coefficient value) Qulon-12m is calibrated at the factory with the use of average characteristics of 12-volt lead acid batteries. Some specific battery may need some other calibration. To diminish... -
Page 31: Coefficient From The Producer's Site
-30- A) Get coefficient value from the Internet site www.qulon.com, if there is data for your battery type (see section 7.1). B) Determine coefficient by testing your battery with Qulon and the following measured discharge (see section 7.2). В) Determine coefficient using “method of average” after testing a group of batteries with Qulon (see section 7.3) . -
Page 32: Measured Discharge Method
-31- producer, country of production) to bat-info@qulon.com. May be it would be possible to get newer information. 7.2. Measured discharge method Warning. Measured discharge should be done by the qualified user who studied the present manual and who dis- tinctly understands the sequence and probable results of the action. - Page 33 -32- later) connect Qulon-12m (adjusted for work with K=1) to the battery (see section 3.2). Write down the estimated capacity Connect the battery to your device for measured dis- charge. Set the discharge current to receive discharge time about 15-20 hours and cut-off voltage 10.5 V. Switch dis- charge on.
-
Page 34: Method Of Average
- nominal capacity). This method is recommended for use with the new or poorly worn out batteries. Connect Qulon-12m (with K=1) to each battery of the group and write down the estimated capacity. Calculate the average estimated capacity for the group E... -
Page 35: Method Of Battery History
The method is based on the assumption, that in the beginning of the battery service life (right after the first connection of Qulon-12m to the bat- tery), the capacity of the battery is accepted known (for ex- ample, it is considered that it is equal to nominal capacity). -
Page 36: Appendix: Test Cable Checking
-35- 8. Appendix: test cable checking Qulon-12m is equipped with special cables with clips utilizing four-wire (Kelvin) connection. At the negligent treat- ment - for example, a detachment from the device by pulling by a cable, they could be damaged. If you have any doubts about cables, it is possible to check them up, using a digital tester as follows. -
Page 37: Specifications
-36- 9. Specifications 1. Working voltage range - 9 V to 15 V. 2. Recommended range of nominal capacity of bat- teries to test – 0.9 to 350 ampere-hours. 3. Battery voltage range for battery capacity estimation – 12.6 to 13.9 В. 4. -
Page 38: Warranty
-37- Warranty The manufacturer warrants Qulon-12m to be free of defects in parts and workmanship for one year from date of shipment (a two month limited warranty applies on test ca- bles) and not more then 15 months from the date of produc- tion. - Page 39 -38- Type: Qulon-12m. Serial number ___________________ Manufactured: "____" ___________ 200__ Signature _______________________...
