Instruction Manual, Operation and Maintenance
original instructions
ACR Smart MMV
InterPuls S.p.A.
Via F. Maritano, 11 - 42020 - Albinea (RE) – ITALY
Tel. +39 0522 347511
Fax +39 0522 348516
sales@interpuls.com
InterPuls S.p.A.
-
THIS MANUAL IS THE PROPERTY OF -
ANY COPYING, EVEN PARTIAL, IS STRICTLY PROHIBITED
Advertisement
Table of Contents
Summary of Contents for InterPuls ACR Smart MMV
-

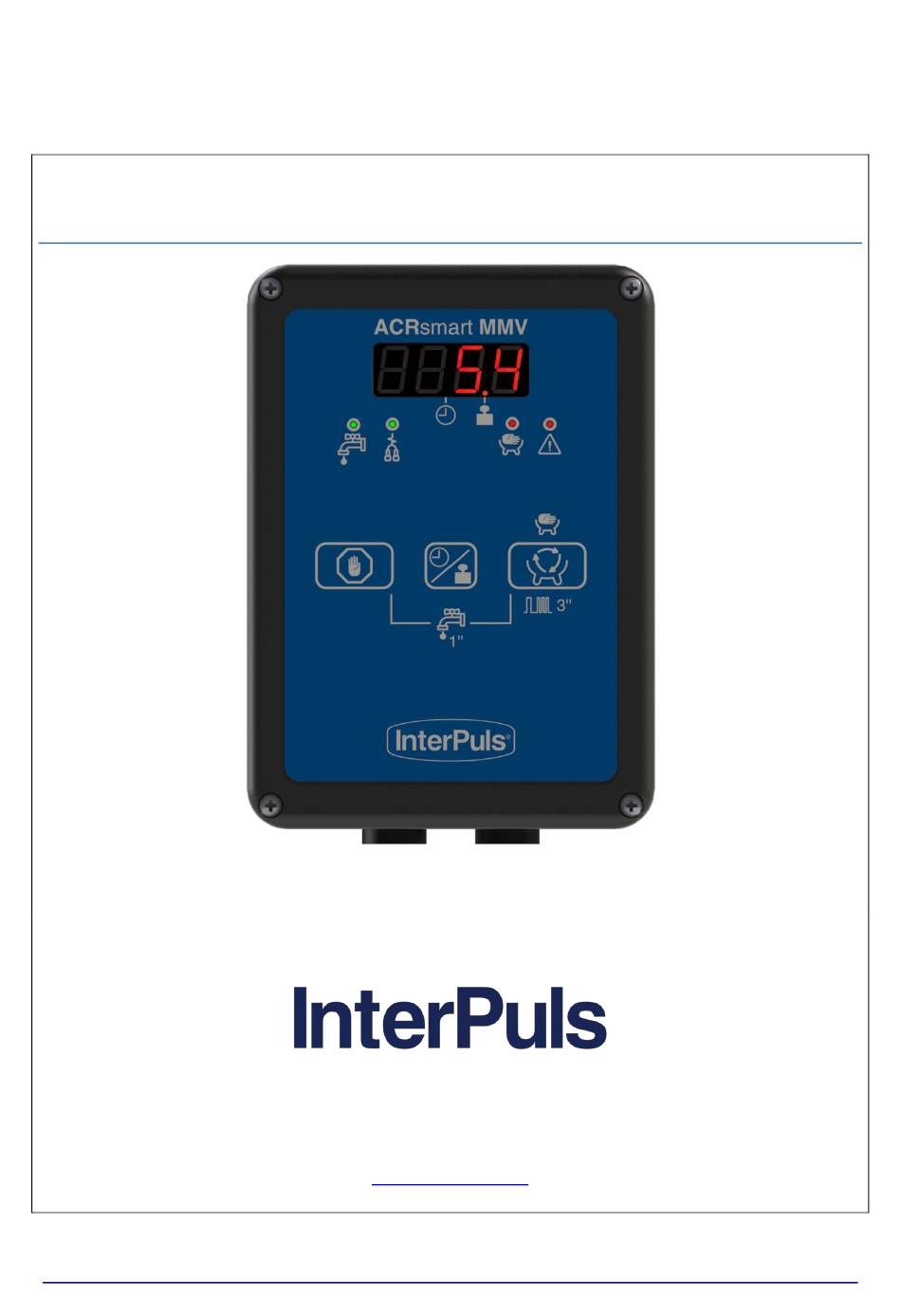

Page 1: Acr Smart Mmv
Instruction Manual, Operation and Maintenance original instructions ACR Smart MMV InterPuls S.p.A. Via F. Maritano, 11 - 42020 - Albinea (RE) – ITALY Tel. +39 0522 347511 Fax +39 0522 348516 sales@interpuls.com InterPuls S.p.A. THIS MANUAL IS THE PROPERTY OF -... - Page 2 YEAR OF MANUFACTURE 2017 InterPuls is a registered trade mark of InterPuls SpA. The information contained in this document is not binding and can be modified without notice. References in this document to manufacturer trademarks are for identification only. Certain company and product names used throughout the document are trademarks of their respective owners.
-
Page 3: Table Of Contents
- Instruction Manual, Operation and ACR Smart MMV 5760006_02.17_EN Maintenance original instructions Summary ACR Smart MMV ............................... 1 GENERAL INFORMATION ........................5 General information and safety warnings ..................5 1.1.1 Important warnings ........................5 1.1.2 Symbol used in this manual ....................... 5 1.1.3... - Page 4 - Instruction Manual, Operation and ACR Smart MMV 5760006_02.17_EN Maintenance original instructions Stimulation ........................... 20 Alarm ............................22 Quick-Lift ............................22 Swing-over (only with detachment made by pneumatic cylinder) ..........22 4.10 Calibration (with MMV) ........................ 23 4.10.1 Equipment ..........................23 4.10.2...
-
Page 5: General Information
Any failure to observe the warnings provided in this manual may lead to equipment malfunctions or damage to the system. 1.1.4 Limitation of liability InterPuls S.p.A. declines all liability for damage to persons, animals and/or things caused by incorrect use of the equipment. Prior using the product 1.2.1 Requirements and rules for personnel and Safety Rules... -
Page 6: Disposal
- Instruction Manual, Operation and ACR Smart MMV 5760006_02.17_EN Maintenance original instructions Disposal 1.3.1 General regulation The appliances must be disposed of only and exclusively by specially authorized waste disposal companies in accordance with all relative legislation and prescriptions. The packaging must be consigned to the relative authorized companies to be recycled. -
Page 7: Description Of The Machine
The ACRSmart MMV is a panel designed to control all the functions of milking, washing and detachment of the unit. Furthermore, with InterPuls Milk Meter, ACRSmart MMV is able to measure the milk production with errors below 2%. The panel can work with Milk Meter InterPuls and also with flow sensor HFS InterPuls. -
Page 8: Wiring Diagrams
- Instruction Manual, Operation and ACR Smart MMV 5760006_02.17_EN Maintenance original instructions Wiring diagrams 2.3.1 Connection diagram with MMV sensor InterPuls S.p.A. THIS MANUAL IS THE PROPERTY OF - ANY COPYING, EVEN PARTIAL, IS STRICTLY PROHIBITED MI - 8... - Page 9 - Instruction Manual, Operation and ACR Smart MMV 5760006_02.17_EN Maintenance original instructions N° N° wire N° Type of Wire color terminal Wiring Color Description (device wire wiring (device side) side) 8 poles cable 24 VDC (+) PCB power supply 8 poles cable...
-
Page 10: Connection Diagram With Hfs Flow Sensor
- Instruction Manual, Operation and ACR Smart MMV 5760006_02.17_EN Maintenance original instructions 2.3.2 Connection diagram with HFS Flow sensor Rosso Bianco Rosa Nero Marrone Giallo Marrone Nero Nero Nero Grigio verde Marrone InterPuls S.p.A. THIS MANUAL IS THE PROPERTY OF -... -
Page 11: Choice Of Cv
- Instruction Manual, Operation and ACR Smart MMV 5760006_02.17_EN Maintenance original instructions N° N° wire N° Type of Wire color terminal Wiring Color Description (device wire wiring (device side) side) 24 VDC (+) 8 poles cable PCB power supply 8 poles cable... -

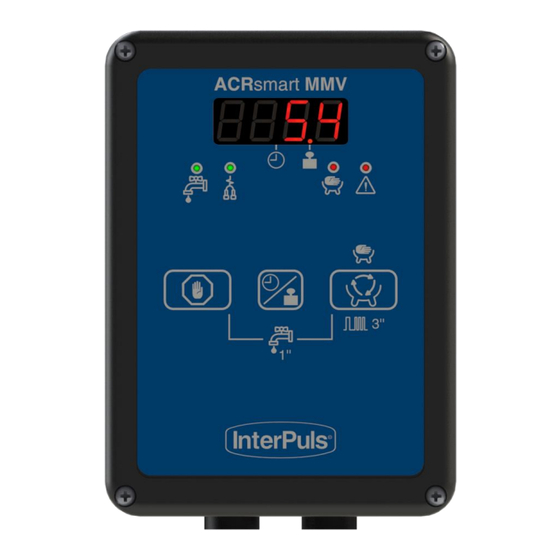

Page 12: Description Of The Device
- Instruction Manual, Operation and ACR Smart MMV 5760006_02.17_EN Maintenance original instructions 3 DESCRIPTION OF THE DEVICE A) Display B) LEDs (green and red) C) STOP key D) Milking process START button with automatic detachment, continuous pressure for 3’’ stimulation... -
Page 13: Display During Operation
- Instruction Manual, Operation and ACR Smart MMV 5760006_02.17_EN Maintenance original instructions Display during operation Display Indication Meaning Code St.on. Start of stimulation Code St.oF. End of stimulation Code diS Washing (only with HFS sensor) EMPTY phase during washing and... -
Page 14: Description Of The Functions
- Instruction Manual, Operation and ACR Smart MMV 5760006_02.17_EN Maintenance original instructions 4 DESCRIPTION OF THE FUNCTIONS Upon start-up the panel display indicates the software version installed. Depending on the configured settings (parameter In.P.), then the panel starts during: washing... -
Page 15: Washing
- Instruction Manual, Operation and ACR Smart MMV 5760006_02.17_EN Maintenance original instructions Washing The wash phase can be operated: Manually when the system is in detachment position by pressing together briefly Automatically if pre-set as the start-up phase on the programming menu (parameters In.P. set on diS.) -
Page 16: Washing With Milk Meter
- Instruction Manual, Operation and ACR Smart MMV 5760006_02.17_EN Maintenance original instructions 4.2.2 Washing with Milk Meter The panel alternates FILL phase and EMPTY phase; between the two phases, the dump-valve is activated to allow the emptying of the sensor. -
Page 17: Milking With Mmv
- Instruction Manual, Operation and ACR Smart MMV 5760006_02.17_EN Maintenance original instructions The panel shows the milking time in MM.SS size; the central dot is on clock symbol At the end of Initial delay (parameter In.d.) when there’s no longer milk flux, the count of Final delay (parameter Fin.d.) starts;... -
Page 18: Manual Milking
- Instruction Manual, Operation and ACR Smart MMV 5760006_02.17_EN Maintenance original instructions 4.3.4 Manual milking To start milking with manual unit removal, press the key after the system has been started in automatic milking mode: The red led of manual milking... -
Page 19: Reattachment
- Instruction Manual, Operation and ACR Smart MMV 5760006_02.17_EN Maintenance original instructions if the automatic unit release function has been activated, when the automatic release delay has elapsed (parameter A.r.d.) the unit is released automatically to start a new milking session. -
Page 20: Stimulation
- Instruction Manual, Operation and ACR Smart MMV 5760006_02.17_EN Maintenance original instructions Stimulation At the beginning of stimulation, the display features the code St.on. for 3 seconds. On the programming menu you can define the type of stimulation (parameter St.tY.) which may be: ... - Page 21 - Instruction Manual, Operation and ACR Smart MMV 5760006_02.17_EN Maintenance original instructions Time Detachment Initial delay Final Final Final operation delay delay Delay Start of milking session When the Pulsation delay has elapsed, the pulsator is activated The Initial delay count...
-
Page 22: Alarm
- Instruction Manual, Operation and ACR Smart MMV 5760006_02.17_EN Maintenance original instructions Alarm If a continuous flow is not detected during the milking process, when the Initial delay has elapsed and during the subsequent final delay time count, the red alarm LED starts flashing and the unit removal procedures start automatically. -
Page 23: Calibration (With Mmv)
- Instruction Manual, Operation and ACR Smart MMV 5760006_02.17_EN Maintenance original instructions 4.10 Calibration (with MMV) The parameter CAL.M. is used to calibrate the MMV sensor for each ACRSmart MMV of the parlour. Each installation requires different settings due to the different vacuum level, tube length, air input and milk ascent/rising. - Page 24 - Instruction Manual, Operation and ACR Smart MMV 5760006_02.17_EN Maintenance original instructions A narrow and high BUCKET of sufficient capacity (more than 10l – more than 0.35 ft InterPuls S.p.A. THIS MANUAL IS THE PROPERTY OF - ANY COPYING, EVEN PARTIAL, IS STRICTLY PROHIBITED...
-
Page 25: Testing Proceeding
- Instruction Manual, Operation and ACR Smart MMV 5760006_02.17_EN Maintenance original instructions 4.10.2 Testing proceeding 1. Remove the cluster from the milk hose and connect the suction device with a rubber chunk ) of water (=10Kg – 22.04 lb). The temperature of the water should be 2. -
Page 26: Programming Mode
- Instruction Manual, Operation and ACR Smart MMV 5760006_02.17_EN Maintenance original instructions 5 PROGRAMMING MODE Accessing the programming mode keys for 10” while the system is in To access the Programming menu, press the detachment mode. The display features the first parameter identified by its code and the LEDs start flashing alternately. -
Page 27: Programming Parameter Table
- Instruction Manual, Operation and ACR Smart MMV 5760006_02.17_EN Maintenance original instructions Programming parameter table Unit of Parameter name Code Description Range Default measure MMV.2 Definition of the type of sensor is used MMV.1 (NOT TYPE OF SENSOR SEnS (volumetric milk meter MMV or flux MMV.2... - Page 28 - Instruction Manual, Operation and ACR Smart MMV 5760006_02.17_EN Maintenance original instructions Selection of type of stimulation Forc: forced stimulation TYPE OF Auto: automatic stimulation Forc - Auto - St.tY. Auto STIMULATION oFF: stimulation that can only be activated manually...
-
Page 29: General Reccomendation
- Instruction Manual, Operation and ACR Smart MMV 5760006_02.17_EN Maintenance original instructions 6 GENERAL RECCOMENDATION Positioning Make sure that the volumetric milk meter MMV or the flow sensor HFS are in vertical position Sensitivity (only with HFS) The ACR panel is designed to detect milk flows below the 100 gr/min limit (preferably with the HFS sensor). -
Page 30: Configurations (Only With Hfs)
- Instruction Manual, Operation and ACR Smart MMV 5760006_02.17_EN Maintenance original instructions Configurations (only with HFS) Type of system Recommended settings Decrease parameter Continuous flow time High line M.d.F. = 0,3 seconds Decrease parameter Final delay Low line Fin.d. = 8 secondi Decrease parameter Continuous flow time M.d.F.
