Swivelpole F17 Installation & Operation Manual

I N S T A L L A T I O N & O P E R A T I O N G U I D E
Before installation please ensure you have read the Operation and
Safety Information.
This guide should be followed to ensure the Swivelpole™ is assembled
and installed safely and correctly.
Copies of general assembly drawings are available at
www.swivelpole.com
Installation of Swivelpole™ F17
1. Feed the electrical cable
through the base section of the
Swivelpole™ to the access panel.
2. Position the base section over
the installed cage bolts.
3. Rotate the Swivelpole™
base section to the desired
orientation.
4. Align the base section so it is
vertical.
5. Tighten base plate bolts.
6. Feed the electrical cable through
the pole top prior to bolting to
the swivel plate.
7. Apply multi-purpose grease to
bottom swivel plate surfaces
and bolts.
8. Slide the clamp plate onto the
pole top.
9. With one person holding the
pole top horizontally, the second
person can position the round
swivel plate locator into the hole
of the base section swivel plate.
10. The flange nuts are inserted on
the underside of the bottom
swivel plate.
11. Bolt the clamp plate to the swivel
plate, using the fastening kits.
12. The safety pin wire loop should
be fitted between the plates
using the bottom left-hand bolt.
Note: The clamp plate includes a
stop tab for poles 5m and above
(1). If the F17 is being lowered
to the right, the stop tab needs
to be on the left. If the F17 is
being lowered to the left, the
stop tab needs to be on the
right.
SP-IEC-Installation Guide F17-20180808
13. Tighten the bolts evenly. Apply
enough tension to allow
controlled raising of the pole
top, at this point the Swivelpole™
will be self supporting.
14. To raise, use two people to guide
it as it swivels to the upright
position.
15. Insert the safety pin.
16. With the pole top in the upright
position, mark the pole in the
direction the fixture is to face,
and lower it again to fit the
fixture.
17. To lower, retract the safety pin
and swivel the pole top down to
a safe working height and insert
the safety pin.
18. Fit the fixture mount as per
marked position on pole top.
19. Tighten the grub screws to a
torque setting of 17Nm to 20Nm.
20. Complete installation and
termination of the fixture.
21. Raise the Swivelpole™ and insert
the safety pin.
22. Tighten the bolts evenly to a
torque setting of between 40Nm
and 80Nm.

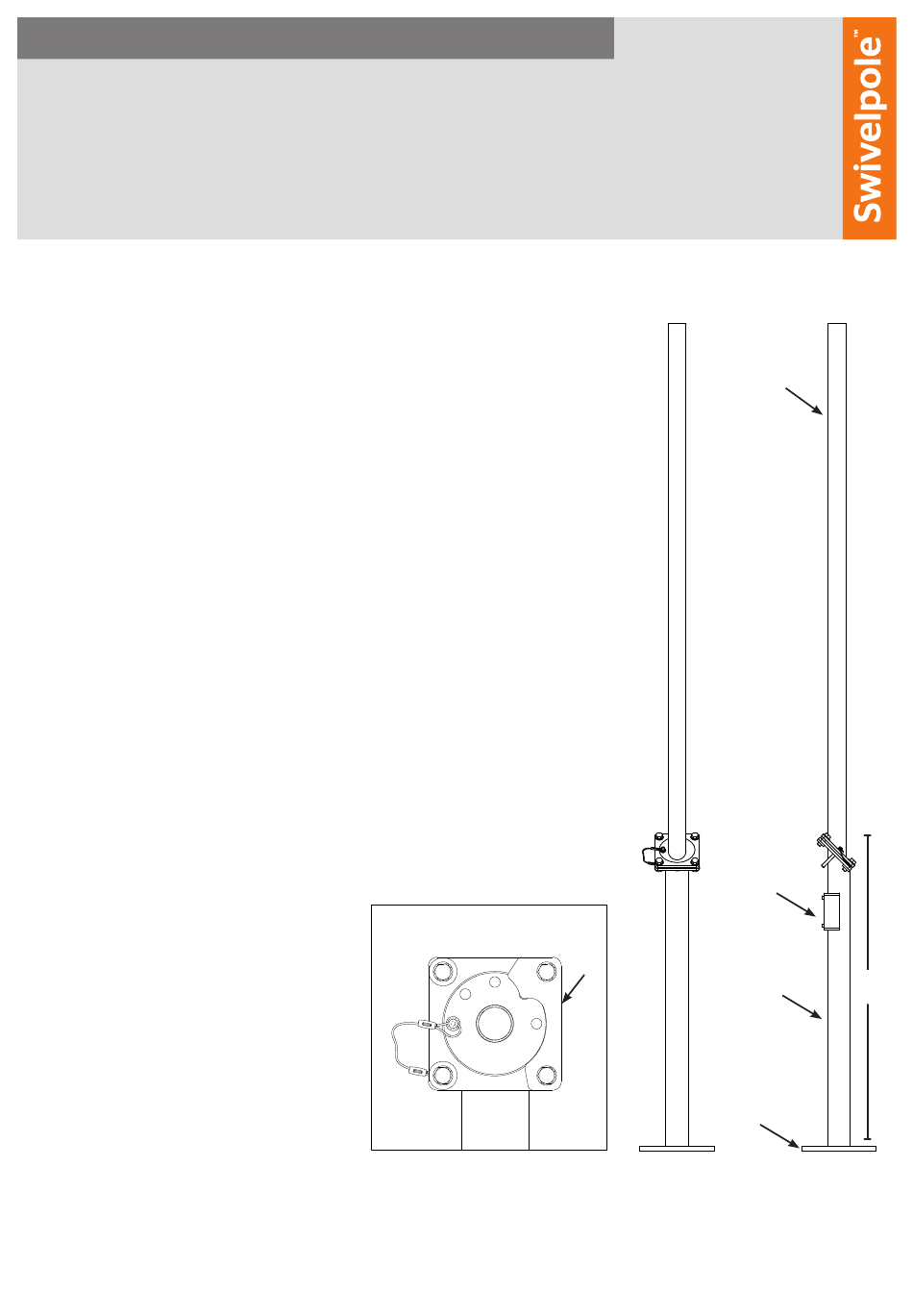

F17 - CPST (CLAMP-STOP TAB) - Installation Guide View
Figure 1
Stop
Tab (1)
DN50
Pole Top
Access
Panel
DN65
Base
Height
Section
1000mm
Base
Plate
