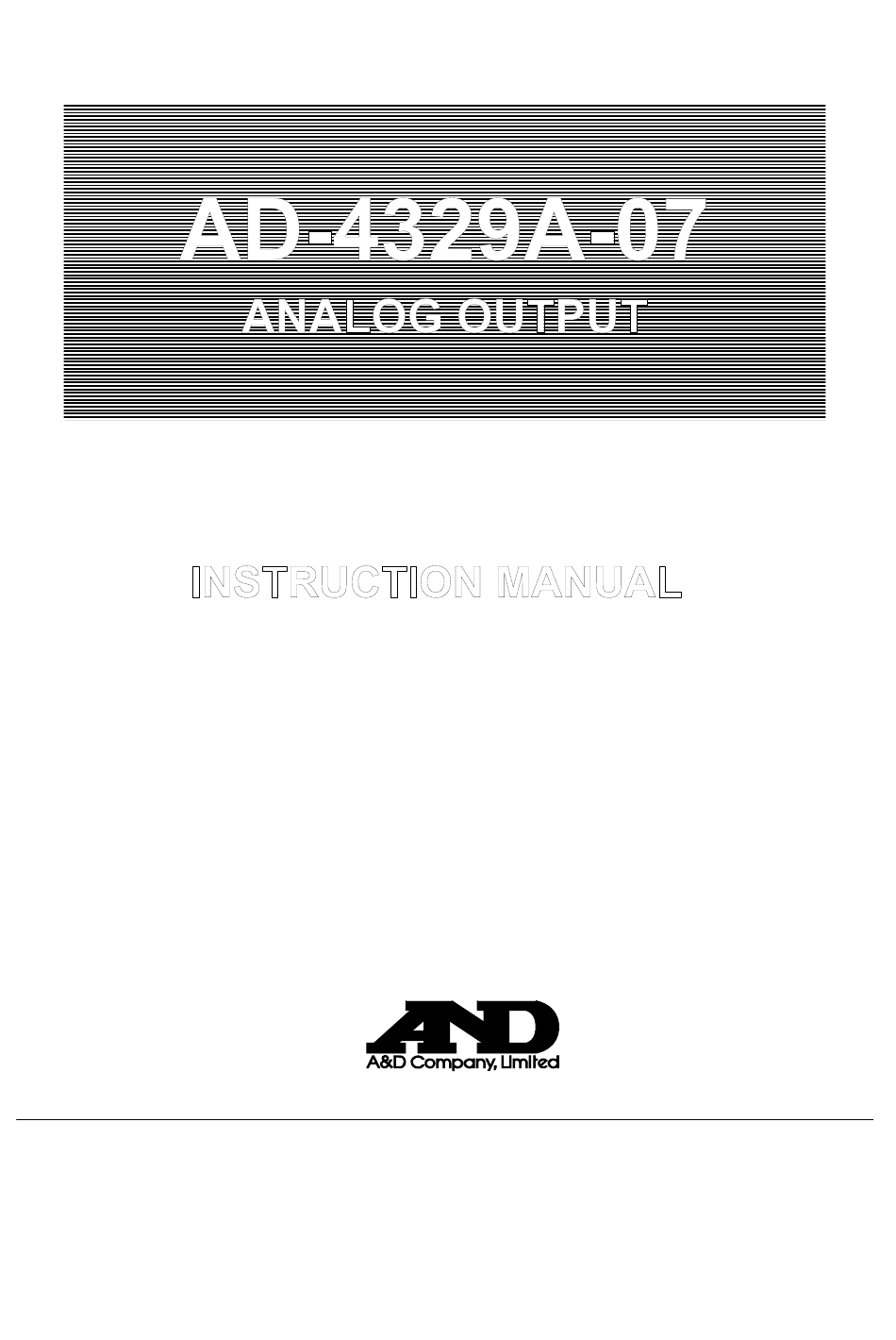

AD-4329A-07
ANALOG OUTPUT
INSTRUCTION MANUAL
1WMPD4003151
© 2015 A&D Company Ltd. All rights reserved.
No part of this publication may be reproduced, transmitted, transcribed, or translated into any
language in any form by any means without the written permission of A&D Company Ltd.
The contents of this manual and the specifications of the instrument covered by this manual are
subject to change for improvement without notice.
Advertisement
Summary of Contents for A&D AD-4329A-07
-
Page 1: Analog Output
AD-4329A-07 ANALOG OUTPUT INSTRUCTION MANUAL 1WMPD4003151 © 2015 A&D Company Ltd. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, or translated into any language in any form by any means without the written permission of A&D Company Ltd. - Page 2 5. Remove two screws and the large blank panel from the indicator's rear panel. 6. Install the AD-4329A-07 option board on the rear panel from inside. Fasten the board to the rear panel from outside, using the two screws removed in step 5.
- Page 3 2. Specifications AD-4329A-07 Analog output Current output 4mA to 20mA Outputs 4mA or less when the display is turned off or the indicator is in a mode other than the weighing data displaying mode, such as calibration. Outputs 20mA or more at overload display.
- Page 4 ZERO control ... Changes 4mA current output. Turning the control clockwise will make the output current greater. AD-4329A-07 option board Insulator Output current adjustment mode 1. Remove the power cord. Refer to "1. Installation" to pull the option board out far enough to access the adjustment controls and insulate the board.
