New KRS-HC series Wire Controller Operation Manual
Wire controller operation manual

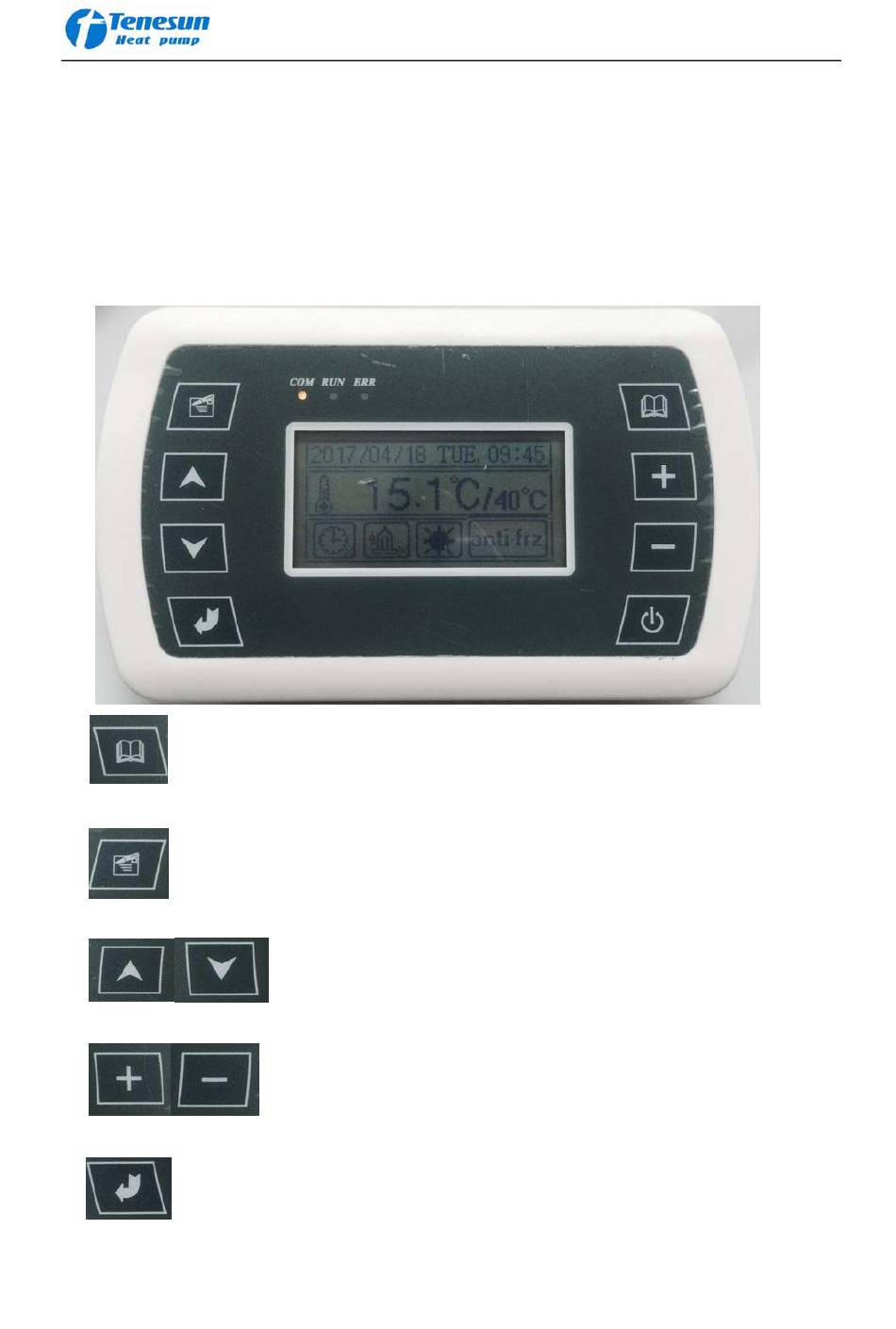

1. Description of key
Refer key-function: read the running status and fault of heat pump
Menu key-function: enter or quit the interface of menu item
up/down key-function: choose menu item or parameter item
+/-
key-function: change parameter or password input, etc.
Enter key-function: confirm the mean item, password, etc.
- 1 -
Advertisement
Summary of Contents for Tenesun KRS-HC Series
- Page 1 New KRS-HC series Wire Controller Operation Manual Wire controller operation manual 1. Description of key Refer key-function: read the running status and fault of heat pump Menu key-function: enter or quit the interface of menu item up/down key-function: choose menu item or parameter item key-function: change parameter or password input, etc.
-
Page 2: Description Of Lcd Display
New KRS-HC series Wire Controller Operation Manual On/off key-function: start and stop heat pump 2. Description of LCD display A. Start screen After heat pump is power on, the wire controller appears start screen. Press any key or wait for 10 seconds, the LCD display appears main interface. - Page 3 New KRS-HC series Wire Controller Operation Manual Menu key: enter or quit the menu item interface. Refer key: when heat pump is without new fault, users could press refer key to read the running status. When heat pump is with fault, users could press refer key to read the error code.
-
Page 4: Main Menu Interface
New KRS-HC series Wire Controller Operation Manual C. Main menu interface When wire controller appears main interface, users press Menu key to enter the Menu interface, then press 【 】key to choose menu item. Users could press Enter key to read the function interface, and press Menu key to return. - Page 5 New KRS-HC series Wire Controller Operation Manual F. Module com. status interface When wire controller appears status inquiry interface, users choose module com. Status item and press Enter key to enter above interface. Press Menu key to return. : it means the module is on working. : it means the module is not on working.
- Page 6 New KRS-HC series Wire Controller Operation Manual Press 【▲/▼】key, and【 】 key to choose item and change value. J. Edit user setting menu Press 【▲/▼】key, and【 】 key to choose item and change value. K. Mode&Temp Setting menu Press 【▲/▼】key, and【...
- Page 7 New KRS-HC series Wire Controller Operation Manual M. Date/time Setting Press 【▲/▼】key, and【 】 key to choose item and change value. N. Other Setting Press 【▲/▼】key, and【 】 key to choose item and change value. O. Controller setting Press 【▲/▼】key, and【...
- Page 8 New KRS-HC series Wire Controller Operation Manual Press 【▲/▼】key, and【 】 key to choose item and change value. Q. Anti-freeze setting Press 【▲/▼】key, and【 】 key to choose item and change value. R. Pump setting Press 【▲/▼】key, and【 】 key to choose item and change value.
- Page 9 New KRS-HC series Wire Controller Operation Manual Press 【▲/▼】key, and【 】 key to choose item and change value. T. Aux-heat setting Press 【▲/▼】key, and【 】 key to choose item and change value. U. Outdoor fan setting Press 【▲/▼】key, and【 】 key to choose item and change value.
- Page 10 New KRS-HC series Wire Controller Operation Manual Press 【▲/▼】key, and【 】 key to choose item and change value. X. Error relay set Press 【▲/▼】key, and【 】 key to choose item and change value. Y. T-start cycle Press 【▲/▼】key, and【 】 key to choose item and change value.
- Page 11 New KRS-HC series Wire Controller Operation Manual B2. Edit factory set Press 【▲/▼】key, and【 】 key to choose item and change value. C2. Error inquiry Press 【▲/▼】key, and【 】 key to choose item and change value. D2. Compressor force on/off Press 【▲/▼】key, and【...
- Page 12 New KRS-HC series Wire Controller Operation Manual E2. Compressor force on/off Press 【▲/▼】key, and【 】 key to choose item and change value. F2. Password input interface Press 【▲/▼】key, and【 】 key to choose item and change value. - 12 -...
- Page 13 New KRS-HC series Wire Controller Operation Manual 3. Parameter code sheet Code Description Default value Adjustable range Automatic, cooling, Running mode setting Automatic heating, manual Ambient temperature for starting 16℃ 0℃-26℃ heating automatically Ambient temperature for starting 20℃ 16℃-40℃ cooling automatically Outlet water temperature setting 45℃...
- Page 14 New KRS-HC series Wire Controller Operation Manual Outlet water temperature for 35℃ 25℃-48℃ starting aux-heating Outlet water temperature for 40℃ 30℃-50℃ stopping aux-heating Two speed fan motor control 32℃ 30℃-40℃ temperature under cooling mode Two speed fan motor control 9℃...
- Page 15 New KRS-HC series Wire Controller Operation Manual Allowed energy control module 1-12 number Inlet water temperature sensor 0℃ -5℃~5℃ adjustment Outlet water temperature sensor 0℃ -5℃~5℃ adjustment Heat pump series Heating/cooling Only cooling, heating/cooling LCD contrast ratio 1~15 Backlight off relay...
