0
Safety regulations ............................................. 2
1
Introduction ...................................................... 2
2
Connections ..................................................... 3
2.1
Connection input plug FC-slot A..................................... 4
2.2
Connection measuring device ........................................ 5
2.3
Connection 230 VAC plug FC-slot B ............................... 6
3
Commissioning ................................................. 7
4
Working mode .................................................. 7
4.1
Function of the LEDs ...................................................... 7
4.2
Reset to zero .................................................................. 8
5
Statistical function ............................................. 8
6
7
Programming pulse count/litre and limit ......... 10
8
Technical data ................................................ 11
DIGMESA AG KELTENSTRASSE 31 CH 2563 IPSACH

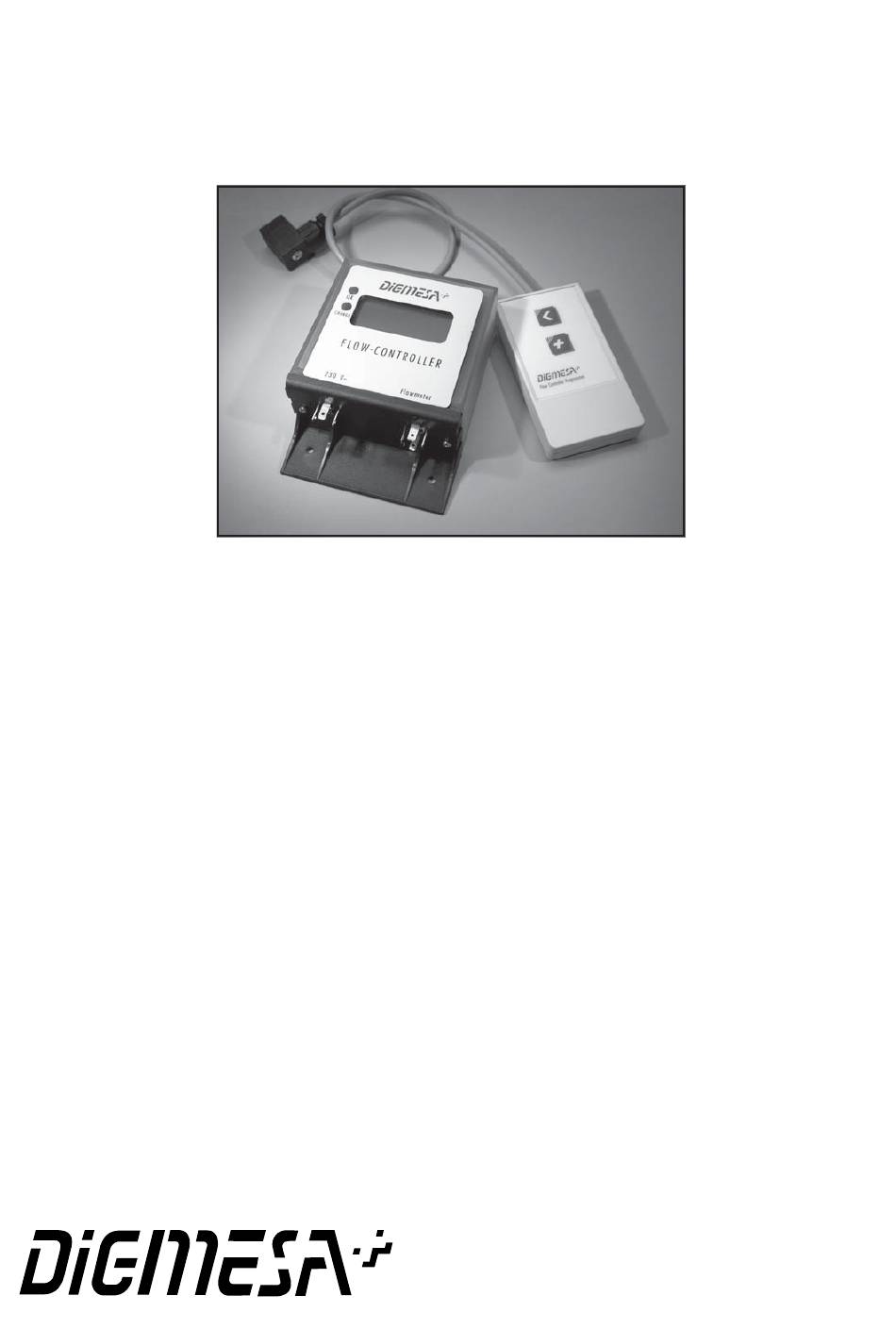

User Manual
F
C
-
low
Page 1
www.digmesa.com
ontroller
*digmesa@digmesa.com
Advertisement
Table of Contents
Summary of Contents for DIGMESA FC
-
Page 1: Table Of Contents
Introduction ............2 Connections ............. 3 Connection input plug FC-slot A........4 Connection measuring device ........5 Connection 230 VAC plug FC-slot B ....... 6 Commissioning ..........7 Working mode ..........7 Function of the LEDs ............7 Reset to zero ..............8 Statistical function .......... -
Page 2: Safety Regulations
For this purpose, it is connected to the DIGMESA measuring devices fitted in the pipes. The liquid-crystal display informs the consumer of the quantity which has flowed through. The FC with limit value is used, amongst other things, to monitor water filters or water softeners etc. For example: Ø... -
Page 3: Connections
Connections The FC is supplied with two different MSDs (magnetic sockets), one with 3 con- tacts and one with 4 contacts. Plug with 4 contacts Plug with 4 contacts Housing Fixing screw Rubber seal, round Figure 1 Plug with 3 contacts... -
Page 4: Connection Input Plug Fc-Slot A
Positive (Digmesa colour code: brown) into terminal 1. Negative (Digmesa colour code: green) into terminal 2. Connect the signal of the flowmeter (Digmesa colour code: white) to the terminal with the earthing symbol. Note down the colours of the cables so that you will be able to then correctly connect the measuring devise (colours of the wires may vary from country to country). -
Page 5: Connection Measuring Device
Confusing the negative and positive cable may destroy the measuring device! You will require an MSD with 3 contacts (Item No. 941-0002/3) in order to connect the measuring device to the FC. This MSD may need to be ordered additionally, depending on the particular measuring device. -
Page 6: Connection 230 Vac Plug Fc-Slot B
Rubber seal, rectangular Plug with 3 contacts Figure 2 Plug the rubber seal and plug onto FC FC- - - - - slot B slot B slot B slot B slot B, earthing symbol connector to earthing symbol FC-slot B. Guide the housing over the plug that the cable outlet points to the left. -
Page 7: Commissioning
The programmed limit value in litres and PROG are displayed for approx. 4 seconds as soon as the FC is connected to the electrical power supply. The FC is then in Working mode, and 0.00 and Litres are shown on the display. -
Page 8: Reset To Zero
If you do not press the button for 30 seconds, the FC automatically . If you do not press the button for 30 seconds, the FC automatically . If you do not press the button for 30 seconds, the FC automatically . -
Page 9: Programming Pulse Count/Litre Without Limit
(Fig. 1) of the MSD slot A slot A slot A to which the cable of the measuring device is connected to the FC and carefully pull the MSD off. The FC remains electrically live. FC- - - - - slot A... -
Page 10: Programming Pulse Count/Litre And Limit
A slot A slot A slot A to which the cable of the measuring device is connected for the FC and pull the MSD carefully off. The FC remains electrically live. FC- - - - - slot A slot A... -
Page 11: Technical Data
Power failure : The values are stored automatically and are not lost. The FC resumes work at the point at which it was interrupted when the electrical power is restored. Measurement is not possible without the instrument connected to the... - Page 12 Notes: Your DIGMESA partner T:\Bedienungsanleitung\FC I 823-1007 Version:1 März. 2002/ RN Page 12...
