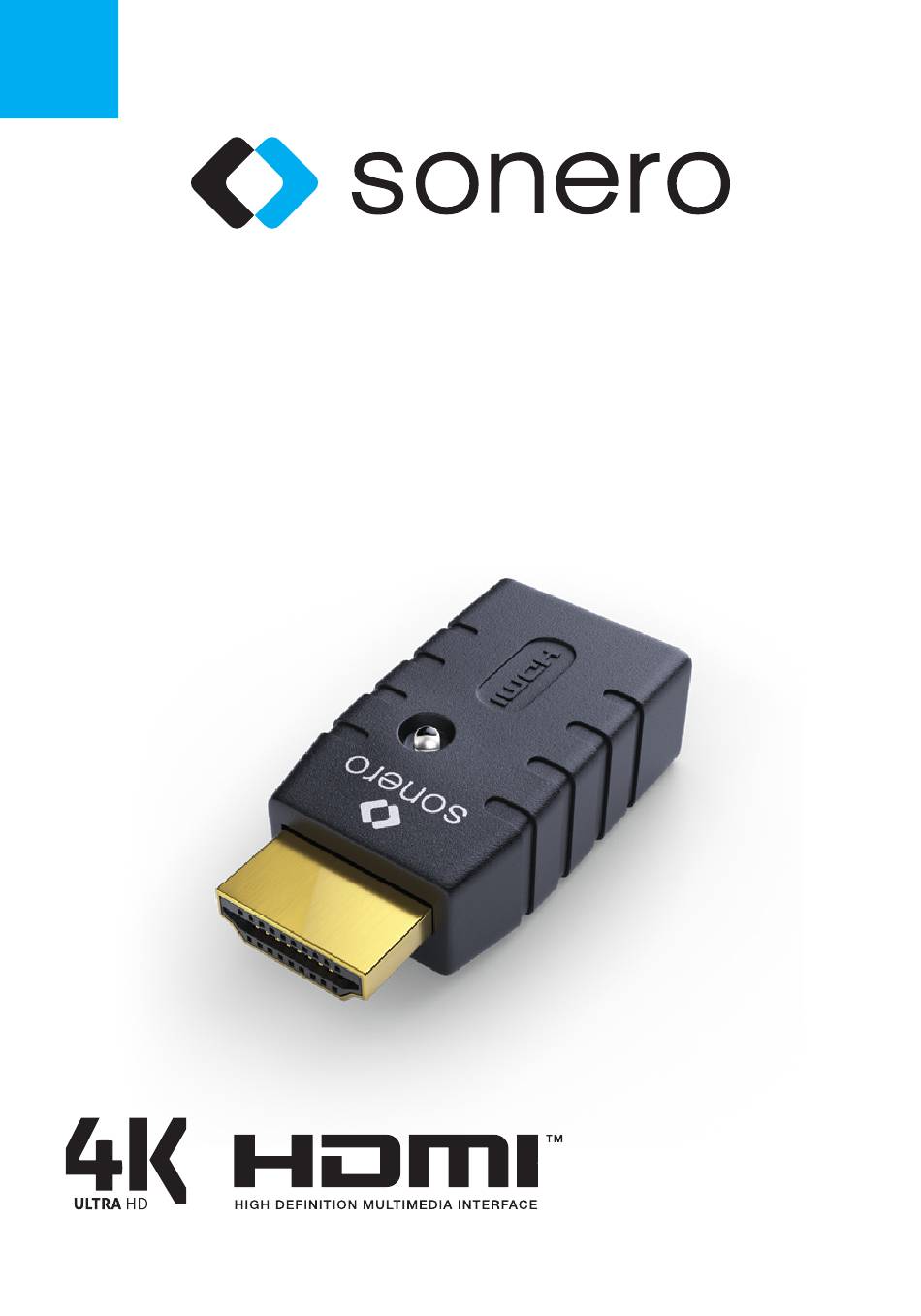

- Page 1 HDMI EDID EMULATOR INSTRUCTION MANUAL X-AVT105 Version: 2018-06-06...
-
Page 2: Table Of Contents
TABLE OF CONTENT Introduction Intended Use Safety Instruction Delivery Contents Features Specifications Connection Plan Interface Operation Maintenance Cleaning Warranty and Liability CE Conformity Disposel of the Device Disclaimer - 2 -... -
Page 3: Introduction
INTRODUCTION The EDID Emulator Adapter pre-set EDID display information for PC or GPU source While the source couldn’t get the EDID display information from monitor or HDTV, EDID Emulator could provide the commonly used resolutions and refresh rates for operation The EDID Emulator Adapter may also help to eliminate troublesome EDID issues like: •... -
Page 4: Safety Instruction
SAFETY INSTRUCTION Read the operating instructions carefully and especially observe the safety information If you do not follow the safety instructions and information on proper handling in this manual, we assume no liability for any resulting personal injury or damage to property Such cases will invalidate the warranty/guarantee The device is not a toy Keep it out of the reach of children and pets Do not leave packaging material lying around carelessly These may... -
Page 5: Delivery Contents
DELIVERY CONTENTS 1x HDMI EDID Emulator FEATURES Supports EDID Learning and EDID Emulation Supports resolutions up to 4096x2160p 60Hz according to HDMI 2 0 Support for 3D, Deep Colour, CEC and HDCP signals (inc HDCP 2 2) Powered via HDMI source interface Hide the sink EDID and provide the general EDID to source Backup EDID without IC-programming (Back up Mode) Supports VESA and CEA specifications... - Page 6 Established Timings I 720 x 400 @ 70Hz (IBM, VGA) 640 x 480 @ 60Hz (IBM, VGA) 640 x 480 @ 67Hz (Apple, Mac II) 640 x 480 @ 72Hz (VESA) 640 x 480 @ 75Hz (VESA) 800 x 600 @ 56Hz (VESA) 800 x 600 @ 60Hz (VESA) Established Timings II 800 x 600 @ 72Hz (VESA)
- Page 7 Detailed Timing 1920x1080 @ 60Hz 3840x2160 @ 30Hz CEA Block 3840x2160p @ 60Hz 3840x2160 @ 24Hz 16:9 Apsect Ratio 1920x1080p @ 59 94/60Hz - HDTV (16:9, 1:1) 1920x1080i @ 59 94/60Hz - HDTV (16:9, 1:1) 1280x720p @ 59 94/60Hz - HDTV (16:9, 1:1) 720x480p @ 59 94/60Hz - EDTV (16:9, 32:27) 720x480p @ 59 94/60Hz - EDTV (4:3, 8:9) 640x480p @ 59 94/60Hz - EDTV (4:3, 1:1)
-
Page 8: Connection Plan
CONNECTION PLAN HDMI OUT HDMI IN HDMI MONITOR X-BOX PC / MAC LAPTOP / MACBOOK - 8 -... -
Page 9: Interface
INTERFACE HDMI Male LED Power Indicator HDMI Female MODEL NO.: MADE IN CHINA X-AVT105 CHARGE NO.: XXXX - 9 -... -
Page 10: Operation
OPERATION Emulating the Monitor Connect the source with male port of the EDID Emulator and the Female port of the EDID Emulator with the Monitor/TV Disconnect the EDID Emulator from the Monitor once and the EDID Emulator saved the resolution and the power indicator starts to flash. Reset the EDID Emulator To reset the EDID Emulator settings, keep the source connected with the male port of the EDID Emulator and disconnect the Female port of... -
Page 11: Cleaning
CLEANING Before cleaning the product, it must be disconnected from all other connected products Only use dry and soft cloth to clean the product housing of the Do not use abrasives or solvents Do not use any aggressive cleaning agents, rubbing alcohol or other chemical solutions as they can cause damage to the housing or cause malfunctions To clean the product, use a soft, dry cloth Do not apply too much pressure... -
Page 12: Ce Conformity
Any use other than described in this user`s manual is not permitted and causes loss of warranty, loss of guarantee, and non-liability CE CONFORMITY PureLink GmbH hereby declares that this product X-AVT105 complies with Directive 2014/30/EU The full text of the EU Declaration of Conformity is available at... -
Page 13: Disclaimer
All rights reserved We reserve our right for misprints and changes to the device, packaging or user manual HDMI is a registered trademark of HDMI Licensing Administrator, Inc ® Sonero ® PureLink GmbH Von-Liebig-Straße 10 D-48432 Rheine info@purelink de www purelink de...
