Description and Operating Instructions

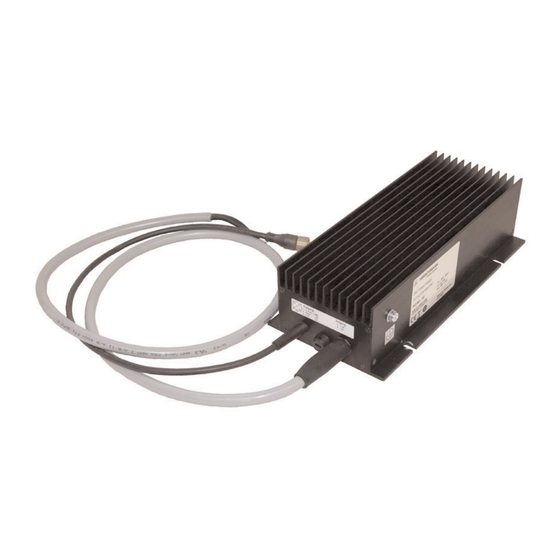

IP67 Power Supply 150W
PC150/xx/48V-IP67
Order No.
943 968-001
943 968-101
For supplying power to Hirschmann Power
over Ethernet products of the OCTOPUS
family.
The PC150/36V/48V-IP67 power unit sup-
plies an output voltage of 48 VDC from an
input voltage of 24-48 VDC.
The PC150/72V/48V-IP67 power unit sup-
plies an output voltage of 48 VDC from an
input voltage of 72-110 VDC.
– Permitted ambient temperature -40 to +70
°C (in accordance with EN50155 for max.
10 minutes up to +85 °C).
– No additional cooling element necessary,
voltage transformer is integrated into
cooling element.
– 150 W power output.
– Class I equipment.
– IP67 enclosure type.
– Conforms to EN50155 class C1 S2.
– Output has short-circuit protection.
– Input has polarity reversal protection.
– Integrated fuse, exchangeable.
– Secondary line has suitable connectors for
OCTOPUS supply voltage.
