Instruction Manual, Operation and Maintenance
original instructions
ACR Smart
InterPuls S.p.A.
Via F. Maritano, 11 - 42020 - Albinea (RE) – ITALY
Tel. +39 0522 347511
Fax +39 0522 348516
sales@interpuls.com
InterPuls S.p.A.
-
THIS MANUAL IS THE PROPERTY OF -
ANY COPYING, EVEN PARTIAL, IS STRICTLY PROHIBITED
Advertisement
Table of Contents
Summary of Contents for InterPuls ACR Smart
-
Page 1: Acr Smart
Instruction Manual, Operation and Maintenance original instructions ACR Smart InterPuls S.p.A. Via F. Maritano, 11 - 42020 - Albinea (RE) – ITALY Tel. +39 0522 347511 Fax +39 0522 348516 sales@interpuls.com InterPuls S.p.A. THIS MANUAL IS THE PROPERTY OF -... - Page 2 YEAR OF MANUFACTURE 2017 InterPuls is a registered trade mark of InterPuls SpA. The information contained in this document is not binding and can be modified without notice. References in this document to manufacturer trademarks are for identification only. Certain company and product names used throughout the document are trademarks of their respective owners.
-
Page 3: Table Of Contents
ACR Smart - Instruction Manual, Operation and Maintenance 5630006_04.17_EN original instructions Summary ACR Smart ................................. 1 GENERAL INFORMATION ........................5 General information and safety warnings ..................5 1.1.1 Important warnings ........................5 1.1.2 Symbol used in this manual ....................... 5 1.1.3... - Page 4 ACR Smart - Instruction Manual, Operation and Maintenance 5630006_04.17_EN original instructions PROGRAMMING MODE ........................19 Accessing the programming mode ....................19 Programming mode ........................19 Programming parameter table ..................... 20 Parameter reading ........................21 GENERAL RECOMMENDATIONS ...................... 23 Positioning ........................... 23 Sensitivity .............................
-
Page 5: General Information
Any failure to observe the warnings provided in this manual may lead to equipment malfunctions or damage to the system. 1.1.4 Limitation of liability InterPuls S.p.A. declines all liability for damage to persons, animals and/or things caused by incorrect use of the equipment. Prior using the product 1.2.1... -
Page 6: Disposal
ACR Smart - Instruction Manual, Operation and Maintenance 5630006_04.17_EN original instructions Disposal 1.3.1 General regulation The appliances must be disposed of only and exclusively by specially authorized waste disposal companies in accordance with all relative legislation and prescriptions. The packaging must be consigned to the relative authorized companies to be recycled. -
Page 7: Description Of The Device
ACR Smart - Instruction Manual, Operation and Maintenance 5630006_04.17_EN original instructions 2 DESCRIPTION OF THE DEVICE General features The ACR-Smart panel is designed to control all the milking, detachment and washing functions of the unit. The ACR-Smart is able to control the milking frequency and the pulsation ratio in a wide range of values in order to meet the needs of all systems (both in the high line and low line) and of all types of animals (cattle - sheep - goats). -
Page 8: Wiring Diagram
ACR Smart - Instruction Manual, Operation and Maintenance 5630006_04.17_EN original instructions WIRING DIAGRAM 2.3.1 General connection diagram 24VDC+ 24VDC - END OF MILKING SESSION FLASHING VACUUM LIGHT LINE SMART QUICK-LIFT DVC AS TO THE NEXT PANEL HFS EVO MILK LINE... -
Page 9: Connection Diagram For Sheep And Goat
ACR Smart - Instruction Manual, Operation and Maintenance 5630006_04.17_EN original instructions 2.3.2 Connection diagram for sheep and goat 24VDC+ 24VDC - END OF MILKING VACUUM SESSION FLASHING LINE LIGHT SMART QUICK-LIFT KEY DVC AS TO THE NEXT PANEL MILK LINE 2.3.3... -
Page 10: Description Of The Device

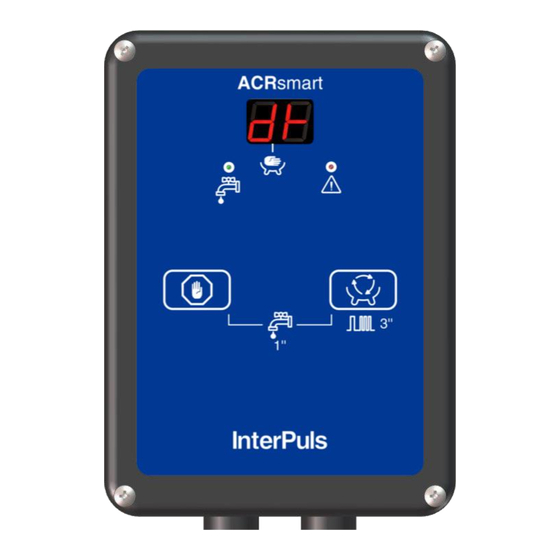

ACR Smart - Instruction Manual, Operation and Maintenance 5630006_04.17_EN original instructions 3 DESCRIPTION OF THE DEVICE A) Display B) LEDs (green LED, red LED) C) Stop key D) Milking process start button with automatic detachment, continuous pressure for 3”, stimulation start E) Combination of keys for accessing the washing or programming mode InterPuls S.p.A. -
Page 11: Display During Operation
ACR Smart - Instruction Manual, Operation and Maintenance 5630006_04.17_EN original instructions Display during operation Indication Meaning Display Code St Stimulation in progress Code CL Panel in washing mode Left digit: the first segment at the top indicates the initial delay count... -
Page 12: Description Of The Functions
ACR Smart - Instruction Manual, Operation and Maintenance 5630006_04.17_EN original instructions 4 DESCRIPTION OF THE FUNCTIONS Upon start-up the panel display indicates the software version installed. Depending on the configured parameters, the panel may then restart during: washing ... -
Page 13: Milking
ACR Smart - Instruction Manual, Operation and Maintenance 5630006_04.17_EN original instructions CAUTION At the end of washing phase it’s recommended to power off the ACRSmart panels to avoid that the coils of control valves stay powered for long time and being damaged. Upon start-up, the panel may restart in washing phase or detachment phase according to the parameter I.p. -
Page 14: Manual Milking
ACR Smart - Instruction Manual, Operation and Maintenance 5630006_04.17_EN original instructions The upper line switched off indicates the end of the initial delay The central line indicates the presence of milk The sole lower line indicates the absence of milk and therefore the final delay count... -
Page 15: Indication Of Milk Presence
ACR Smart - Instruction Manual, Operation and Maintenance 5630006_04.17_EN original instructions 4.3.3 Indication of milk presence During milking, the left hand display indicates the current milking stage and the presence/absence of milk. The central horizontal segment indicates if milk is going through the sensor at that time. If the milk presence signal lasts for a period equal to the continuous flow time (parameter c.F.), the panel detects that there is an... -
Page 16: Stimulation
ACR Smart - Instruction Manual, Operation and Maintenance 5630006_04.17_EN original instructions Stimulation During the stimulation stage, the display features the code St and the LEDs start flashing. On the programming menu you can define the type of stimulation (parameter t.S.) which may be: ... - Page 17 ACR Smart - Instruction Manual, Operation and Maintenance 5630006_04.17_EN original instructions Time Detachment Initial Final Final Final Operations Delay Delay Delay Delay Start of milking session When the Pulsation delay has elapsed, the pulsator is activated The Initial delay count...
-
Page 18: Alarm
ACR Smart - Instruction Manual, Operation and Maintenance 5630006_04.17_EN original instructions Alarm If a continuous flow is not detected during the milking process, when the initial delay has elapsed and during the subsequent final delay time count, code AL and the red LED start flashing on the display. -
Page 19: Programming Mode
ACR Smart - Instruction Manual, Operation and Maintenance 5630006_04.17_EN original instructions 5 PROGRAMMING MODE Accessing the programming mode key for 10” while the system is in To access the Programming menu, press the detachment mode. The display features the first parameter identified by its code and the LEDs start flashing alternately. -
Page 20: Programming Parameter Table
ACR Smart - Instruction Manual, Operation and Maintenance 5630006_04.17_EN original instructions Programming parameter table Parameter Unit of Code Description Range Default name measure Select the type of solenoid valve used for SHUT-OFF shut-off, NO - normally open (vac channel) N.O. – N.C. -
Page 21: Parameter Reading
ACR Smart - Instruction Manual, Operation and Maintenance 5630006_04.17_EN original instructions Selection of type of stimulation FS: forced stimulation TYPE OF AS: automatic stimulation FS - AS - oF STIMULATION oF: stimulation that can only be activated manually PULSATION Delay between the beginning of the milking 0÷9... - Page 22 ACR Smart - Instruction Manual, Operation and Maintenance 5630006_04.17_EN original instructions Pulsation frequency in stimulation mode – SF : The dot lit-up indicates that the value must be multiplied by 10 >> 150ppm Neutral time – nt : The dot lit-up indicates that the value must be multiplied by 10 >>...
-
Page 23: General Recommendations
ACR Smart - Instruction Manual, Operation and Maintenance 5630006_04.17_EN original instructions 6 GENERAL RECOMMENDATIONS Positioning Make sure that the HFS sensor is in a vertical position. Sensitivity The ACR panel is designed to detect milk flows below the 100 gr/min limit (preferably with the HFS sensor). -
Page 24: Troubleshooting
ACR Smart - Instruction Manual, Operation and Maintenance 5630006_04.17_EN original instructions Troubleshooting Problem Causa Solution Increase the F.d. (Final Delay) Incorrect setting of Final Delay parameter and/or decrease the The unit is detached too soon and/or Continuous Flow c.F. (Continuous Flow)
