Hooking It Up

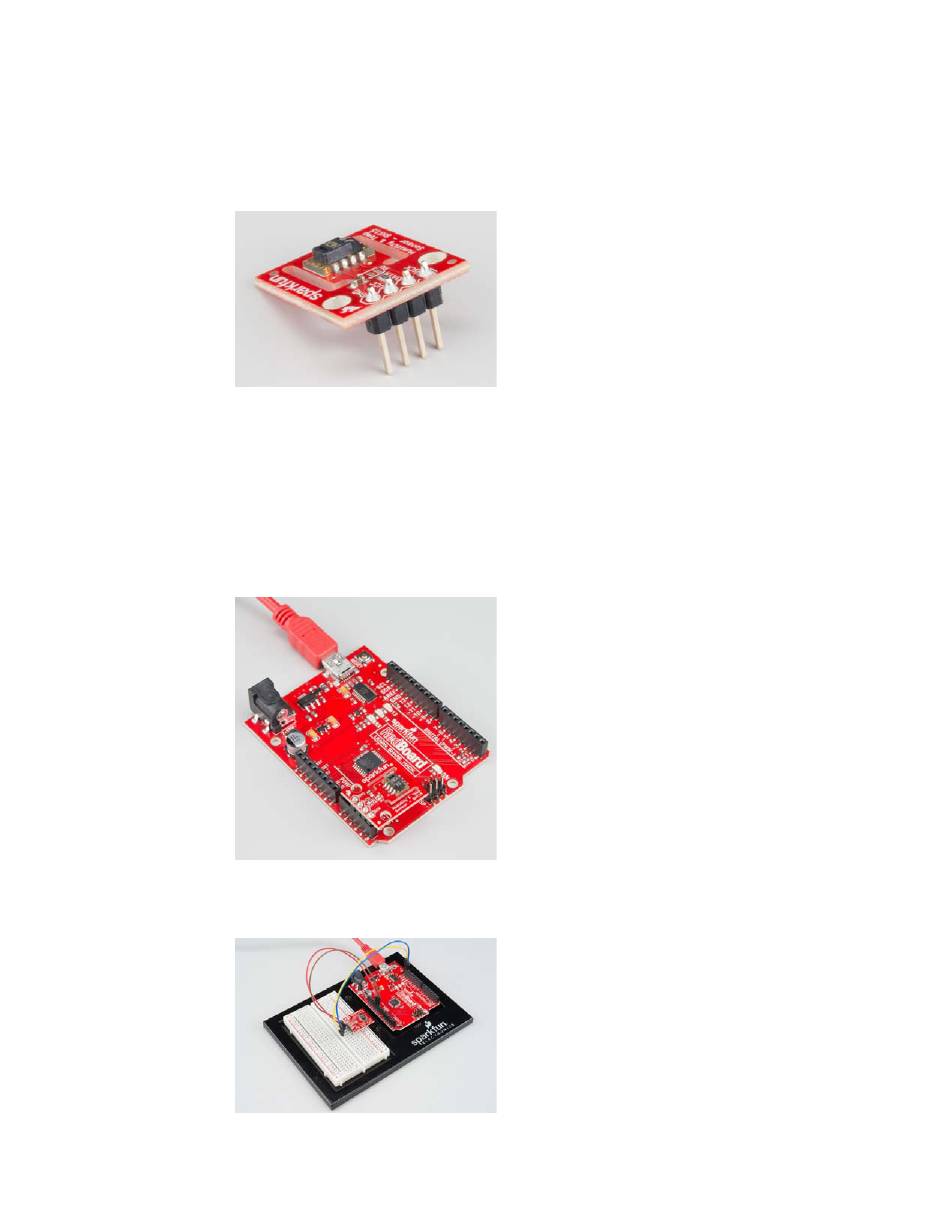

Wiring up the SHT15 is very easy! We recommend soldering four male
headers to the breakout board. You can then attach it to an Arduino or
Arduino-Compatible Board, such as our RedBoard.
Connections: Breakout board to Arduino
There are only four pins that need to be hooked up in order to start using
this sensor in a project. One for VCC, one for GND, and two data lines.
• VCC → 3.3V or 5V
• GND → GND
• Data → Any I/O Pin
• SCK → Any I/O Pin
You can connect this sensor directly to the female headers on your Arduino
like so...
A SHT15 connected to a SparkFun RedBoard, using pins A4 and A5 as
communication and pins A2 and A3 as power.
Or, you can wire it up on a breadboard.
A SHT15 connected to the SDA(A4) and SCL(A5) lines on a SparkFun
