Technical Information

C42-SATA

Micro SATA SSD

Solid State Drive Mezzanine Module

Document No. 5290 • Ed. 11 • 17 April 2013

Table of Contents

Need help?

Do you have a question about the C42-SATA and is the answer not in the manual?

Questions and answers

Summary of Contents for EKF C42-SATA

Page 1 Technical Information C42-SATA Micro SATA SSD Solid State Drive Mezzanine Module Document No. 5290 • Ed. 11 • 17 April 2013...
Page 2: Table Of Contents
Technical Information C42-SATA • Low Profile Micro SATA SSD Mezzanine Module Contents About this Manual ............3 Edition History .
Page 3: About This Manual
Technical Information C42-SATA • Low Profile Micro SATA SSD Mezzanine Module About this Manual This manual is a short form description of the technical aspects of the C42-SATA, required for installation and system integration. It is intended for the advanced user only.
Page 4: Related Documents
This document has been edited as carefully as possible. We apologize for any potential mistake. Information provided herein is designated exclusively to the proficient user (system integrator, engineer). EKF can accept no responsibility for any damage caused by the use of this manual. Standards...
Page 5 Technical Information C42-SATA • Low Profile Micro SATA SSD Mezzanine Module C42-SATA & SC1-ALLEGRO CPU Card C42-SATA & SC1-ALLEGRO CPU Card Assembly © EKF ekf.com...
Page 6: Features
Up to 4 x SATA channels (SATA2 - SATA4 channels not in use on the < C42-SATA) Up to 4 x USB ports (not in use on the C42-SATA) < SATA Usage SATA1 (typically from the PCH southbridge on a CPU carrier board), <...
Page 7: Short Description
Technical Information C42-SATA • Low Profile Micro SATA SSD Mezzanine Module Short Description Available as a mezzanine add-on expansion The 1.8-inch Micro SATA SSD will be fastened board to EKF CPU carrier cards, the C42-SATA by means of a screw locked retainer, for accommodates a Solid State Drive (SSD), as a optimum reliability.

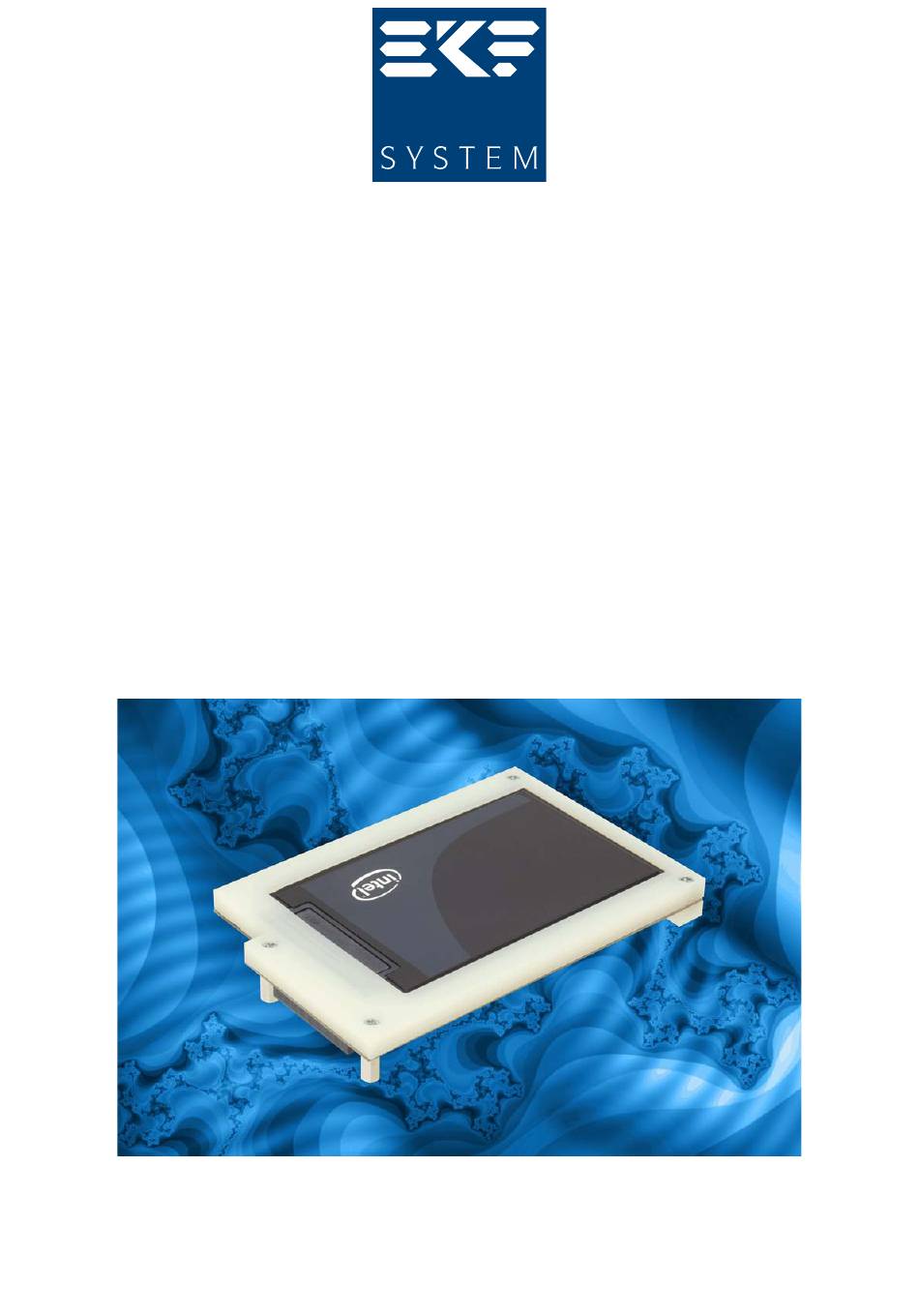

Page 8 Technical Information C42-SATA • Low Profile Micro SATA SSD Mezzanine Module Intel® MicroSATA SSD C42-SATA (w/o Drive) © EKF ekf.com...
Page 9: Block Diagram
Technical Information C42-SATA • Low Profile Micro SATA SSD Mezzanine Module Block Diagram Simplified Block Diagram C42-SATA High Speed Mezzanine Connector P-MEZ SATA1 Micro SATA Receptacle 1.8-Inch SATA Solid State Drive © EKF ekf.com...
Page 10: Component Assembly
Technical Information C42-SATA • Low Profile Micro SATA SSD Mezzanine Module Component Assembly C42-SATA Mounting Shell 1.8-Inch SATA Solid State Drive LPC/USB/AUDIO C42-SATA PCI Express x 4 Mounting Shell C42-SATA Mezzanine Option 1.8-Inch SATA Solid State Drive Carrier Board SDVO-2 draft only - do not scale •...
Page 11 Technical Information C42-SATA • Low Profile Micro SATA SSD Mezzanine Module C42-SATA Top View C42-SATA Bottom View © EKF -11- ekf.com...
Page 12: Installing And Replacing Components
Technical Information C42-SATA • Low Profile Micro SATA SSD Mezzanine Module Installing and Replacing Components Before You Begin Warnings The procedures in this chapter assume familiarity with the general terminology associated with industrial electronics and with safety practices and regulatory compliance required for using and modifying electronic equipment.
Page 13: Installing The Board Assembly
Technical Information C42-SATA • Low Profile Micro SATA SSD Mezzanine Module Installing the Board Assembly Warning This procedure should be done only by qualified technical personnel. Disconnect the system from its power source before doing the procedures described here. Failure to disconnect power, or telecommunication links before you open the system or perform any procedures can result in personal injury or equipment damage.
Page 14: Removing The Board Assembly
Technical Information C42-SATA • Low Profile Micro SATA SSD Mezzanine Module Removing the Board Assembly Warning This procedure should be done only by qualified technical personnel. Disconnect the system from its power source before doing the procedures described here. Failure to disconnect power, or telecommunication links before you open the system or perform any procedures can result in personal injury or equipment damage.
Page 15: Emc Recommendations
Technical Information C42-SATA • Low Profile Micro SATA SSD Mezzanine Module EMC Recommendations In order to comply with the CE regulations for EMC, it is mandatory to observe the following rules: The chassis or rack including other boards in use must comply entirely with CE...
Page 16: Technical Reference - Connectors
Technical Information C42-SATA • Low Profile Micro SATA SSD Mezzanine Module Technical Reference - Connectors Caution Some of the connectors may provide operating voltage (e.g. +12V, +5V and +3.3V) to devices inside the system chassis, such as internal peripherals. Not all of these connectors are overcurrent protected.
Page 17: P-Sata1 (Micro Sata Receptacle)
The Micro SATA connector in use is defined in Serial ATA Rev. 2.6. Devices with 8.0mm height (probably only hard disk) could be used on the C42-SATA, but require additional headroom (4HP envelope for the assembly not maintained in this case).
Page 18: P-Mez
CCM-BOOGIE CPU carrier board and its successors. The inter-board connector is situated at the bottom of the C42-SATA and establishes the data path and power link to the carrier board CPU. Since the C42-SATA comes typically mounted as a unit together with the CCM-BOOGIE, there is normally no need for the user to get access to the inter-board connector.
Page 19 Technical Information C42-SATA • Low Profile Micro SATA SSD Mezzanine Module C42-SATA on the PCS-BALLET Side Card © EKF -19- ekf.com...
Page 20: Schematics
Complete circuit diagrams for this product are available for customers on request. Signing of a non- disclosure agreement would be needed. Please contact sales@ekf.de for details. EKF reserves the right to refuse distribution of confidential information material for any reason that EKF may consider substantial.
