Stud Finder 150™

English

Thank you for purchasing this STRAIT-LINE® STUD

FINDER

If you have any questions about this product or its use,

please call our toll-free customer service center at 1-800-

464-7946.

To learn more about how STRAIT-LINE® Products can

help you with all your home-improvement or decorating

projects visit our website at

projects visit our website at www.strait-line.com

projects visit our website at

www.strait-line.com

www.strait-line.com . . . . .

www.strait-line.com

projects visit our website at

www.strait-line.com

Technical Specifications

Recommended use:

Indoor

Operational range:

Up to 1.5” Drywall (Wood or Metal Stud)

Power supply:

one 9V block battery (not included)

Battery life:

20 hours of continuous operation with new alkaline

battery

Operating temperature: 32°F to 104°F (0°C to 40°C)

Dimensions:

6.2" x 2.4” x 1.1” (157mm x 62mm x 27mm)

Weight (estimate):

3.3oz / 93g (Excluding battery)

Center Accuracy:

+/- 1/8" for wood stud at proper depth of below 1"

+/- 1/4" for wood stud at depth of 1.5"

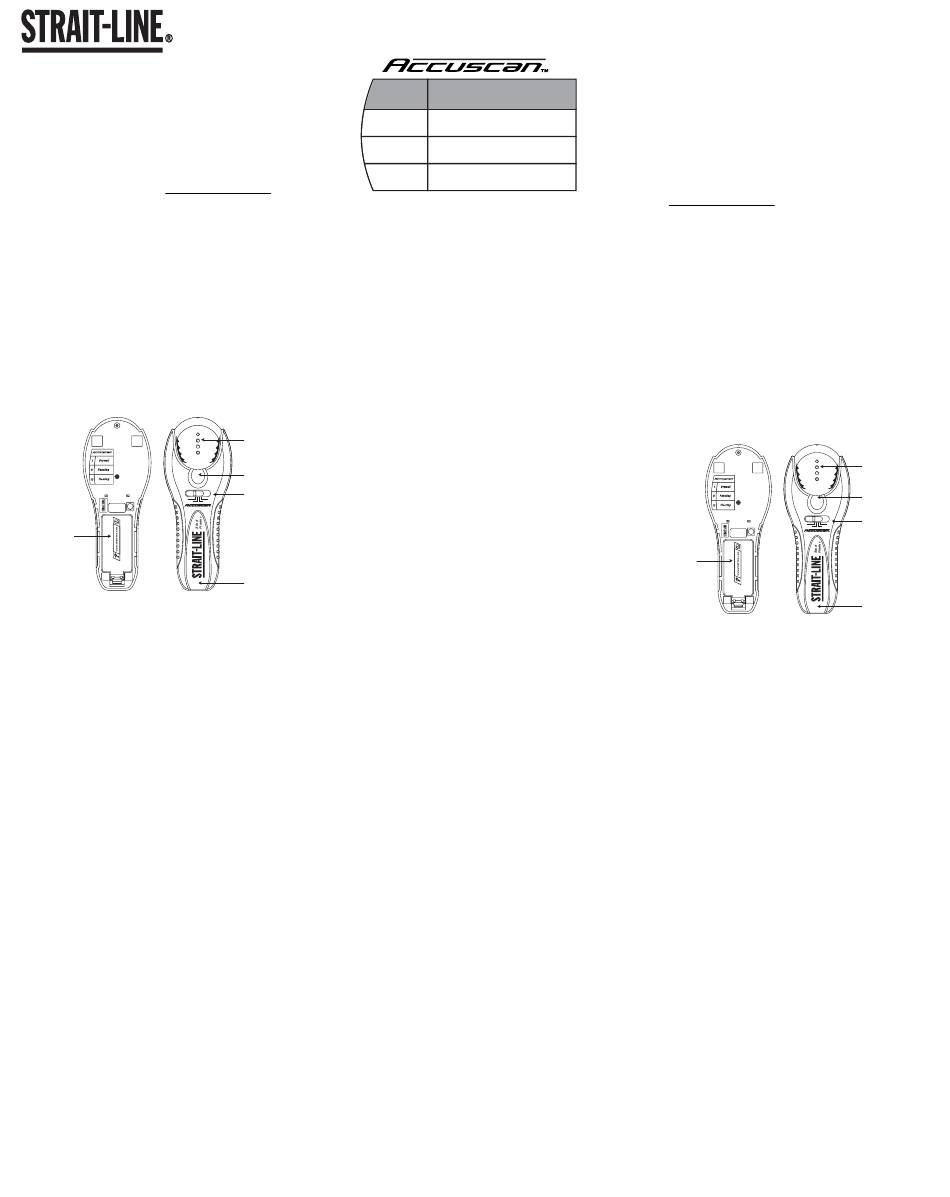

Tool Components

STUD

EDGE

LED Indicator

STUD CENTER

Mark Button

MARK

Mode Selection

III

Switch

Battery Door

Patents Pending

Made in China

Belt Clip

SAFETY INSTRUCTIONS

Important

Please read all instructions prior to operating the STRAIT-LINE® SF150.

Keep out of reach if children.

Caution

Remove the battery when storing the tool for an extended time to avoid

damage to the tool should the battery deteriorate.

This STRAIT-LINE® Stud Finder is designed for use on dry interior walls

only. Do not nail, drill, or cut into a wall that has electrical wiring or hidden

water pipes as this may result in serious injury. If electrical wiring is contained

in the wall, turn the circuit off before cutting into the wall.

It is possible for the Stud-Finder to detect wiring and / or water pipes, but

this tool is primarily designed for detecting wood stud on drywall up to 5/8"

deep. Studs or joists are normally spaced at 16" (410mm) or 24"(610mm)

apart and have an edge width of 1-1/2". Anything detected closer together

or a different width may not be a stud, joist or firebreak.

HOW TO USE

Battery Installation

Open battery door on bottom of tool. Insert one 9-volt block battery onto

the battery connector. Close battery compartment door.

*NOTE: When the battery is low, the lower red LED will blink

continuously. Replace with new battery according to instructions.

To Verify the Unit Works

1. Turn the STRAIT-LINE® SF150 on while holding it 12” from any surface.

2. When the green LED goes off and the “beep” sound stops, the unit is

calibrated.

3. Bring your hand up top to the back of the unit.

4. If the green LED lights up and the STRAIT-LINE® SF150 beeps, the unit

is working properly.

To Scan a Wall

This STRAIT-LINE® stud finder utilizes ACCUSCAN® technology to detect

objects behind surfaces. ACCUSCAN® scanning modes are tuned to detect

objects behind specific surfaces. Select the mode that matches the type of

surface you are using the tool on.

Mode

Surface Type

Drywall

Paneling

III

Flooring

1. To turn on, select the ACCUSCAN® mode using the selection switch on

the front of the STRAIT-LINE® stud finder.

2. Hold the Stud Finder in still position on surface for approximately 3

seconds, the top green LED and bottom red LED will light up, which

indicates the unit is calibrating.

3. Upon successful calibration, the upper green LED goes OFF and the “beep”

sound stops.

4. To start scanning, hold Stud Finder on testing surface and slowly slide it

sideways.

5. When stud edge is detected, the upper green indicator LED will turn on

and “beep” sound will be generated continuously. Push “Mark”

button to mark spot. Continue to move slowly in the same direction until

the LED lights turn off and the “beeping” stops.

6. Move in reverse to locate the other edge. Mark this spot again. User can

now find the middle point for nailing or drilling.

Important Notes

• While scanning, the unit must remain in contact with the surface.

• If the tool lifts from the surface, the unit will turn off and recalibration is

required.

• If the green indicator light does not turn off during calibration, you may

have calibrated over a damp surface. Turn off the unit and start calibration

again by moving the unit 5" to 8" left.

• When the unit is beeping continuously during calibration, you might have

calibrated over a metal pipe. Move the unit 5" to 8" left or right, turn off

the unit and start calibration again.

• When holding the unit, your hand should remain in the same position

during calibration and scanning.

Care and Handling

• The Stud Finder is a precision instrument, which must be handled with

care.

• Avoid shock, vibrations and extreme heat.

• Check battery regularly to avoid deterioration.

• Keep the tool dry and clean.

• Remove battery if the tool is to be stored for an extended period of time.

Warranty

Each STRAIT-LINE® tool is warranted to be free from defects in material

and workmanship for a period of five years from the date of purchase.

During the warranty period, should the tool fail to operate under normal

conditions and be deemed defective by the manufacturer, the manufacturer

reserves the right to repair or replace the product.

This warranty does not apply to any damage resulting from, but not limited

to, the following: abuse, negligence, accident, water, being dropped from

more than 3 feet, any uses for which the tool is not designed, and/or if

repairs have been made or attempted by others. Disassembling the tool will

also void the warranty.

Return all parts of the broken tool to Strait-Line™

Huntersville, NC 28078-1801 USA, for a free repair or replacement if warranty

applies.

In Australia or New Zealand, return all parts of the broken tool to Newell

Rubbermaid Pty, LTD. 44-48 Rocco Drive, Scoresby Victoria 3179, Australia,

for a free repair or replacement if warranty applies.

Stud Finder 150™

Spanish

Gracias por la compra de este LOCALIZADOR DE PARALES

STRAIT-LINE®

Si tiene alguna pregunta acerca de este producto o su

uso, comuníquese con nuestra central de servicio al cliente

al número gratuito 1-800-464-7946.

Para mayor información sobre cómo los productos

STRAIT-LINE® le pueden ayudar en todos sus proyectos

de mejoras y decoración de su hogar, visite nuestro sitio

Web

www.strait-line.com

www.strait-line.com . . . . .

Web

Web www.strait-line.com

Web

www.strait-line.com

Especificaciones técnicas

Uso recomendado

Espacios interiores

Rango operacional:

Hasta 3,8 cm (parales de madera)

Espesor de panel en seco: Hasta 3,8 cm (parales de metal)

Suministro de energía:

Una batería de 9V (no incluida)

Duración de la batería:

20 horas de operación continua con una batería

alcalina nueva

Temperatura de operación: 0°C a 40°C

Dimensiones:

157 mm x 61 mm x 28 mm

Peso (estimado):

93g (Excluyendo la batería)

Precisión de centro:

+/- 3 mm para el perno prisionero de madera

en la profundidad apropiada debajo de 25mm

+/- 6 mm para el perno prisionero de madera

en profundidad de 38 mm

Componentes de la herramienta

STUD

EDGE

Luz indicadora-

LED

STUD CENTER

Botón para

MARK

Marcar

Interruptor de

III

selección de

modo

Tapa de

la batería

Patents Pending

Made in China

Gancho de

sujeción para

la correa

INSTRUCCIONES DE SEGURIDAD

Importante

Lea las instrucciones antes de operar el localizador de vigas STRAIT-LINE®

SF150 Manténgalo fuera del alcance de los niños.

Precaución

Retire la batería cuando guarde la herramienta por un período largo de tiempo

para evitar un daño a la herramienta si la batería se deteriora.

Este localizador de vigas STRAIT-LINE® SF150 está diseñado para usarse

en paredes interiores secas solamente. No clave, perfore ni corte una pared

que tenga cableado eléctrico o tuberías de agua ocultas ya que ello puede

causarle lesiones graves. Si la pared contiene cableado eléctrico, apague el

circuito antes de hacer algún corte en la pared.

Es posible que el localizador de parales detecte cables y/o tuberías de agua,

pero esta herramienta está diseñada principalmente para detectar vigas de

madera en paneles en seco hasta de 16 mm de profundidad. Los parales o

vigas normalmente están espaciados a 406 mm o a 610 mm y tienen ancho

de borde de 38 mm. Todo aquello que se detecte menos espaciado o a un

ancho diferente puede no ser un tabique, viga o cortafuego.

CÓMO USAR

Instalación de la batería

Abra la tapa de la batería que se encuentra en el fondo de la herramienta.

Inserte una batería de 9 V en el conector de la misma. Instale de nuevo la

tapa de la batería.

*NOTA: Cuando la carga de la batería está baja, la luz LED roja

inferior titilará continuamente. Instale una nueva batería de acuerdo

a las instrucciones.

Para verificar si la unidad funciona

1. Encienda el localizador de vigas STRAIT-LINE® SF150 sosteniéndolo a

30 cm de cualquier superficie.

2. Cuando la luz LED verde se apague y la señal sonora se detenga, la

unidad estará calibrada.

3. Lleve su mano hasta arriba de la parte posterior de la unidad.

4. Si la luz LED verde se alumbra y el localizador de vigas STRAIT-LINE®

SF150 suena, la unidad está trabajando adecuadamente.

Para explorar una pared

Este localizador de vigas STRAIT-LINE® SF150 utiliza la tecnología

ACCUSCAN® para detectar objetos detrás de superficies. Los modos de
