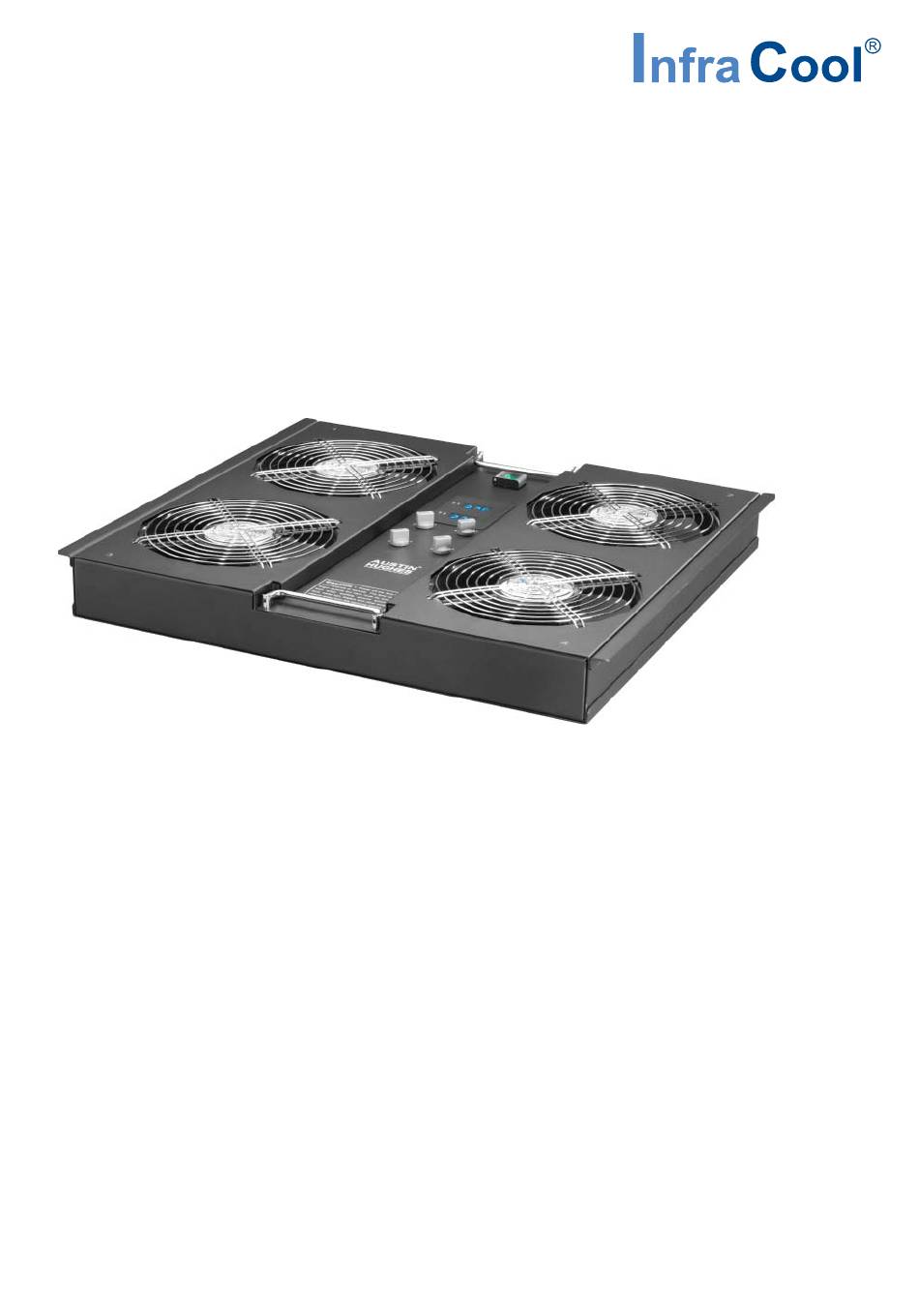

- Page 1 Rack Airfl ow Control User Manual - Raised Floor Mount Fan Unit Model : F-66.4 Voltage : 230V / 208V Designed and manufactured by Austin Hughes UM-IC-Basic-F-66.4-Q216V2 www.austin-hughes.com...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Content Page < 1.1 > Key benefi ts < 1.2 > Specifi cations < 1.3 > Safty & Usage Warnings < 1.4 > Package Content < 1.5 > Installation 4 - 5 Unpacking The equipment comes with the standard parts shown in package content. Check and make sure they are included and in good condition. -
Page 4: Key Benefi Ts
< 1.1 > Key benefi ts F-66.4 Raised Floor Mount Fan Unit • Maximize Aisle Containment Cooling Performance • Minimize Hot Spots in Server Rack • Provide Overall Temperature Monitoring • Adjustable CFM Levels > > > > > > Quad EC ( Electronically Communicated ) Fans InfraCool F-66.4 consists of four high performance and quality EC fans. -
Page 5: Specifi Cations
< 1.2 > Specifi cations EC Fan Physical 230V 208V No. of fans Product 540 x 520 x 65 ( W x D x H ) Fan dimension 200 x 200 x 60 mm 200 x 200 x 60 mm Packing ( W x D x H ) 718 x 674 x 133 mm... -
Page 6: Safty & Usage Warnings
< 1.3 > Safty & Usage Warnings Before Installation ■ Make sure the fan unit is installed under the 600 x 600mm raised fl oor & located in front of the server rack. ■ The fan unit contains moving parts which may cause serious injury. Don't apply power until the installation is complete. ■... -
Page 7: Installation
< 1.5 > Installation Step - Move the 600 x 600mm raised fl oor - Refer to the package content, install the left & right side support bracket to the pedestals - Fix the support bracket with 4 corner's fi xing plate provided Step - Tighten four fi... - Page 8 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2016 Austin Hughes Electronics Ltd. All rights reserved. UM-IC-Basic-F-66.4-Q216V2 www.austin-hughes.com...
