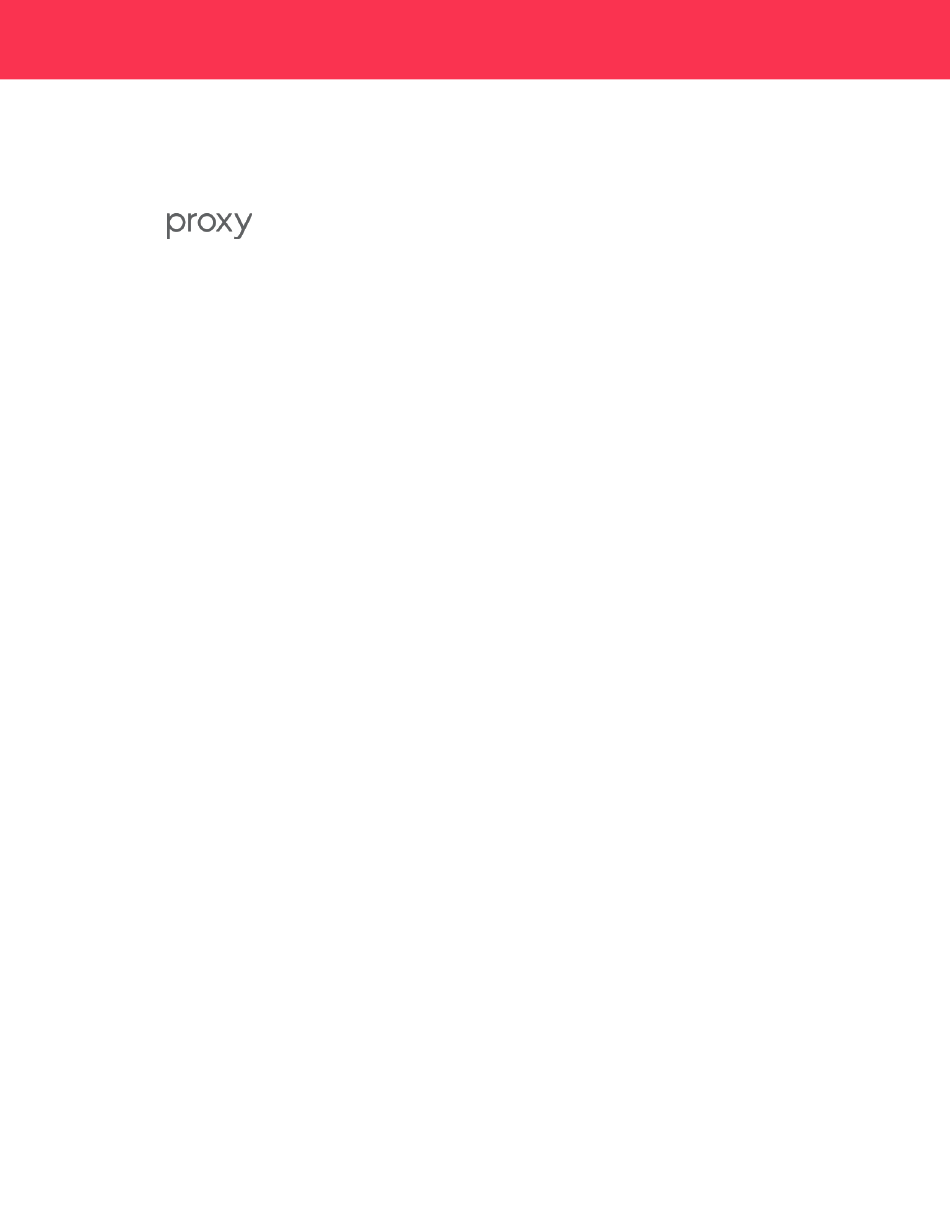

- Page 1 User Manual and Installation Guide Proxy Mobile Reader Edge www.proxy.com | support@proxy.com Last updated: March 25, 2019...
- Page 2 User Manual and Installation Guide: Proxy Mobile Reader Edge This document may have been updated since printing — for the latest, please visit https://proxy.com/s/edge-install...
-
Page 3: Table Of Contents
Wiring Diagrams and Steps Door Contacts Power up and Testing Certifications UL294 UL294 access control performance levels User Manual and Installation Guide: Proxy Mobile Reader Edge This document may have been updated since printing — for the latest, please visit https://proxy.com/s/edge-install... - Page 4 User Manual and Installation Guide: Proxy Mobile Reader Edge This document may have been updated since printing — for the latest, please visit https://proxy.com/s/edge-install...
-
Page 5: Introduction
Introduction This document details the Proxy Mobile Reader Edge and its basic operational and installation procedures. It covers the details of the Proxy Mobile Reader Edge form-factor. Model: Proxy Mobile Reader Edge (White) Proxy Mobile Reader Edge (Black) The product comes in one variant in functionality: Standard BLE IEEE 802.11b/g/n... -
Page 6: Proxy Mobile Reader Edge Main Housing Wall Plate
Proxy Mobile Reader Edge Main Housing Wall Plate Dimension in millimeters (mm) & inches (in) User Manual and Installation Guide: Proxy Mobile Reader Edge This document may have been updated since printing — for the latest, please visit https://proxy.com/s/edge-install... -
Page 7: Proxy Mobile Reader Edge Relay Housing
Proxy Mobile Reader Edge Relay Housing User Manual and Installation Guide: Proxy Mobile Reader Edge This document may have been updated since printing — for the latest, please visit https://proxy.com/s/edge-install... -
Page 8: Proxy Mobile Reader Edge Relay Wall Plate
Proxy Mobile Reader Edge Relay Wall Plate Dimensions in millimeters (mm) & inches (in) User Manual and Installation Guide: Proxy Mobile Reader Edge This document may have been updated since printing — for the latest, please visit https://proxy.com/s/edge-install... -
Page 9: Product Details
This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. User Manual and Installation Guide: Proxy Mobile Reader Edge This document may have been updated since printing — for the latest, please visit https://proxy.com/s/edge-install... -
Page 10: Product Specifications
All cabling and wiring shall be UL Listed and/or UL Recognized ● Recommended 22AWG Shielded cable (ALPHA WIRE, P/N 1299/10C) User Manual and Installation Guide: Proxy Mobile Reader Edge This document may have been updated since printing — for the latest, please visit https://proxy.com/s/edge-install... -
Page 11: Wiring Harness Information
Cable colors for Relay Housing [5 Core Grey] Name Colors Colors Sheath Color UART RX Green UART TX White Yellow Black User Manual and Installation Guide: Proxy Mobile Reader Edge This document may have been updated since printing — for the latest, please visit https://proxy.com/s/edge-install... -
Page 12: Cable Colors For Relay Housing [8 Core Black]
During wiring make sure that the PWD, 5V, and 3V3 lines (red or yellow) do not make contact with any other wires, as it might affect product functionality and cause damage to the product. User Manual and Installation Guide: Proxy Mobile Reader Edge This document may have been updated since printing — for the latest, please visit https://proxy.com/s/edge-install... -
Page 13: Mounting The Reader
Mounting the Reader Location of mounting holes on wall User Manual and Installation Guide: Proxy Mobile Reader Edge This document may have been updated since printing — for the latest, please visit https://proxy.com/s/edge-install... - Page 14 User Manual and Installation Guide: Proxy Mobile Reader Edge This document may have been updated since printing — for the latest, please visit https://proxy.com/s/edge-install...
-
Page 15: Reader Installation Steps
Note: Cables with the grey sheath [5 Core Grey] are to be connected color to color ● Proxy Mobile Reader Edge main and relay housing wall plates are to be secured onto the wall using the mounting screws (A) ●... -
Page 16: Wiring Diagrams And Steps
Step 4: Crimp the green wire from the Relay Housing (inside) unit to the remaining strike wire User Manual and Installation Guide: Proxy Mobile Reader Edge This document may have been updated since printing — for the latest, please visit https://proxy.com/s/edge-install... -
Page 17: Door Contacts
The DPS+ and DPS- lines are intended for use with door contacts. For install instructions and current status, please visit: https://proxy.com/s/Edge_Install User Manual and Installation Guide: Proxy Mobile Reader Edge This document may have been updated since printing — for the latest, please visit https://proxy.com/s/edge-install... -
Page 18: Power Up And Testing
The user has no possibility to change these settings later on Please find below the Maximum Transmit Power for production units: User Manual and Installation Guide: Proxy Mobile Reader Edge This document may have been updated since printing — for the latest, please visit https://proxy.com/s/edge-install... - Page 19 (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Proxy, Inc. could void the user's authority to operate the equipment.
- Page 20 The user has no possibility to change these settings later on Please find below the Maximum Transmit Power for production units: User Manual and Installation Guide: Proxy Mobile Reader Edge This document may have been updated since printing — for the latest, please visit https://proxy.com/s/edge-install...
- Page 21 Band / Mode GFSK Bluetooth Hereby, Proxy, Inc. declares that the radio equipment type Proxy Mobile Reader Edge is in compliance with Directive 2014/53/EU. Please scan the barcode on the label to view the user guide. Waste Electrical and Electronic Equipment (WEEE) This symbol means that according to local laws and regulations your product and/or its battery shall be disposed of separately from household waste.
-
Page 22: Ul294
Level I ● Line Security: Level I ● Endurance: Level I ● Standby Power: Level I User Manual and Installation Guide: Proxy Mobile Reader Edge This document may have been updated since printing — for the latest, please visit https://proxy.com/s/edge-install...
