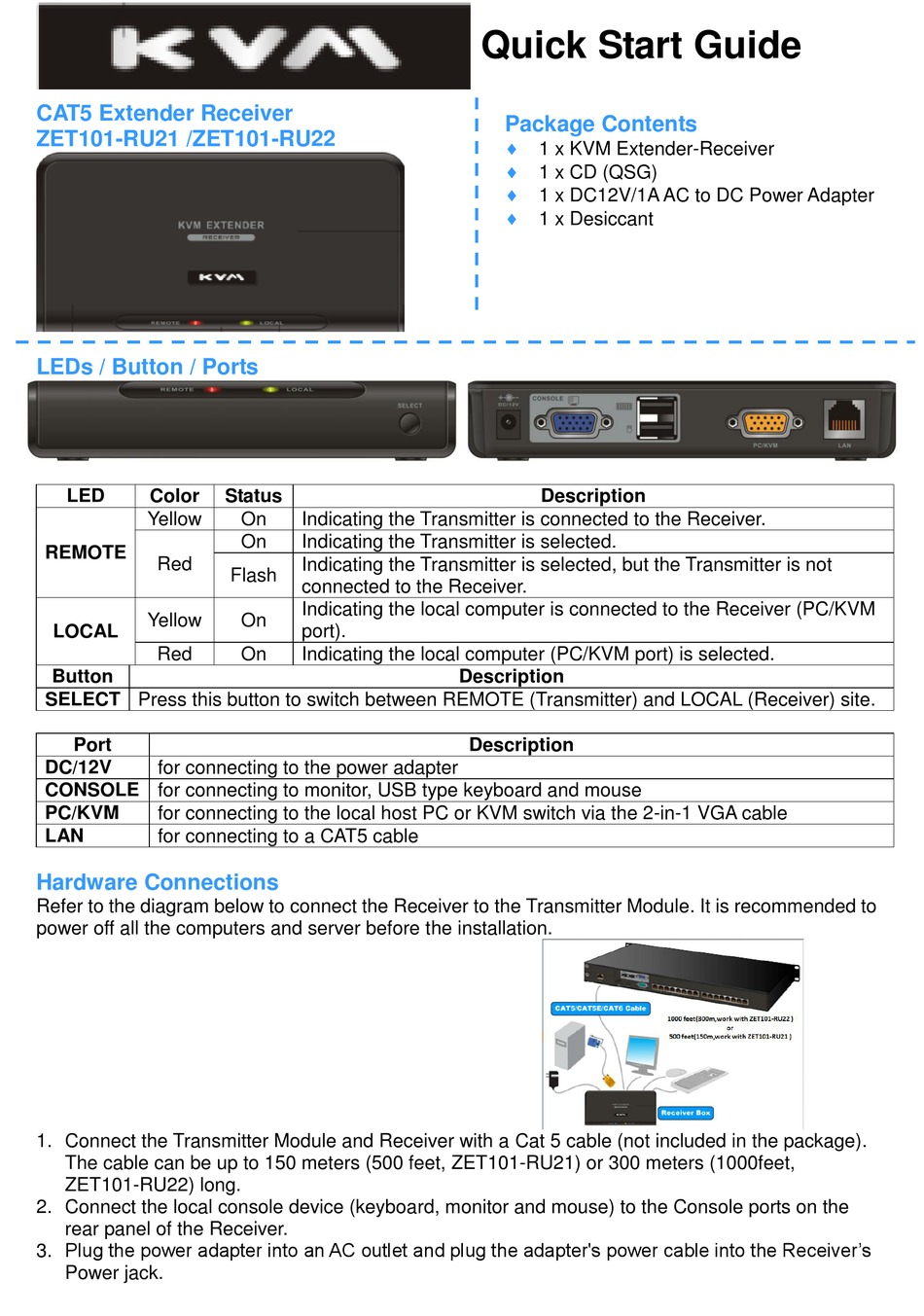

KVM ZET101-RU21 Quick Start Manual

CAT5 Extender Receiver
ZET101-RU21 /ZET101-RU22

LEDs / Button / Ports

LED Color
Yellow
REMOTE
Red
Yellow
LOCAL
Red
Button
SELECT Press this button to switch between REMOTE (Transmitter) and LOCAL (Receiver) site.
Port
DC/12V for connecting to the power adapter
CONSOLE for connecting to monitor, USB type keyboard and mouse
PC/KVM for connecting to the local host PC or KVM switch via the 2-in-1 VGA cable
LAN for connecting to a CAT5 cable

Hardware Connections

Refer to the diagram below to connect the Receiver to the Transmitter Module. It is recommended to
power off all the computers and server before the installation.
1. Connect the Transmitter Module and Receiver with a Cat 5 cable (not included in the package).
The cable can be up to 150 meters (500 feet, ZET101-RU21) or 300 meters (1000feet,
ZET101-RU22) long.
2. Connect the local console device (keyboard, monitor and mouse) to the Console ports on the
rear panel of the Receiver.
3. Plug the power adapter into an AC outlet and plug the adapter's power cable into the Receiver's
Power jack.
Status
On Indicating the Transmitter is connected to the Receiver.
On Indicating the Transmitter is selected.
Indicating the Transmitter is selected, but the Transmitter is not
Flash
connected to the Receiver.
Indicating the local computer is connected to the Receiver (PC/KVM
On
port).
On Indicating the local computer (PC/KVM port) is selected.

Quick Start Guide

Package Contents


1 x KVM Extender-Receiver

1 x CD (QSG)

1 x DC12V/1A AC to DC Power Adapter

1 x Desiccant
Description
Description
Description
