Summary of Contents for ATC ATC-875

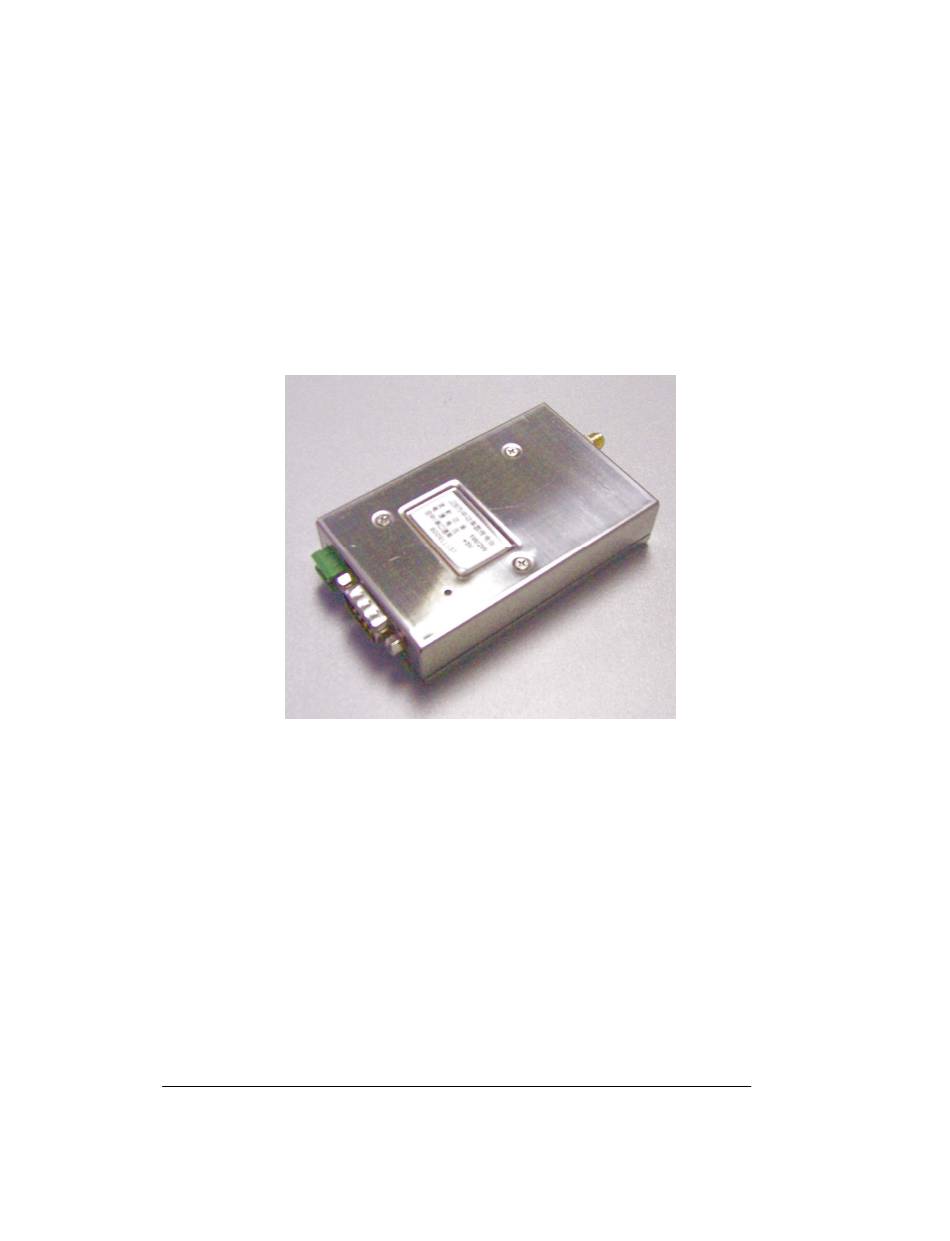

- Page 1 ATC-875 Mini-Power Wireless Module User’s Manual SHENZHEN ATC TECHNOLOGY CO., LTD...
- Page 2 <10ms. 11. Multi-channel and speed ATC-875 provides various baud rate 1200, 2400, 4800, 9600, 19200 and 38400bps. The wireless transmission speed and the connection baud rate are proportional, to satisfy the customer’s equipment. 12. High speed wireless communication and big data buffer When the RF baud rate is bigger than the COM baud rate, it can transmit unlimited data at one time, and when the RF baud rate is smaller than or was equal to the COM baud rate, may transmit 512 bytes data.
- Page 3 In case of failure to connect with the earth, it can form its own grounding but it must be absolutely separated from the municipal electric supply. 2. ATC-875 interface definition ATC-875 can supply TTL、RS232、RS485, You must specify the interface when you order. Shenzhen ATC technology CO., LTD Website: http://www.szatc.com...
- Page 4 ATC-875 Mini Power Wireless Module User’s Manual The Pin is as follows: Module’s Data Module Description User’s Terminal Remarks Interface ’s PIN Low level to sleep, High level Outside sleep control (input) awake (can be space) TTL/RS232: data transmitting User’s PC receive TTL/RS232: data receiving User’s PC transmitting...
- Page 5 ATC-875 Mini Power Wireless Module User’s Manual A. Connect ATC-875 with the Computer and power, and choose the COM ports. B. Search the radio, when search it successfully (the software will clew it), then we can read and write the parameters.
- Page 6 ATC-875 Mini Power Wireless Module User’s Manual Note: if don’t connect the NO. 1 pin, then ATC-875 is in Normal work status. To change the module from awaken state to dormant state, only need to change the SLE low level to high level, the MCU will become dormant state in 1ms.
- Page 7 ATC-875 Mini Power Wireless Module User’s Manual 7. Interoperable models ATC-875 can communicate with all the JZ87 series models. Please kindly pay attention to the following points when transmitting: A. Select all the modules the same channels. B. All the modules with the same RF baud rate.
-
Page 8: Optional Antenna
ATC-875 Mini Power Wireless Module User’s Manual 11. Parameters default: Channel：5 COM baud rate：9600bps Interface verify：None verification RF baud rate：9600bps Technical specification of ATC-875 ● Modulation mode: GFSK Working frequency: 433MHZ Transmission power: 2W/1W Receiving sensitivity: -123dBm Transmitting current: <1.5A Receiving current: <50mA... - Page 9 ATC-875 Mini Power Wireless Module User’s Manual Item Trouble Solve ways Check whether the environment is bad, the antenna is shielding or not, lead out the antenna or replace the antenna with higher gain. Short distance Check whether the same frequency, power, strongly magnetic interference exist, change the channel or far away from the interference source.
