P a y R a n g e | B l u K e y P r o | U s e r M a n u a l

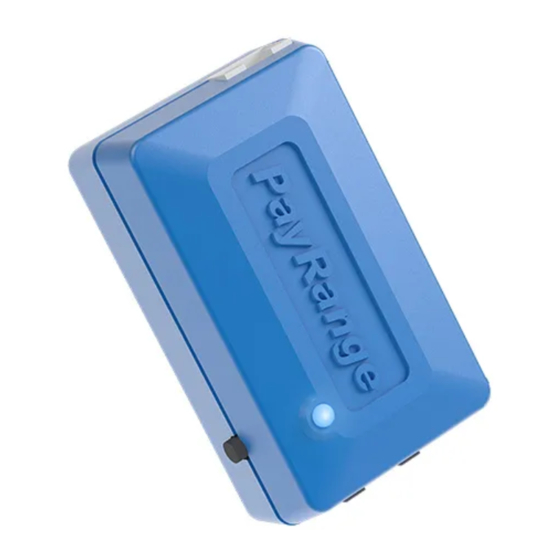

PayRange BluKey Pro™
Product Information
Models:
Contents
Introduction .................................................................................................................................................. 2
Interfaces ...................................................................................................................................................... 2
Installation .................................................................................................................................................... 2
Introduction ................................................................................................... Error! Bookmark not defined.
Before Installation . ........................................................................................................................................ 4
BluKey Pro Machine Harness Selection Guide . ............................................................................................. 5
Installation Steps . .......................................................................................................................................... 6
Machine Controller Programming ................................................................................................................ 7
BluKey Pro Device Configuration .................................................................................................................. 8
Card Reader Harnesses Reference . ............................................................................................................. 11
Troubleshooting / Light Codes . ................................................................................................................... 11
Contacting PayRange Support .................................................................................................................... 14
Appendix A: Price Setup . ............................................................................................................................. 16
Appendix B: BluKey Pro Firmware Upgrade ............................................................................................... 17
Appendix C: Splicing Wires.......................................................................................................................... 17
Appendix D: Specifications . ......................................................................................................................... 19
Document History ....................................................................................................................................... 22
BluKey Pro™ 18cdr | 18-pin | Card
BluKey Pro™ 12cd | 12-pin | Card
BluKey Pro™ 12d | 12-pin
The link ed image cannot be display ed. The file may hav e been mov ed, renamed, or deleted. Verify that the link points to the correct file and location.
P a g e
1 | 23
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PayRange BluKey Pro Series
Summary of Contents for PayRange BluKey Pro Series
-
Page 1: Table Of Contents
P a y R a n g e | B l u K e y P r o | U s e r M a n u a l PayRange BluKey Pro™ Product Information Models: ... -
Page 2: Introduction
P a y R a n g e | B l u K e y P r o | U s e r M a n u a l Introduction The turnkey PayRange payment system includes a BluKey hardware device for the machine along with a mobile app and transaction processing service for the customer. Consumers maintain a prepaid balance on their smartphones and use it to make payments at a variety of machines that can include vending, amusement, parking, transit ticketing, and laundry equipment. ... - Page 3 P a y R a n g e | B l u K e y P r o | U s e r M a n u a l PayRange Mobile Payment System PayRange Mobile Payment System consists of: BluKey Pro™ (accepts payments from PayRange mobile app) ...
-
Page 4: Before Installation
P a y R a n g e | B l u K e y P r o | U s e r M a n u a l Before Installation 1. Create your PayRange Operator Account a. Go to http://manage.payrange.com. b. Sign up for a customer account. If you already have a customer account, Sign in. ... -
Page 5: Blukey Pro Machine Harness Selection Guide
P a y R a n g e | B l u K e y P r o | U s e r M a n u a l BluKey Pro Machine Harness Selection Guide There are many brands and models of laundry machines. This document contains only brief information on how to select harness appropriate for a given laundry machine. PayRange sales team has more advanced tools and can decode machine information from full model and serial numbers and advise required harnesses and installation instructions. The following sections provide steps to identify machine type, cover supported machine interfaces and available harnesses. After selecting harness for the machine, review notes for that harness in section “Error! ... -
Page 6: Installation Steps
Serial mode: NetMaster not supported in pulse mode. 2. Maytag and Some Whirlpool Machines a. Px type (with 6‐pin connector) If machine has control board with 6‐pin cashless connector: 6‐pin connector is not used (no card reader) ‐ Use C3/D3 harness 6‐pin connector is used (machine has card reader) – Use C3/D3 harness and connect card reader to “CARD” with appropriate card reader harness. b. ADC type (without 6‐pin connector) If machine has control board without 6‐pin cashless connector: If machine has no card reader – Use C6/D6 harness If machine has card reader installed: contact PayRange for support. 3. LG Machines a. C type If machine has front panel harness with cashless connectors: cashless connectors are not used (no card reader) ‐ Use C5/D5 harness cashless connectors are used (machine has card reader) – Use C5/D5 harness and connect card reader to “CARD” with appropriate card reader harness. 4. Other Machine Types Contact PayRange for support. Installation Steps These are generic installation instructions. Each individual machine and harness may have additional steps or details relevant to installation. 1. Disconnect power from the machine 2. Open machine cabinet ... -
Page 7: Machine Controller Programming
Plug in pass‐through Coin Acceptor connectors into Coin Acceptor connector and machine’s harness connector If Coin Acceptor is not present on the machine but machine has Coin Acceptor harness, plug in only one connector. Coin Acceptor is not required for BKPro operation. 5. Power up the machine (leave the control panel open) 6. BluKey Pro should power up and turn on solid blue LED See section “Troubleshooting / Light Codes” on page 11 if BluKey Pro does not power up or does not turn on solid blue LED. 7. Configure BluKey Pro See section “BluKey Pro Device Configuration ” on page 8. 8. Configure machine See section “Machine Controller Programming” on page 7. 9. Power off the machine 10. Place wires and BluKey Pro inside the machine Fix BluKey Pro with adhesive fastener tape. 11. Close machine control panel 12. Power up the machine 13. Verify machine operation Check mobile payment, coin payment, start cycle and verify that PayRange app shows “Machine in Use” Machine Controller Programming BKPro can connect to various payment accepting inputs: coin, debit, serial. Depending on machine, harness and chosen operation mode (pulse or serial) of BKPro, machine should be programmed to work in the chosen mode and have the input activated. Follow the below sections to program Laundry machine. P a g e 7 | 23 ... -
Page 8: Blukey Pro Device Configuration
Open machine service door with operator key c. Consult the guide and follow the steps to enable Debit connector d. Set Pulse mode (turn off serial mode) Note: some machines require jumper plug to enable serial mode. Remove the plug to turn off serial mode. e. Set debit payment value to match BKPro pulse settings f. Close the service door 3. Using Serial Mode For harnesses connecting to debit inputs and using serial mode (e.g. C1/L1, C2/L2, C3/L3 and C4/L4) – if machine has Debit connector, enable Debit input and serial mode to receive mobile payments. Follow these steps: a. Locate programming guide for the machine b. Open machine service door with operator key c. Consult the guide and follow the steps to enable Debit connector d. Set Serial mode (turn on serial mode) Note: some machines require jumper plug to enable serial mode. e. Close the service door BluKey Pro Device Configuration 1. Register BluKey Pro device (using website) Note: This can be prepared off‐site, before installation. a. Login with your operator account to the Manage website at https://manage.payrange.com P a g e 8 | 23 ... - Page 9 P a y R a n g e | B l u K e y P r o | U s e r M a n u a l b. Click DEVICES > Register in the left panel c. Enter device Serial number and Pin (from BluKey Pro back label) d. Enter Display name (it will be shown in the app to customers) e. Enter other relevant information (location name, address, etc.) f. Take a picture of the machine and upload to the “Picture” field g. If there is a PayRange decal for the machine, attach the decal to the machine. If there is scan to pay QR code, enter Scan to Pay number from the decal h. Configure the device to Auth Type: Pulse, Cash Value per Pulse: 0.25 i. Set Pulse on: / Pulse off: to match Bill Acceptor timings required for the machine controller (see machine documentation) j. Add Credits/Pulse/Amount in “Configure Multi Credit” section (match machine prices) k. Configure harness: Select harness from the list, enter money values for cash counter ...
- Page 10 P a y R a n g e | B l u K e y P r o | U s e r M a n u a l f. Set Pulse on: / Pulse off: to match Bill Acceptor timings required for the machine controller (see machine documentation) g. Add Credits/Pulse/Amount in “Configure Multi Credit” section (match machine prices) h.
-
Page 11: Card Reader Harnesses Reference
P a y R a n g e | B l u K e y P r o | U s e r M a n u a l Card Reader Harnesses Reference Card Reader Harnesses Summary Name Part Number Description R1 ... - Page 12 P a y R a n g e | B l u K e y P r o | U s e r M a n u a l BKPro LED is solid red BluKey Pro is in wrong Contact PayRange for support mode BKPro LED slowly ...
- Page 13 P a y R a n g e | B l u K e y P r o | U s e r M a n u a l during cycle for the harness in Manage (see section “Machine Controller Programming”). Machine does not ...
-
Page 14: Regulatory Approval & Warnings
P a y R a n g e | B l u K e y P r o | U s e r M a n u a l Regulatory Approval & Warnings Modification statement PayRange has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment. United States This device complies with Part 15 of the FCC Rules. ... - Page 15 P a y R a n g e | B l u K e y P r o | U s e r M a n u a l 1. For Technical Support: 2. For Sales and Marketing Support: Phone: +1 (855) 856‐6398 (menu option 1) Phone: +1 (855) 856‐6398 (menu option 2) Email: support@payrange.com Email: sales@payrange.com P a g e 15 | 23 ...
-
Page 16: Appendix A: Price Setup
P a y R a n g e | B l u K e y P r o | U s e r M a n u a l Appendix A: Price Setup When you register or edit the device, you can also set up the price. Here are some guidelines: • Price per credit is the total price to play the ... -
Page 17: Appendix B: Blukey Pro Firmware Upgrade
P a y R a n g e | B l u K e y P r o | U s e r M a n u a l Appendix B: BluKey Pro Firmware Upgrade PayRange may release firmware updates with new functionality and improvements. BKPro firmware is upgraded automatically, in the background. Contact PayRange support for additional information on firmware upgrades. ... - Page 18 P a y R a n g e | B l u K e y P r o | U s e r M a n u a l The link ed image cannot be display ed. The file may hav e been mov ed, renamed, or deleted. Verify that the link points to the correct file and location. Insert one of the wires from BluKey ...
-
Page 19: Appendix D: Specifications
P a y R a n g e | B l u K e y P r o | U s e r M a n u a l Appendix D: Specifications 2. BluKey Pro Models Model Part Number ... - Page 20 P a y R a n g e | B l u K e y P r o | U s e r M a n u a l 4. Operating Conditions Symbol Description Min ...
- Page 21 P a y R a n g e | B l u K e y P r o | U s e r M a n u a l 6. RF Specifications Symbol Description Min. ...
-
Page 22: Document History
P a y R a n g e | B l u K e y P r o | U s e r M a n u a l 3 IN1 Auxiliary input 4 AC2 Power supply output ... - Page 23 P a y R a n g e | B l u K e y P r o | U s e r M a n u a l P a g e 23 | 23 ...
