Summary of Contents for Kailiu Instrument MGG/KL-DCB

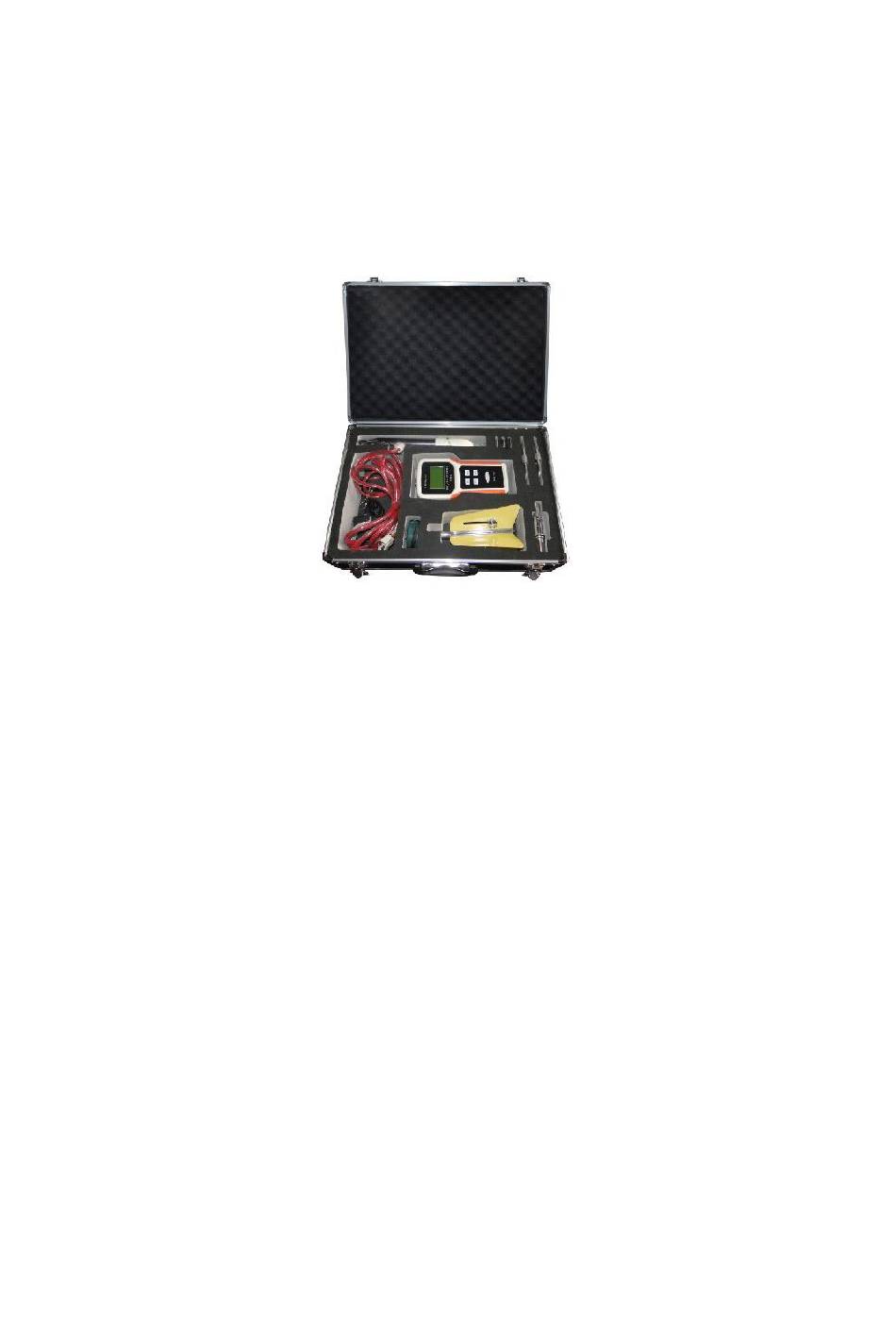

Page 1 MGG/KL-DCB Portable Electromagnetic Velocity Meter Operation Manual...
Page 2 RS485(optional) and storage function. MGG/KL-DCB is the series model of our portable electromagnetic velocity/flow meter. This series includes I-Model velocity meter; II-Model mathematical model integrated with instantaneous flow and accumulative flow; III-Model high configuration sensor integrated smart depth, velocity and flow meter.
Page 3: Table Of Contents
Contents Ⅰ Summary....................1 Ⅱ Main feature..................1 Ⅲ Main technical parameters..............1 Ⅳ Working principle................2 Ⅴ Structure.....................2 Ⅵ Assemble and introduction..............2 6.1 Flow display terminals............2 6.2 Velocity sensor：..............3 Ⅶ Menu,keyboard and parameter setting......... 5 7.1 Velocity meter model menu...........6 7.2 Engineering mode menu............7 Ⅷ...
Page 4 MGG/KL-DCB Portable Electromagnetic Velocity Meter I. Summary The MGG/KL-DCB series of electromagnetic velocity meter is portable instrument flow designed for the flow velocity/rate measurement. It’s professional for agricultural irrigation, hydrologic monitoring, rivers flow monitoring, municipal water. The low-power design and full digital signal processing technology make measurement more stable and reliable.
Page 5: Ⅳ Working Principle
 Measuring rod：Normal 500mm×Sections (500mm×optional sections) or lifting accessories. IV. Working principle The MGG/KL-DCB portable electromagnetic velocity/flow meter depends on the Faraday's law of electromagnetic induction. The conductive liquid cut the magnetic line and cause induced electromotive force when do the direction perpendicular to the magnetic field lines in the alternating magnetic field along the measuring pipe.
Page 6 6.1.1 Display port It uses for connecting the electromagnetic sensor. The outgoing line of electromagnetic velocity sensor has completed coupler plug. Please directly insert the plug and tighten the screws. 6.1.2 Display interface Ⅱ-Model、Ⅲ-Model display interface: Ⅰ-Model display interface: 6.1.3 Battery and communication port The battery is 5*1.5V alkaline battery(convenient buy from market).
Page 7: Velocity Sensor
6.2 Velocity sensor The velocity sensor consists of velocity sensor and tail cable. Velocity Sensor The Tail...
Page 8: Ⅶ Menu,Keyboard And Parameter Setting
Suspension Loop and Axial Parts VII. Menu, keyboard and parameter setting Key description(One key is multi-purpose) 1. EXIT: Long press 6 seconds exit setting and return work interface in parameter setting status. 2. +: Pageup or +1 key. Ⅱ-Model long press in main interface will enter basic parameter modification interface.
Page 9: Velocity Meter Model Menu
Modifing measuring time for example: Enter Setting/Modification, use “+/-” to page up and down, find the measuring time. Press “set” and there is white line under the time. Then use “+/-” to modify the parameter. After completion press “set” again to remove the cursor and the parameter setting will be saved at the same time.
Page 10: Engineering Mode Menu
signal output. Short measurement filtering time shows fast corresponding speed. Flow unit: Instantaneous flow divides m³/s and m³/h; Velocity digit: The display of converter is 3-digit for choice according to the need; Time: The velocity meter will sent average data within a certain period to display.This is measurement period.
Page 11 Conversion factor: This parameter is special factor of display manufacturer for unify the circuitry of display measurement. Ensure every display consistency(irrevocable parameter); Instrument factor: It it reserve factor, it shows product relationship with velocity; Model: Irrevocable parameter only for factory; Level range: Ⅲ-Model have water level measurement function.
Page 12: Ⅷ Instrument Usage
VIII. Instrument usage 8.1 Velocity measuring This instrument is advanced measuring instruments uses for conductive liquid, simple operation and convenient maintenance. Please connect the sensor and display exactly and turn on the power on the display. Then put the velocity sensor into the measuring channel point.
Page 13 8.2.2 Recommended value of depth direction measuring point within flow range(Table 2): Table 2 Depth Point number （m）＜1 6-10 ＞7 8.2.3 Multi-point average velocity method classical formula: Mode Measuring Point Position Average Velocity 1-poin 0.6*h 2-poin 0.2/0.8h 0.2+ 0.8) 3-poin 0.2/0.6/0.8h =0.25(V...
Page 14: Measurement Requirements
8.2.4.3 Side wall flow calculation Note: K is side wall factor, Please refer to the table 4: Table 4 Side wall type Smooth without vegetation(concrete, steel or cement surface) 0.8-0.9 Brick without vegetation Rough surface without plenty of vegetation 0.5-0.6 8.3 Measurement requirements ①Please try best to select point on flat area of channel or river.
Page 15: Zero Calibration(Automatic Zero Setting)
8.5 Zero calibration(automatic zero setting) Zero calibration: Long press (+) enter the parameter setting mode and find “Zero calibration”, then press “Set” to automatic zero setting. Then there will be white line under the “00”, press “+” and modify “00” to “01” and press “set” again. The automatic zero setting will be turn on.
Page 16: Ⅸ Maintenance （Notice
1. Velocity measuring height setting is not current; Bare electrode 2. Water level sensor damage; 3. Return to factory. XI. Product complete set 10.1 MGG/KL-DCB Portable velocity display 1set 10.2 Velocity sensor 1set 10.3 Velocity meter tail 1set 10.4 Steel measure tape 1pcs 10.5 Allen wrench...
Page 17: Ⅹⅲ Technical Support
XIII. Technical Support Customer Feedback Dear Customer： Thank you for your business. Please complete the form below to improve our quality and service. Your cooperation will be highly appreciate. Product Model Inspector Certification Problem and suggestion： Name Add. Tel. Date Signature...
