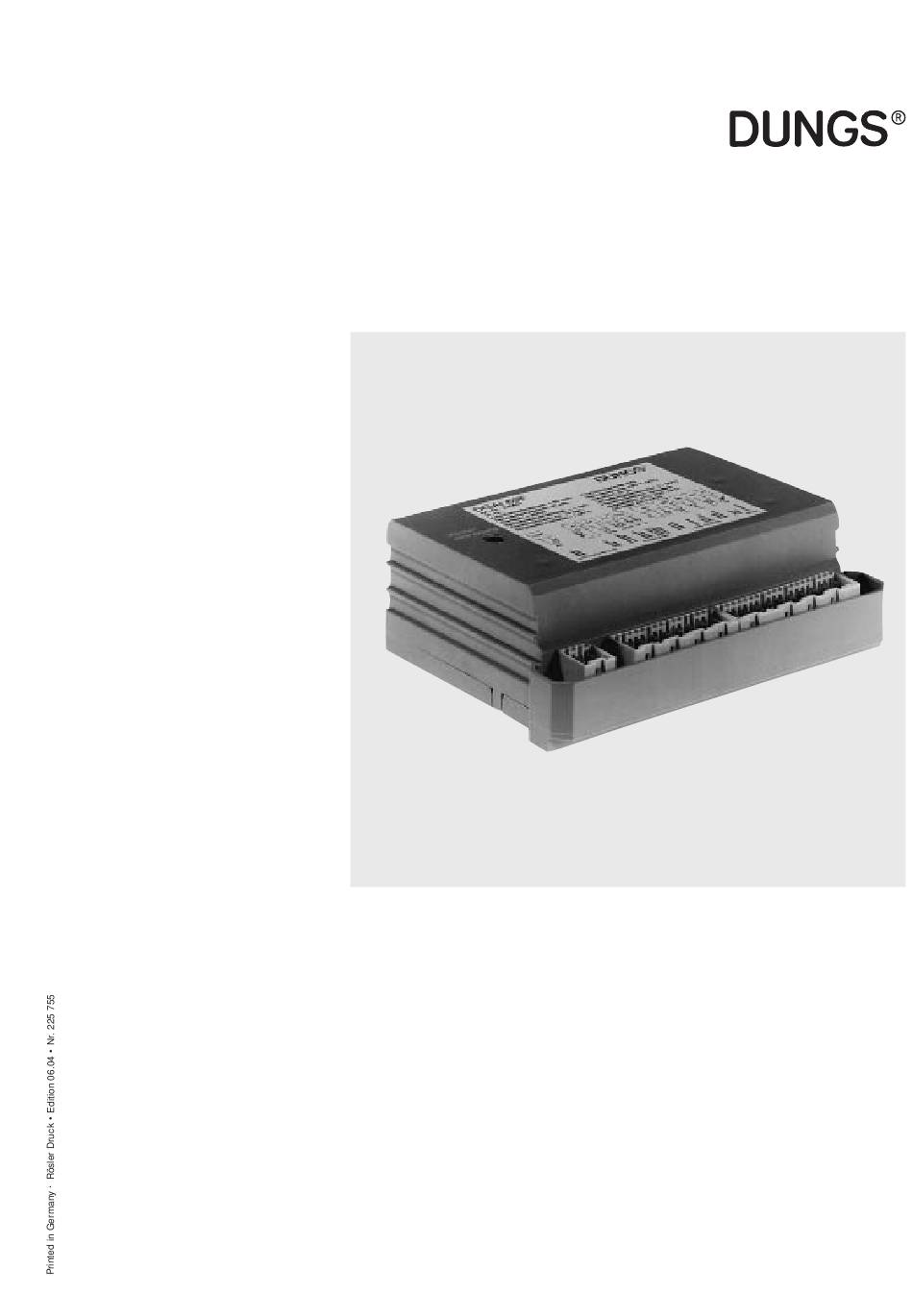

Automatic gas burner
control for gas burners
without fan, with intermit-
tent ignition burner and
exhaust gas monitoring

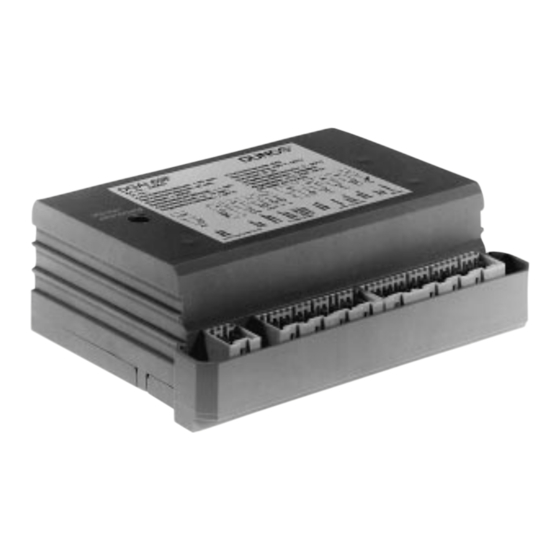

DGAI. 69F
1.32

Technical description

The DGAI.69F is an automatic gas burner
control as per EN 298 with the following
features:
• Ionisation flame monitor
• Ignition flame burns continuously dur-
ing heat request
• Restart attempt in case of flame failure
in operation
• Exhaust gas monitor by means of NTC
sensor
• Program sequence control by means
of electronic timers
• Burner ignition by means of external
ignition facilities
• Ignition gas solenoid valve
• Main gas solenoid valve
• LP gas solenoid valve
• Complete circuit on one PCB
• Connections for operation and fault dis-
play as well as remote unlock facility
• Rast 5 connectivity

Application

The automatic gas burner control
DGAI.69F is suitable for igniting and mon-
itoring gas burners without blower as per
EN 297 for intermittent operation.
The DGAI.69F operates during heat re-
quest with permanently burning ignition
burner at a heat capacity of
< 250 W and is therefore specially suited
for gas burners whose main flames need
not be monitored constantly according to
the ionisation principle.

Approvals

EC type test approval as per EC Gas
Appliance Directive:
DGAI.69F
CE-0085 AR 0403
EC type test approval as per EC Pressure
Equipment Directive:
DGAI.69F
CE0036

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DGAI. 69F and is the answer not in the manual?

Questions and answers

Summary of Contents for Dungs DGAI. 69F

  • Page 1 Automatic gas burner control for gas burners without fan, with intermit- tent ignition burner and exhaust gas monitoring DGAI. 69F 1.32 Technical description Application The DGAI.69F is an automatic gas burner The automatic gas burner control control as per EN 298 with the following DGAI.69F is suitable for igniting and mon-...
  • Page 2 50 Hz 230 V AC Remote Gas solenoid valves unlock Ignition gas Main gas Main burner facility Wiring diagram DGAI. 69F St 2 onisation electrode St 2 External fault Exhaust gas switch Exhaust gas sensor LP gas valve Ignition gas solenoid valve...
  • Page 3 The fuses cannot be replaced. Switch-off via exhaust gas temperature followed by startup The intensity of the ionisation current For this reason, only DUNGS person- Regulator, gas switch Exhaust gas temperature can be measured by means of a DC...
  • Page 4 D-58569 Schalksmühle We reserve the right to make any changes in the interest of technical progress. Head Offices and Factory Postal address Karl Dungs GmbH & Co. KG Karl Dungs GmbH & Co. KG Siemensstraße 6-10 Postfach 12 29 D-73660 Urbach, Germany...
