Summary of Contents for Timotion TWD1
- Page 1 VERSION 1 USER MANUAL TWD1 Mobile App for Height Adjustable Desks...
-
Page 2: Table Of Contents
Connect to alert..................................22 Reset tracking ..................................23 Change program ..................................24 Change profile ..................................25 Reset the desk ..................................26 10. Error Codes ................................ 27 11. Disposal Guidance .............................. 29 12. TiMOTION Application Policy ..........................30 Version 1 2018... -
Page 3: Preface
It is our goal and pleasure to assist you. The Mobile App, “STAND UP PLEASE,” is developed by TiMOTION and allows the end users to control their height adjustable desks via their mobile devices. -
Page 4: Safety Instructions
Mobile App for Height Adjustable Desks 2. Safety Instructions 2.1 Abnormal operation If the users accidently use two fingers on the mobile device screen, the columns of the height adjustable desk might be moved up or down automatically. In order to prevent any accidents, there will be a pop-up message shown on the screen as below. -
Page 5: Out Of Range Reminder
Mobile App for Height Adjustable Desks 2.2 Out of range reminder The below pop-up message will give the users a reminder that their fingers need to stay in the range of the buttons, or else it may not respond properly. Version 1 2018... -
Page 6: Bluetooth Device

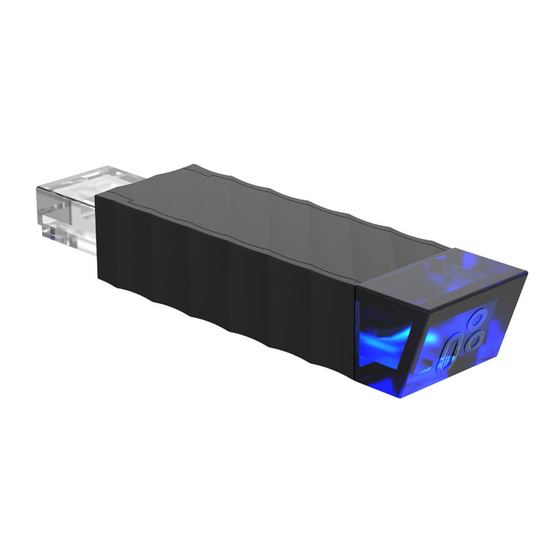

The Bluetooth functionality is installed into two of our ergonomic control boxes: the TC15P and TC15S. TC15P TC15S 3.2 Wireless Dongle-TWD1 The TWD1, designed as an adapter with Bluetooth functionality, allows the users to control their desk height remotely via their “STAND UP PLEASE” app. Version 1 2018... - Page 7 Mobile App for Height Adjustable Desks Compatibility: The TWD1 is compatible with the following ergonomic control boxes and hand controls: Picture Control Box TC11 TC15 TC16 Picture Control TDH5PR TDH6PR TDH8 Picture Control TDH8D TDH9P TDH11P Picture Control TDH12P TDH13P...
- Page 8 Mobile App for Height Adjustable Desks Picture Control TDH15 TDH16 TDH17 Picture Control TDH18P Version 1 2018...
- Page 9 Mobile App for Height Adjustable Desks How to connect the TWD1, control box and hand control: Version 1 2018...
-
Page 10: Download The "Stand Up Pls
Mobile App for Height Adjustable Desks 4. Download the “STAND UP PLS” The Mobile App, “STAND UP PLS,” is free on iOS or Android App store. You can scan the following QR codes to download the app onto your device. Android STAND UP PLS Version 1 2018... -
Page 11: Paring Bluetooth And Get Started
Mobile App for Height Adjustable Desks 5. Paring Bluetooth and get started 5.1 Introduction page Version 1 2018... -
Page 12: Register Your Profile
Mobile App for Height Adjustable Desks 5.2 Register your profile In order to have calories consumption details, users need to input all the required information on the profile page as shown below: Version 1 2018... -
Page 13: Connection
In order to avoid the signal interference, there will be Bluetooth signal number shown on the control box or the wireless dongle-TWD1, which can help the users choose the right signal number from the screen. When searching, all the devices will be named as “stand UP” followed by a four-digit number. -
Page 14: Program Settings
Mobile App for Height Adjustable Desks 5.4 Program settings When the Bluetooth connection succeeds, the screen will display the program setting page where users can select their own programs based on their preferences. Furthermore, they can create/customize their own program. There will be four different programs for users to choose from: Beginner, Intermediate, Advanced, or Create Program. - Page 15 Mobile App for Height Adjustable Desks Each program will have a preset setting which cannot be altered except for the “Create Program” (as shown below). Version 1 2018...
- Page 16 Mobile App for Height Adjustable Desks If users would like to customize their own program, just press “Create Program”. Step 1: Input the program name that you’d like to have. Step 2: Simply move the finger to change the sitting and standing time on the screen. ...
-
Page 17: Operation
Mobile App for Height Adjustable Desks 6. Operation 6.1 Buttons Introduction Tracking Current height Settings Memory position 1 Memory position 2 Down Version 1 2018... -
Page 18: Memory Positions
Mobile App for Height Adjustable Desks 7. Memory Positions There are two preset memory positions: 68cm/118cm. If users would like to change the number (height), press Up or Down button to move the desk to the desired height first; then, tap the number on the screen, move and release it to the memory position (triangle sign on the left). -
Page 19: History Tracking
Mobile App for Height Adjustable Desks 8. History Tracking Users may track their standing and sitting time on a daily, weekly, or monthly basis. The data will display how many calories are consumed, equivalent to the running distance. Version 1 2018... -
Page 20: Settings
Mobile App for Height Adjustable Desks 9. Settings Press the top left icon to access the settings page. Version 1 2018... -
Page 21: Disconnection To This Desk
Mobile App for Height Adjustable Desks 9.1 Disconnection to this desk If users wish to disconnect the desk, just press this button as indicated in the left picture shown below. If users want to reconnect the desk, please follow 5.3-connection. Version 1 2018... -
Page 22: Connect To Alert
Mobile App for Height Adjustable Desks 9.2 Connect to alert Alert refers to the toning sounds that remind the users when to stand if they set up the programs. Two modes of alert sound: on or off. Users can mute the alerts by turning the button to “OFF” mode. Version 1 2018... -
Page 23: Reset Tracking
Mobile App for Height Adjustable Desks 9.3 Reset tracking If users would like to remove the tracking records, they can access the “Reset tracking” page to delete all the records. Version 1 2018... -
Page 24: Change Program
Mobile App for Height Adjustable Desks 9.4 Change program Users may change the program according to their needs. Please refer to 5.4- program settings for the details. Version 1 2018... -
Page 25: Change Profile
Mobile App for Height Adjustable Desks 9.5 Change profile Refers to 5.2-Register your profile. Version 1 2018... -
Page 26: Reset The Desk
Mobile App for Height Adjustable Desks 9.6 Reset the desk If users would like the desk to go back to the default setting, they can click this button. After accessing the following page, press the “RESET” button until the desk descends to the lowest height and emits a beeping sound, which indicates the desk has returned to the default position. -
Page 27: Error Codes
Mobile App for Height Adjustable Desks 10. Error Codes There are seven error codes indicating problems and likely solutions: Version 1 2018... - Page 28 Mobile App for Height Adjustable Desks Version 1 2018...
-
Page 29: Disposal Guidance
The main groups to sort for waste are: plastic, cable scrap, combustible material and collection for recoverable resources. The chart below shows the recycling groups in which the different components of the TC and TWD1 series should be placed into:... - Page 30 Mobile App for Height Adjustable Desks 13. Note This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
