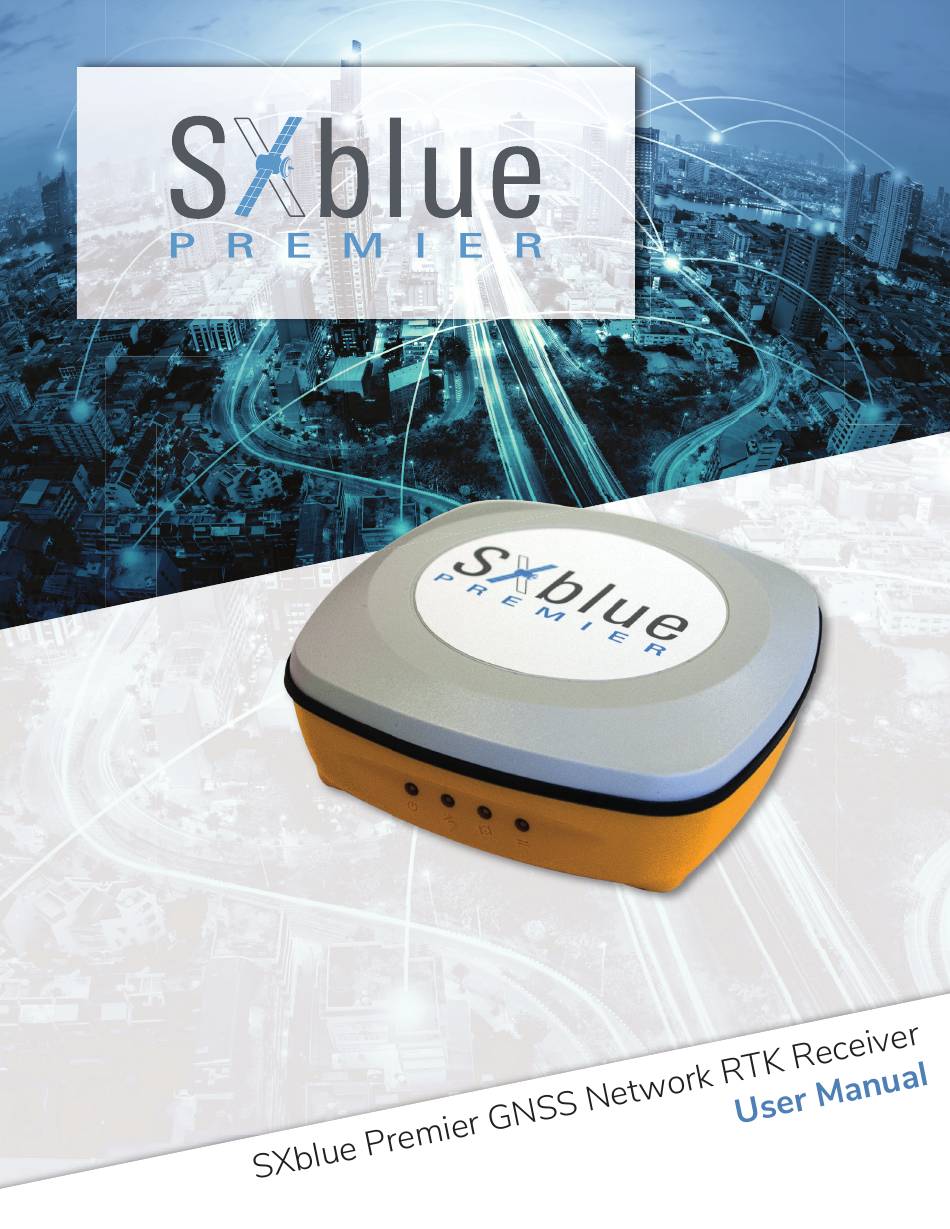

SXblue Premier User Manual

Gnss network rtk receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Premier and is the answer not in the manual?

Questions and answers

Summary of Contents for SXblue Premier

  • Page 2: Table Of Contents

    SXblue Premier GNSS Network RTK Receiver Directory Table des matières Chapter I Brief Introduction ..................4 1.1.Introduction ..................................4 1.2 Main Features ..................................4 1.2.1. Smart platform ..............................4 1.2.2. WiFi performance ............................... 4 1.2.3. Intelligent storage ability ..........................5 1.2.4.
  • Page 3 6.2. How to connect with EGSTAR ........................... 79 6.3. How to connect with SurvCE ............................. 82 6.4. How to use FieldGenius to confi gure SXBLUE PREMIER ................87 Chapter VII Static Measurement ................92 7.1. Antenna Height Measuring ............................92 7.2.

  • Page 4: Chapter I Brief Introduction

    fl exibility. The WiFi of SXBLUE PREMIER is not only able to be a wifi hotspot that allows users to connect it and access to the web UI management of SXBLUE PREMIER, but also can work as datalink that makes...

  • Page 5: Intelligent Storage Ability

    Equipped with most advanced GNSS board, 220 channels and unmatched GNSS multi-constellation tracking performance, SXBLUE PREMIER is able to track most signals from all kinds of running satellite constellations. And this compact device owns the ability of enable or disable constellation tracking .

  • Page 6: Chapter Ii Hardware Component

    SXblue Premier GNSS Network RTK Receiver Chapter II Hardware Component In this chapter, the appearance of SXBLUE PREMIER will be presented in detail, you can grasp detail information about each component as your expectation. 2.1 Main Structure SXBLUE PREMIER receiver is similar to a fl at structure box with concave-convex texture upper cover.

  • Page 7: Front Control Panel

    SXblue Premier GNSS Network RTK Receiver 2.2 Front Control Panel The control panel of SXBLUE PREMIER adopts the LED design to indicate working status and charging state, which are intuitive to understand well. There is detail description for each indicator in following table.

  • Page 8: Bottom Component

    SXblue Premier GNSS Network RTK Receiver 2.3 Bottom Component At the bottom component, a lot of information is contained on the label attached to the receiver, including instrument model, L1/L2 information, serial number of the device and a QR code for GIStar software downloading.

  • Page 9: Chapter Iii Hardware Operation

    SXblue Premier GNSS Network RTK Receiver Chapter Ⅲ Hardware Operation 3.1 Switch ON/OFF 3.1.1 Switch ON To switch on the receiver, you only need to press the power button for short time until you can hear beeping from receiver once and all indicators light up, at this moment, release the power button and the receiver will switch on.

  • Page 10: Reset

    SXblue Premier GNSS Network RTK Receiver 3.2 Reset At the bottom of SXBLUE PREMIER receiver, there is a small key besides to Power button, that is the Reset key mainly used to force turning off receiver if there is something block with power button to switch off the receiver.

  • Page 11: Factory Reset

    3.4 Factory Reset Factory reset is a new interactional operation on SXBLUE PREMIER receiver, it is mainly used to bring internal confi guration of receiver back to factory default setting. Such as reset the function of micro USB port from normal USB to Ethernet function, and reset the WIFI function from client mode to AP mode (WiFi hotspot).

  • Page 12: Charging

    When plug charger to SXBLUE PREMIER, the power indicator lights up all the time during charging, after the Bluetooth indicator lights up, that means the battery is full charged.

  • Page 13: Chapter Iv Internal Web Ui Operation

    USB connection to computer with the help of micro USB. 4.1.1 WIFI hotspot connection mode First of all, the WIFI hotspot is default broadcasted by SXBLUE PREMIER, search the WIFI hotspot with the name of SXBLUE_xxxx using smartphone, tablet or laptop, then establish the WIFI connection and input the default IP (10.1.1.1) into explorer, apply the default username and password for login.

  • Page 14: Usb Connection Mode

    4.1.2 USB connection mode On this mode, the micro USB port of SXBLUE PREMIER must work as an Ethernet port, then internal web UI shall be accessed via micro USB cable connects to computer.
  • Page 15 The micro USB port of SXBLUE PREMIER is default set as Ethernet function, then connect SXBLUE PREMIER receiver to computer via a micro USB cable. Run the IE explorer on computer and type IP 192.168.155.155 into IP address bar, then input the default username (admin) and password (admin) for login.
  • Page 16 SXblue Premier GNSS Network RTK Receiver NOTE : The driver can be downloaded from offi cial website automatically or please contact with us for more supports.
  • Page 17 SXblue Premier GNSS Network RTK Receiver If the driver has been successfully installed, the micro USB port of SXBLUE PREMIER will be recognized as Linux USB Ethernet/RNDIS Gadget, and a local area connection will generate in Network Connections on the computer. For example, Local Area Connection 138 generates after connecting SXBLUE PREMIER receiver to computer via micro USB Ethernet port.

  • Page 18: Web Ui Main Interface

    SXblue Premier GNSS Network RTK Receiver 4.2 Web UI Main Interface As shown in the following screenshot, this is the main interface of web UI of SXblue PREMIER while login, it contains the common used operation menu and the information window including detail information and settings.
  • Page 19 SXblue Premier GNSS Network RTK Receiver Component Description Positioning information, satellite tracking and the others will be Status displayed in this page It contains general operation on receiver, base confi guration, antenna Confi guration setting, satellite confi guration, receiver control and system setting.

  • Page 20: Status

    System Information, Work Status and Position Information are listed under Status menu. System Information In this page, all the information of SXBLUE PREMIER is diplayed such as serial number, hardware ID, MAC address, fi rmware version, registation information and so on.
  • Page 21 SXblue Premier GNSS Network RTK Receiver Work Status The physical state of SXBLUE PREMIER is displayed at the right fi eld including working mode, battery type, storage type, remaining power and the free memory. The datalink, host temperature, OEM temperature are not supported displaying because of the...
  • Page 22 SXblue Premier GNSS Network RTK Receiver Position Information As mentioned at the beginning of this chapter, the positioning information is displayed on this page, including locating coordinates, RTK status, tracked satellites, as well as to used satellites, users can be clear at a glance on this page to grasp the main information.

  • Page 23: Confi Guration

    The registration for receiver and working mode setting can be completed in this general confi guration page. If the code of SXBLUE PREMIER has expired or is going to be run out, please provide the serial number of your SXBLUE PREMIER receiver for us, then we will supply another available code, then...
  • Page 24 SXblue Premier GNSS Network RTK Receiver SXBLUE PREMIER is allowed setup the working mode and datalink from Web UI that only need the mobile phone or tablet PC which is able to connect the wifi hotspot of SXBLUE PREMIER. Work Mode : There are Rover, Base and Static options contained in this dropdown list, SXBLUE PREMIER now owns the ability to work as Base because of the WIFI module integrated on receiver.
  • Page 25 SXblue Premier GNSS Network RTK Receiver Base Setup Due to the WIFI module is equipped on SXBLUE PREMIER receiver, this unit is able to work as Base, then transmits corrections via WIFI connection. Therefore, the basic confi guration for base can be setup in this page.
  • Page 26 SXblue Premier GNSS Network RTK Receiver Antenna Setup The antenna parameters are confi gured in this page including the antenna height, measuring method. Antenna Height : This is the value for height of antenna while surveying. Measuring Method : Here provides several methods for measuring the antenna height such as carrier phase center, slant height, antenna edge, height plate and to the bottom.
  • Page 27 SXblue Premier GNSS Network RTK Receiver Receiver Operate The page provides all kinds of operations to control the receiver such as self-check operation, clean epochs, factory reset and power off.
  • Page 28 Factory Default : Click this button to bring the receiver back to factory default setting. Power Off : Click this button to power off the receiver. Reboot : This is not supported on SXBLUE PREMIER receiver, that is why this button is not activated (grey).
  • Page 29 Power : Confi gure the receiver to use the power saving mode or not. USB : This is used to confi gure SXBLUE PREMIER receiver what kind of mode output from Micro USB port when connect the receiver with computer via USB cable. USB and network port for optional.

  • Page 30: Satellite Information

    SXblue Premier GNSS Network RTK Receiver 4.2.3 Satellite Information The ―Satellite Information provides all kinds of tables, graph and the skyplot to view the information of tracking satellites. And it is allowed to confi gure to use which satellite in constellation on/off page by checking on the corresponding box.
  • Page 31 SXblue Premier GNSS Network RTK Receiver Skyplot In this page, all the tracking satellires are shown on the skyplot, this let users intuitively view and know where the current position of satellite is. know where the current position of satellite is.

  • Page 32: Data Record

    The ―Data Record performance is mainly used to confi gure all the parameters for receiver in static mode. Much more operations can be done on SXBLUE PREMIER receiver such as storage path, interval, data format and data fi les download.
  • Page 33 SXBLUE PREMIER. File Interval : This is used to defi ne the data storage time for the static fi le. Data Format : Here are 3 options to select for SXBLUE PREMIER to store what kind of format data, STH, Rinex2.0 and Rinex3.0.
  • Page 34 SXblue Premier GNSS Network RTK Receiver Data Download This page provides the data fi les to download Choose the storage where the static data recorded, and fi le type, then click on the blank of ―Select Date to choose what date the data was recorded and click ―Get Data button, all the fi les recorded...

  • Page 35: Data Transfer

    SXblue Premier GNSS Network RTK Receiver 4.2.5 Data Transfer This performance contains General, Serial Port Confi g, TCP/IP Confi g, NTRIP Confi g and Data Flow Confi g. The ―Data Transfer allows to confi gure the output mode for raw observation data and differential data, as well as to the NTRIP performance confi...
  • Page 36 SXblue Premier GNSS Network RTK Receiver Serial port Confi g This page is allowed to confi gure the baud rate, odd-even check and the data fl ow for micro USB port and Bluetooth. CAUTION : do not change the default value in this page for each item, if you want to change the settings, please...
  • Page 37 RMC and so on. It is confi gured in Data Flow Confi g page. SIC Observation Data : This is the user-defi ned format observation data from SXBLUE. OpenSIC Observation Data : This is the open version of SXBLUE user-defi ned format observation data for secondary development.
  • Page 38 And there are Caster and Server working mode for this performance. Caster : If this working mode is selected, SXBLUE PREMIER will be a client to upload the data to a specify server if it connects to the internet by WIFI connection. Input the specifi ed IP and port for server, and the data format what is uploaded.
  • Page 39 Authentication Mode : These three modes use different protocol standard for the connection, Eagle Mode is SXBLUE standard mode, and TCP/IP Mode is for private network use, usually, choose the Eagle mode for the default setting. LARK Mode is a totally new communication mode for network connection, it is similar to the CSD function that establishes connection between Base and Rover via GPRS network type, rather than GSM.
  • Page 40 SXblue Premier GNSS Network RTK Receiver inside, this function is not supported on SXBLUE PREMIER receiver. The next fi elds are the standard confi guration for NTRIP connection, IP, port, username and password, after these information is input into the corresponding fi eld, click on Get Point button to download the source table from server, then choose a proper mountpoint to access.
  • Page 41 SXblue Premier GNSS Network RTK Receiver NtripCaster This feature is realized on SXBLUE PREMIER as well, the receiver is equivalent to a CORS system that it generates and broadcasts the user-defi ned correction for rover if SXBLUE PREMIER connects a static IP address.
  • Page 42 SXblue Premier GNSS Network RTK Receiver Data Flow Confi g In this page, users can freely to confi gure the content and the update rate of data fl ow that to output or not to output what kind of data format.

  • Page 43: Network Confi G

    Web UI. Check the box of AP in Work Mode to enable the WIFI hotspot for SXBLUE PREMIER, and defi ne the SSID, password, encryption method and broadcasting channel for WIFI connection.
  • Page 44 WIFI hotspot. Password : This is the password which the WIFI hotspot requires. IP fi elds : If SXBLUE PREMIER successfully connects to the WIFI, there will be an LAN IP address generated by SXBLUE PREMIER itself.
  • Page 45 SXblue Premier GNSS Network RTK Receiver Bluetooth Confi g In this page, users can view the information and connection status of Bluetooth, such as MAC of Bluetooth, discoverable or not, the PIN code, and the connection devices in following table.
  • Page 46 SXblue Premier GNSS Network RTK Receiver Port Forwarding This page is mainly used to view and confi gure the internet transmission port for SXBLUE PREMIER, customize and debug receiver. NOTE : Usually we will keep the default setting in this page, if you would like to modify it, please contact...
  • Page 47 SXblue Premier GNSS Network RTK Receiver Router This is mainly used to view and confi gure the parameters for router, only under the condition of customize and debug receiver. NOTE : Usually we will keep the default setting in this page, if you would like to modify it, please...
  • Page 48 SXblue Premier GNSS Network RTK Receiver Network Testing This function is mainly used to test network status for SXBLUE PREMIER after logging on the internet via WIFI connection. How to do : Input an IP address into, then click PING button, the testing...

  • Page 49: Firmware Update

    Update. Firmware Update This page displays all the information of the fi rmware which current installed on SXBLUE PREMIER, and allows to update the latest version fi rmware for receiver. To get latest version fi rmware please contact with SXBLUE technician.
  • Page 50 SXblue Premier GNSS Network RTK Receiver How to upgrade the fi rmware with Local Update a) Click on ―Browse button to load fi rmware fi le (Please take in mind that the fi rmware is ended with .img as the extension name).
  • Page 51 This page is used to update the fi rmware for corresponding modem such as OEM board, for SXBLUE PREMIER, there is only the OEM board fi rmware can be updated on Module Update page, the others module are not available for SXBLUE PREMIER.

  • Page 52: User Management

    SXblue Premier GNSS Network RTK Receiver 4.2.8 User Management This page is used to manage the authority of login Web UI for users, including the username, password and add users.

  • Page 53: Help

    SXblue Premier GNSS Network RTK Receiver 4.2.9 Help In this page, users can get help and check the log book of receiver (the log book can help to backtrack the working status of receiver). NOTE : Only the administrator can modify any parameters for receiver and manage users, and the ordinary...

  • Page 54: Chapter V How To Achieve The Wifi Functions

    WIFI module, therefore, most of the mobile terminal can connect with this hotspot and access to the internal web UI page of SXBLUE PREMIER, then users are able to do a lot of operation on this web UI page, such as confi gure working mode, register, upgrade fi rmware, download raw data and the other additional functions.
  • Page 55 SXblue Premier GNSS Network RTK Receiver After the connection is established, then run IE browser on laptop and type the IP address 10.1.1.1 into address bar, the login dialog will appear and requires the login info.
  • Page 56 SXblue Premier GNSS Network RTK Receiver 2. Using tablet PC Search the WIFI SSID with a tablet PC, then click on the correct WIFI SSID, after the connection is established, run a browser on tablet PC and input the accessing IP address into the address bar.

  • Page 57: Wifi Client (Datalink)

    5.2.1 Configure on Web UI Due to the WIFI hotspot (AP) is the default WIFI mode on SXBLUE PREMIER receiver, and the WIFI AP mode and WIFI client mode can’t exist at the same time, therefore, WIFI client mode must be switched into from WIFI AP mode, and switch the datalink into WIFI for SXBLUE PREMIER receiver.
  • Page 58 SXblue Premier GNSS Network RTK Receiver Rover + WIFI mode Unfold the sub-menus under Network Confi g, and go to WIFI Confi g, switch the WIFI working mode from AP into Client, then click on button to make sure the WIFI working mode is...
  • Page 59 After a while, the WIFI signal bar appears and a LAN IP address is obtained, that indicates that SXBLUE PREMIER has connected to the WIFI and had an access to internet already.
  • Page 60 SXblue Premier GNSS Network RTK Receiver After that, move steps to Data Transfer—NTRIP Confi g, on this page, make sure if NtripClient is activated, then input the CORS accessing information into corresponding fi elds, click on button to download the mount points from CORS server.
  • Page 61 SXblue Premier GNSS Network RTK Receiver List out the mount points and choose a proper one, then click on button to confi rm all settings, and the receiver begins to connect and logon server, receive correction from CORS station. Return to Status—Position Information page, on this page, all the information will be displayed, including coordinates, solution, correction format, as well as to the correction delay.
  • Page 62 SXblue Premier GNSS Network RTK Receiver At this time, connect receiver to controller software, you don’t need to do anything for confi guration, then use the combination to work directly. Base + WIFI mode The operation on this mode is similar to Rover, go to Go to Confi guration—General Confi g, switch the working mode into Rover or Base, and datalink as WIFI, click on button to confi...
  • Page 63 After a while, the WIFI signal bar appears and a LAN IP address is obtained, that indicates that SXBLUE PREMIER has connected to the WIFI and had an access to internet already. After that, move steps to Data Transfer—NTRIP Confi g, on this page, make sure if NtripServer is activated, then check the option of Eagle Mode and input the CORS accessing information into corresponding fi...
  • Page 64 SXblue Premier GNSS Network RTK Receiver And the next step is to confi gure parameters for Base, move to Confi guration—Base Setup page, input the coordinates for base with known point or capture the current position for base by clicking input the coordinates for base with known point or capture the current position for base by clicking button, as shown at the red frame circle in below screenshot.
  • Page 65 SXblue Premier GNSS Network RTK Receiver And move to Base Start Mode, choose the starting mode for base station. In dropdown list, there are 3 options for starting mode, Manually Start Base, Automatically Start Base by Fixed Point, and Automatically Start Base by Current Point.
  • Page 66 SXblue Premier GNSS Network RTK Receiver If all the parameters are completed, click on button to confi rm the settings, after a dialog pop-up to prompt ―Submit Success message, click on OK button, the Base is ready to start. If the automatically start mode is selected, then the Base starts transmitting correction if appears the message ―Start Base Success at Status fi...

  • Page 67: Confi Gure On Controller Software

    SXblue Premier GNSS Network RTK Receiver 5.2.2 Configure on Controller Software The other way is to use our own software (LBS Manage) works on Android system, all the confi gurations can be done on the software after establishing Bluetooth connection between receiver and Android devices.
  • Page 68 Input the access password for WIFI connecting if it is required, then click on ok, after the ―Successful connection message appears, that means SXBLUE PREMIER has successfully connected to WIFI and access to internet.
  • Page 69 ―Successful Setting, and the button turns to red and shows disconnect, it means SXBLUE PREMIER successfully logins CORS server and begins to obtain correction.
  • Page 70 SXblue Premier GNSS Network RTK Receiver At this time, return to the main interface of LBS Manage program, there will be fi xed display for solution type. Base+WIFI mode As same to Rover setting, after establishing the Bluetooth connection, switch the working mode into...
  • Page 71 Input the access password for WIFI connecting if it is required, then click on ok, after the ―Successful connection message appears, that means SXBLUE PREMIER has successfully connected to WIFI and access to internet.
  • Page 72 When appears the message ―Successful Setting, and the button turns into red and shows disconnect, it means SXBLUE PREMIER successfully logins CORS server and begins to transmit correction through the internet. At this time, return to the main interface of LBS Manage program,...

  • Page 73: Chapter Vi Rtk Measurement

    Depending on the design of SXBLUE PREMIER, the receiver only can obtain correction through the internet. According to such performance, SXBLUE PREMIER is able to work in Bluetooth mode and WIFI mode. In this chapter, we will emphatically introduce how to do RTK measurement with SXBLUE PREMIER receiver in Bluetooth mode.
  • Page 74 SXblue Premier GNSS Network RTK Receiver 3) Tap on connection type and select the connection mode as Bluetooth, then next go to Device list, enter Bluetooth Device interface, tap on search button, the Android device will search the surrounding Bluetooth devices.
  • Page 75 SXblue Premier GNSS Network RTK Receiver 4) Choose the correct Bluetooth device SN and return to SXblueGnssServer (LBS Manage) main interface, tap on Connect button to establish Bluetooth connection between SXBLUE PREMIER receiver and controller, at this point, the Bluetooth indicator lights up on receiver.
  • Page 76 SXblue Premier GNSS Network RTK Receiver 6) Get into NTRIP Broadcaster interface by tapping on Network option, then input the CORS network IP address and port, assigned username and password, then tap Sourcetable and Refresh to request the source table.
  • Page 77 8) At this time, if there appears successful connection and successful login messages, that means the receiver has successfully connected to server and begins to get correction from CORS server. Return to LBS Manage main interface and observe the fourth indicator on SXBLUE PREMIER receiver if it is fl ashing.
  • Page 78 SXblue Premier GNSS Network RTK Receiver 10) make sure that the instrument is leveling on a point, and the coordinates are stable at this position, tap on button to collect the coordinates for this position.

  • Page 79: How To Connect With Egstar

    6.2 How to connect with EGSTAR In this section we will teach you how to connect SXBLUE PREMIER with the latest version of EGStar. First of all, establish an ISP connection on controller and make sure that the controller is able to access to internet successfully.
  • Page 80 SXblue Premier GNSS Network RTK Receiver 4) Go to Confi g/Mobile difference interface, then click on ―Open mobile differential mode to activate this function, move to ―Cellphone differential mode setting and go into parameter confi guration interface.
  • Page 81 SXblue Premier GNSS Network RTK Receiver 5) Enter the IP address of network, the port, the assigned name and password, after that click on ― Get sourcetable button to obtain mount point list from server, and select a proper one then click on ―Connect button to access.

  • Page 82: How To Connect With Survce

    6.3 How to connect with SurvCE In this section, you will get the method of how to use SurvCE to connect with SXBLUE PREMIER and confi gure parameters for it. First, install SurvCE software onto controller (Ver.4.04 or higher version is recommended).
  • Page 83 SXblue Premier GNSS Network RTK Receiver 4) Move to Comms tab and pick Bluetooth in Type box. Use Windows Mobile in BT Type then tap on icon to enter Bluetooth device dialog, select the correct serial number of your device or tap on Find Receiver to search all nearby Bluetooth devices, pick up a correct one then tap on the icon at the top of interface to bond with.
  • Page 84 SXblue Premier GNSS Network RTK Receiver 6) Move to RTK tab, select Data Collector Internet in Device box, then click on , in ISP box, select the connection previously defi ned in Windows menu (eg. My connection), check that if it My connection shows connected.
  • Page 85 SXblue Premier GNSS Network RTK Receiver 8) Then the internet connection will start, and the available services/mount points for corrections will be downloaded to your controller, select the suited service and confi rm. 9) Choose a proper mount point you intend to access, click on icon to confi...
  • Page 86 SXblue Premier GNSS Network RTK Receiver 10) Tap on Monitor/Skyplot option to check data quality. 11) When you get the available FIXED solution, you can start your job.

  • Page 87: How To Use Fieldgenius To Confi Gure Sxblue Premier

    As FieldGenius version 7.2.12.14 released, the PREMIER driver was built and we are able to confi gure SXBLUE PREMIER with this driver as well in latest version of FieldGenius. In this section, we will take version 8.3.17.2 for example. Next you will get the method how to use FieldGenius on SXBLUE PREMIER receiver.
  • Page 88 SXblue Premier GNSS Network RTK Receiver 3) Select ―Model and Communication option and get into this interface, select SXblue in Make dropdown list and choose PREMIER driver to use on SXBLUE PREMIER receiver.
  • Page 89 4) And select ―Bluetooth in Port dropdown list, and choose the correct serial number of SXBLUE PREMIER has been stored in Device box, and then click on ―Connect button to bond with the Bluetooth. If it is the fi rst connection, click on “Bluetooth Device List and search all the nearby Bluetooth devices, select the correct serial number of SXBLUE PREMIER receiver, verify that and then start the connection.
  • Page 90 SXblue Premier GNSS Network RTK Receiver 6) Choose ―Date Collector Internet as your link device and click on ―Setup to go on. Verify that the Data Port of Port Options is Shared, then enter the IP address, port, assigned name and password for NTRIP connection, after that, when you back on Link Confi...
  • Page 91 SXblue Premier GNSS Network RTK Receiver 8) Choose a proper correction format and click on ―Select button to confi rm, then return to Link Confi gure page and click on ―Connect button to process the fi nal step, and the receiver will start accessing to internet and obtain correction from CORS server, at this moment, pay your attention to the fourth indicator on receiver, check if it is fl...

  • Page 92: Chapter Vii Static Measurement

    GPS positioning measurement by installed three (or more) GNSS receivers to perform simultaneous observation and determine the relative position between the stations. In this chapter, we are going to introduce how to do Static measurement with SXBLUE PREMIER receiver. 7.1 Antenna Height Measuring After fi...
  • Page 93 SXblue Premier GNSS Network RTK Receiver h 0 is the distance from antenna phase center to the bottom of receiver (measuring plate). H is the calculation result. We usually measure antenna height twice and adopt the average. Attention : We input the inclined height as the antenna height, which is the inclined distance from point on the...

  • Page 94: Field Operation Procedure

    fl ashing once indicates the acquisition of an epoch. 7.3 Mode Configuration Static mode of SXBLUE PREMIER receiver is able to be set on internal web UI or on controller software (eg.GIStar for Android). In this section, we will respectively introduce how to confi gure static mode on web UI and controller software (GIStar).
  • Page 95 SXblue Premier GNSS Network RTK Receiver Input the measured antenna height on Antenna Setup interface.
  • Page 96 At this time, observe the status of the indicators on receiver. To stop static recording, switch off the receiver directly or click on button on web UI, the static data fi le will be recorded and saved in internal memory of SXBLUE PREMIER.
  • Page 97 Static. After the working mode is set, move to Static Setting and set up all the parameters for SXBLUE PREMIER receiver, such as sampling interval, antenna height, mask angle, PDOP, as well as to set...
  • Page 98 SXblue Premier GNSS Network RTK Receiver After all the parameters are completed, click on Start button at the bottom of interface to start recording raw data onto memory of receiver, at this moment, pay attention to the fourth indicator on receiver, check if it is fl...

  • Page 99: Data Download

    While the static job is done, go back to offi ce and download the static data from web UI. Set the micro USB port of SXBLUE PREMIER receiver into Ethernet mode, then connect to computer via micro USB cable and login web UI on IE browser. Go to Data Record—Data Download, choose the correct fi...
  • Page 100 SXblue Premier GNSS Network RTK Receiver The other way is to switch the micro USB port of SXBLUE PREMIER receiver into normal USB port, connect the receiver to computer, it will be recognized as a removable disk. Open the disk and look for the folder of recording date, then copy the data fi le from folder to computer.

  • Page 101: Data Processing

    SXblue Premier GNSS Network RTK Receiver 7.5 Data Processing In this section, we will take SXblue Total Control (STC) program for example, to introduce how to simply process the static data from SXBLUE PREMIER receiver. Processing static data from SXBLUE PREMIER is same to normal static data processing as usual, run...
  • Page 102 SXblue Premier GNSS Network RTK Receiver Choose the fi les and click on OK button, a window pop-up along with the information of the static data, including point ID, start time, end time, data type (Static or Kinematic), manufacturer, antenna height and the others.
  • Page 103 If there are the other data fi les loaded at the same time, then click on button to process baselines combined with the observation stations. Tips : To get more informati on about stati c data processing, please refer to SXblue Total Control user manual.

  • Page 104: Chapter Viii Standard Confi Guration

    SXblue Premier GNSS Network RTK Receiver Chapter Ⅷ Standard Configuration Item No Name model name Quantity Receiver host SXBLUE PREMIER MicroUSB Cable USB-2 Holder TP-S650 Adapter PSAI10R-050Q Packaging box 1) Receiver host 2) USB cable 3) Holder 4) Adapter 5) Packaging box 1) This receiver host is integrated with high precise GNSS antenna inside, market proved OEM board, battery and Bluetooth4.0 module.

  • Page 105: Chapter Ix Technical Specifi Cation

    SXblue Premier GNSS Network RTK Receiver Chapter IX Technical Specification GNSS Channels L1 C/A, L2E, L2C, L5, with carrier phase smoothing GLONASS L1 C/A, L2 C/A B1, B2 Galileo E1, E5A, E5B, E5AltBOC QZSS L1 C/A, L1 SAIF, L2C, L5...
