FAST FIND RANGER PLB
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the McMurdo FastFind Ranger PLB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Orolia McMurdo FastFind Ranger PLB

  • Page 1 FAST FIND RANGER PLB USER MANUAL...
  • Page 2 This manual is applicable to the FAST FIND RANGER PLB. ONLY IN EMERGENCY FALSE ALERTS ENDANGER LIVES ONLY PULL IN AN EMERGENCY Pulling breaks the plastic anti- tamper seal that cannot be reset by the user. TIRER UNIQUEMENT EN CAS D’URGENCE Le fait de tirer brise un dispositif plastique...
  • Page 3 HOLD MAINTENEZ LE DECLENCHEUR MANTENER ORDER NEW CAP COMMANDEZ UN NOUVEAU CAPOT PIDA UNA NUEVA TAPA...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Introduction ..........................1 Safety Notices .......................... 2 Indicator Light........................... 3 Cautions ..........................4 Self Test ..........................5 GNSS Signal Acquisition Test ....................6 Specification..........................7 Registration Information ......................8 Accessories ..........................9 Transportation .......................... 9 EU Declaration of Conformity ....................10 End of Life Statement ......................

  • Page 5: Introduction

    1. INTRODUCTION The Fast Find Ranger Personal Locator Beacon (PLB) gives you the reassurance of a last resort safeguard against any life threatening incidents that may occur anywhere in the world. If you find yourself in a remote area without any other form of emergency communication, on land or at sea, your Fast Find Ranger can call for help.

  • Page 6: Safety Notices

    2. SAFETY NOTICES It is recommended that the Self Test is performed once a month in the limit of 10 tests per year - unnecessary testing reduces battery life in the event of an emergency. Return the unit to a service center for battery replacement if battery level is low (single flash in Self Test mode).

  • Page 7: Indicator Light

    3. INDICATOR LIGHT As soon as the PLB is activated, the indicator light will start to flash: • Two flashes every second indicates the unit is activated and is attempting to acquire a GNSS position fix. • One flash every 3 seconds indicates that a GNSS position fix has been acquired.

  • Page 8: Cautions

    4. CAUTIONS ACTIVATE ONLY IN AN EMERGENCY • This PLB should only be used in situations of grave and imminent danger to life. • False alerts endanger lives and cause expensive disruption to Search & Rescue services. Deliberate misuse of the device could result in a penalty. •...

  • Page 9: Self Test

    5. SELF TEST The Self Test verifies all key functions of the PLB including the remaining battery life and transmitter operation. WARNING: ONLY SELF TEST IN THE FIRST FIVE MINUTES OF THE HOUR. NOTE: The TEST button must be pressed hard to activate - if necessary, use a blunt object such as a pencil.

  • Page 10: Gnss Signal Acquisition Test

    6. GNSS SIGNAL ACQUISITION TEST IMPORTANT: To preserve battery life, a maximum of 10 GNSS Tests are permitted during each battery's 6 year storage life, after which further GNSS Tests are prohibited until the battery is replaced. • Begin this test indoors, out of view of the open sky. •...

  • Page 11: Specification

    7. SPECIFICATION Standards ............COSPAS-SARSAT T.001/T.007 class2, RTCM 11010.2 ..................ETSI EN 302152-1, AS/NZS 4280.2, NSS-PLB11 Sealing depth ................ Immersion to 10 m (30 ft) for 5 minutes Operating temperature ................-20 to +55 °C (-4 to + 131 °F) Storage temperature ................

  • Page 12: Registration Information

    8. REGISTRATION INFORMATION Registration of the PLB with the relevant national authority is mandatory. For further information applicable to your region refer to the information on the registration form provided and the annex at the end of this manual. Some national authorities provide the registered user with a label which must be fitted to the rear of the PLB as proof of registration.

  • Page 13: Accessories

    9. ACCESSORIES Included with your Fast Find Ranger PLB are: • A neck lanyard (not to scale) • A universal pouch 10. TRANSPORTATION • The product contains a lithium metal battery with a lithium content exceeding 2 g and a total net quantity of 0.068 kg.

  • Page 14: Eu Declaration Of Conformity

    11. EU DECLARATION OF CONFORMITY Hereby Orolia Ltd declares that the Type Z424 is in compliance with the essential requirements and other relevant provisions of Radio Equipment Directive 2014/53/EU. A copy of the full Declaration of Conformity can be obtained online from: www.mcmurdogroup.com/contact/support/marine-products/...

  • Page 15: Annex: Local Authority Information

    ANNEX: LOCAL AUTHORITY INFORMATION Australia Beacon Registration Section, AusSAR Tel: +61 2 6279 5766 or 1800 406 406 Fax: +61 2 6230 6868 or 1800 406 329 Email: ausbeacon@amsa.gov.au Registration: www.beacons.amsa.gov.au Owners in Australia please note the following requirement from the Australian Standards Authority: “Advice to owners of personal locator beacons (PLBs).
  • Page 16 France Greenland (Denmark) FMCC Greenland Telecom Email: fmcc@cnes.fr Administration Registration: registre406.cnes.fr Tel: +45 299 327 850 Fax: +45 299 328 033 India INMCC/ISTRAC/ISRO Email: radioforvaltningen@nanoq.gl www.406registration.com Ireland Under “Register a new beacon”, select the relevant option and follow instruction. PLB owners can register their PLB online: Web: Italy https://serviceregister.comreg.ie/Account/Login...
  • Page 17 Sweden Switzerland www.406registration.com www.406registration.com Under “Register a new beacon”, select the Under “Register a new beacon”, select the relevant relevant option and follow instruction. option and follow instruction. The EPIRB Registry, Maritime & Coastguard Agency Tel: 020 3817 2006 Fax: 01326 319264 Email: epirb@mcga.gov.uk UKBeacons@mcga.gov.uk...

  • Page 18: Registration Uid

    Orolia Limited. No se acepta responsabilidad alguna por las inexactitudes u omisiones que pueda contener esta publicación, si bien se han adoptado todas las precauciones para que resulte lo más completa y precisa posible.
  • Page 19 PAGE INTENTIONALLY LEFT BLANK...
  • Page 20 Orolia Silver Point Airport Service Road Portsmouth PO3 5PB United Kingdom Phone: +44 (0)23 9262 3900 Fax: +44 (0)23 9262 3998 Email: sales@mcmurdogroup.com Website: www.mcmurdogroup.com DOC18011A00 EN – FR - ES...

This manual is also suitable for:

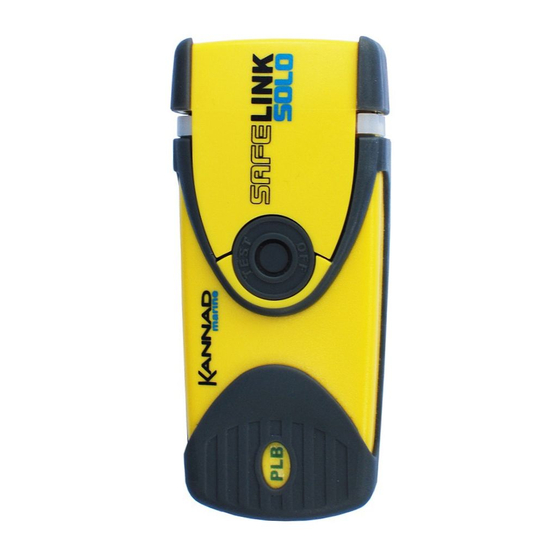

Kannad safelink solo plb
