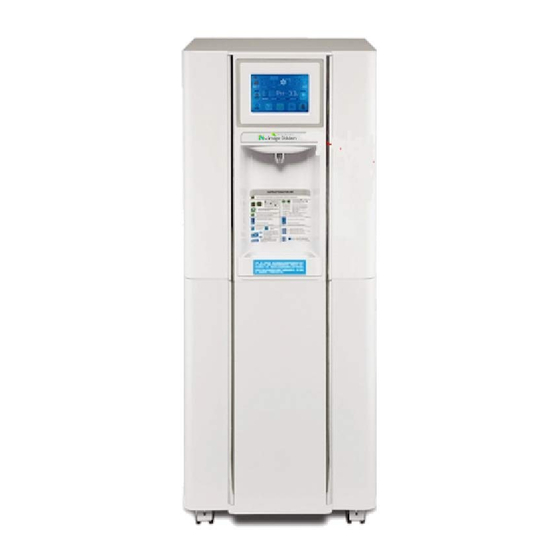

HENDRX HR-90HK Manual

Atmospheric water generator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Ⅰ.INTRODUCTION .......................................................................................................................1
Ⅱ. SAFETY NOTES........................................................................................................................1
Ⅲ. PRECAUTIONS .........................................................................................................................2
Ⅳ. MAINTENANCE .......................................................................................................................3
Ⅴ. HOW DOES YOUR ATMOSPHERIC WATER GENERATOR WORK?..................................3
Ⅵ. FEATURES OF ATMOSPHERIC WATER GENERATOR........................................................4
Ⅶ. OPERATING YOUR ATMOSPHERIC WATER GENERATOR ...............................................7
1. DIGITAL TOUCH SCREEN FUNCTION ...........................................................................8
1.1. Screen Indication........................................................................................................8
1.2. Digital Touch Screen indication.............................................................10
2. SETTING UP......................................................................................................................12
3. OPERATIONAL STAGE....................................................................................................13
4. CLEANING AND REPLACEMENT OF FILTERS...........................................................16
4.1. Cleaning ...................................................................................................................18
4.2. Sterilization ..............................................................................................................25
4.3. Replacement.............................................................................................................27
5. Attention..............................................................................................................................31
Ⅷ. TROUBLE SHOOTING ...........................................................................................................32
Ⅸ. TECHNICAL SPECIFICATIONS......................................................................36
Note： We reserves the right to at any time without notice make any changes/amendments/deletions
and/or variations to the contents of this manual.
Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HR-90HK and is the answer not in the manual?

Questions and answers

Summary of Contents for HENDRX HR-90HK

  • Page 1: Table Of Contents

    Contents Ⅰ.INTRODUCTION ........................1 Ⅱ. SAFETY NOTES........................1 Ⅲ. PRECAUTIONS .........................2 Ⅳ. MAINTENANCE ........................3 Ⅴ. HOW DOES YOUR ATMOSPHERIC WATER GENERATOR WORK?........3 Ⅵ. FEATURES OF ATMOSPHERIC WATER GENERATOR............4 Ⅶ. OPERATING YOUR ATMOSPHERIC WATER GENERATOR ..........7 1. DIGITAL TOUCH SCREEN FUNCTION ................8 1.1. Screen Indication......................8 1.2.

  • Page 2: Ⅰ.introduction

    ATMOSPHERIC WATER GENERATOR Ⅰ. INTRODUCTION Thank you for purchasing the Atmospheric Water Generator. The Atmospheric Water Generator is a new, state-of-the-art water-generating machine, which uses some of the latest and most sophisticated technology available in the industry today. We have designed your Atmospheric Water Generator with one objective in mind i.e.

  • Page 3: Ⅲ. Precautions

    USER’S MANUAL People who suffer from any physical or mental incapacity or lack relevant experience and knowledge may only operate this product under supervision and guidance of someone who is responsible for their safety. Keep an eye on children to insure they will not have fun with this produce. Ⅲ.

  • Page 4: Ⅳ. Maintenance

    ATMOSPHERIC WATER GENERATOR mounted to the unit (as pictures). 12. Do not place any object on top of the machine. Good ventilation is required to ensure optimum performance. Ⅳ. MAINTENANCE Always keep the unit clean. Wipe the outer casing with soft, damp fabric to clean. Use water to clean, avoid using harsh cleaning agent.

  • Page 5: Ⅵ. Features Of Atmospheric Water Generator

    USER’S MANUAL this unit also acts as an effective dehumidifier. In areas with high humidity, It not only acts as a good water generator, but also a perfect dehumidifier to keep you healthy and ensure your home appliances a long service time. To ensure high quality of drinking water, The Atmospheric Water Generator is utilizing multiple filtration technologies.
  • Page 6 ATMOSPHERIC WATER GENERATOR preset data. 4. Child-proof Hot Water Lock out The function of hot water lockout is to prevent child from scalding upon touching the water tap. 5. Water Leakage Detector In case of any unexpected situation of water leakage, the machine can stop working automatically and accompany with warning sound and flashing screen.
  • Page 7 USER’S MANUAL 8.2. LF2 Zeolite + active carbon filter at the bottom tank+air pump ammonia removal device: This device can remove organic compound, dust and large particles in the air. It can also reduce ammonia level in the water. 8.3. Sediment filter: Remove large particles to protect RO booster pump.

  • Page 8: Ⅶ. Operating Your Atmospheric Water Generator

    ATMOSPHERIC WATER GENERATOR microorganism are eliminated. Sterilization process is controlled by microcomputer automatically. 9.1. Top tank UV device: Eliminate bacteria grow in top tank, reduce bacteria level to minimal. 9.2. Cool water out UV device: Eliminating bacteria from dispensing tubing. To ensure water is safe to drink.

  • Page 9: Digital Touch Screen Function

    USER’S MANUAL Please read this operation manual carefully before you start the machine. By reading and following the simple manual, you will familiarize yourself with your new water machine and all its functions, ensuring yourself of a machine constantly operating at its’ optimum level. 1.
  • Page 10 ATMOSPHERIC WATER GENERATOR 1.1-1. Hot water dispensing indication: When “ ” icon flash, it means the tap is unlock; Continue light pressing “ ” icon, “ ” water dropping icon motion flashing means hot water is dispensing. 1.1-2. Bottom tank water level indication: The arrow indicates water level , pointing at 1 means the tank is empty, number incease as water level rises, 5 means the tank is full.

  • Page 11: Digital Touch Screen Indication

    USER’S MANUAL 1.1-11. Leak warning icon: “ ” icon light off means normal, light on when leak is detected. 1.1-12. Filter indicator: When “ ” icon light on means normal, flashing means need to replace filter or clean up is needed. 1.1-13.
  • Page 12 ATMOSPHERIC WATER GENERATOR 1.2-19. Hot water unlock indicator : When hot water is needed, press unlock icon to unlock then keep pressing unlock icon until hot water dispensing icon “ ” flashing. Then press “ ” to release hot water. 1.2-20.

  • Page 13: Setting Up

    USER’S MANUAL ⑥. T-***: Indicate filter system usage time period, soft press adjustment icon “ ” to reset time. ⑦. RESET: Soft press adjustment icon “ ” to reset machine back to original factory setting. 1.2-23. Power control key : Normal operating condition and stand by condition function. When machine operate normally, continuous sofr touching the “Power”...

  • Page 14: Operational Stage

    ATMOSPHERIC WATER GENERATOR 2.4. If required to connect to city water supply, you may purchase our optional PPF filter cup. Please turn to user manual “operating procedure”, section 11 and follow the instructions. 3. OPERATIONAL STAGE 3.1. First time plug in the machine there will be a “beep” sound, the display screen will light on. The compressor will start working two minutes later, at the same time, the compressor icon will show the machine is functioning normally.
  • Page 15 USER’S MANUAL cooling in any water level and water temperature condition. 3.5. The “ ” key locating on the screen is to select Fahrenheit or Celsius indication. 3.6. Usually, when heating and cooling function is working, the hot & cold water temperature will maintain within the pre-set temperature range.
  • Page 16 ATMOSPHERIC WATER GENERATOR Filter Cup PPF Filter Water tubing Input Valve City water input Water tap Optional parts Connector 3.12. Brand new machine under first time use need to follow “Machine cleaning and sterilizing” procedure and remove odor from machine parts.

  • Page 17: Cleaning And Replacement Of Filters

    USER’S MANUAL 4. CLEANING AND REPLACEMENT OF FILTERS Recommended Timing for Filter Replacement (It might be verified according to different water consumption. The timing below is based on 10 liters water consumption per day.): ① Zeolite + active carbon 3-6 months（ammonia removal） ②...
  • Page 18 ATMOSPHERIC WATER GENERATOR Electric control center LCD DTS screen Air exhaust Water tap Water collector Drip tray Air filter PPF or Zeolite + active carbon Hot Water Drain Pre-Carbon Filter Waste Water Drain Membrane City Water Input Post-Carbon Filter TCR Carbon Stainless Stell Bottom Tank Filter...

  • Page 19: Cleaning

    USER’S MANUAL The above structure and filtration system is for reference only. Replacement time for parts is recommended as follows( different water consumption will have a slight discrepancy,this time-table based on 10 liter water drinking daily: ① LF2 Zeolite+active ammonia removal device 3-6 months (according to water quality) ②...
  • Page 20 ATMOSPHERIC WATER GENERATOR Please clean air filter regularly according to the air pollution situation in order to ensure proper air supply. To clean the air filter, remove the filter from behind and side of the machine, rinse in clean water to remove dirt and dust. Install back to the machine when the filter is dry (diagram 4.1.1-1, 4.1.1-2, 4.1.1-3, 4.1.1-4, 4.1.1-5, 4.1.1-6).
  • Page 21 USER’S MANUAL After machine running for a period of time ,clean up the dust that may store up in the water collector .when cleaning,take out out water collector from the back (diagram 4.1.2) .Clean and replace back to original position. Attention: insert the water collector along its track until its original position.
  • Page 22 ATMOSPHERIC WATER GENERATOR 4.1.3-1 4.1.3-2 4.1.3-3 4.1.3-4 4.1.3-5 4.1.3-6 4.1.3-7 4.1.3-8 4.1.3-9 4.1.3-10 4.1.3-11 4.1.3-12...
  • Page 23 USER’S MANUAL 4.1.4. Cleaning of Front filtration system ① Soft press on the “ ” icon until the machine enter stand by stage, remove front lower panel (diagram 4.1.4-1); ② Disconnect outlet tubing from the post-carbon filter (diagram 4.1.4-2); ③ Disconnect inlet tubing on the TCR carbon filter (diagram 4.1.4-3); ④...
  • Page 24 ATMOSPHERIC WATER GENERATOR the filter) (diagram 4.1.4-10), put back the filter cup after cleaning and fill the bottom tank with tab water; ⑧ Turn on the machine and start cleaning the water system, pay attention to the bottom tank water level, keep filling with tab water if necessary until water is free of any odor (need to circulate about 20 liters of water).
  • Page 25 USER’S MANUAL 4.1.4-9 4.1.4-10 4.1.4-11 4.1.4-12 4.1.4-13 4.1.4-14 4.1.4-15 4.1.4-16 Note: Active carbon contain mineral salt, one time rinse may not remove all of it. Therefore, water may taste slightly salty. To improve the taste, drain out water from back of the machine a few times will improve signific antly.

  • Page 26: Sterilization

    ATMOSPHERIC WATER GENERATOR 4.2. Sterilization The brand new machine should be sterilized after one week service. 4.2.1. Sterilization solution: Prepare a 15 Liter container and mix 10 liters of clean water with 0.06 liter of sterilization liquid (30% hydrogen peroxide sterilization liquid),to configure 2% concentration hydrogen peroxide sterilization solution.
  • Page 27 USER’S MANUAL touching “ ” icon to unlock then touch the “ ” icon to dispense about 2L of sterilization solution; Shut down machine, drain out the rest of the water from the hot water outlet in behind; 4.2.5. Fill city water into bottom tank. Turn on the unit and have it running automatically till top tank is full of water;...

  • Page 28: Replacement

    ATMOSPHERIC WATER GENERATOR 4.2-5 4.2-6 4.2-7 4.2-8 4.3. Replacement 4.3.1. Replace a filter ① Before replacing, soft touching the “ ” icon until the machine enter stand-by condition (diagram 4.3.1-1); Smack on the sides with both hands at the same time to pop out the front lower panel (diagram 4.3.1-2);...
  • Page 29 USER’S MANUAL 4.3.1-5 4.3.1-6 4.3.1-7 4.3.1-8 Note: Recommend to replace one by one in order. When replacement is done, please clean the filtration system as per FILTRATION CLEANING. 4.3.2 Replace the top tank UV After the machine operate for a period of time, the UV light may break. There will be a warning beep sound and UV icon will flash, the UV light has to be replaced.
  • Page 30 ATMOSPHERIC WATER GENERATOR 4.3.2-1 4.3.2-2 4.3.2-3 4.3.2-4 4.3.2-5 4.3.2-6 4.3.3 Replace the cool water out UV ① Before replacing, soft touching the “ ” icon until the machine enter stand-by condition (diagram 4.3.3-1) and unplug power cord. ② Open top cover (diagram 4.3.3-2); ③...
  • Page 31 USER’S MANUAL 4.3.3-1 4.3.3-2 4.3.3-3 4.3.3-4 4.3.3-5 4.3.3-6 4.3.4 Replace the bottom tank UV ① Before replacing, soft touching the “ ” icon until the machine enter stand-by condition (diagram 4.3.4-1) and unplug power cord, wait for about 10 minutes to let UV light to cool off; ②...

  • Page 32: Attention

    ATMOSPHERIC WATER GENERATOR 4.3.4-1 4.3.4-2 4.3.4-3 4.3.4-4 4.3.4-5 4.3.4-6 4.3.4-7 4.3.4-8 5. Attention 5.1. It is recommended to dispense not less than 3 liters of water every day. 5.2. If hot water is not dispensed for a long period, it is recommended to turn on heating process and keep hot water temperature between 88 ~93 for more than 30 minutes once a week.

  • Page 33: Ⅷ. Trouble Shooting

    USER’S MANUAL back drain outlets. 5.4. If the machine was not in use for more than 7 days or it has been in continuous operation for more than 4 months, please follow the steps in CLEANING, STERILIZATION & REPLACEMENT to sterilize the system. It will be better to eliminate residue and sediment by using dedicated cleaning media for water dispenser before sterilization .
  • Page 34 ATMOSPHERIC WATER GENERATOR Problem Three: The UV warning icon “ ” blinks “ ” with three short beeps. Solution: Check the ultraviolet device at bottom tank to make sure the bulb is lit and all wirings are correct. If the UV is not working, replace with new bulb by following steps in REPLACEMENT.
  • Page 35 USER’S MANUAL ⑤ Check the water collector is on correct position. After problem is solved, remove lower panel at the back of the machine, locate leak detecting device (diagram 5-1), take out the silicon cup and clean out water inside (diagram 5-2, 5-3), put the cup back on (diagram 5-4) then turn on machine.
  • Page 36 ATMOSPHERIC WATER GENERATOR Problem Nine: Water output from faucet is too small. Solutions: ① Clean the filter net inside water faucet or replace with new one. ② Unscrew water tap, adjust and install the nano flter net and silicon sealing ring inside in place ,screw water tap bace to its original position.
  • Page 37 USER’S MANUAL ⑧ Make sure that the water lines are not blocked and water flow is smooth. ⑨ Make sure that the unit is placed in good ventilation condition, and the air filter net is cleaned regularly to ensure the free air flow. Problem Twelve: The humidity indication on screen is different from the real room humidity level.

  • Page 38: Ⅸ. Technical Specifications

    ATMOSPHERIC WATER GENERATOR responsible for any damages incurred during self-reparation and void all warranty. . TECHNICAL SPECIFICATIONS Ⅸ ① Dimensions Height: 112cm Width: 45cm Depth: 43cm Net Weight: 49kg ② Power □ a.c. 220-240V 50Hz □ a.c. 100-120V 50Hz Voltage □...
  • Page 39 USER’S MANUAL ③ Coefficient of Water Quality Working Temperature： 15℃-40℃ Temperature of Hot Water： 75℃-95℃ Working Humidity： 35%-95% Temperature of Cold Water： 4℃-10℃ Water Storage Capacity：12.5 Liters Atmospheric Water Production Capacity： 制 水 量 （ 升 ）...
  • Page 40 ATMOSPHERIC WATER GENERATOR Humidity （ %） Capacity 18.5 （liter） Note: The figure above only apply to model with heating function.
