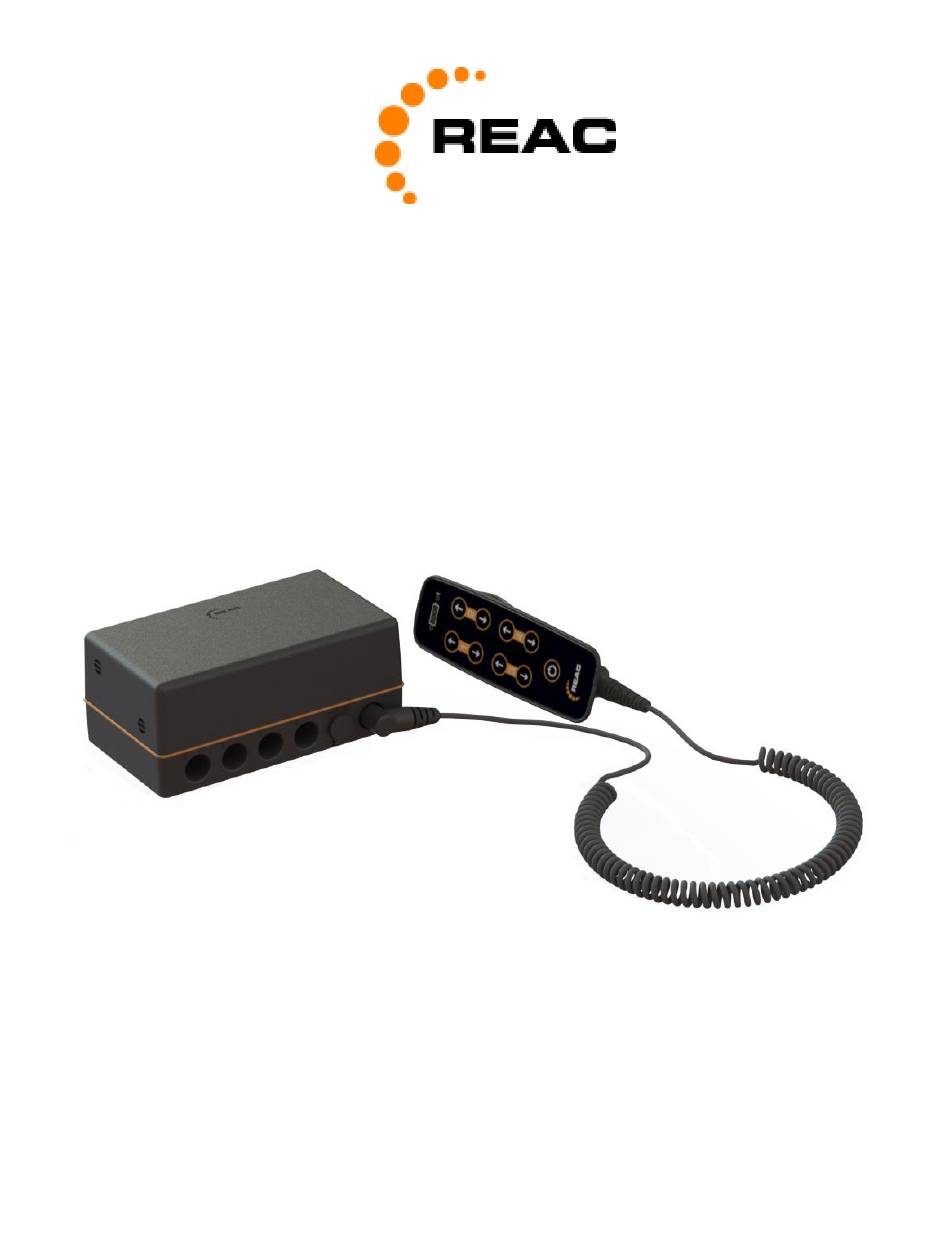

- Page 1 USER MANUAL CONTROL BOX RCB10 www.reac.se...
- Page 2 Our aim is to offer our clients an excellent service, backed up by experience and know-how in the application of advanced motion systems. REAC's power solutions contain compact and strong electrical actuators, lift and tilt systems, control boxes and hand controls. We know that our customers have different needs and therefore our products are designed to be customized according to their application’s specific requirements.
-
Page 3: Table Of Contents
....................4 ANUAL BATTERY DISCONNECT ........................... 5 HARGING FAULT HANDLING ..........................5 ........................5 NTERNAL ERRORS “E ” ........................5 MERGENCY STOP OTHER ..............................6 ............................ 6 EY LOCK ....................... 6 LEANING AND DISINFECTION ......................6 HARGER CONNECTOR PLUG www.reac.se... -
Page 4: Introduction
Useful tips, recommendations and information for efficient, trouble-free use. 1.3 Product overview The REAC Control System - RSC10 consists of three units, one control box (RCB10), one hand control (RHC10), and one charger. This User Manual will describe the main functions and features and how to... -
Page 5: Buttons & Leds
The RHC10 can be equipped with up to 10 buttons and 10 LED indicators, which can be configured in many combinations. Below is an explanation of the buttons and LEDs on a RHC10 with REAC standard overlay and standard features, some options are also briefly mentioned. -
Page 6: Connectors And Charging
(standard Vaseline is OK) simplifies assembly 3.2 Connectors The RCB10 is designed to work with standard mono connectors. The current limit is by default set to 8A for each channel, these limits can be individually configured pre-delivery if needed. Current peaks above the current limit are allowed for 250ms, when this is exceeded the actuator will be turned off. -
Page 7: Battery Disconnect Function
3.3.1 First use Upon delivery from REAC, the battery is disconnected. When the control box has been built in to its application and the unit is ready for test the battery needs to be connected. 3.3.2 Connect battery To connect the battery, plug in the standard 24 V charger delivered with the control box. -
Page 8: Charging
The battery is charged through an external charger. Charging is only allowed with the charger delivered together with the RCB10. Charging time for a completely discharged system is approximately 6 hours. The 3 green battery LEDs on the Hand control will flash synchronized when the battery is fully charged. It is recommended to charge the battery before first use. -
Page 9: Other
5 Other 5.1 Key lock A key lock function to lock one or several channels is available. To lock a channel press both buttons for that channel at the same time for 3 seconds until the alert indicator LED is lit. Channel is locked. If the system is turned off with the key lock activated and then is started again, the alert LED will lit for a short while to indicate that a key lock is active. - Page 10 © REAC, June 2017, Issue 3.0 REAC is continuously developing our products and can make changes without prior notice. Therefore we can’t guarantee that the information stated on our webpage or in our written material always is up to date, nor can we take responsibility for any misinterpretation of our written context.
