Summary of Contents for Art Lighting Production ASTERION II Series

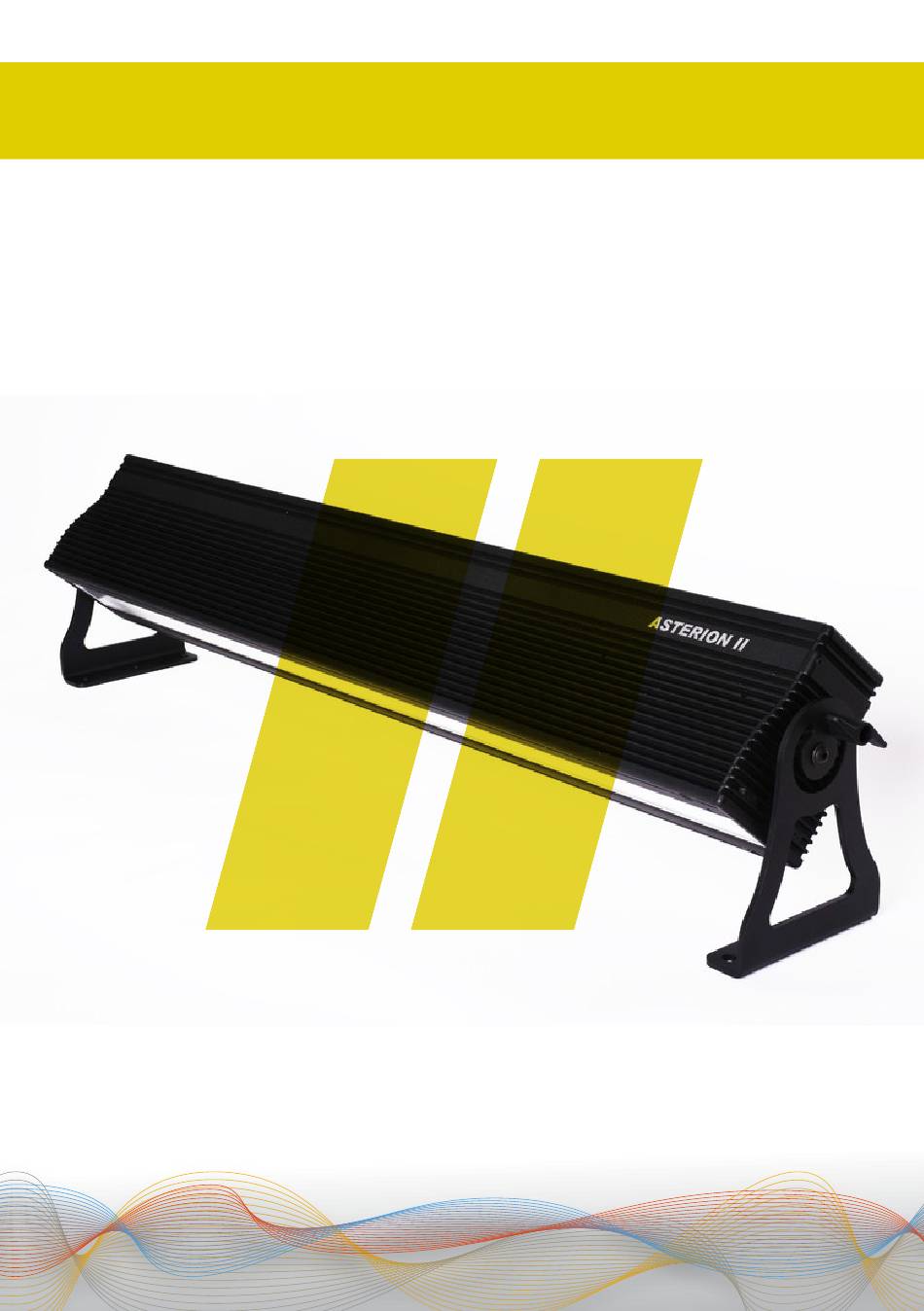

- Page 1 ENGLISH / VERSION 09.2016 LED BATTEN ASTERION USER MANUAL sACN CRMX ArtNet DMX 512...
- Page 3 The well-arranged graphic OLED display allows quick setting of all functions and parameters of the fixture. We wish you a lot of pleasant working experiences with the ASTERION II prod- uct. The team of the firm Art Lighting Production, s.r.o.
- Page 4 ASTERION II / USER MANUAL / ENGLISH TECHNICAL DATA FIXTURE PARAMETERS Napájení 230 V 50/50 Hz Electric output (W) Max. 310 W Light output (lx) max. 2 600 lx / 2 m / 4400 K Chromaticity 3200 K, 4400 K, 5600 K Max.
-
Page 5: Table Of Contents
ASTERION II / USER MANUAL / ENGLISH TABLE OF CONTENTS CHAPTER PAGE 1. DESCRIPTION OF THE PRODUCT 2. DMX ADDRESS AND MENU 2.1 Initial MENU 2.2 Quick setup of the DMX address 2.3 Working with MENU 3. DMX MODE 3.1 3 Channels - MIS 3.2 6 Channel Mode –... - Page 6 1. Disc / flange for installing fastening elements 2. Protecting light diffusion plate 9. - 12. Control buttons 13. Status led DMX – LINK 7. ETHERNET (sACN, ArtN 3. Powercon in 8. OLED display 5. DMX INPUT 6. DMX OUTPUT 4.
-
Page 7: Description Of The Product
ASTERION II / USER MANUAL / ENGLISH DESCRIPTION OF THE PRODUCT 1. Disc / flange for installing fastening elements - the arresting disc of the luminaire, which is always its part, is used for installing the fasten- ing elements. The fastening elements can be selected by the customer and are not part of the basic delivery. -
Page 8: Dmx Address And Menu
ASTERION II / USER MANUAL / ENGLISH DMX ADDRESS AND MENU 2.1 Initial MENU After connecting ASTERIONU II to power supply the welcome logo of the company Art Lighting Production will be shown for a short time and the display will run on the initial status. -
Page 9: Dmx Mode
ASTERION II / USER MANUAL / ENGLISH DMX MODE When selecting the function DMX Mode the display will show 4 DMX Modes, which will be subsequently described. 3.1 3 Channels - MIS To help you remember the function of each channel next behind the number of chan- nels of the mode the initials of the func- tions of each channel are shown: Memory /... -
Page 10: Channel Mode - Rgbwis
ASTERION II / USER MANUAL / ENGLISH STROBO – the Strobo channel has two functions. A) control of the Strobo frequency (speed) B) switching on and off of the halogen performance function. By the luminaires with conventional or halogen bulbs the switching off or switching on is delayed. This effect is caused by the filament of the bulbs, which need some time to warm up and to cool down again. - Page 11 ASTERION II / USER MANUAL / ENGLISH 3.3 9 Channel Mode The nine-channel mode is for the most demanding users. To the six-channel version were added three more channels. These additional channels allows you to store the color, that you have mixed from an external controller, in the internal memory of the fixture.
-
Page 12: Channel Mode Ics
ASTERION II / USER MANUAL / ENGLISH Selection of the memory number With jumping from 0% to 100% it replaces the RECORD button It changes the function of the channel number 7. 0% - selection of the memory for recording with confirmation of the saving in the memory by flashing of the fixture. -
Page 13: Fixture Mode
ASTERION II / USER MANUAL / ENGLISH FIXTURE MODE Basic settings of the fixture The function Fixture Mode enable us to set in which basic mode shall the fixture work. 4.1 Worklight Enable The function of the working light (worklight) offers the possibility to use the stage/stu- dio floodlight as a simple working light. -
Page 14: Hold Last
ASTERION II / USER MANUAL / ENGLISH window with the current chromacity value. You can change the color temperature with the arrow keys UP / DOWN. There are available three different temperatures: 3200, 4400 and 5600 K. By adjusting the values we will determine in what color temperature will light the white color, after setting all RGBW channels to 100%. -
Page 15: The Status Icons And Settings Of The Lan
ASTERION II / USER MANUAL / ENGLISH with the transmitter. It is also done in the service menu. If the wireless module is paired with the transmitter then it is enough that receiving of a signal is allowed (see Figure above) - menu item CRMX WIRELESS DMX. - Page 16 ASTERION II / USER MANUAL / ENGLISH because the logic of the both settings is different. While in the sACN is possible to set the number of the Universe in the ranging from 1 to 63999, in the ArtNet are set three items according to the specifications: Network, Sub-Net and Universe.
-
Page 17: Dmx Status
ASTERION II / USER MANUAL / ENGLISH DMX STATUS This menu contains three screens, each showing the status of one of the three DMX inputs: XLR, wireless module CRMX and Ethernet module (sACN or ArtNet). You can switch between the individual screens with the ENTER button or arrow keys UP / DOWN. -
Page 18: Dmx Input Status 3/3 Ethernet Input
ASTERION II / USER MANUAL / ENGLISH DMX Input Status 3/3 Ethernet Input Setting options of the Ethernet module. The status of the first item Ethernet is Enabled only copies the settings of the Ethernet module in the menu Input Control. Module is Present - it displays the status of the presence of the Ethernet module. -
Page 19: Set Manual Otput
ASTERION II / USER MANUAL / ENGLISH 7.3 Set Manual Otput When the function is active, we can see the direct light changes on the individual color components of the RGBW. Manually is po- ssible to mix any color without the use of external equipment. -
Page 20: Service Menu
ASTERION II / USER MANUAL / ENGLISH SERVICE MENU Service Menu serves as the diagnostics of the actual parameters of the fixture. And it is also used for customization of certain pa- rameters (IP address for ArtNet, etc.). 9.1 Raw DMX Values In this table we can see the DMX values of the first 10 channels. - Page 21 ASTERION II / USER MANUAL / ENGLISH Plug-in Module CRMX - it displays the ver- sion of the CRMX module and signal quality in percentage. In the bottom frame is displayed the status of the pairing. Plug-in Module CRMX - in this case, the module is paired with the transmitter (linked).
-
Page 22: Chromacity Calibration
ASTERION II / USER MANUAL / ENGLISH 9.4 Chromacity Calibration This function is blocked for an authorized service to be used for calibration of the fixture. 9.5 About Asterion II The item HW: it displays the currently used version of the hardware; the item FW: it dis- plays the software version;... - Page 23 ASTERION II / USER MANUAL / ENGLISH Live Data - preview of the live data. Online, we can see the levels on the output of all four channels GREEN BLUE WHITE Manual Contorl - in this folder, you can set the values GREEN BLUE WHITE...
-
Page 24: Problem Solving
ASTERION II / USER MANUAL / ENGLISH PROBLEM SOLVING Before you make a claim, check again the settings. In the following table is a list of the most common settings, which can appear as a failure. PROBLEM PROBLEM SOLVING ASTERION lights up immediately after con- WORKLIGHT The function is active. -
Page 25: Safety Instructions
ASTERION II / USER MANUAL / ENGLISH SAFETY INSTRUCTIONS Never handle the equipment under voltage when it is mechanically dam- aged, when there are missing covers of the electrical parts, etc. Do not handle the equipment under voltage when the protecting light dif- fusion plate is damaged. -
Page 26: Optional Accessories
ASTERION II / USER MANUAL / ENGLISH OPTIONAL ACCESSORIES Powercon interconnecting cable Half-yoke for luminaire suspension, pair Part Nr. 0126120 Feet for the positioning of the fixture, pair Barn door Part Nr. 0126110 Part Nr. 0126150 Diffuser for bottom lighting Frame for several Asterion fixtures Part Nr. - Page 28 LED BATTEN ASTERION Art Lighting Production, s.r.o. Komenského str. Nr. 427 / CZ 664 53 Újezd u Brna / Czech Republic / www.artlighting.cz Tel.: +420 544 224 312 / info@artlighting.cz © 2016 Art Lighting Production, s r.o. Graphic design © v2atelier.com...
