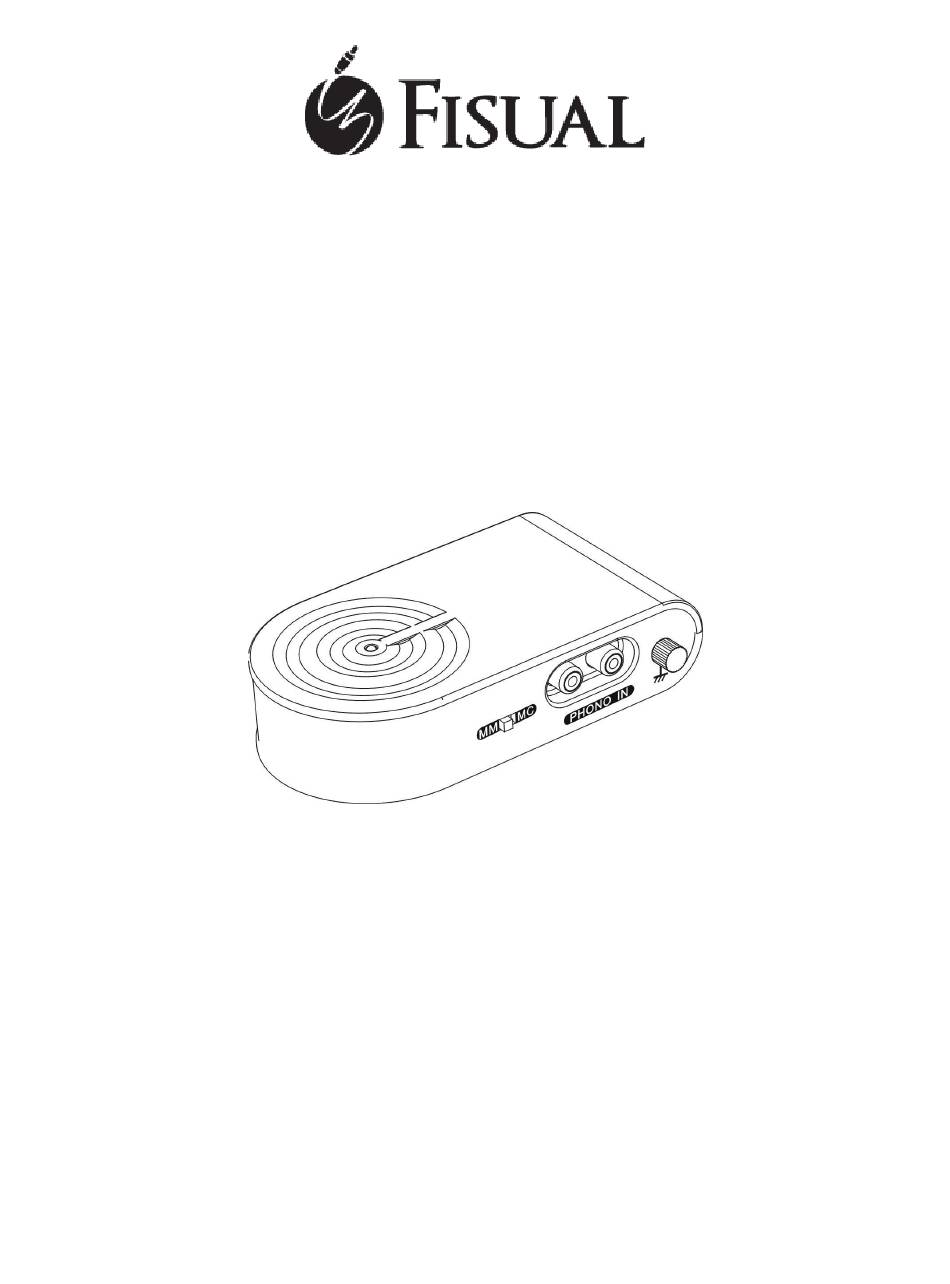

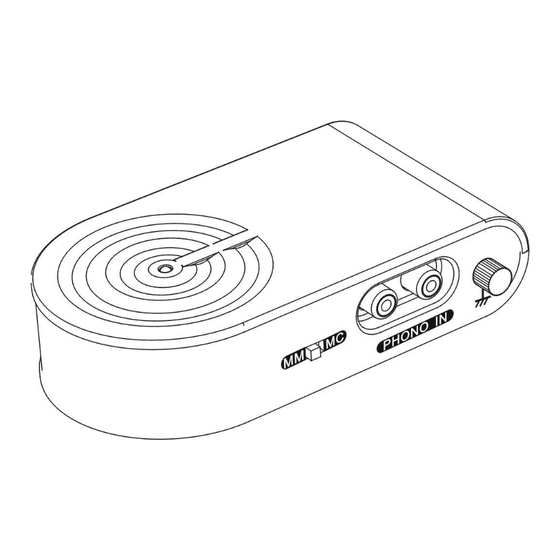

Fisual UPA-1000 USB Phono Pre-Amplifier
Thank you for purchasing the UPA-1000 phono pre-amplifier, before use we recommend you
read the following instructions and retain them for future reference. The UPA-1000 is designed to
allow you to playback and record your vinyl collection from the phono output on your turntable to
your PC or Mac via USB or to your hi-fi via line level analogue audio. On top of this it can also act
as an analogue input for your PC, allowing you to capture audio from any device with a 3.5mm or
RCA output.
Features
● RIAA pre a mplifier circuit for phono input.
● Powered via USB.
● Switchable between USB phono pre-amp and line-input
● MM/MC selection for different phonograph cartridges.
● Compatible with audio sampling rates upto 48KHz for 2 channes recording.
● Suitable for Windows 2000 / XP / Vista / 7 / 8 and Mac OSX with no additional drivers.
System Requirements
● Turntable with MM / MC level phono output
● Windows 2000 / XP / Vista / 7 / 8 / Mac OSX
● USB port with 500mA power capacity
Advertisement
Table of Contents
Summary of Contents for Fisual UPA-1000
- Page 1 Thank you for purchasing the UPA-1000 phono pre-amplifier, before use we recommend you read the following instructions and retain them for future reference. The UPA-1000 is designed to allow you to playback and record your vinyl collection from the phono output on your turntable to your PC or Mac via USB or to your hi-fi via line level analogue audio.
- Page 2 1. If your turntable is does not have a cable, connect the supplied RCA audio cable from the output of your turntable to the Phono In connection on the UPA-1000. 2. Toggle the MM/MC switch on the unit to the correct setting for your phono cartridge.
- Page 3 1. If your turntable is does not have a cable, connect the supplied RCA audio cable from the output of your turntable to the Phono In connection on the UPA-1000. 2. Toggle the MM/MC switch on the unit to the correct setting for your phono cartridge.
- Page 4 Usage (PC Capture / Line-in) 1. Connect a source device (eg. CD Player / Tape etc) using a suitable cable to the Line In/Pre-Amp Out port on the UPA-1000. 2. Toggle the switch on the unit to select Line-in. 3. Connect the supplied USB cable from the pre-amp to an available input on the PC / laptop.
- Page 5 ● Check MM / MC switch has been set appropriately for your cartridge type. ● Check the switch on the unit is set to select Pre-Amp Out. Hum on audio ● Ensure the grounding points on the UPA-1000 and turntable are connected.
